/Products/Pumps/Seals/PS-300V U.S. Seal Mfg 5/8" Pump Seal
Click Image to Expand

Product ID: PS-300V

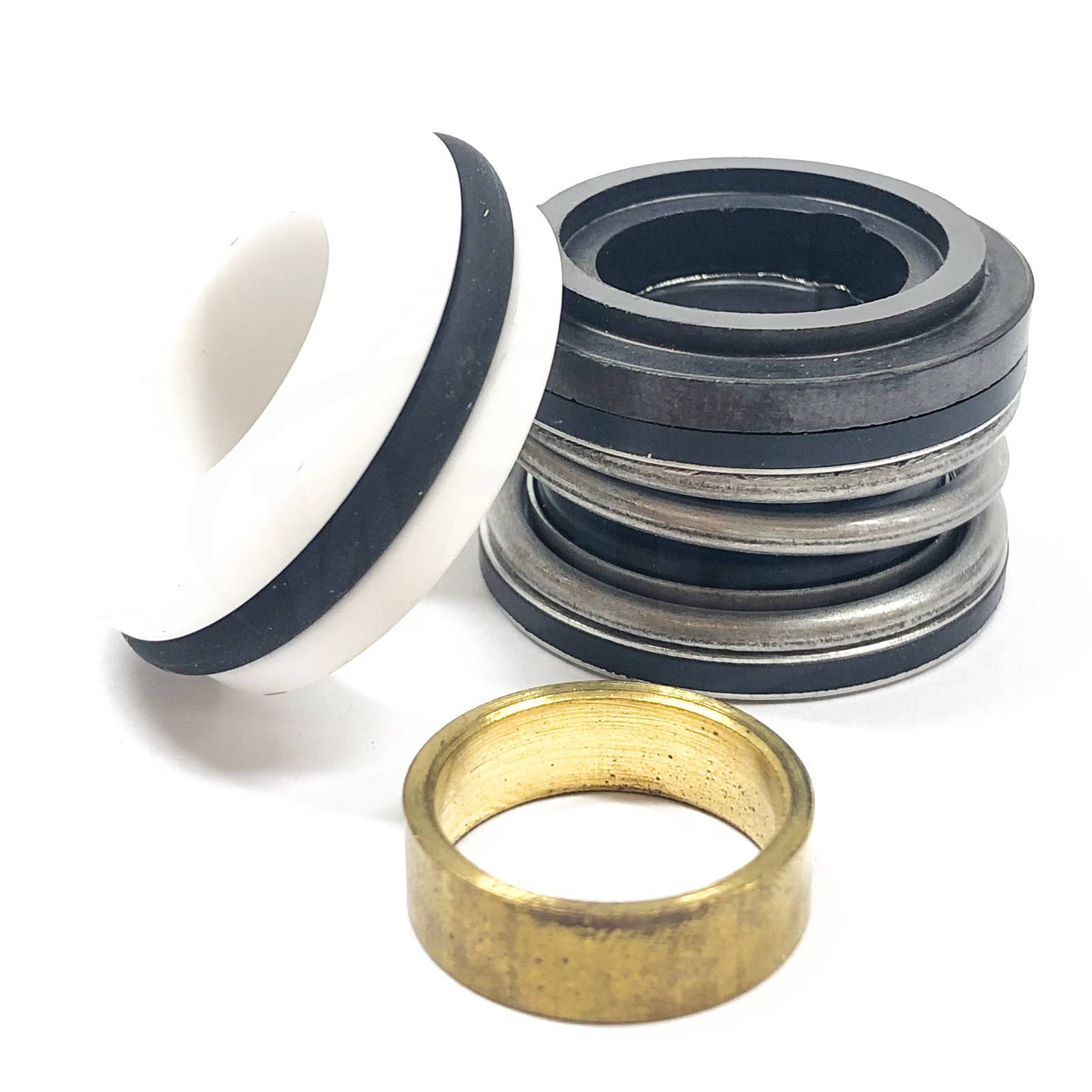

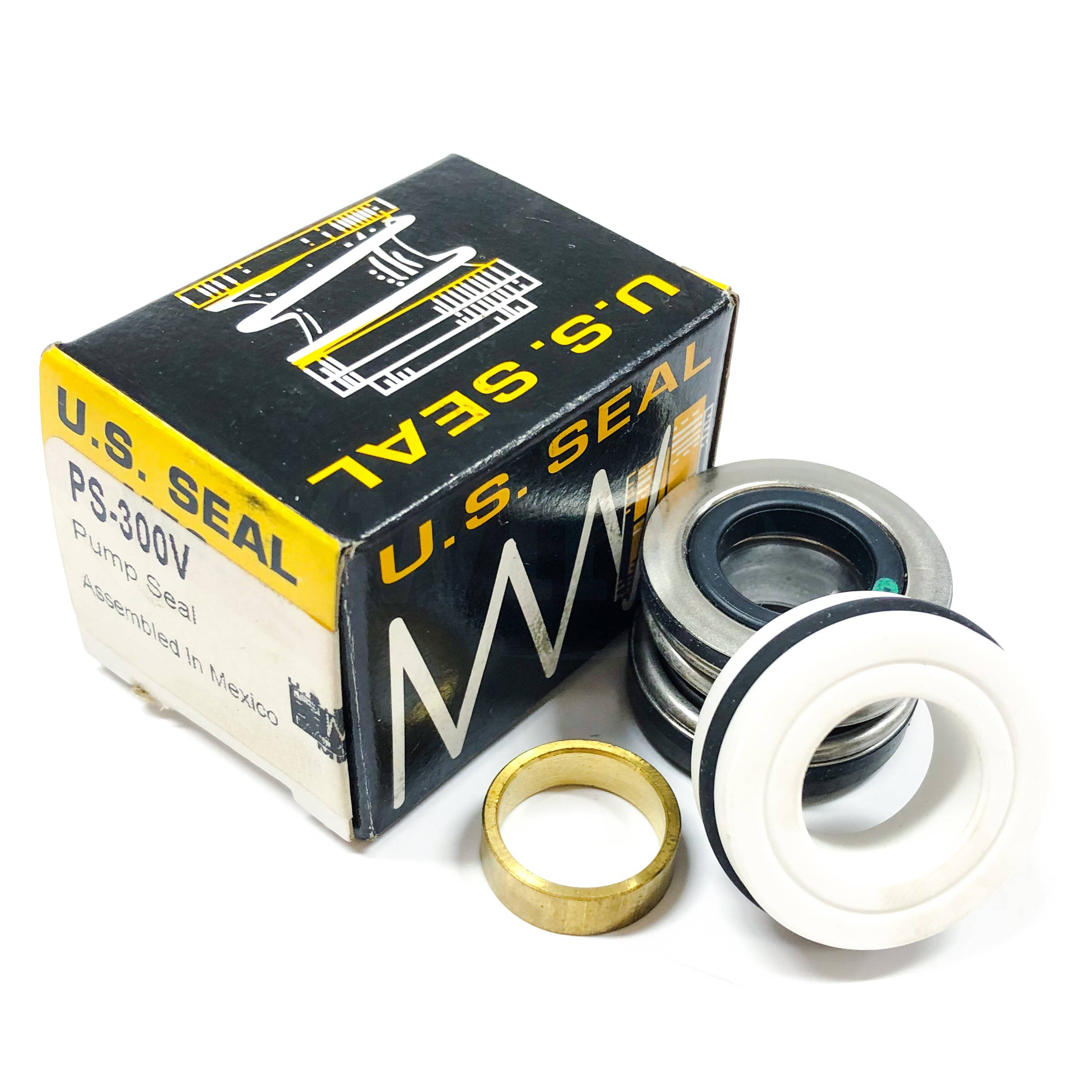

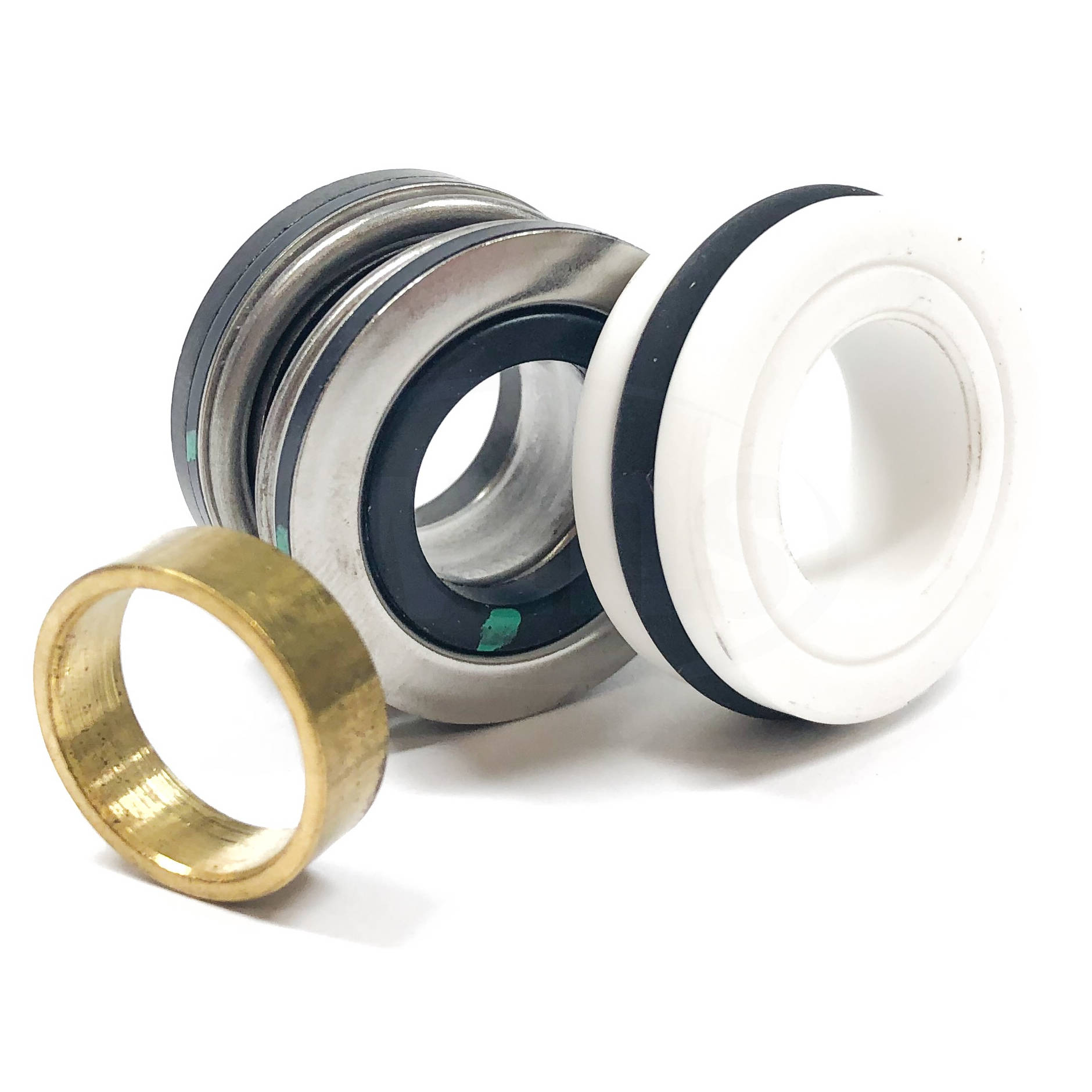

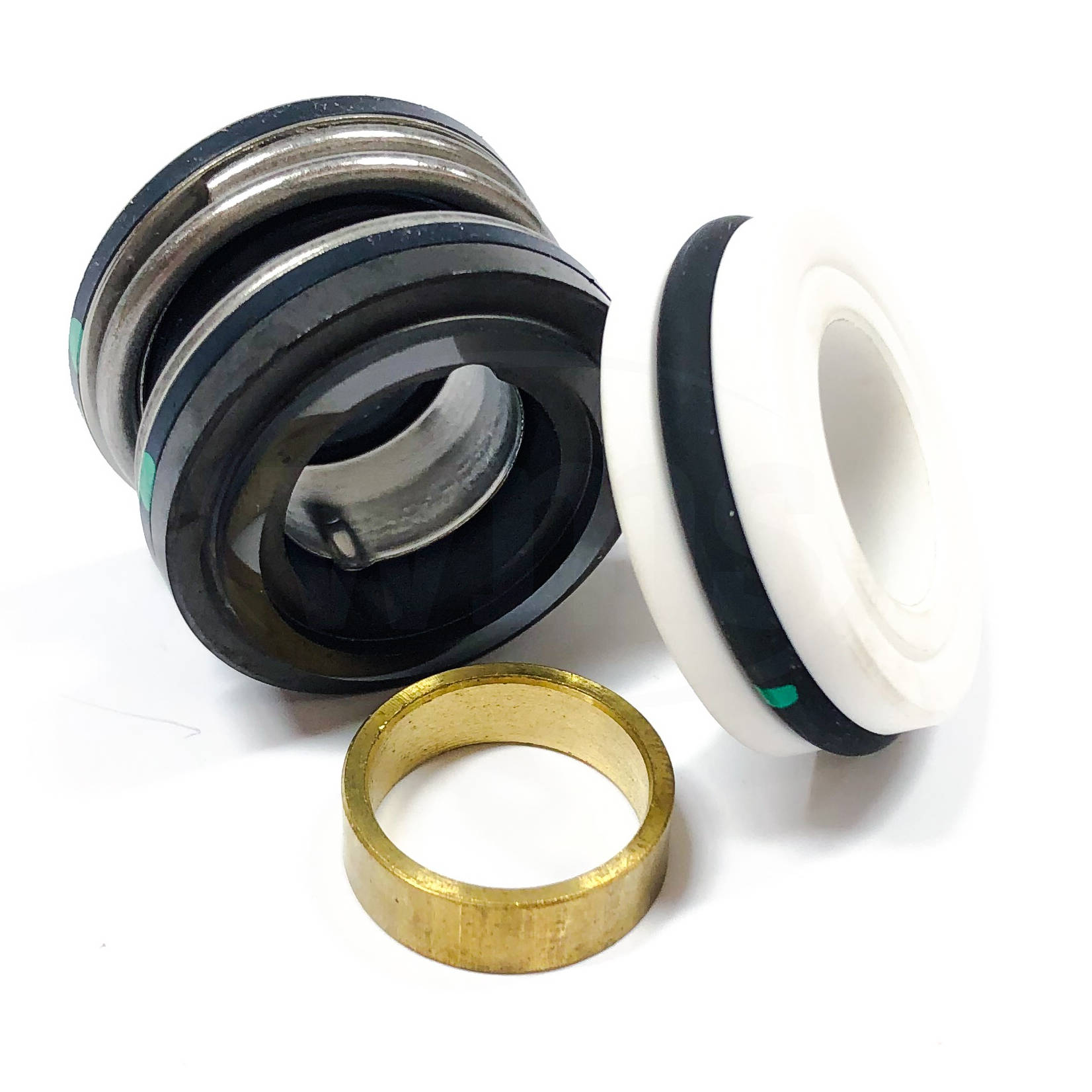

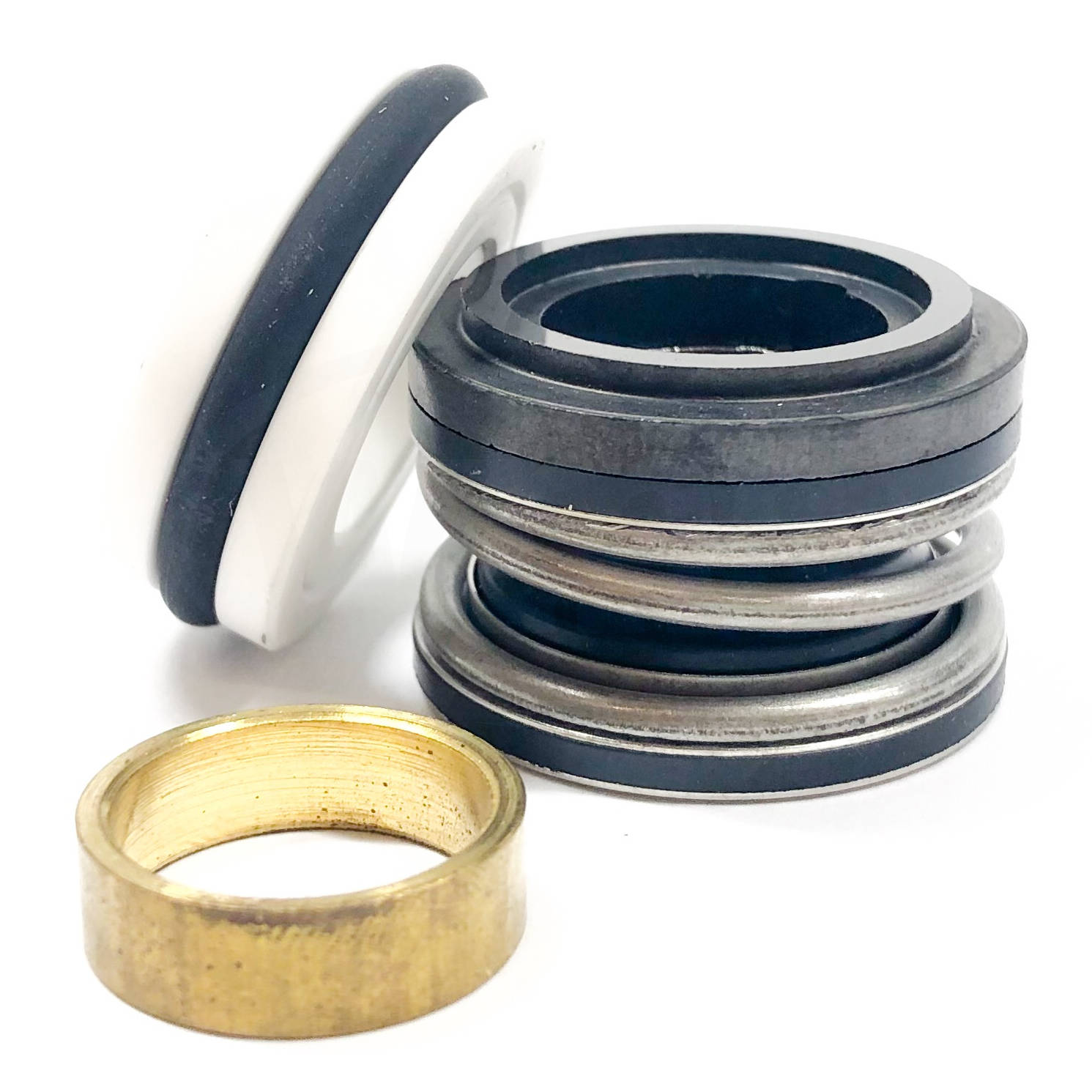

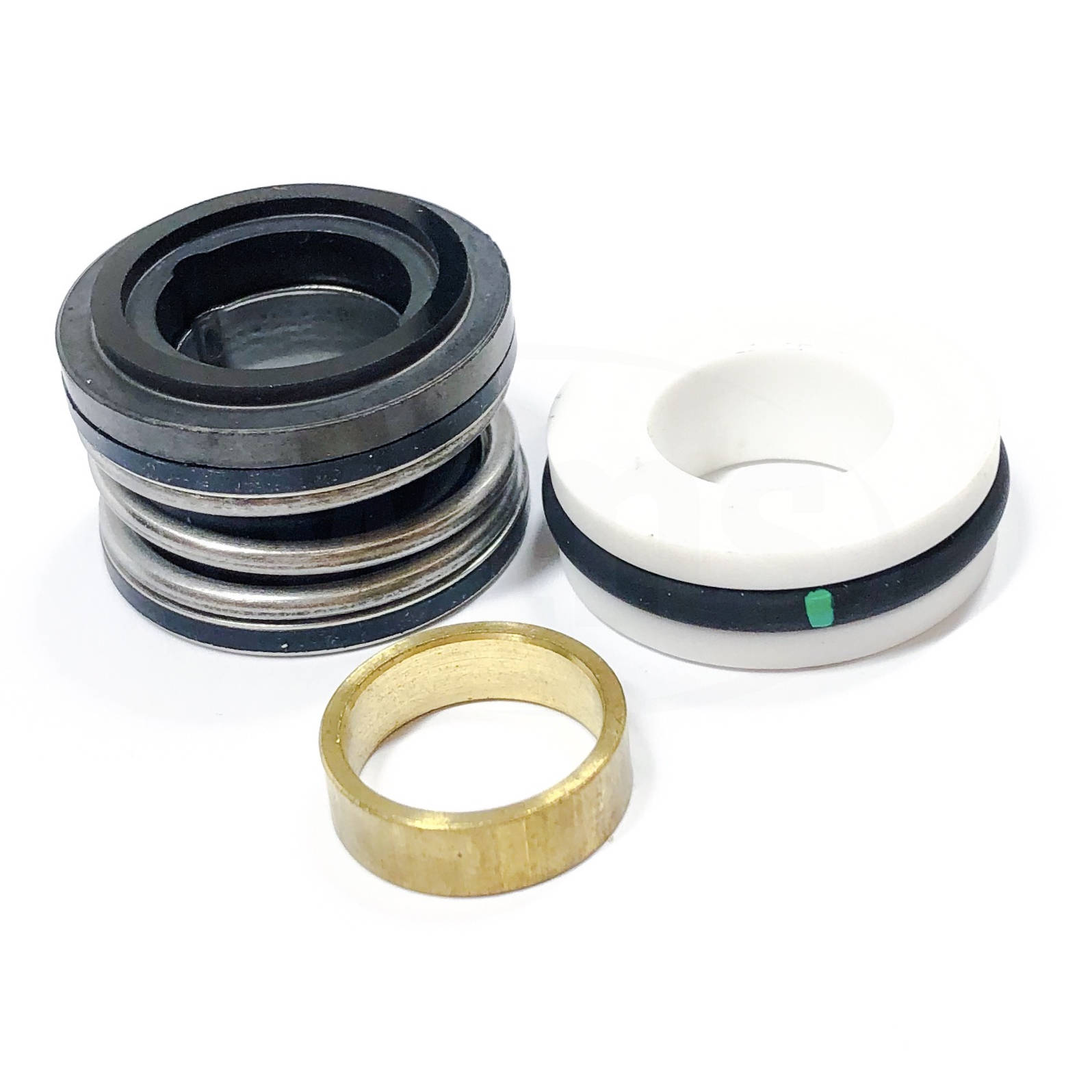

PS-300V U.S. Seal Mfg 5/8" Pump Seal

MFG: U.S. Seal
MFG Part Number: PS-300V

Available Stock: 5
Selected accessories will also be added to cart
$31.23 / Each
Quantity:

Specifications

Seal Size 5/8"
0.625"
Head Figure A
Head Outside Diameter 1.218"
Head Operating Height 0.718"
Mating Ring Figure 3
Mating Ring Bore 1.250"
Mating Ring Thickness 0.406"
Material Code VCFKF
Viton Secondary Seals
Carbon Primary Rings
Stainless Steel Metal Parts
Ni-Resist Mating Rings
Stainless Steel Springs
Notes
UPC
Weight 0.25 lbs
Pressure Rating PSI
Temperature °F to °F
Country of Origin Mexico
U.S. Seal Mfg Cross Reference

Cross Reference

Manufacturer Pump Nameplate Data Mfg Part Number
