/Products/Pumps/Seals/PS-200V-CMS U.S. Seal 5/8" Pump Seal (Viton)
Click Image to Expand

Product ID: PS-200V-CMS

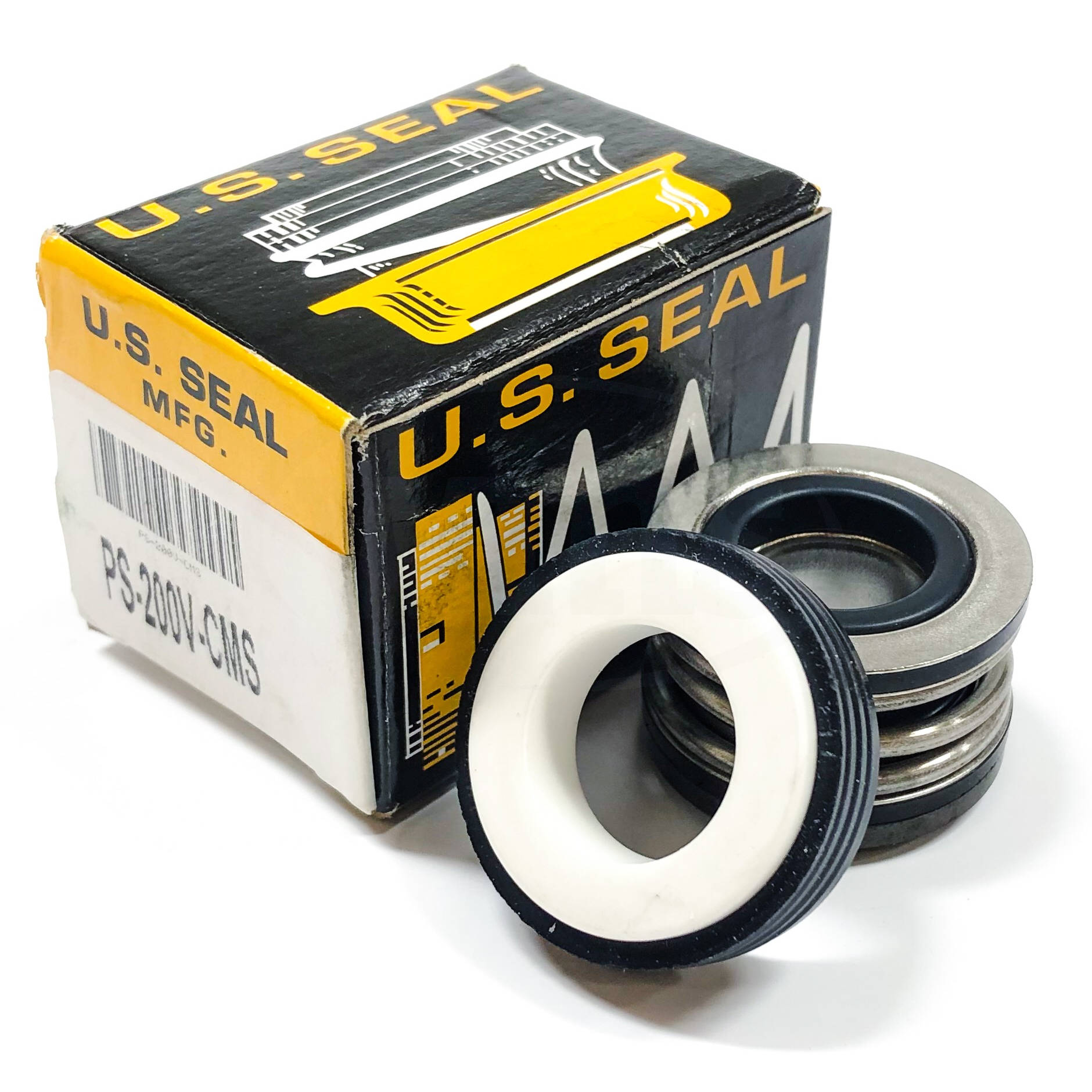

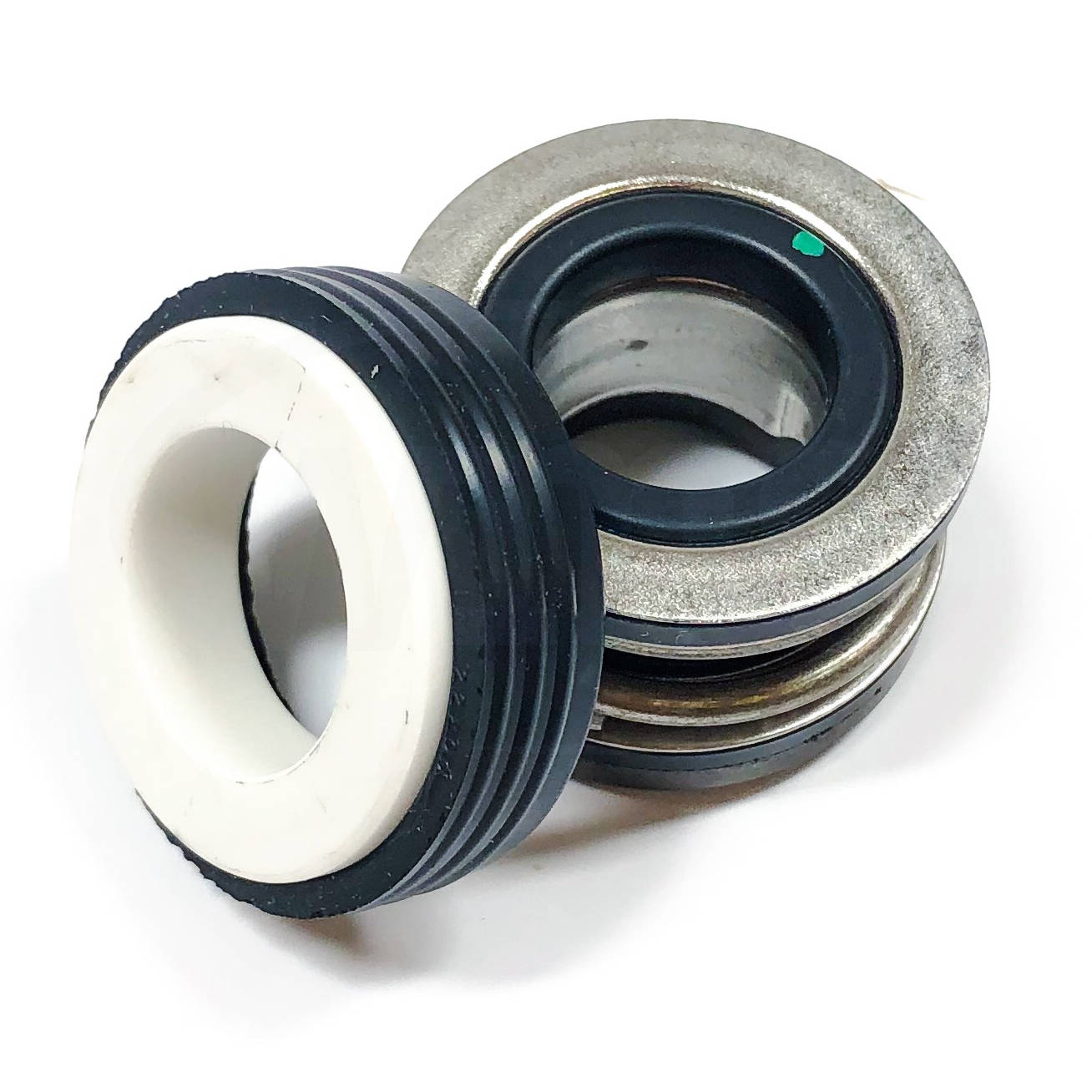

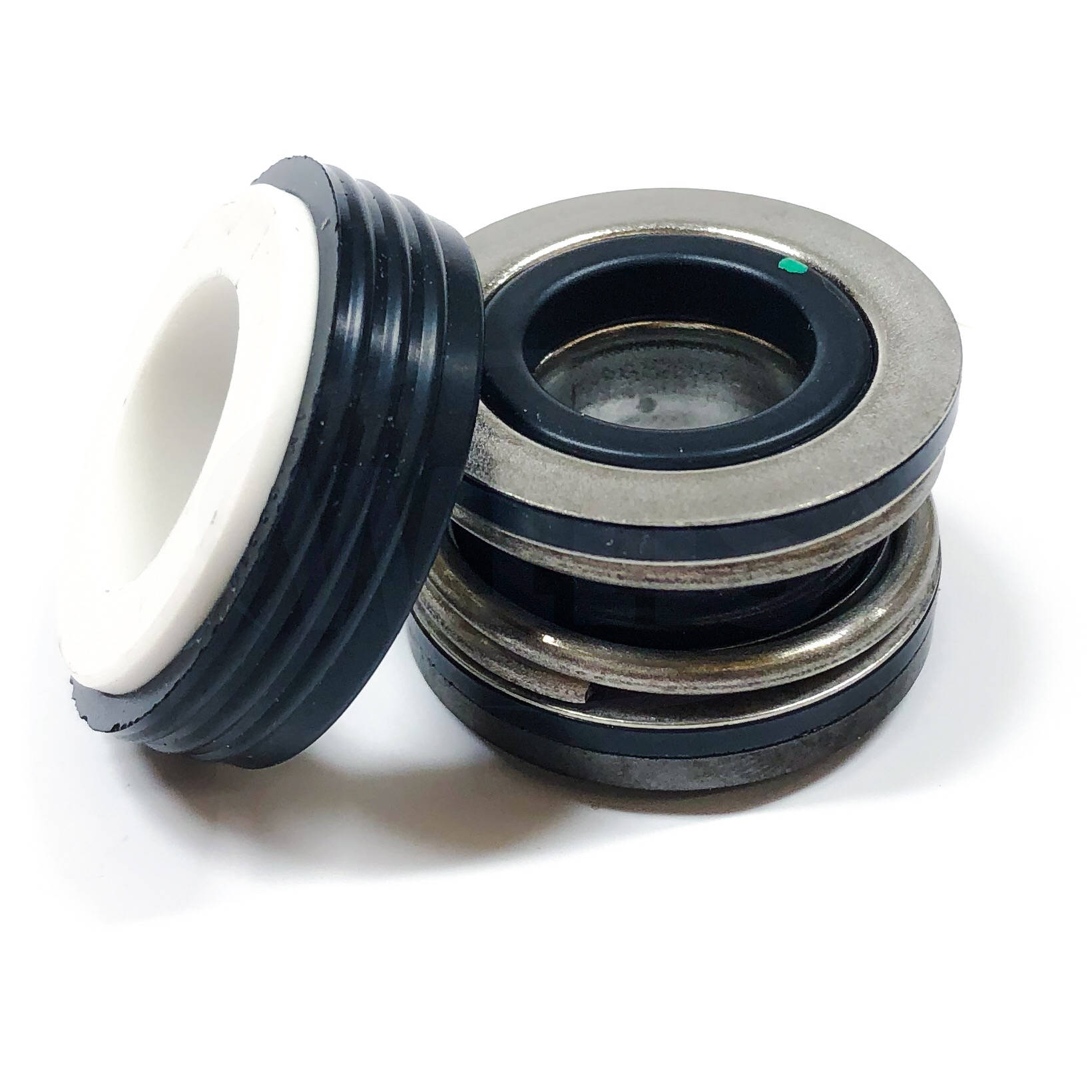

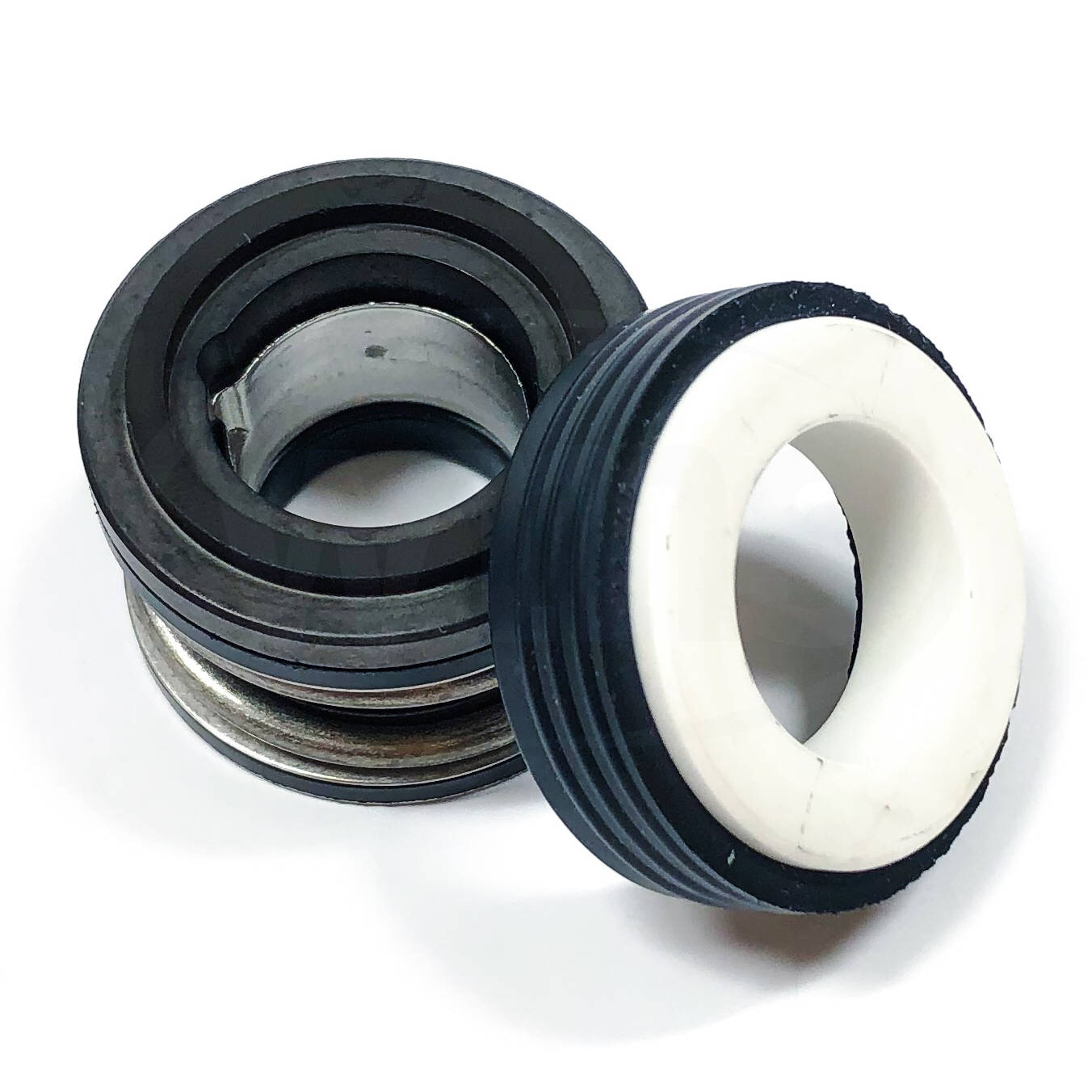

PS-200V-CMS U.S. Seal 5/8" Pump Seal (Viton)

MFG: U.S. Seal
MFG Part Number: PS-200V-CMS

Temporarily out of stock
Selected accessories will also be added to cart
$39.49 / Each

Specifications

Seal Size 5/8"
0.625"
Head Figure A
Head Outside Diameter 1.218"
Head Operating Height 0.718"
Mating Ring Figure 1
Mating Ring Bore 1.250"
Mating Ring Thickness 0.406"
Material Code VCFJF
Viton Secondary Seals
Carbon Primary Rings
Stainless Steel Metal Parts
Ceramic Mating Rings
Stainless Steel Springs
Notes
UPC
Weight 0.20 lbs
Pressure Rating PSI
Temperature °F to °F
Country of Origin Mexico
U.S. Seal Mfg Cross Reference

Cross Reference

Manufacturer Pump Nameplate Data Mfg Part Number
American Machine and Tool Company 1640-161-91
Carver Pump Company 091-062-02-2322
Crane-Deming 0040861
Delavan Pumps, Inc. 34943
Frankline Electric Company 240316, 106196106
Gecko Alliance, Inc. 92500152
Grundfos, Inc. 98833732
Hydromatic Pump Company 830101
Hypro Corporation 9203, 9401C, 9300CHM 2120-0009
Monarch Pumps ATH, AT600 240136
F.E. Myers 21181A044
Scot Pump 101.000.110B
Shippensburg Pump Co., Inc. SDPS-00067V
Sid Harvey Industries 0369
Sta-Rite Industries 21181A044
Toro Company 42088
Waterway Plastics EX2, Hi-Flo II, Supreme, Viper 319-3010B
Weber Industries, Inc. 70X103-M
