/Products/Pumps/Seals/PS-200 U.S. Seal Mfg 5/8" Pump Seal
Click Image to Expand

Product ID: PS-200

PS-200 U.S. Seal Mfg 5/8" Pump Seal

MFG: U.S. Seal
MFG Part Number: PS-200

Available Stock: 9
Selected accessories will also be added to cart
$11.85 / Each
Quantity:

Description

General Pool Applications
Industry Standard
  • Used for years by pool pump manufacturers

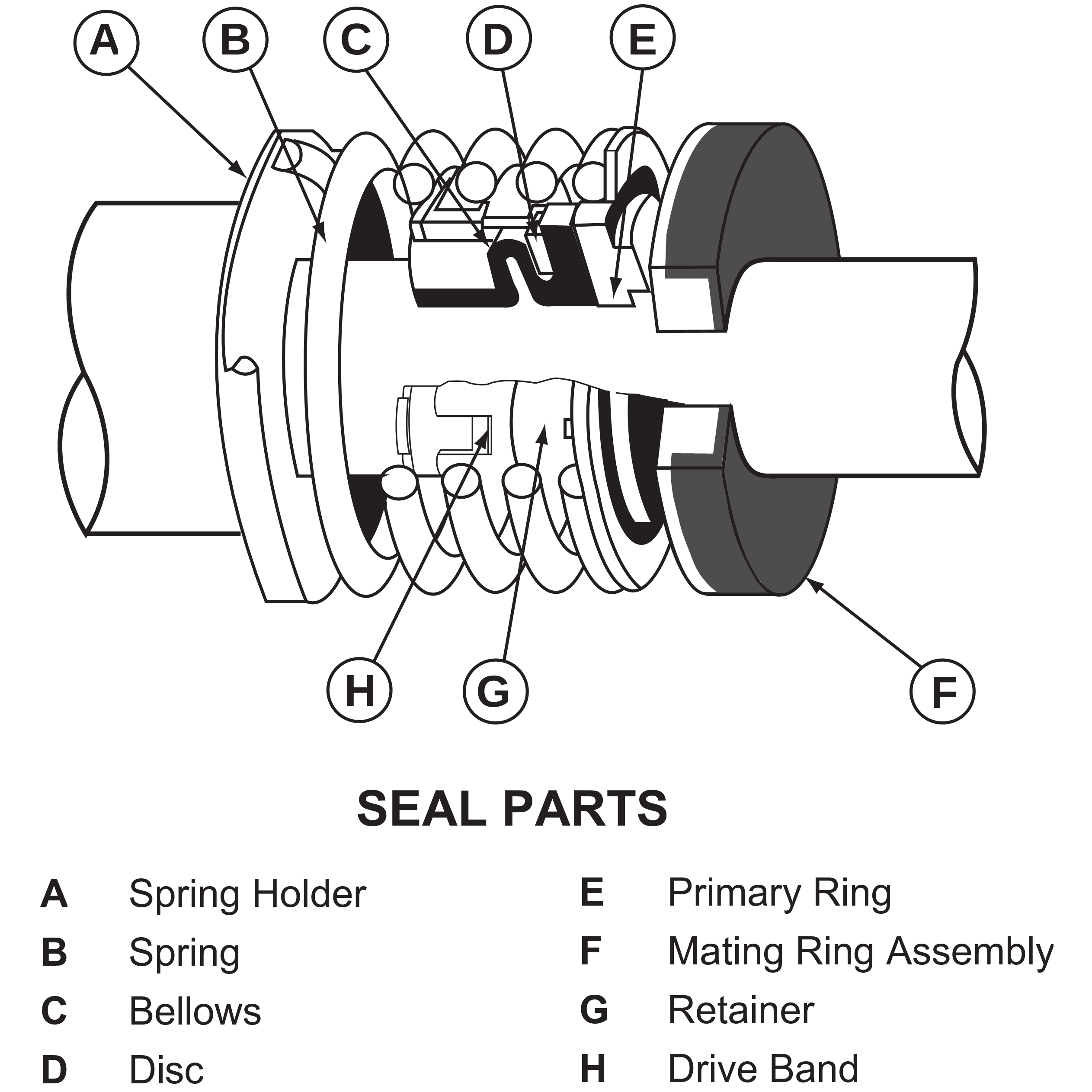

  • Materials of Construction: Buna Elastomers, Molded Plastic Primary Ring, Ceramic Seat, Stainless Steel Hardware
  • Proven Reliability in residential chlorine pools
  • Good For low temperatures

Specifications

Seal Size 5/8"

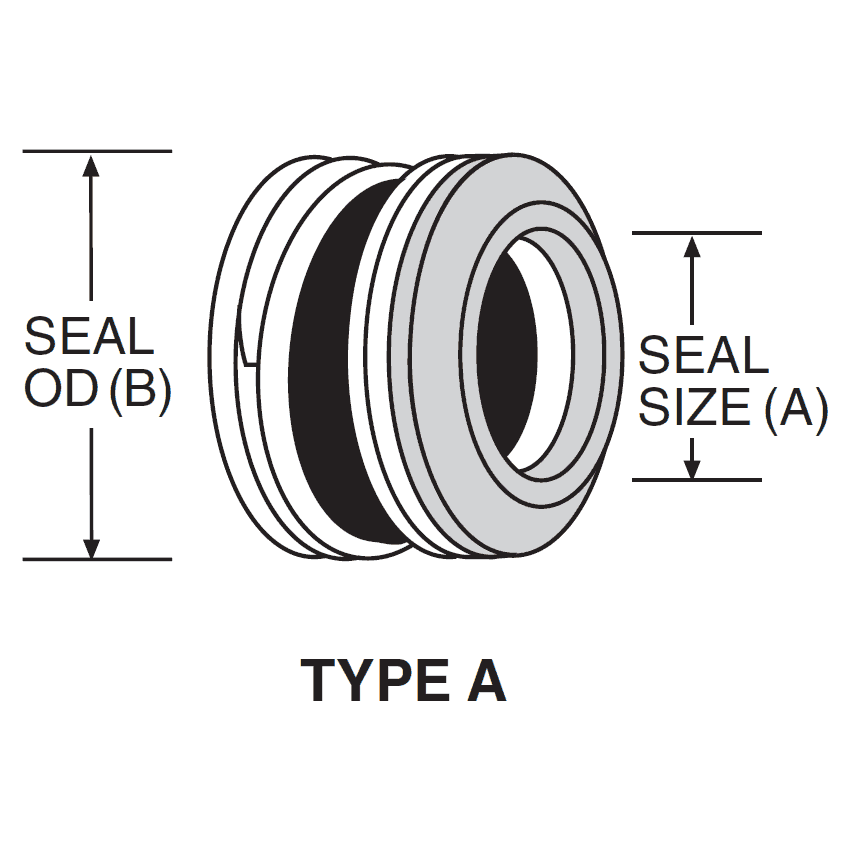

Head Figure A
Head Outside Diameter 1.218"
Head Operating Height 0.718"
Mating Ring Figure 1
Mating Ring Bore 1.25"
Mating Ring Thickness 0.406"
Material Code BMFJF
Buna Secondary Seals
Molded Plastic Primary Rings
Stainless Steel Metal Parts
Ceramic Mating Rings
Stainless Steel Springs
Notes
UPC 852661157087
Weight 0.12 lbs
Pressure Rating PSI
Temperature °F to 225°F
Country of Origin Mexico
U.S. Seal Manufacturer Part Number(s) PS-200 (General Service)
PS-3960 (Carbon Upgrade)
PS-3867 (Ozone / Salt Service)
PS-1901 (SCS Series)
VG-200 (Value Guard)
Pump Nameplate Data Cross Reference A-C PUMP C1, CR, DDH, DG, DGH, HH, HHS, R, RH, RHS, RS, WH
ARNESON PRODUCTS, INC. Pool Sweep
ASTRAL POOL Astramax
BERKELEY New Style Mid-Jet S4, HS, CIMPS, CIMPHS, CIXPS, CIXPRS, C1-1/4MPS, B1-1/2APKS, D1-1/2MPKS
CARVER PUMP CO. B20-1, B1-2-1-1/4
CRANE-DEMING Fig. 4910-63, 4357, 4358
FAIRBANKS MORSE H, HC, HV
GECKO ALLIANCE, INC. Circ-Master®, Dominator® High Head, Dominator® Medium Head, Flo-Master® Pond-Flo, Tub-Master®
HAYWARD INDUSTRIES, INC. Cast Iron
JACUZZI® Cygnet K,KM, Vector LVLA, J, JCM, LCM, LCU and LR Series
KENCO 139A New Style
PAC-FAB Challenger®, Dynamite, Dynamo®, Dynatron®, Pinnacle®
PEABODY-BARNES MFG. For Comet, Rocket Econo 25, 31, 33, 35, 48, 49, 50, 52, 102DM and 740DM
STA-RITE INDUSTRIES Dura-Glas®, Max-E-GlasTM Series PE, PEA, P2R and P2RA
WAYNE COMBUSTION SYSTEMS Series SJ-CJX
WORTHINGTON 1-1/40CS-5, 1-1/4OM-5
Cross Reference A-C PUMP 52-104-969-803, 52-104-969-813, 52-104-969-823
AERMOTOR PUMPS SJ-45
AMERICAN MACHINE AND TOOL CO. (AMT) MS-626V
ARNESON PRODUCTS, INC. A-8
ASTRAL POOL Series 1800
BAKER-HYDRO 35B1178
BELL & GOSSETT 180013
BERKELEY S08019, S20790
BURKS® PUMPS 17038
CARTER PUMPS, INC. 1S-5005A, 1S-5054
C-B TOOL CO. 2661
CH&E MFG. CO. W105-7
CHAMPION INDUSTRIES 106467
CHICAGO PUMP 2658090
CRANE PUMPS & SYSTEMS 0000015
DEMPSTER INDUSTRIES, LLC 907-06030
DOMESTIC PUMP 180013
DOUGHBOY INDUSTRIES 306-1006
DRESSER INDUSTRIES 125.101/113-1
EVERITE 2544
FAIRBANKS MORSE 82723, 82470-75
FRANKLIN ELECTRIC CO., INC. 1000206, 106196105
FRANKLIN PUMP SYSTEMS 10000206
GECKO ALLIANCE, INC. 92500150, 92500151
GORMAN-RUPP CO. S756, S1531, 12874-010
HAYWARD INDUSTRIES, INC. SPX1250XZ2C
HOMELITE CORP. 62729
HYDROMATIC PUMP CO. 00083000, 00083001, 14525A010
INGERSOLL-DRESSER PUMPS AND COMPRESSORS CPM-6252C1, CPM-6258C1
JACUZZI® 10-467, 10-0002-06, 10-1436-00
KNIGHT EQUIPMENT 9600745
LANCASTER PUMP CO. 2661
MONARCH PUMPS 240160
MYERS, F.E. 10840A1, A2, A3, 14525A000, 1425A010, 16275A
PAC-FAB 354545
PACIFIC PUMPING CO.SL-7101, SL-7741, K102-1, 91909744
PEABODY-BARNES MFG. 11397-12839, 12703
PEERLESS PUMP CO. 2658090
PENTAIR POOL PRODUCTS 353253S, 354545S
RICE 21-024
ROMAR FILTER 618-001
SCOT PUMP 101.000.340
SHERWOOD BRASS 10159
STA-RITE INDUSTRIES 17304-0100, 17304-0100S, 17038
STERLING FLUID SYSTEMS 96667758, 1181377 000
STEVENS PUMP CO. 16-062-03
TACO®, INC. 172-009, 172-017
TEEL PUMP 1R312, 5P405, 5P406
WAYNE COMBUSTION SYSTEMS 15559, 56104
WORTHINGTON 043008-00
