Supplier: TE Connectivity / P&B Brand
Part No: PRD-1AY0-24
RoHS: Yes
DC Coil Voltage: N/A
Family: PRD
Relay Construction: Non-Latching
Contact Material: Silver
Number of Terminals: N/A
AC Coil Voltage: 24 V
Coil Current: 410 mA
Seal: Unsealed
Termination Style: Screw Terminal
Coil Resistance: 12 Ohm
Contact Arrangement: SPST-NO
Maximum Pick-Up Voltage: 20.4 VAC
Product Weight: 284 g
Minimum Dropout Voltage: 2.4 VAC
Mounting: N/A
Contact Form: 1 Form A
Operating Temperature: -55 to 45 C
Package Type: Dust Cover
Maximum AC Switching Voltage: 277 V
Operate Time: 40 ms
Coil Suppression Diode: No Push to Test
Button: No
Maximum DC Switching Voltage: N/A
Led Indicator: No

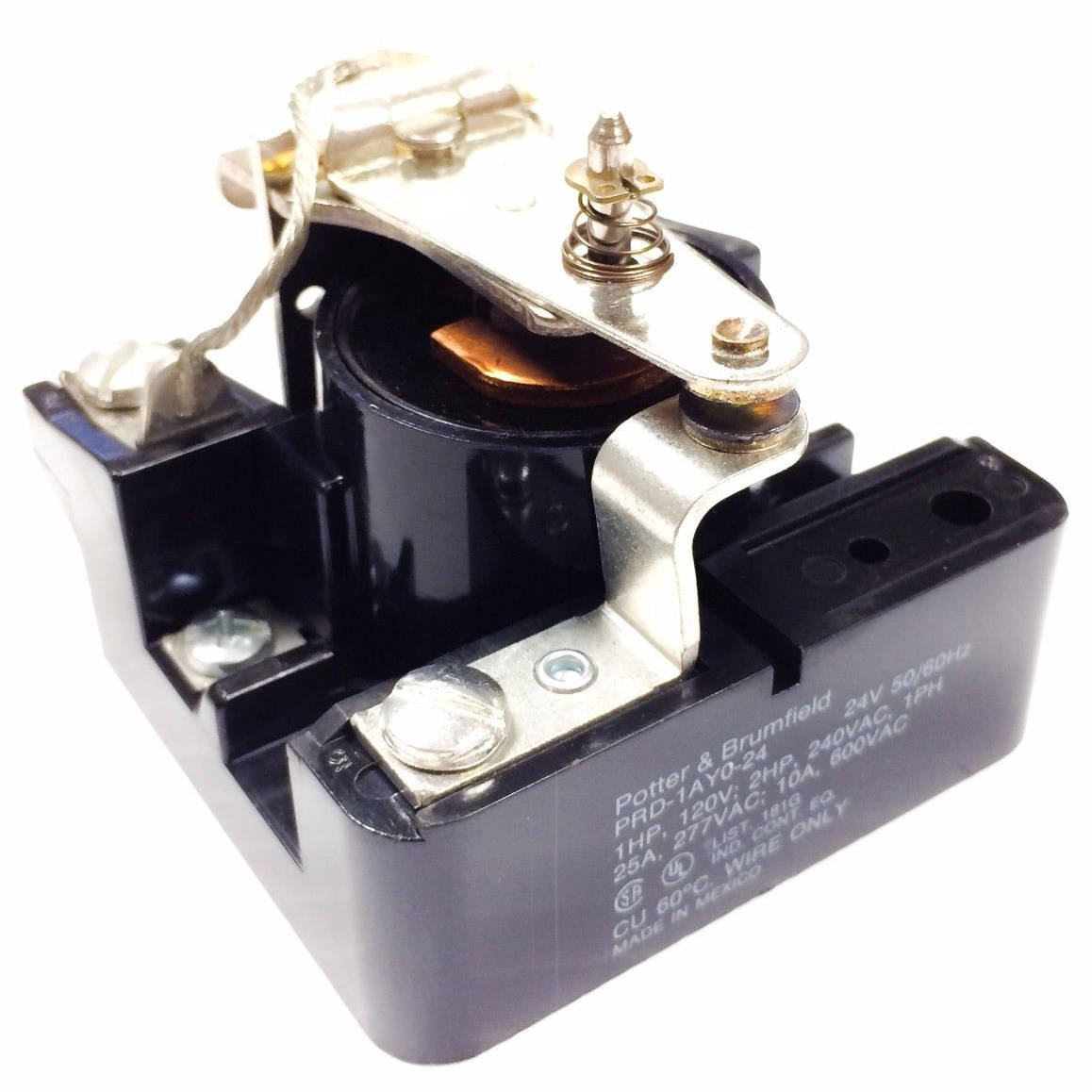

TE Connectivity / P&B Brand PRD-1AY0-24
Power Relays (20 Amps to 99.9 Amps)
