/Products/Surplus Industrial/Computer & PLC/PNL030AR1/E-46U-190524W3 Fuji Electric 30HP Eco-Pump Enclosed VFD, 460VAC
Click Image to Expand

Product ID: PNL030AR1/E-46U-190524W3

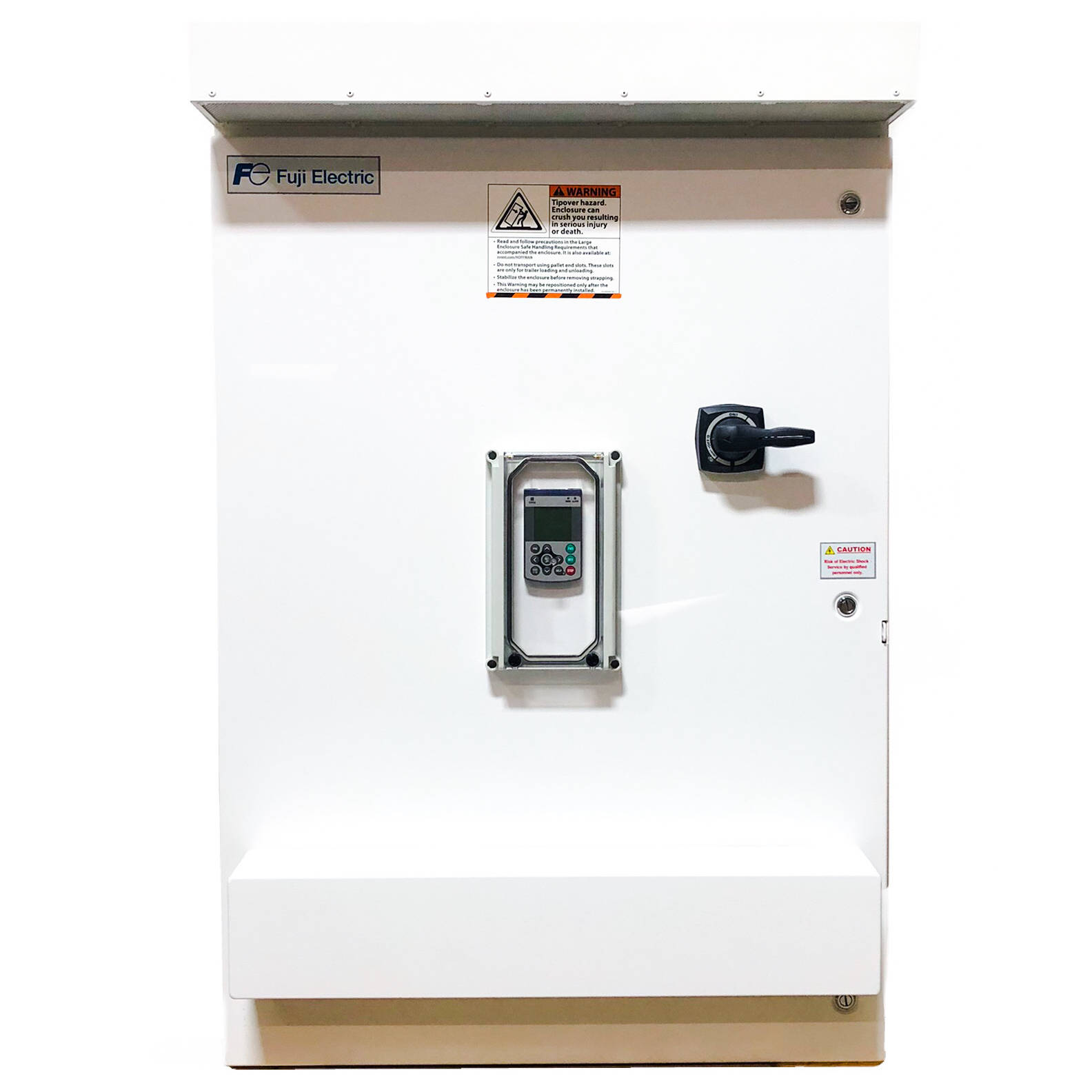

PNL030AR1/E-46U-190524W3 Fuji Electric 30HP Eco-Pump Enclosed VFD, 460VAC

MFG: Fuji Electric Corp. of America
MFG Part Number: PNL030AR1/E-46U-190524W3

Available Stock: 1
Selected accessories will also be added to cart
$6,999.97 / Each
Quantity:
NEMA 3R. FRN030AR1M-4U HVAC VFD and OPC-PRT2 Option Card
Fuji Electric

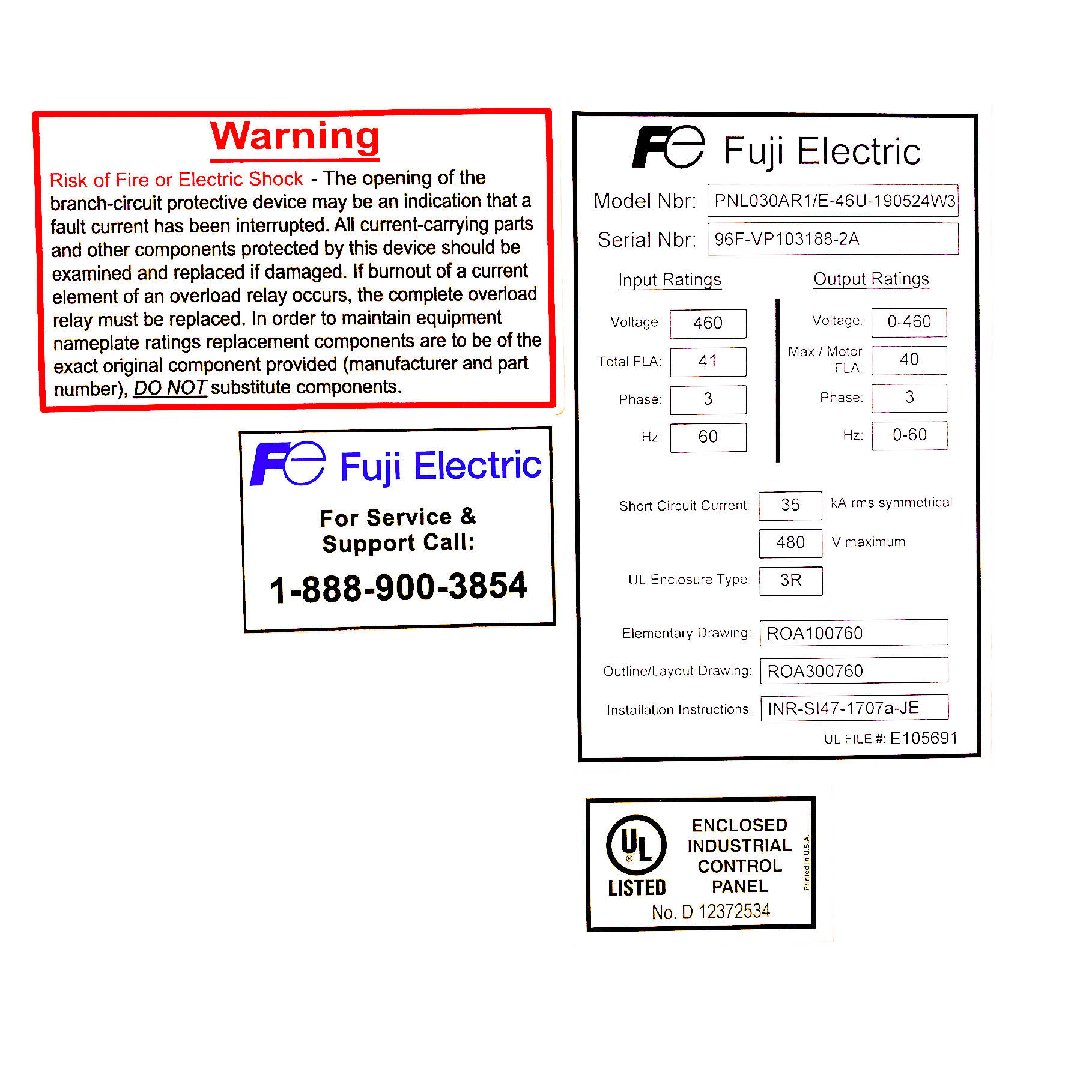

Model: PNL030AR1/E-46U-190524W3
Serial Number: 96F-VP103188-2A
Input: 460VAC 41 FLA, 3 Phase 60Hz
Output: 0-460VAC 40 FLA, 3 Phase 0-60Hz
Short Circuit Current: 35 kA rms symmetrical, 480V max
UL Enclosure: 3R
Elementary Drawing: ROA100760
Online/Layout Drawing: ROA300760
Installation Instructions: INR-SI47-1707a-JE

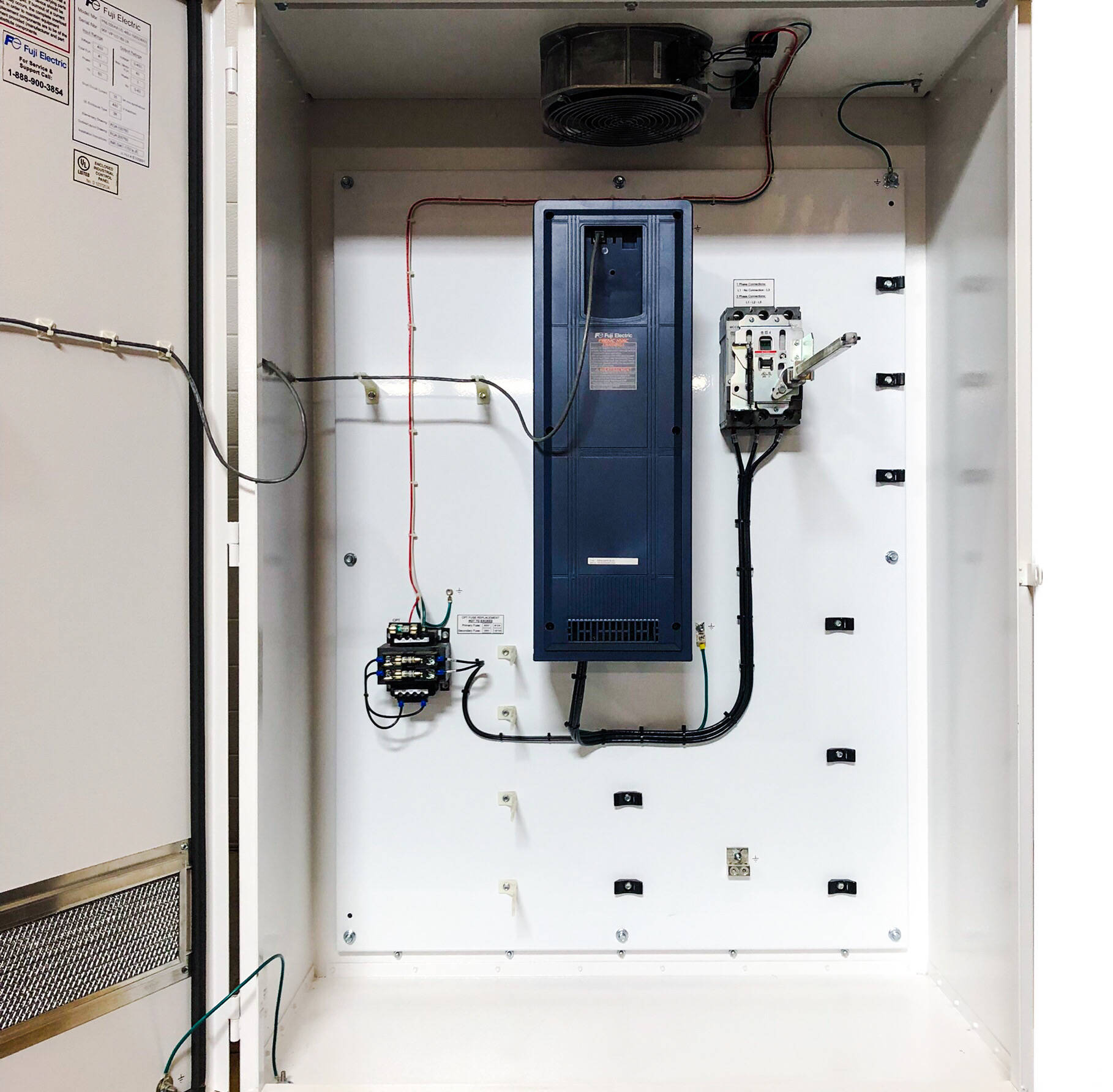

VFD:
FRN030AR1M-4U FRENIC-HVAC
Source: 3 Phase 380-480VAC 50/60Hz 35.8 Amps
Output: 3 Phase 380-480VAC 0.1-120Hz 30HP 45 Amps 110% 1min
IP21 / UL Type 1 / NEMA 1
Serial Number T87A533A0012NJ

480VAC to 120VAC transformer for temperature controlled fan
Fan: A200A1-ACT-00 115VAC 50/60Hz 70/85W 2550/2820RPM

MCCB UTS150H Circuit Breaker
