Product ID: PESWS-9V24AX-RM28

PESWS-9V24AX-RM28 WEG Enclosed Motor Starter

MFG: WEG Electric Corporation
MFG Part Number: PESWS-9V24AX-RM28

Selected accessories will also be added to cart
$75.95 / Each
Quantity:
Single Phase, NEMA 4X, 1HP@230V, 208-240V Coil, 5.6-8A Range, Start/Stop + Reset Pushbutton, 10186936

Specifications

Manufacturer WEG
Part Number(s) PESWS-9V24AX-RM28
Series PESWS
Non-Combination, Across the Line Starter
Rating 9 Amps
Coil Voltage 180-208V 50Hz
208-240V 60Hz
Control Devices Start/Stop + Reset Pushbutton
Enclosure Type NEMA Type 4X, Plastic
Setting Range 5.6 - 8 Amps
Poles 2
Max UL Horsepower 1/3HP@115V
1HP@230V
Reversing No

Description

WEG enclosed starters series were designed to meet the requirements and flexibility frequently demanded in industrial applications. Featuring components that meet IEC design standards and UL horsepower ratings, WEG enclosed starters are UL508A approved and cULus certified.

WEG offers non-reversing and non-combination magnetic starters up to 75HP at 460Vac (105A). Featuring components that meet IEC design standards and UL horsepower ratings, incorporating WEG contactors and overload relays, the magnetic starters are ideal to protect and operate motors, ensuring smooth operation year-after year.

Ready to use Enclosed Full Voltage magnetic starters are the most commonly used devices to switch AC motor loads.

WEG's non-reversing non-combination starter consist of a contactor and a bimetallic overload relay assembled together inside a NEMA type 1 enclosure. Two optional pilot devices are available factory-mounted. Field Kit modifications are also available as accessories.

Main Characteristics and Features

  • High horsepower ratings in four compact sizes
  • Fast acceleration and high initial torque
  • Bimetallic Overload Relays – class 10
  • Adjustable trip current
  • Ambient temperature compensated
  • Phase-loss sensitivity protection
  • Selectable Manual or Automatic RESET
  • Electrically isolated NO-NC auxiliary contacts
  • Easy to install and setup

Applications

  • Pumps
  • Kneading and mixing machines
  • Cutting and sawing machines
  • Material handling equipment
  • Blowers
  • Cranes
  • Machining tools
  • Agitators
  • Pressing machines

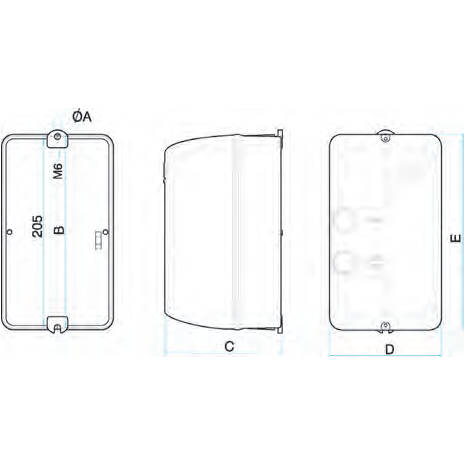

Dimensions

Box Size 04
øA 4.5mm
0.2"
B 180mm
7.1"
C 111mm
4.4"
D 105mm
4.1"
E 185mm
7.3"
Provision for Cable Gland Fitting Top: 2 x 1/2"
Bottom: 2 x 1/2"
Back: ø18mm (0.7in)
