Product ID: PESW-B18D39AX-R67

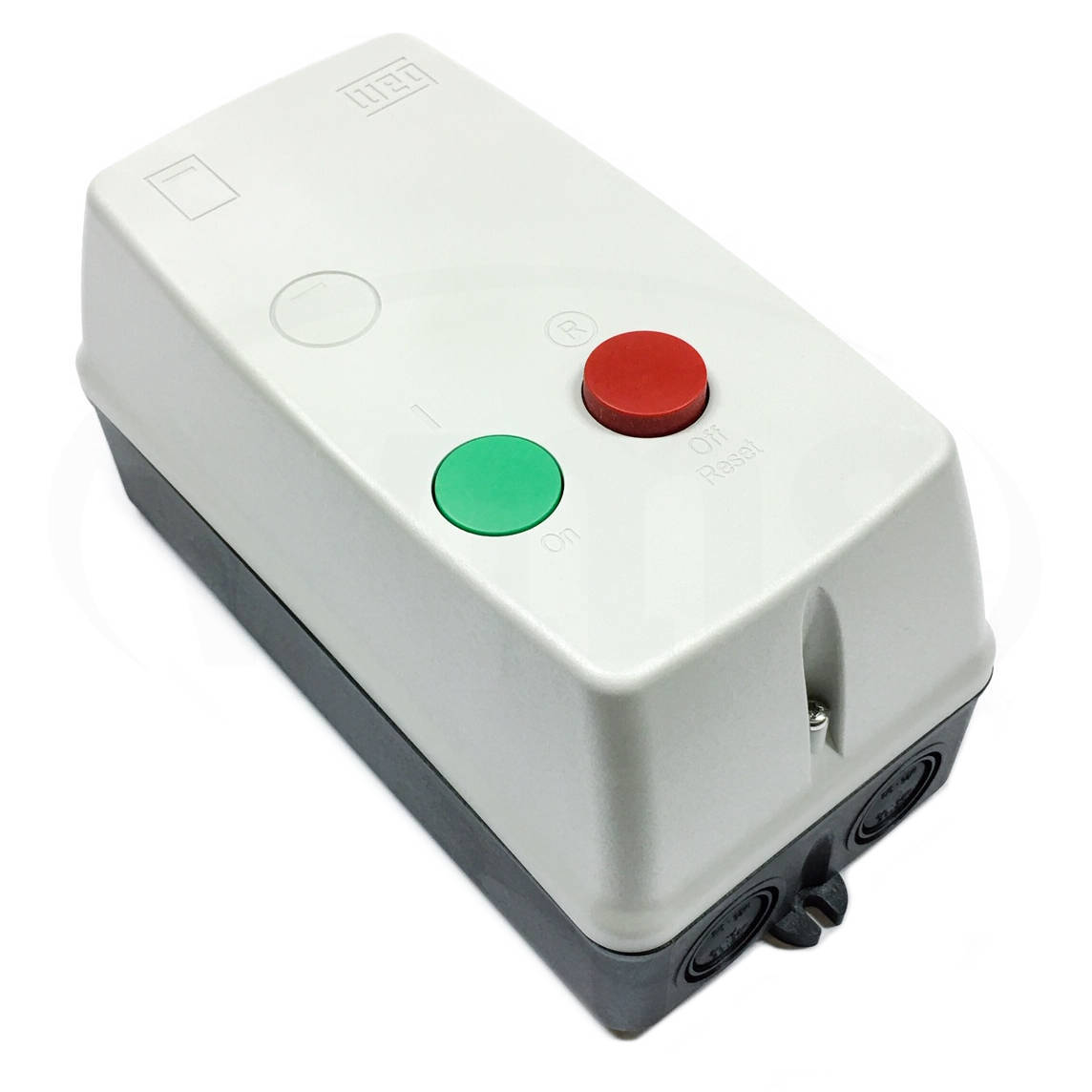

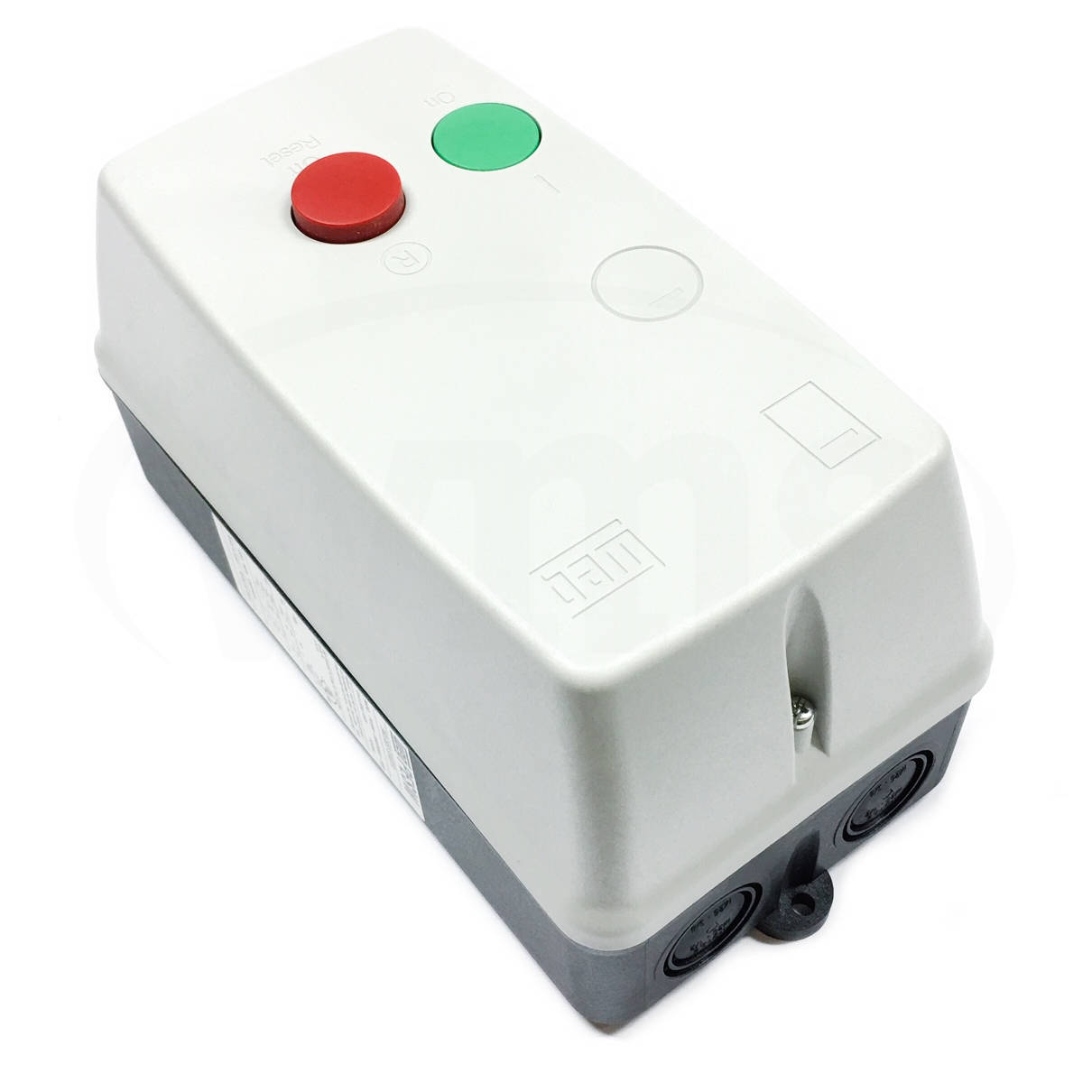

PESW-B18D39AX-R67 WEG Enclosed Across the Line Starter, 15-23 Amps

MFG: WEG Electric Corporation
MFG Part Number: PESW-B18D39AX-R67

Selected accessories will also be added to cart

$118.09 / Each

Quantity:

3-Phase, Start/Stop + Reset Pushbutton, NEMA 4X Enclosure, 480VAC Coil, 13438805

Details
Purchase Components

Description

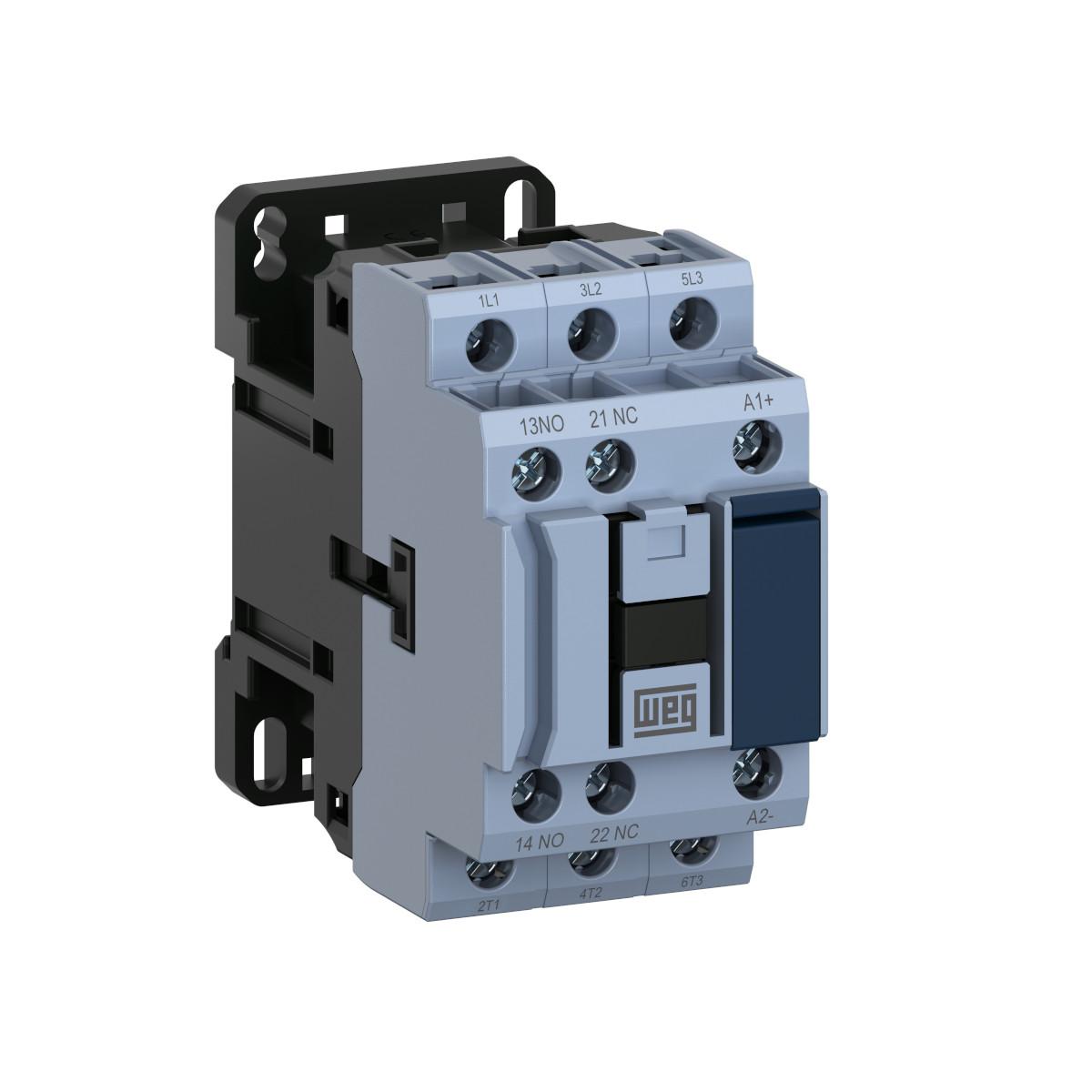

The PESW-B is WEG’s latest offering in a NEMA 4X Non Metallic Enclosure, Non-Reversing and Non-Combination Motor Starter. These starters feature components that meet IEC design standards and UL horsepower ratings while incorporating replaceable WEG CWB contactors and RW27-2D overload relays. These magnetic starters are ideal to protect and operate motors, ensuring smooth and reliable operation year after year.

Specifications

Manufacturer	WEG
Catalog Number	PESW-B18D39AX-R67 13438805
Enclosure	NEMA 4X Non-metallic
Coil Voltage	480VAC 50/60Hz
Overload Setting Range	15-23 Amps
Max UL Horsepower
Control	Start + Stop/Reset Buttons
Box
Poles	3-Pole (3-Phase)
Type	Non-Reversing Non-Combination Across the Line
UPC	7909322139852

Standard Features

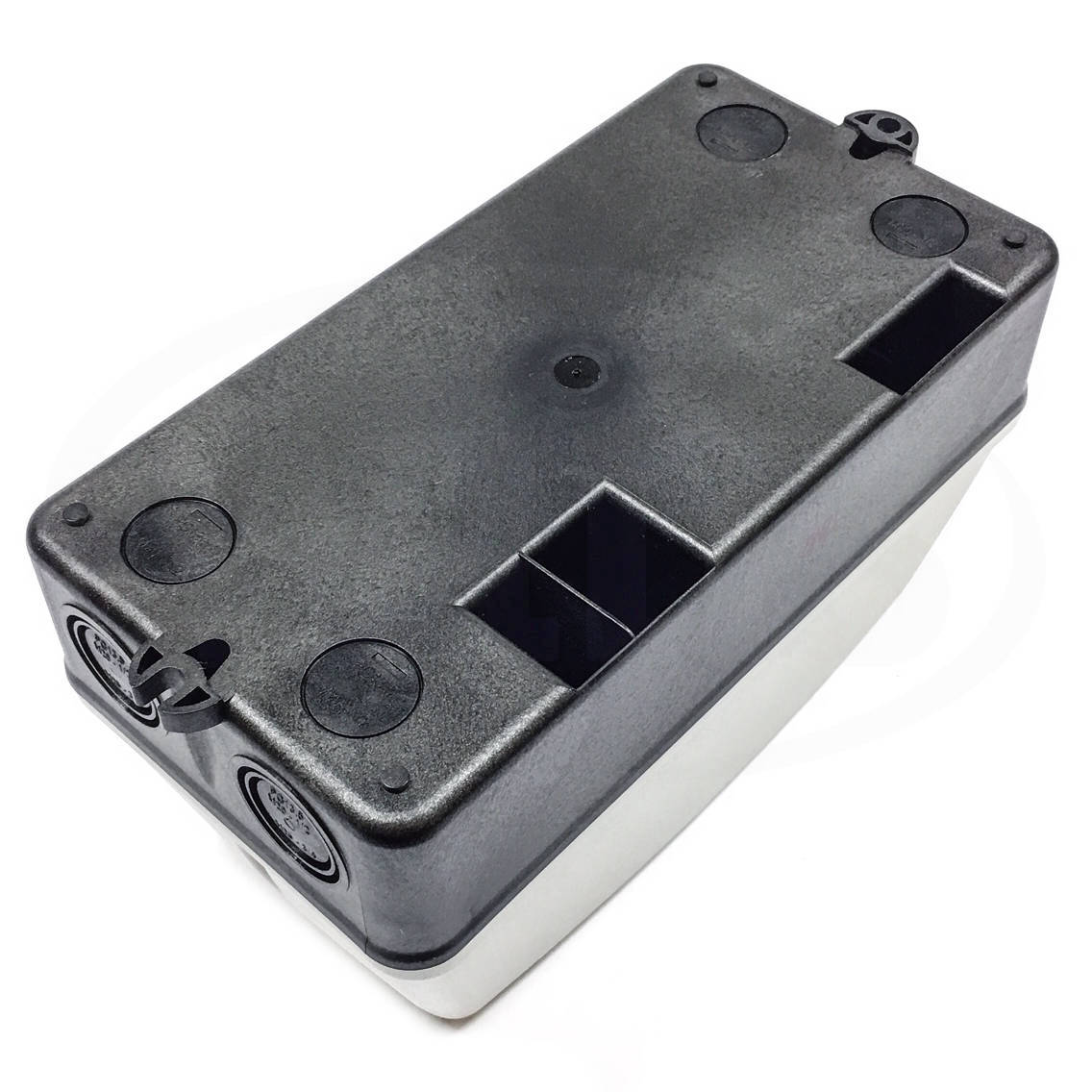

NEMA 4X Enclosure with Knockouts
Fast Motor Acceleration and High Initial Motor Torque
Bi-metallic Overload Relays – Class 10
Adjustable Trip Current
Selectable Manual or Automatic Reset
High Horsepower in Four Compact Sizes
Phase Loss Protection
Ambient Temperature Compensated
East to Setup and Install
c UL us

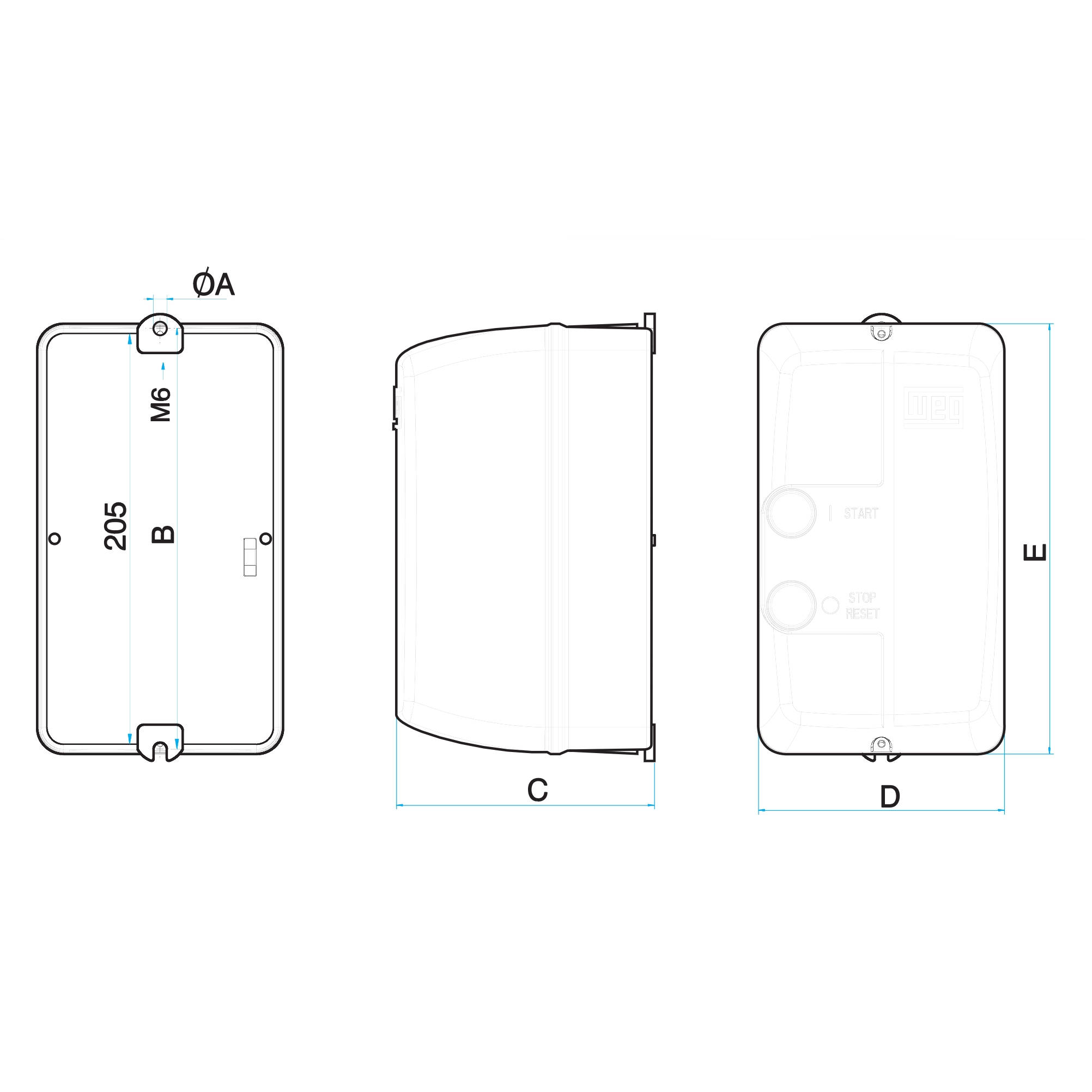

Dimensions

øA
B
C
D
E
Provision for Cable Gland Fitting

Manufacturer Info

Start Type	Direct Threephase Start
Rated operational voltage	Ue=Uc
Supply voltage	480V 50/60Hz
Starter key operation	A-On-Off Button
Degree of protection	TYPE4X

STARTERS COMPLEMENTS	Does Not Contain
NOMINAL RATED CURRENT (AC-3)	18A (B)
OVERLOAD RELAY	RW27-2D3-U023
MEASURING TOOL AND ACCESSORIES	Not Applicable
Connection Type	Not Applicable
