/Products/Electrical Components/WEG/Enclosed Motor Starters/Non-Metallic Type 4X 3-Ph (PESW-B)/PESW-B12V24AX-R64 WEG Enclosed Across the Line Starter, 8-12.5 Amps
Click Image to Expand

Product ID: PESW-B12V24AX-R64

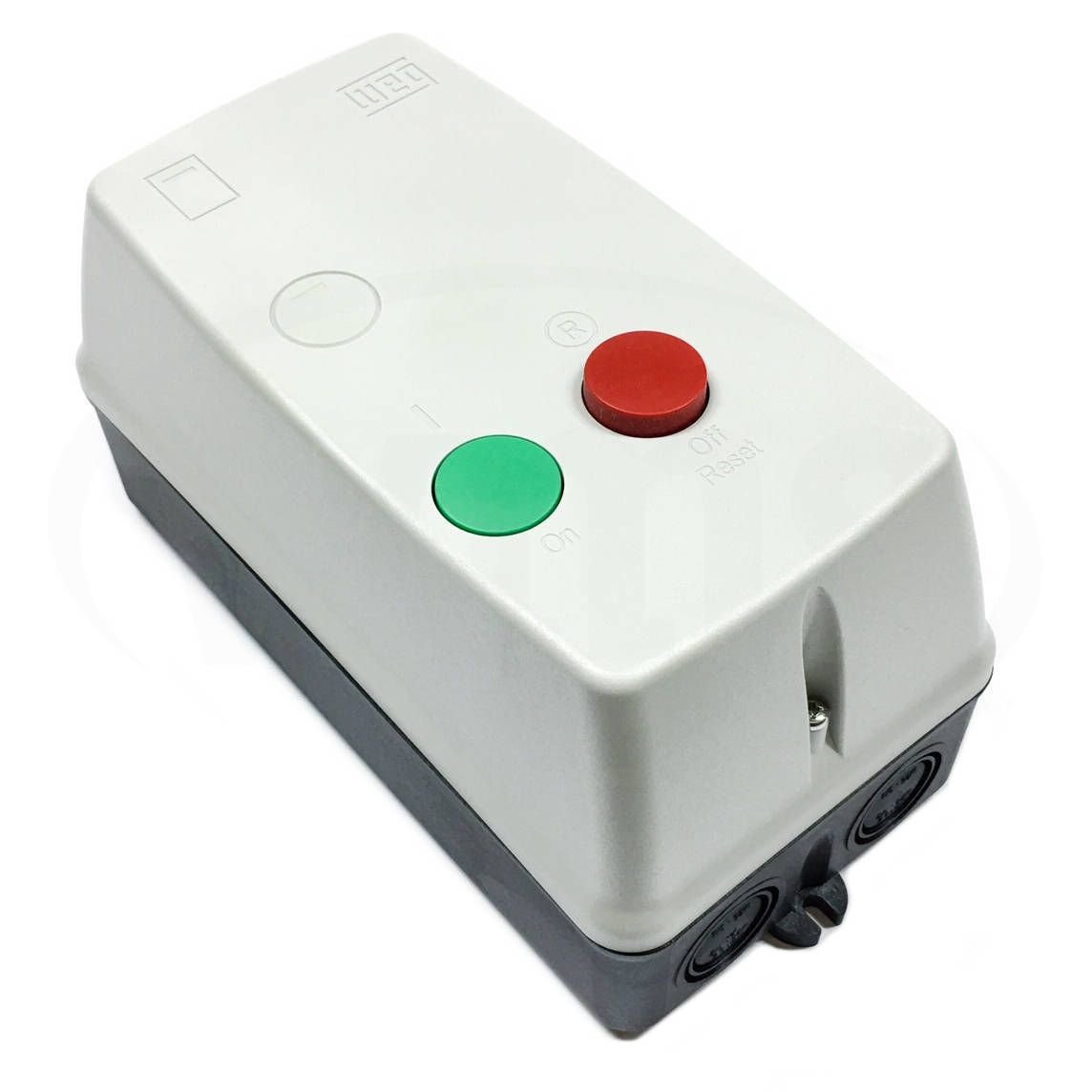

PESW-B12V24AX-R64 WEG Enclosed Across the Line Starter, 8-12.5 Amps

MFG: WEG Electric Corporation
MFG Part Number: PESW-B12V24AX-R64

Available Stock: 1
Selected accessories will also be added to cart
$111.23 / Each
Quantity:
3-Phase, Start/Stop + Reset Pushbutton, NEMA 4X Enclosure, 208-230VAC Coil, 13438767

Description

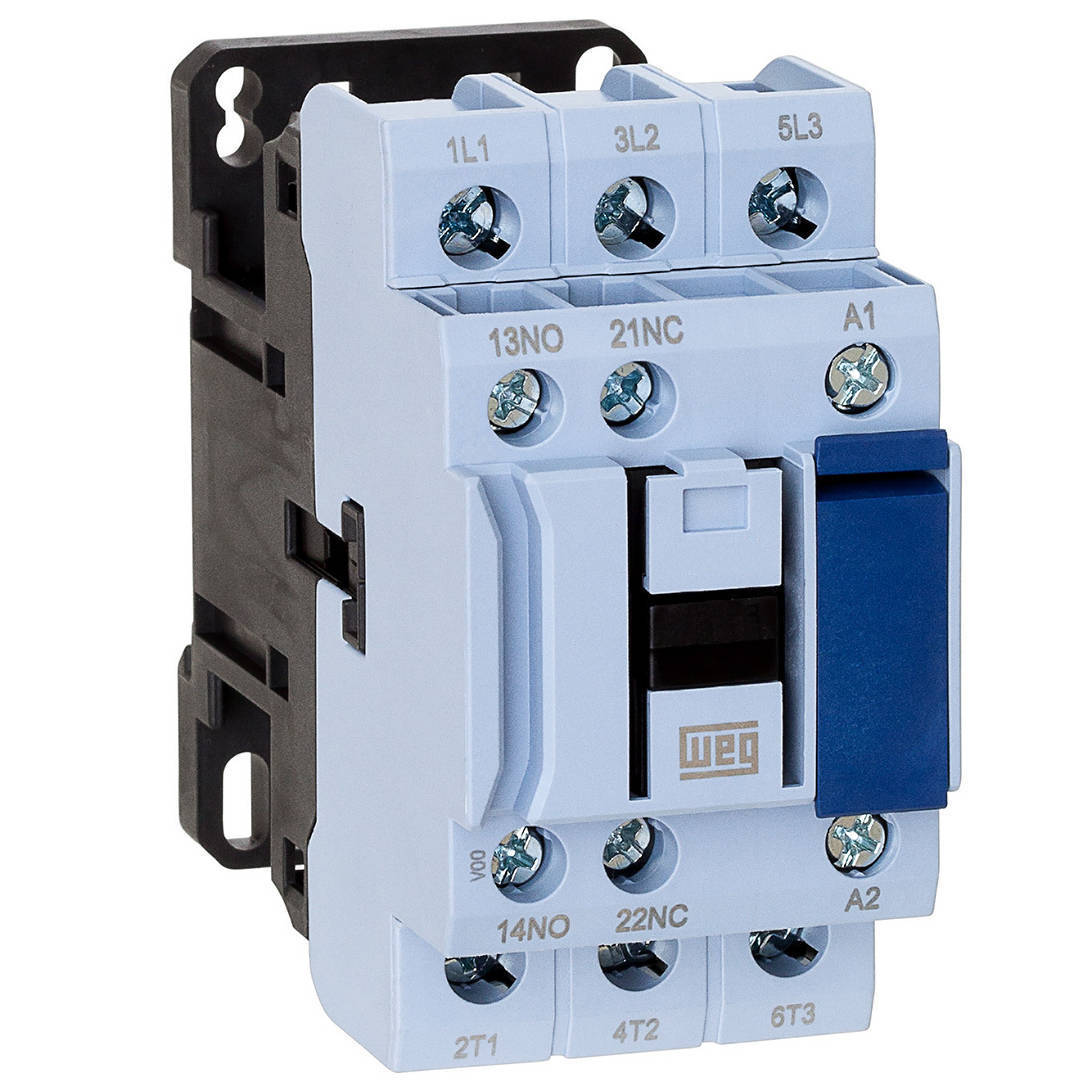

The PESW-B is WEG’s latest offering in a NEMA 4X Non Metallic Enclosure, Non-Reversing and Non-Combination Motor Starter. These starters feature components that meet IEC design standards and UL horsepower ratings while incorporating replaceable WEG CWB contactors and RW27-2D overload relays. These magnetic starters are ideal to protect and operate motors, ensuring smooth and reliable operation year after year.

Specifications

Manufacturer WEG
Catalog Number PESW-B12V24AX-R64
13438767
Enclosure NEMA 4X
Non-metallic
Coil Voltage 180-208VAC 50Hz
208-240VAC 60Hz
Overload Setting Range 8.0-12.5 Amps
Max UL Horsepower 3 HP @ 200VAC
7.5 HP @ 460VAC
10 HP @ 575VAC
Control Start + Stop/Reset Buttons
Box 05
Poles 3-Pole (3-Phase)
Type Non-Reversing
Non-Combination
Across the Line
UPC 7909322139975

Standard Features

  • NEMA 4X Enclosure with Knockouts
  • Fast Motor Acceleration and High Initial Motor Torque
  • Bi-metallic Overload Relays – Class 10
  • Adjustable Trip Current
  • Selectable Manual or Automatic Reset
  • High Horsepower in Four Compact Sizes
  • Phase Loss Protection
  • Ambient Temperature Compensated
  • East to Setup and Install
  • c UL us

Dimensions

øA 5.5mm
0.2165"
B 219.0mm
8.622"
C 112.0mm
4.4331"
D 114.0mm
4.4882"
E 229.5mm
9.0354"
Provision for Cable Gland Fitting Top: 2 x ½" -3/4" PG13.5
Bottom: 2 x ½" – ¾" PG13.5
Back: 4 x ½" PG13.5

Manufacturer Info

Start Type Direct Threephase Start
Maximum power rating NAO APLICAVEL
Rated operational voltage Ue=Uc
Supply voltage 180-208V 50Hz / 208-240V 60Hz
Starter key operation A-On-Off Button
Degree of protection TYPE4X
STARTERS COMPLEMENTS Does Not Contain
NOMINAL RATED CURRENT (AC-3) 12A (B)
OVERLOAD RELAY RW27-2D3-D125
MEASURING TOOL AND ACCESSORIES Not Applicable
BUTTON TYPE Unspecified
BUTTON COLOR Not Specified
Connection Type Not Applicable
