PED50CI Ashland 1/2HP Cast Iron Pedestal Sump Pump, 115VAC Single Phase
Enlarge Photo
Product ID: PED50CI
PED50CI Ashland 1/2HP Cast Iron Pedestal Sump Pump, 115VAC Single Phase
MFG: Ashland Pump
MFG Part Number: PED50CI
Selected accessories will also be added to cart
$259.00 / Each
Quantity:
1-1/2" NPT Discharge, Top Mounted Adjustable Vertical Switch
Details
Features
Column style sump pump for sumps with a minimum 11" in diameter and maximum 24" deep
Continuous duty rated PSC motor; higher efficiency
Top mounted adjustable vertical switch
Specifications
Brand
Ashland Pump
Model
PED50CI
Switch Type
Top Mounted Adjustable Vertical
Voltage
115VAC 60Hz Single Phase
RPM
1750 RPM
Full Load Amps
5.2Amps
Discharge Size
1-1/2” NPT
Impeller Type
Vortex Thermoplastic
Cable Length
8'
Solids Handling
3/8"
Maximum Liquid Temperature
104°F - Intermittent
Acceptable pH Range
6 - 8
Power Cord Size
SJT
Motor Housing
Steel
Casing
Cast Iron
Impeller
Thermoplastic
Motor Shaft
SST
Hardware
Steel
O-Rings
NBR
Seal
Lip
Upper Bearing
6202
Lower Bearing
6202
RPM
1750 RPM
Motor Type
PSC (Single Phase)
Gen Insulation Class
B
Stator Winding Class
B
Maximum Stator Temperature
130°C
Voltage Tolerance
+/-10%
Motor Protection
Thermally Protected
HP
1/2HP
Service Factor
1.00

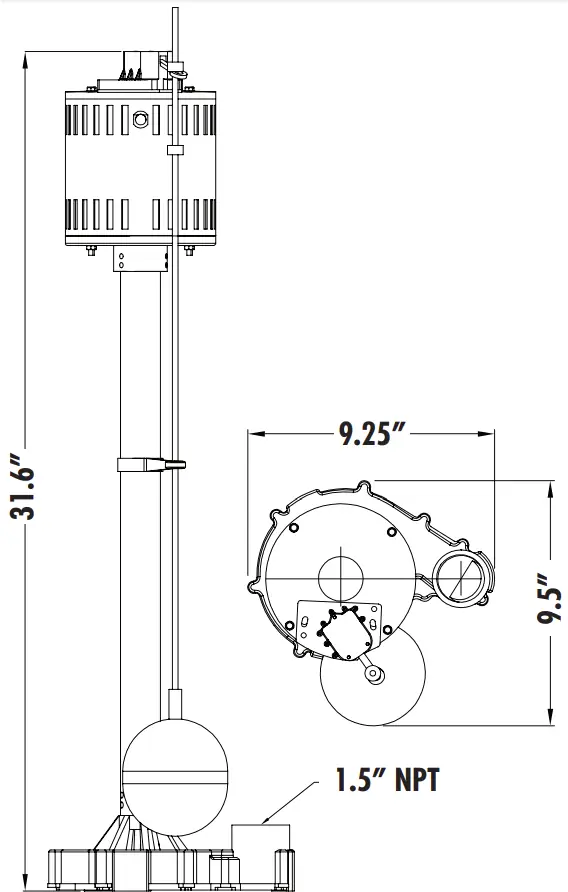

Dimensions

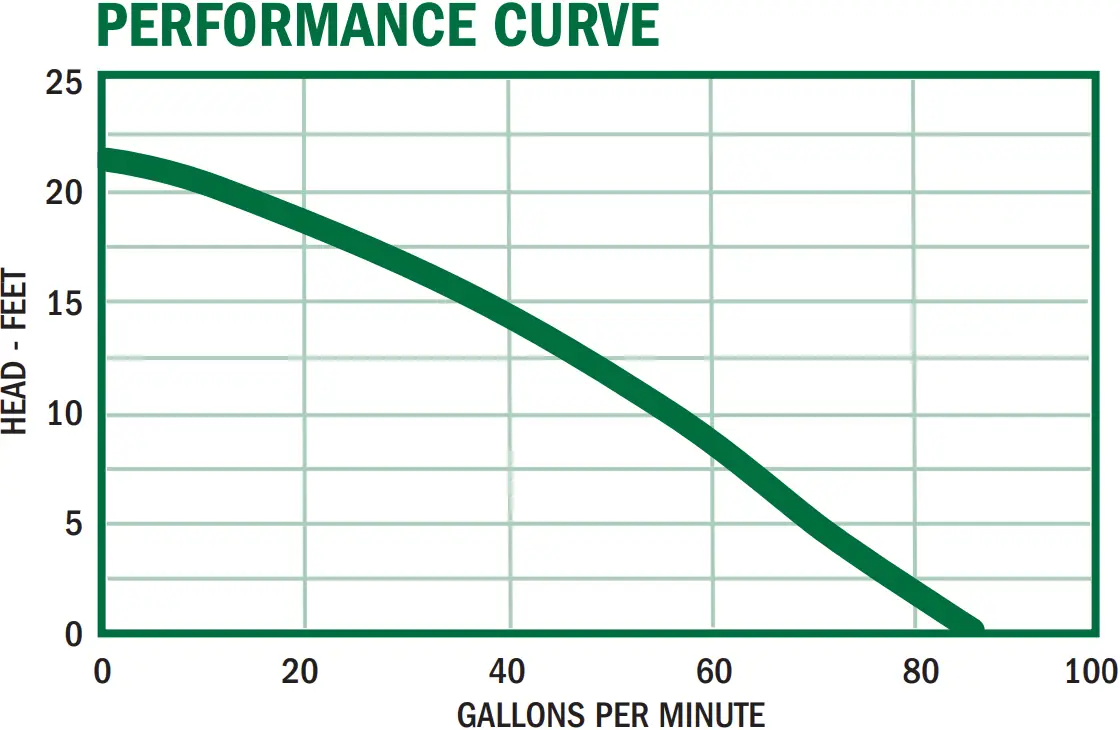

Performance Curve
Links
Ashland PED50CI Electrical Data (PDF, 1 page, 81KB)
Ashland PED50CI Features (PDF, 1 page, 545KB)
Ashland PED50CI Performance Data (PDF, 1 page, 60KB)
Ashland PED50CI Technical Data (PDF, 1 page, 86KB)
Ashland Pedestal Sump Pumps Operation, Performance and Specifications Manual (PDF, 8 pages, 800KB)
Ashland PED50CI Dimensional Data (PDF, 1 page, 93KB)
