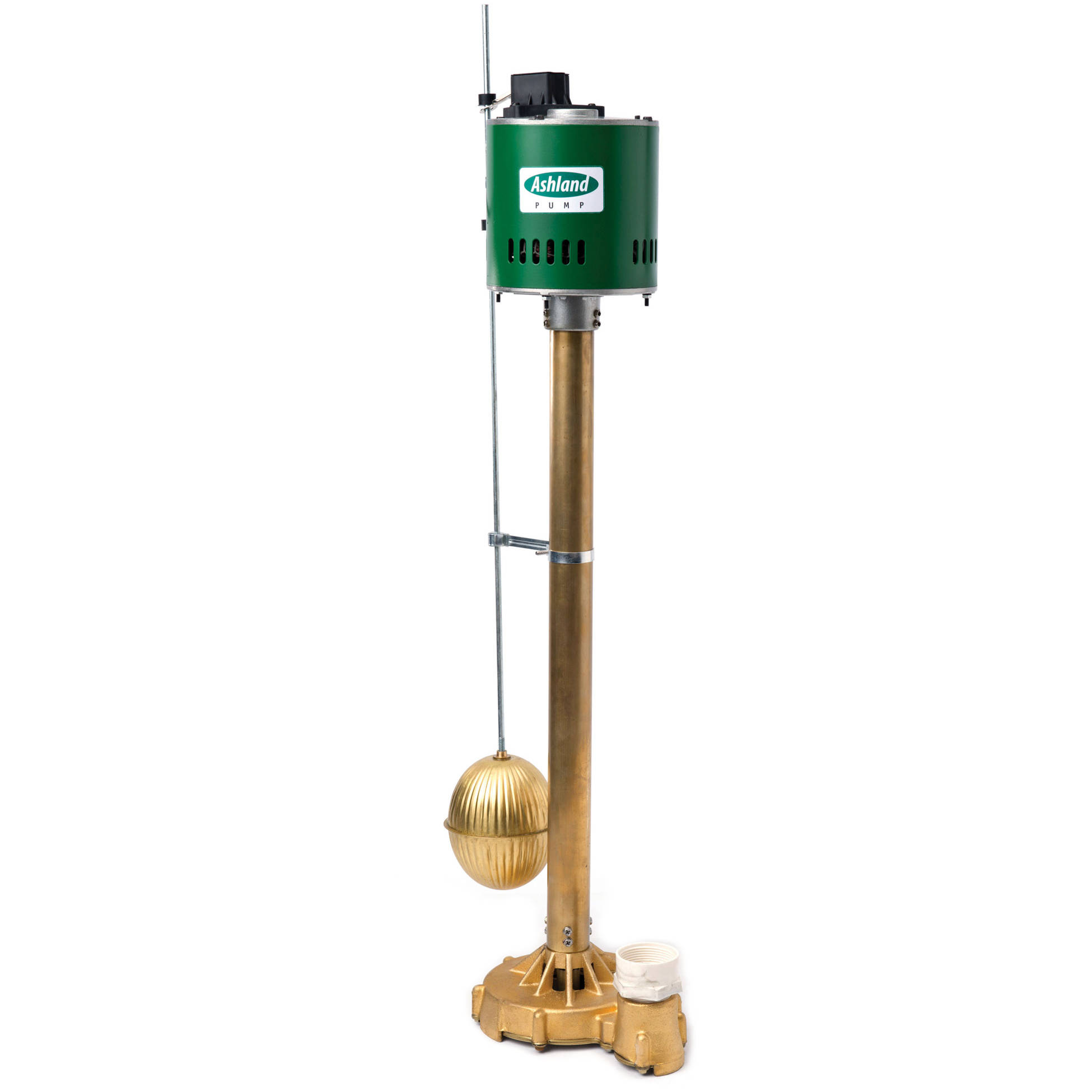

PED50B Ashland 1/2HP Bronze Pedestal Sump Pump, 115VAC Single Phase
Enlarge Photo

Product ID: PED50B

PED50B Ashland 1/2HP Bronze Pedestal Sump Pump, 115VAC Single Phase

MFG: Ashland Pump
MFG Part Number: PED50B

Selected accessories will also be added to cart
$549.00 / Each
Quantity:
1-1/4" NPT Discharge & 1-1/2" Adapter, Top Mounted Adjustable Vertical Switch

Features

  • Column style sump pump for sumps with a minimum 11" in diameter and maximum 24" deep
  • Continuous duty rated PSC motor; higher efficiency
  • Top mounted adjustable vertical switch

Specifications

Brand Ashland Pump
Model PED50B
Switch Type Top Mounted Adjustable Vertical
Voltage 115VAC 60Hz Single Phase
RPM 1750 RPM
Full Load Amps 5.2Amps
Discharge Size 1-1/4” NPT
1-1/2” NPT Adapter
Impeller Type Vortex Stainless Steel
Cable Length 8'
Solids Handling 3/16"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Power Cord Size SJT
Motor Housing Steel
Casing Bronze
Impeller Stainless Steel
Motor Shaft Stainless Steel
Hardware SST
O-Rings NBR
Seal Lip
Upper Bearing 6202
Lower Bearing 6202
RPM 1750 RPM
Motor Type PSC (Single Phase)
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 1/2HP
Service Factor 1.00

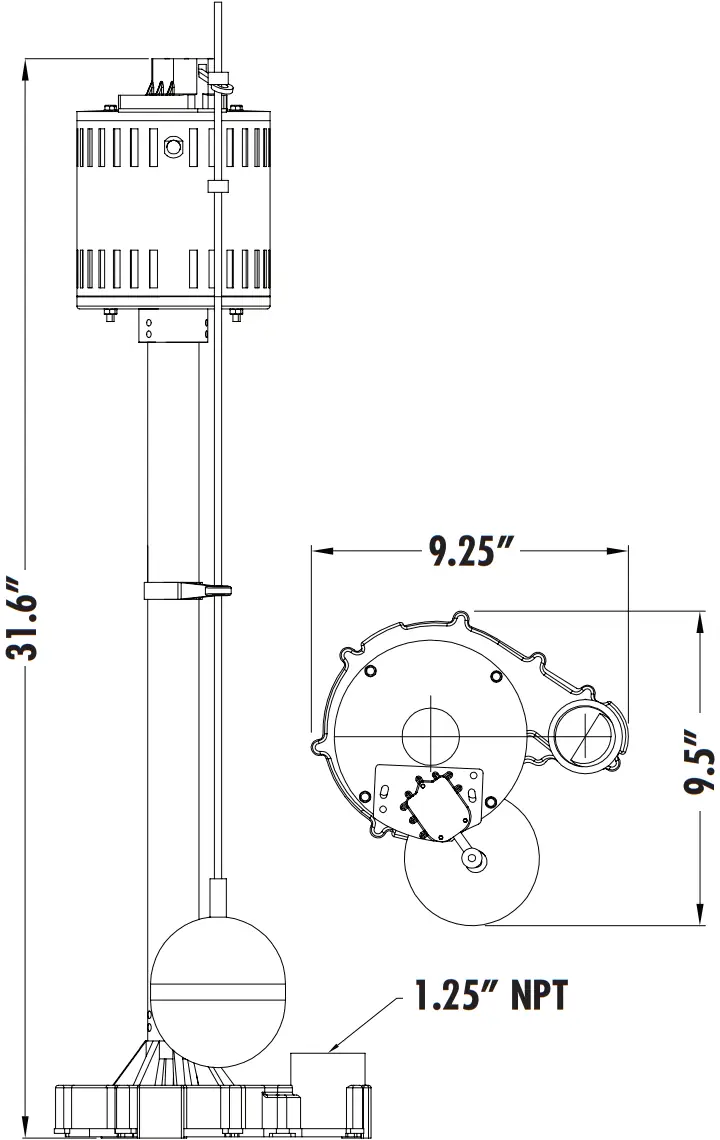

Dimensions

PED50B Pump Dimensions

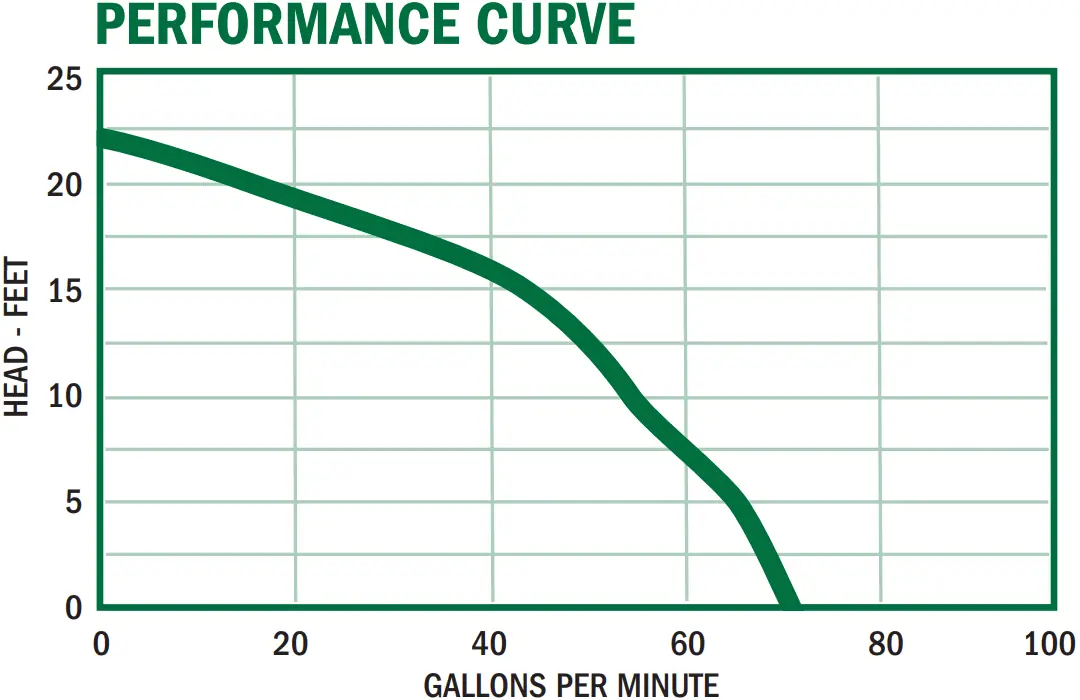

Performance Curve

PED50B Performance Curve Graph
