Product ID: PD1050AV1

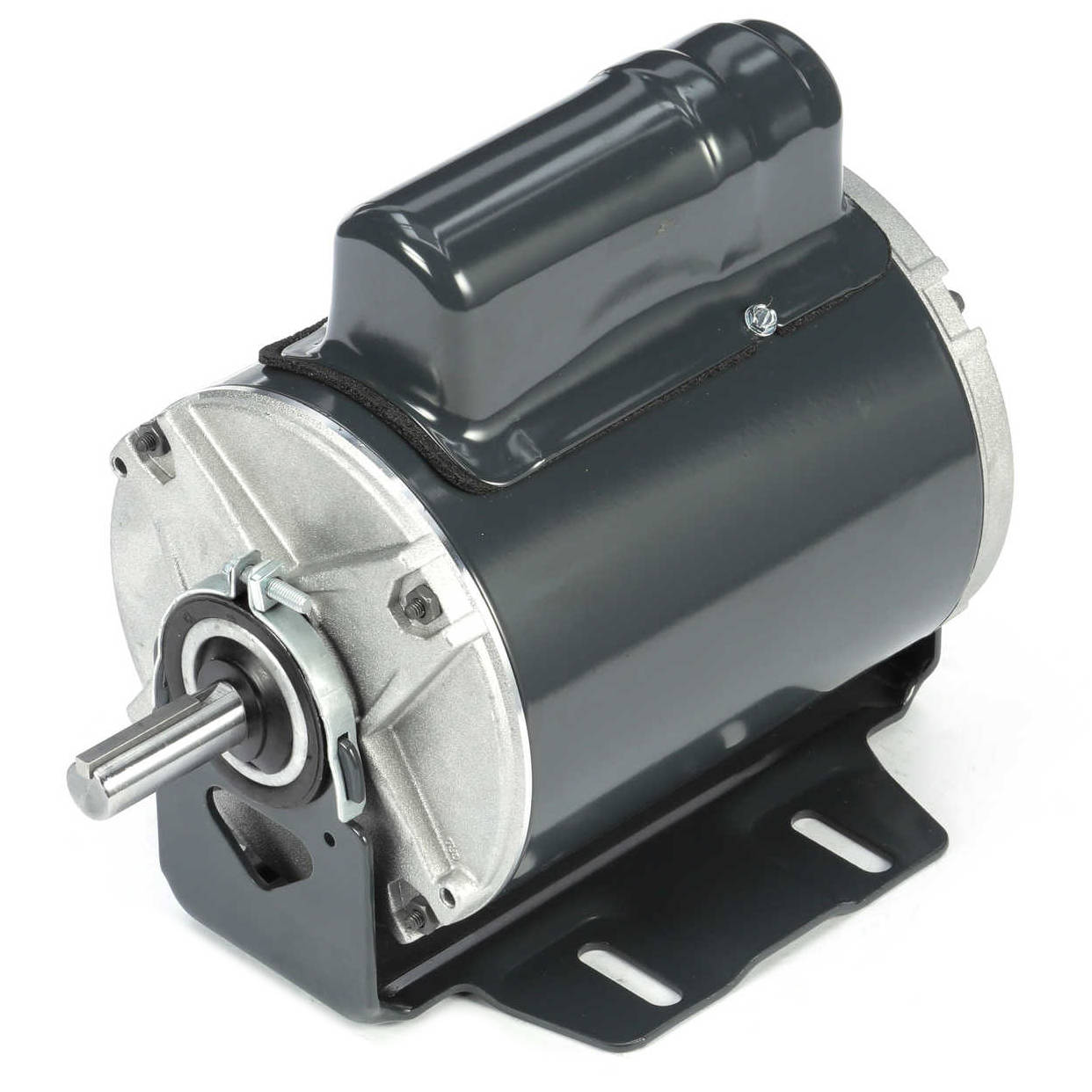

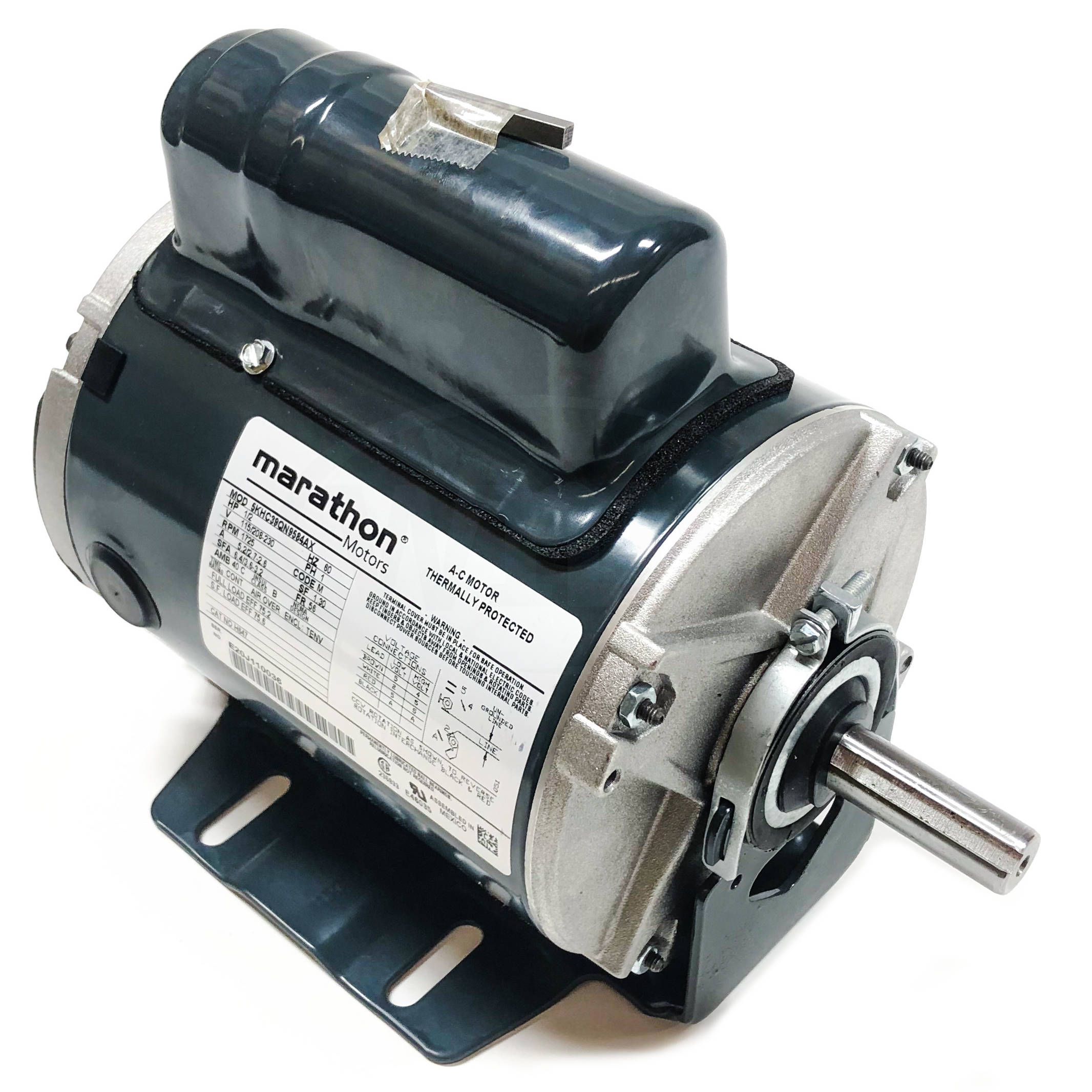

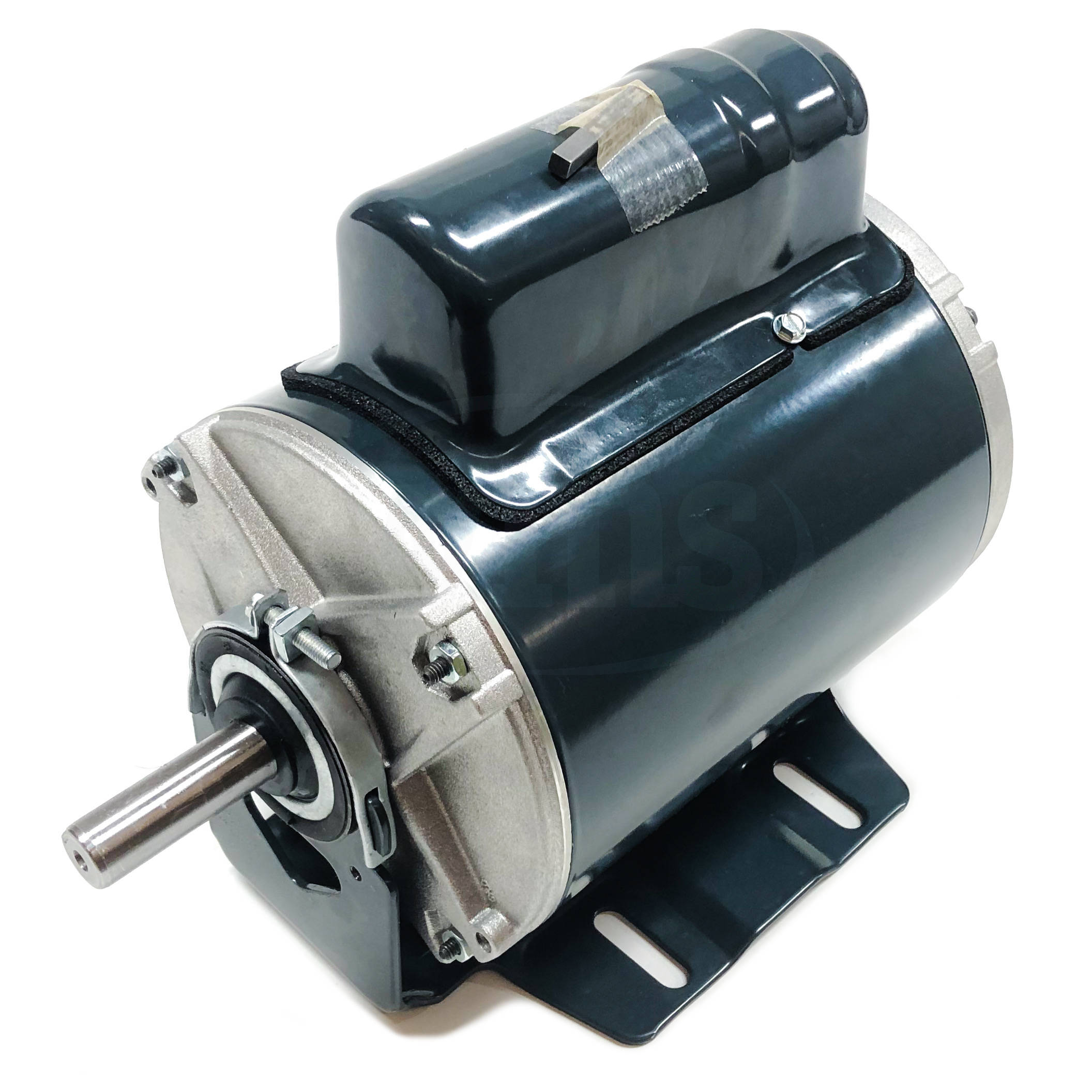

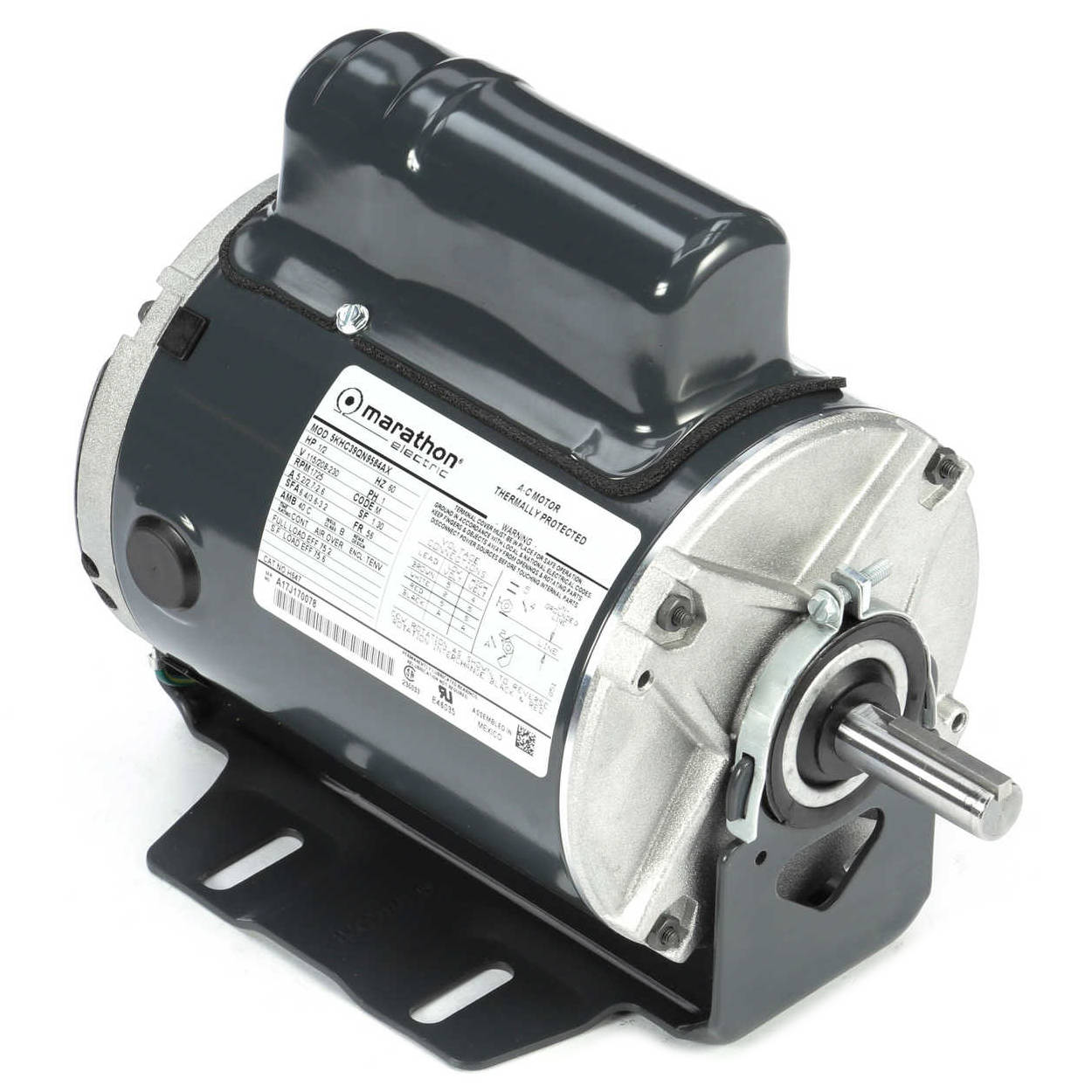

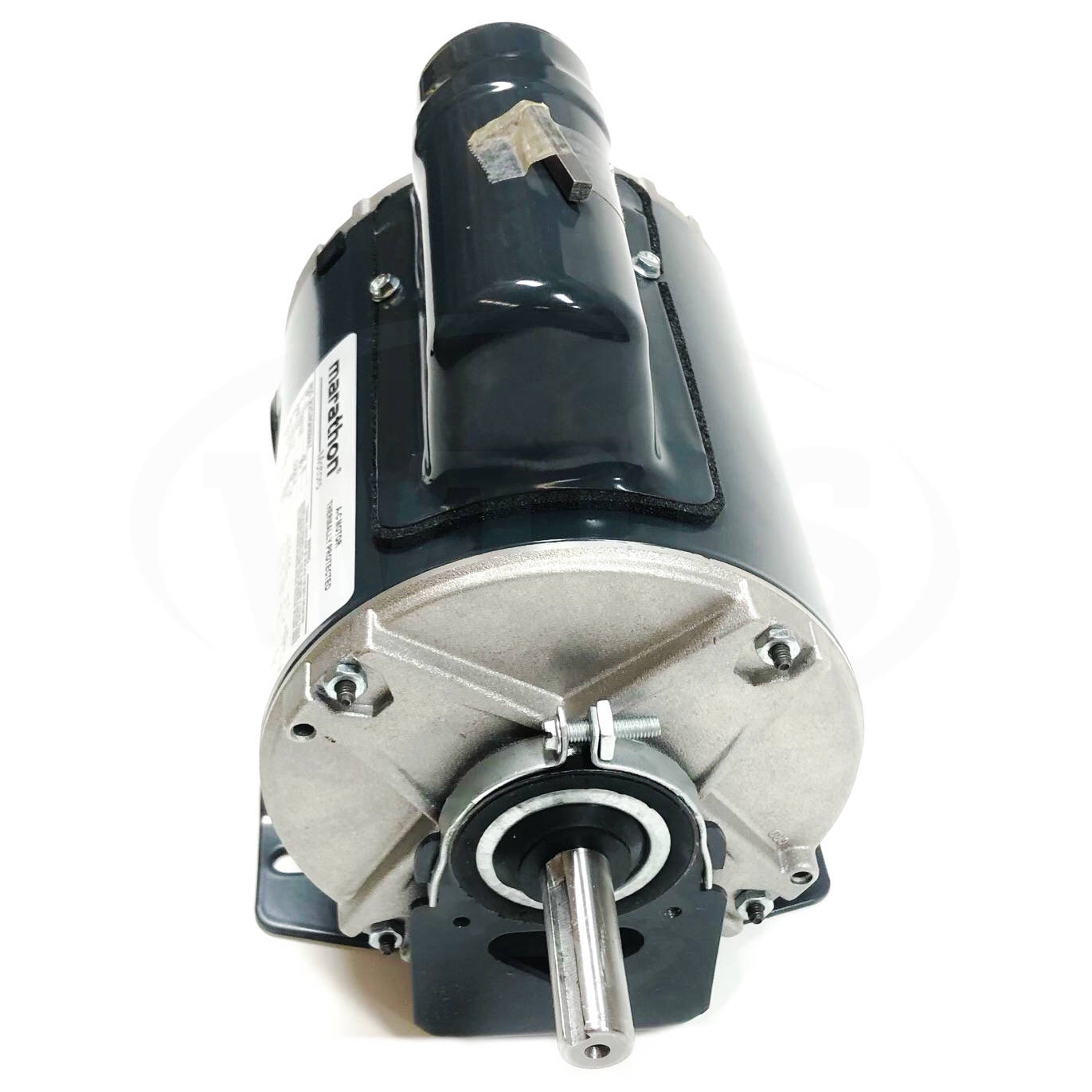

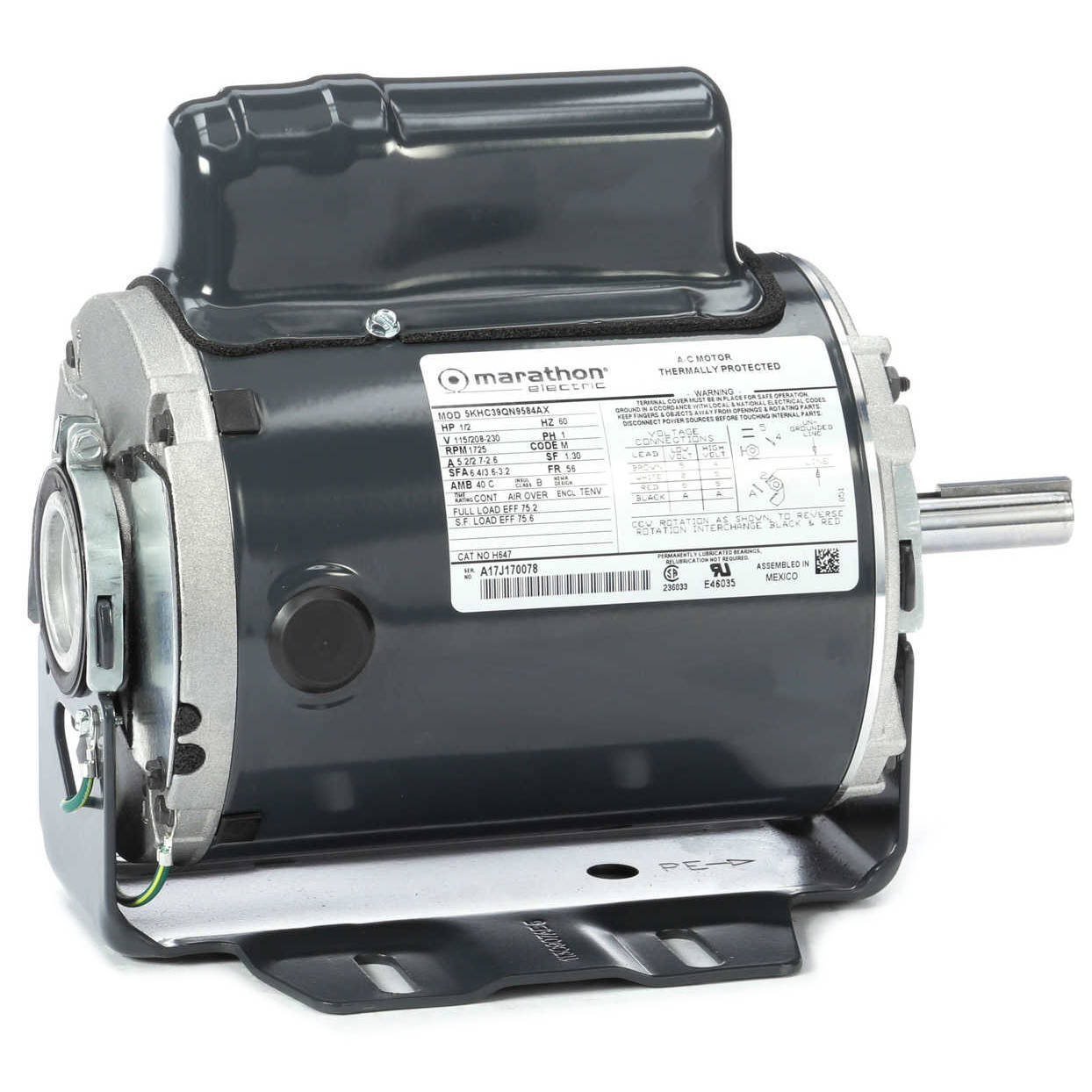

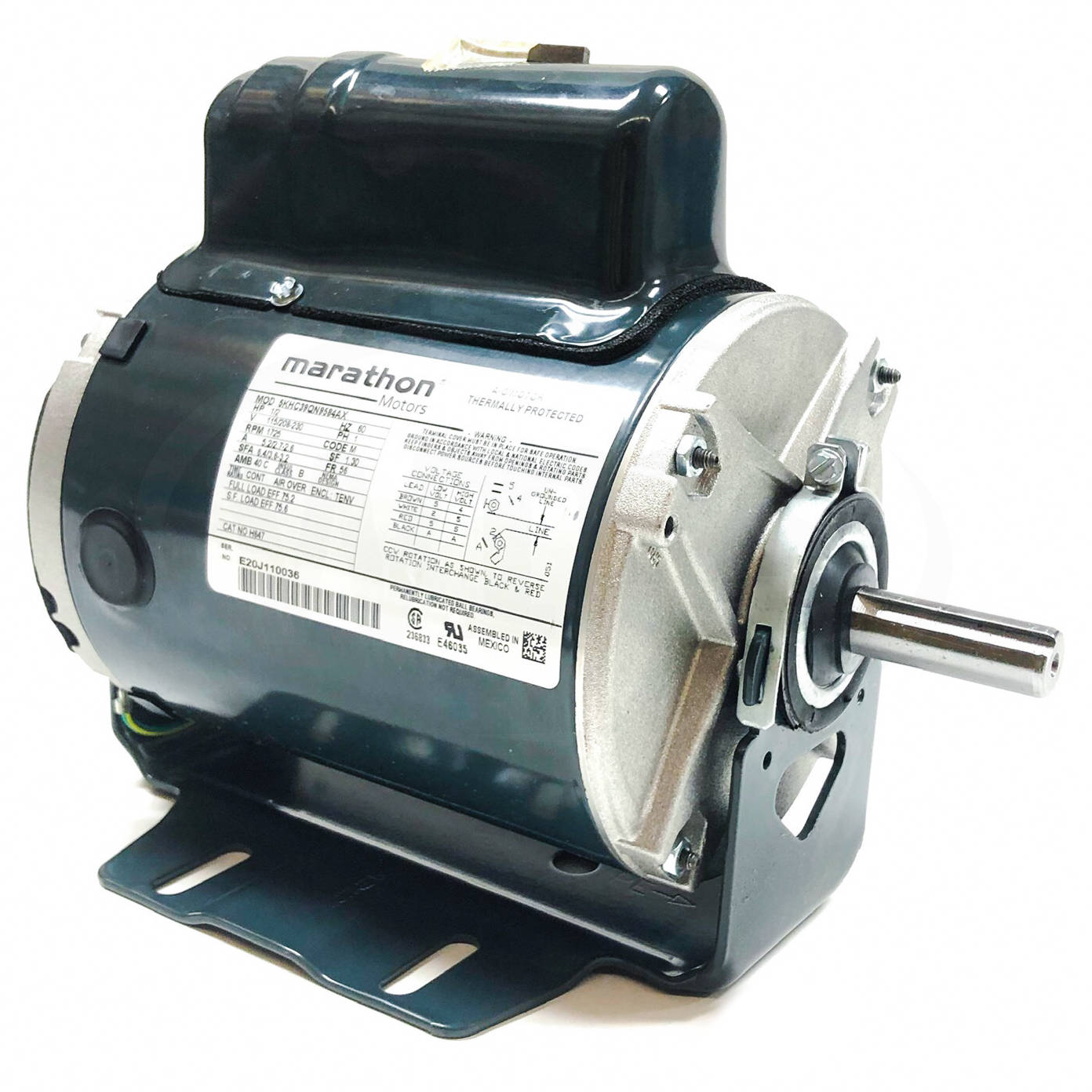

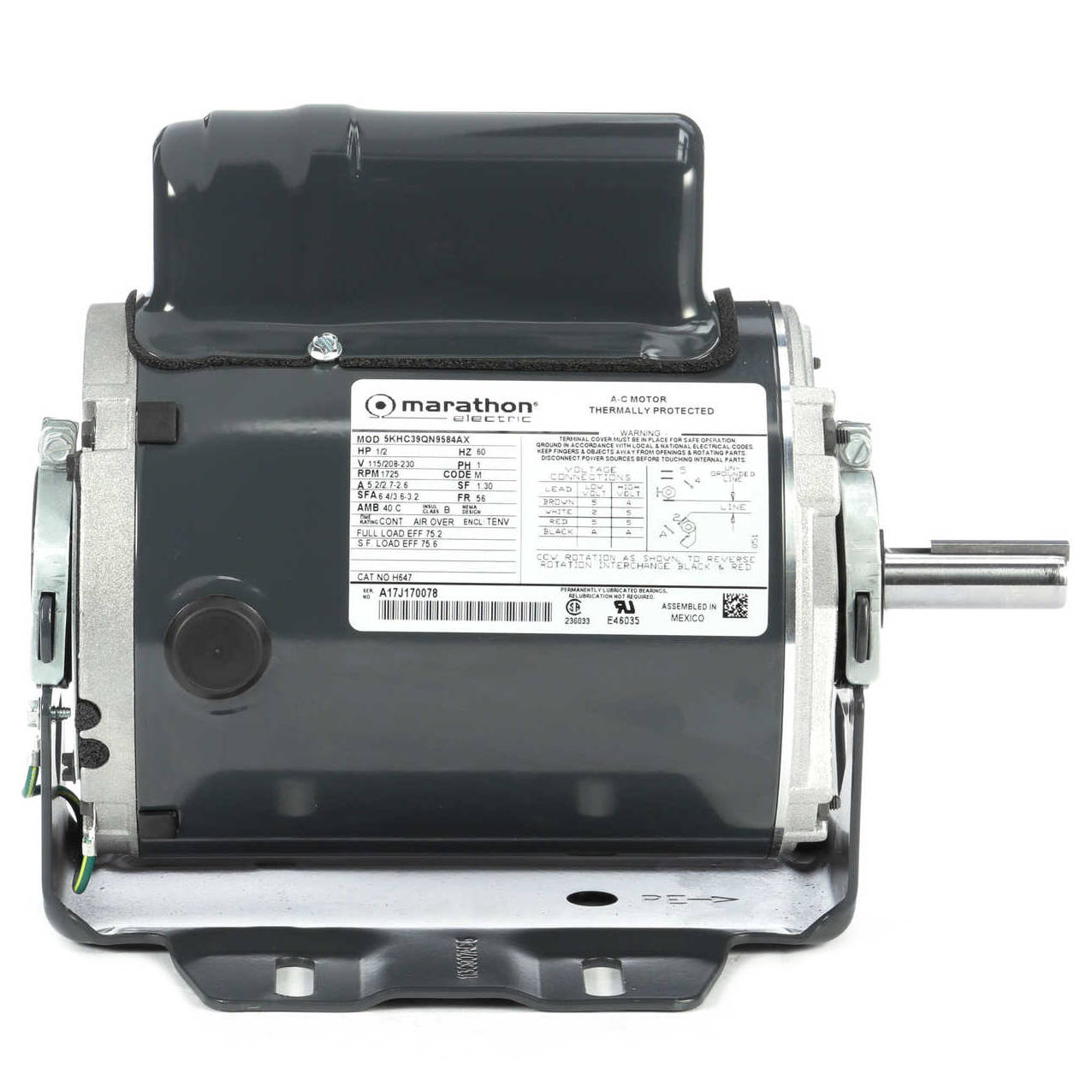

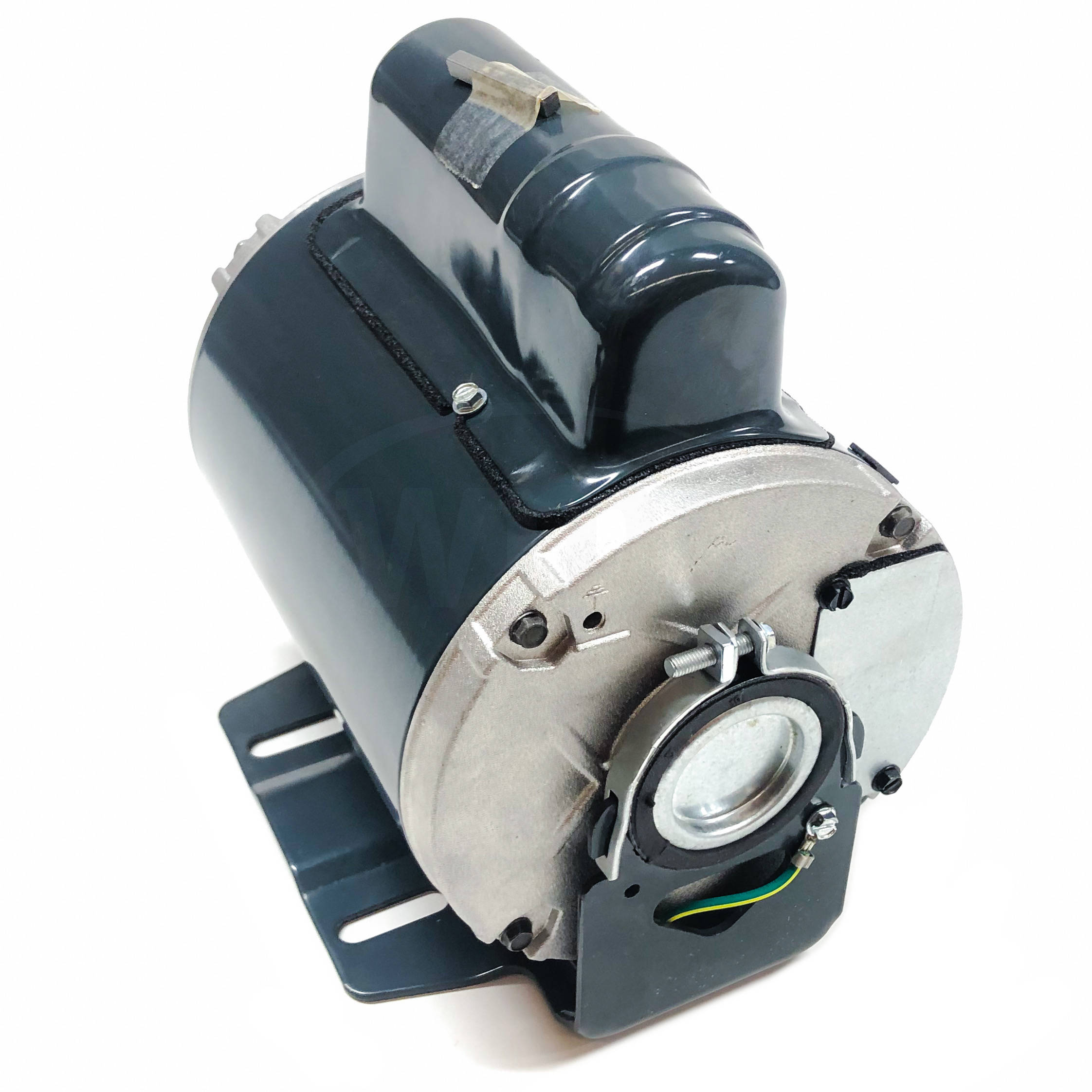

PD1050AV1 1/2HP Farm Duty General Purpose Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: PD1050AV1

Selected accessories will also be added to cart

$349.97 / Each

Quantity:

TENV, 56 Frame, 115/208-230VAC 60Hz Single Phase, 5KHC39QN9584X, Resilient Base, Rolled Steel, 5/8" Keyed Shaft

Details
Purchase Components

Features

Split Phase design
56Z Frame has 1/2” dia. x 1-7/8” long with 1-5/8” flat
Fully Gasketed

General Specifications

UPC:	722856028273	Weight:	19 LB
Packaged Length:	13.69 IN	Packaged Width:	7.13 IN
Packaged Height:	7.5 IN

Nameplate Specifications

Output HP:	1/2 Hp	Output KW:	0.37 kW
Frequency:	60 Hz	Voltage:	115/208-230 V
Current:	5.2,2.7-2.6 A	Speed:	1725 rpm
Service Factor:	1.3	Phase:	1
Efficiency:	73.2 %	Power Factor:	0
Duty:	Continuous	Insulation Class:	B
KVA Code:	M	Frame:	56
Enclosure:	Totally Enclosed Non Ventilated	Thermal Protection:	AUTO
Ambient Temperature:	40 °C	Drive End Bearing Size:	6203
Opp Drive End Bearing Size:	6203	UL:	Recognized
CSA:	Yes	CE:	N

Technical Specifications

Electrical Type:	Split Start Capacitor Run	Starting Method:	SM
Poles:	4	Rotation:	Counterclockwise/Clockwise
Mounting:	Resilient Base	Motor Orientation:	ANY
Drive End Bearing:	BALL	Opp Drive End Bearing:	BALL
Frame Material:	Rolled Steel	Overall Length:	10.37 in
Frame Length:	6.22 in	Shaft Diameter:	0.63 in
Shaft Extension:	1.88 in
