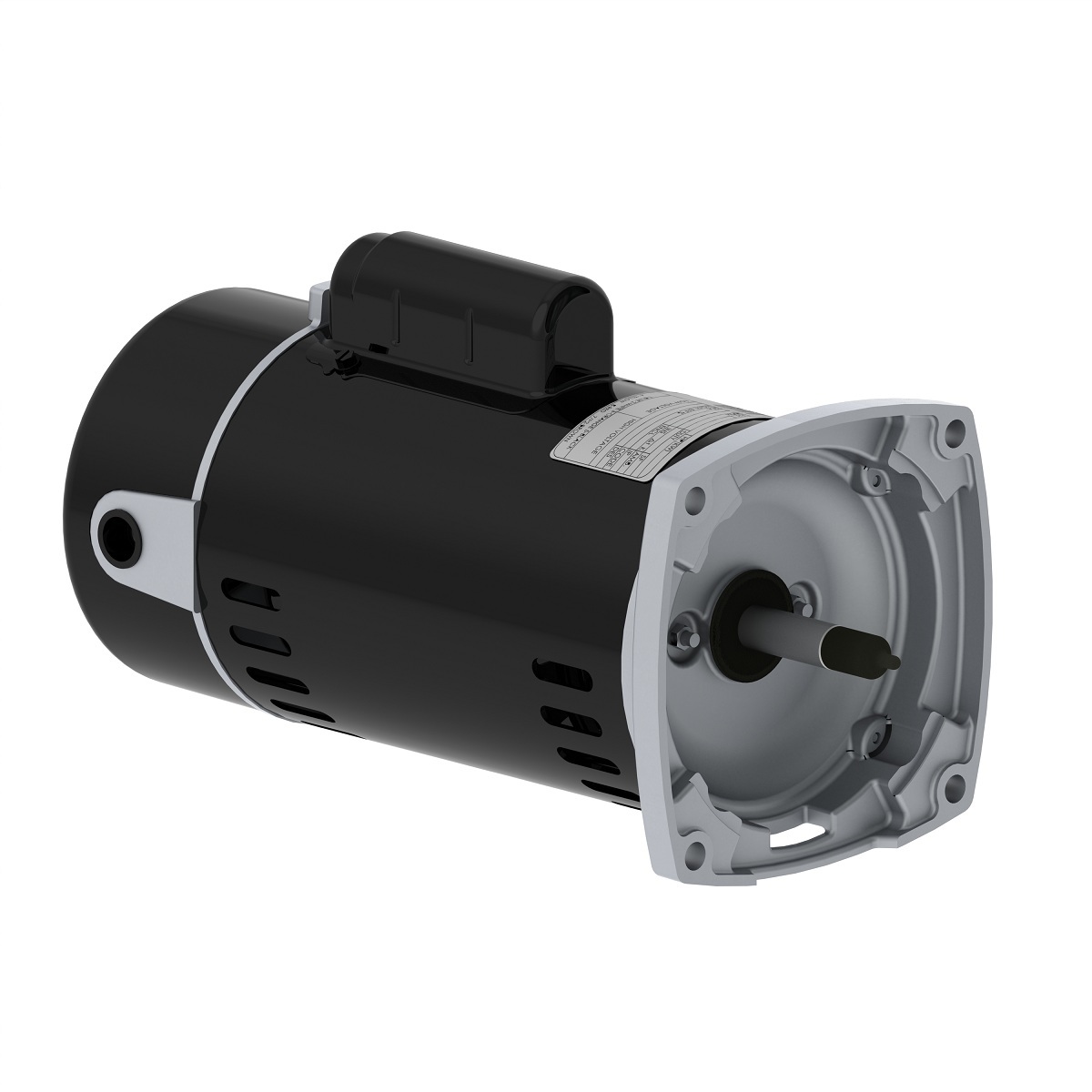

PCQ120H WEG 2HP High Service Factor Electric Motor, 3600RPM
Enlarge Photo
PCQ120H WEG 2HP High Service Factor Electric Motor, 3600RPM
Product ID: PCQ120H
MFG: WEG Electric Corporation
MFG Part Number: PCQ120H
Selected accessories will also be added to cart
$375.00 / Each
Quantity:
IC01-ODP, IP21, M48Y Frame, 230V, 60Hz, Single Phase
Details
Electric Motors
Frame
M48Y
Output
2 HP (1.5 kW)
Number of Poles
2
Frequency
60 Hz
Rated speed
3490 rpm
Slip
3.06 %
Rated voltage
230 V
Rated current
9.20 A
L. R. Amperes
64.4 A
LRC
7.0x(Code J)
No load current
3.60 A
Rated torque
2.97 ft.lb
Locked rotor torque
220 %
Breakdown torque
270 %
Locked rotor time
10s (cold) 6s (hot)
Moment of inertia (J)
0.0446 sq.ft.lb
Insulation Class
B
Service factor
1.30
Temperature rise
70 K
Duty Cycle
Cont.(S1)
Starting Method
Direct On Line
Ambient temperature
-20°C to +50°C
Altitude
1000 m.a.s.l.
Degree of Protection
IP21
Enclosure
IC01 - ODP
Mounting
F-1
Rotation¹
CCW
Noise level²
58.0 dB(A)
Approx. weight³
32.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
50%
75%
100%
66.0
73.0
78.3
Power factor
50%
75%
100%
0.78
0.85
0.90
Features
Frame Material
Rolled Steel
Impregnation Method
Dip and Bake Polyester
Shaft Material
AISI 316 Stainless Steel
Painting
Grounding Lugs
Single
Tropicalized Painting
Without
Fan material
Nylon
Bearing cap
Yes- Bearing Cap
Drip Cover
Without
Shaft End
threaded
Resilient Base
Without
Loading...
This document doesn't exist for this product.
Loading...
This document doesn't exist for this product.
Bearing details
Drive End
Non Drive End
Bearing type
6203 2RS
6203 2RS
Sealing
Lip Seal
Lip Seal
Lubrication interval
-
-
Lubricant amount
-
-
Grease Type
Mobil Polyrex EM
