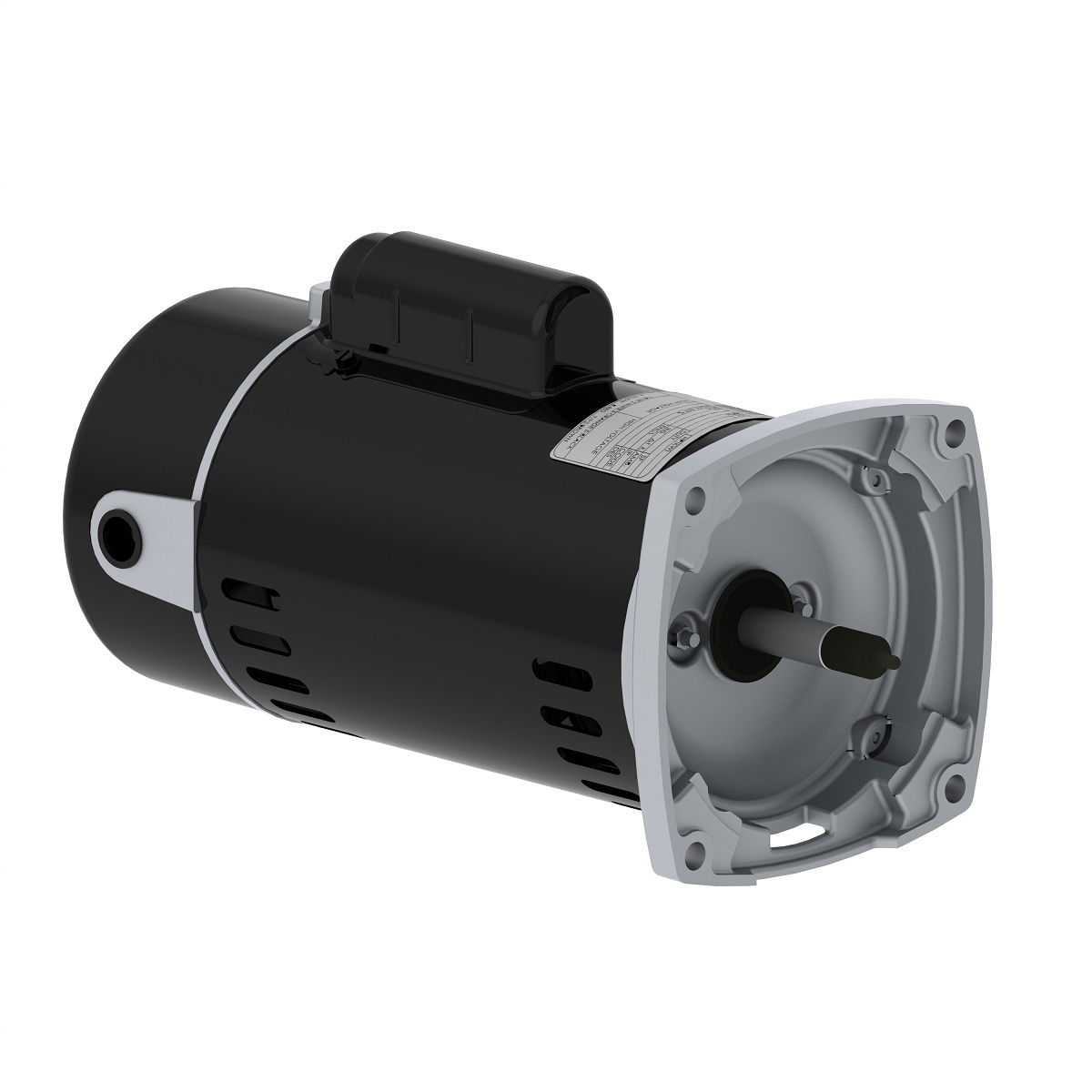

PCQ115 WEG 1.5HP Low Service Factor Electric Motor, 3600RPM
Enlarge Photo

Product ID: PCQ115

PCQ115 WEG 1.5HP Low Service Factor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: PCQ115

Selected accessories will also be added to cart
$240.00 / Each
Quantity:
IC01-ODP, IP21, L48Y Frame, 115/230V, 60Hz, Single Phase

Electric Motors

Frame L48Y
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3450 rpm
Slip 4.17 %
Rated voltage 115/230 V
Rated current 17.7/8.85 A
L. R. Amperes 104/52.2 A
LRC 5.9x(Code K)
No load current 10.5/5.25 A
Rated torque 2.25 ft.lb
Locked rotor torque 130 %
Breakdown torque 210 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0361 sq.ft.lb
Insulation Class B
Service factor 1.10
Temperature rise 70 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 58.0 dB(A)
Approx. weight³ 27.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
64.5  69.0  69.6

Power factor

50% 75% 100%
0.61  0.72  0.79

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material AISI 316 Stainless Steel
Painting

Grounding Lugs Single
Tropicalized Painting Without
Fan material Nylon
Bearing cap Yes- Bearing Cap
Drip Cover Without
Shaft End threaded
Resilient Base Without

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6203 2RS   6203 2RS
Sealing Lip Seal  Lip Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM
