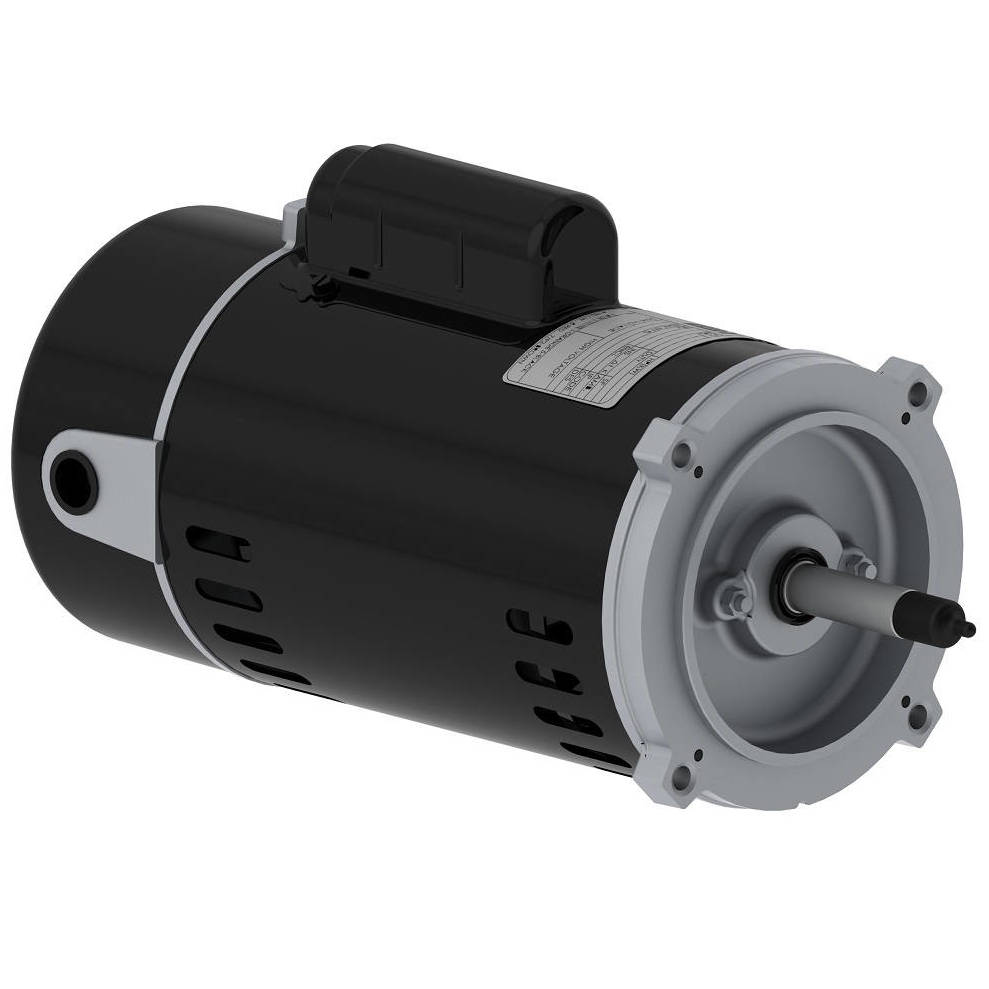

PCJ120H WEG 2HP High Service Factor Electric Motor, 3600RPM
Enlarge Photo

Product ID: PCJ120H

PCJ120H WEG 2HP High Service Factor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: PCJ120H

Selected accessories will also be added to cart
$364.50 / Each
Quantity:
IC01-ODP, IP21, M56J Frame, 230V, 60Hz, Single Phase

Electric Motors

Frame M56J
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3490 rpm
Slip 3.06 %
Rated voltage 230 V
Rated current 9.20 A
L. R. Amperes 64.4 A
LRC 7.0x(Code J)
No load current 4.00 A
Rated torque 2.97 ft.lb
Locked rotor torque 220 %
Breakdown torque 270 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0446 sq.ft.lb
Insulation Class B
Service factor 1.20
Temperature rise 70 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 58.0 dB(A)
Approx. weight³ 33.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
66.0  73.0  78.3

Power factor

50% 75% 100%
0.78  0.85  0.90

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material AISI 316 Stainless Steel
Painting

Grounding Lugs Single
Tropicalized Painting Without
Fan material Nylon
Bearing cap No-Without Bearing Cap
Balancing Method Not Balanced
Drip Cover Without
Shaft End threaded
Resilient Base Without

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6203 2RS   6203 2RS
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM
