/Products/Electric Motors/Single Phase/Century/HVACR/ORM5488B Century 1/3HP Condensor Fan Electric Motor
Click Image to Expand

Product ID: ORM5488B

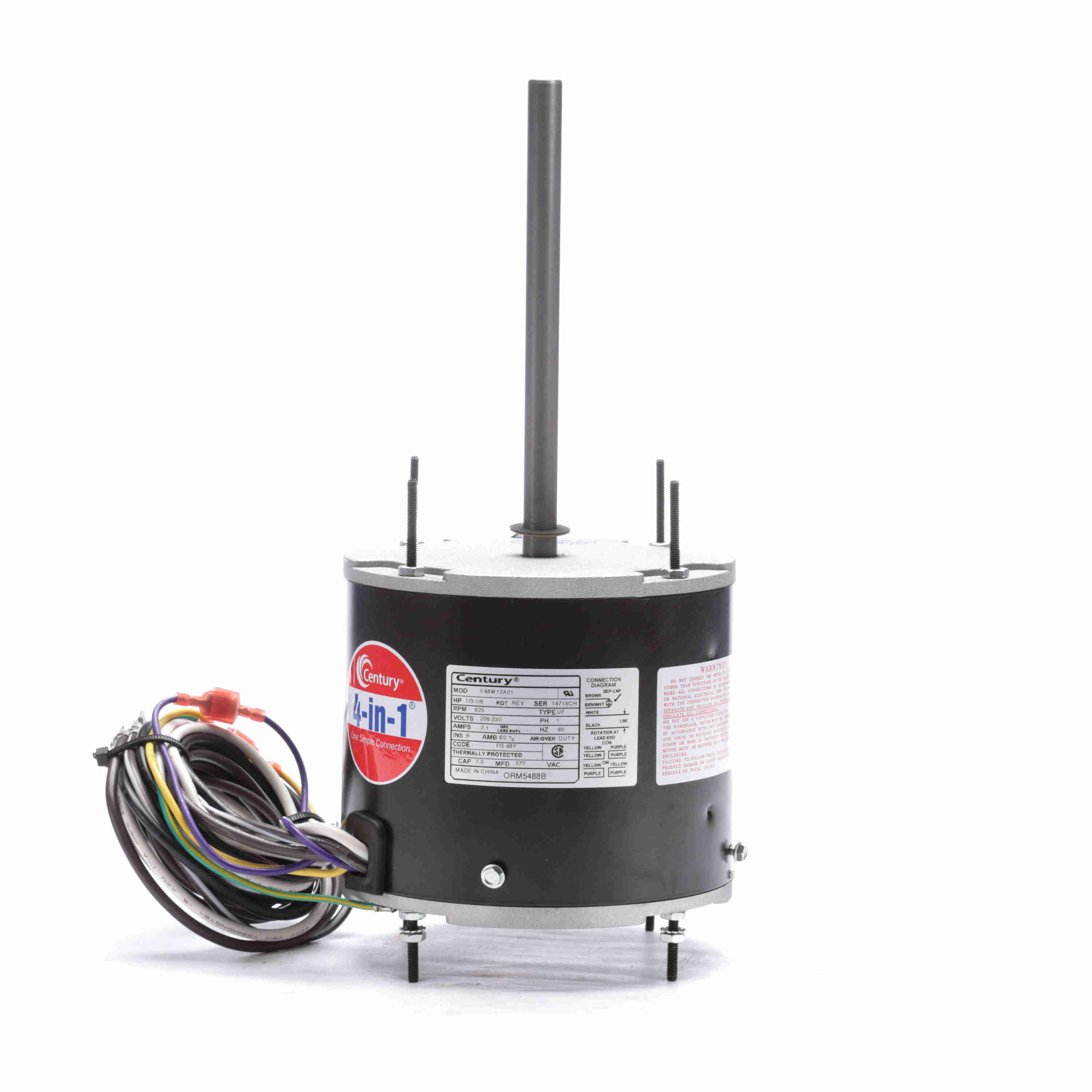

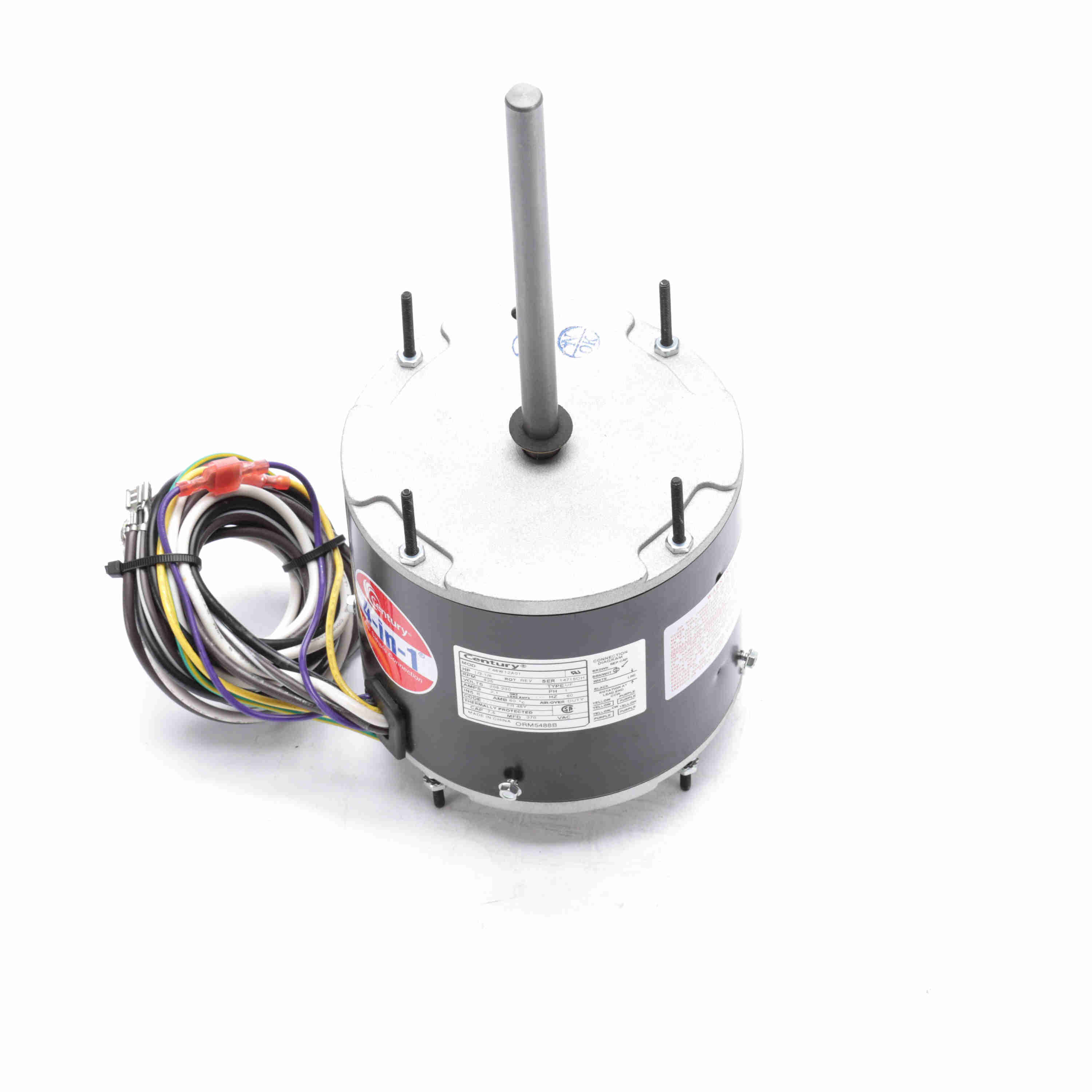

ORM5488B Century 1/3HP Condensor Fan Electric Motor

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: ORM5488B

Temporarily out of stock
Selected accessories will also be added to cart
$133.97 / Each
48Y Frame, 825RPM, 208-230V Single Phase 60Hz

Features

Features
  • 4-in-1 - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads
  • Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Belly Band

General Specifications

General Specifications
Model : Catalog No :ORM5488B
Part Description :1/3/1/8 HP 825 208-230 TE 48Y MULTI HP Category :Condenser Fans
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/3-1/8 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :208-230 V
Current :2.1 A Speed :825 rpm
Service Factor :1 Phase :1
Duty :Air Over Insulation Class :B
Frame :48 Enclosure :Totally Enclosed
Overload Protector :Automatic Ambient Temperature :60 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Induction Run
Poles :8 Rotation :Reversible
Mounting :Extended Studs Motor Orientation :Any
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Double Flat
Overall Length :12.43 in Frame Length :4.25 in
Shaft Diameter :0.500 in Shaft Extension :6.7 in
UPC :786674028358 Weight :15.00 LB
