/Products/Electric Motors/Single Phase/Century/HVACR/ORM5484F Century 1/8-1/15HP Condenser Fan Electric Motor, 825RPM

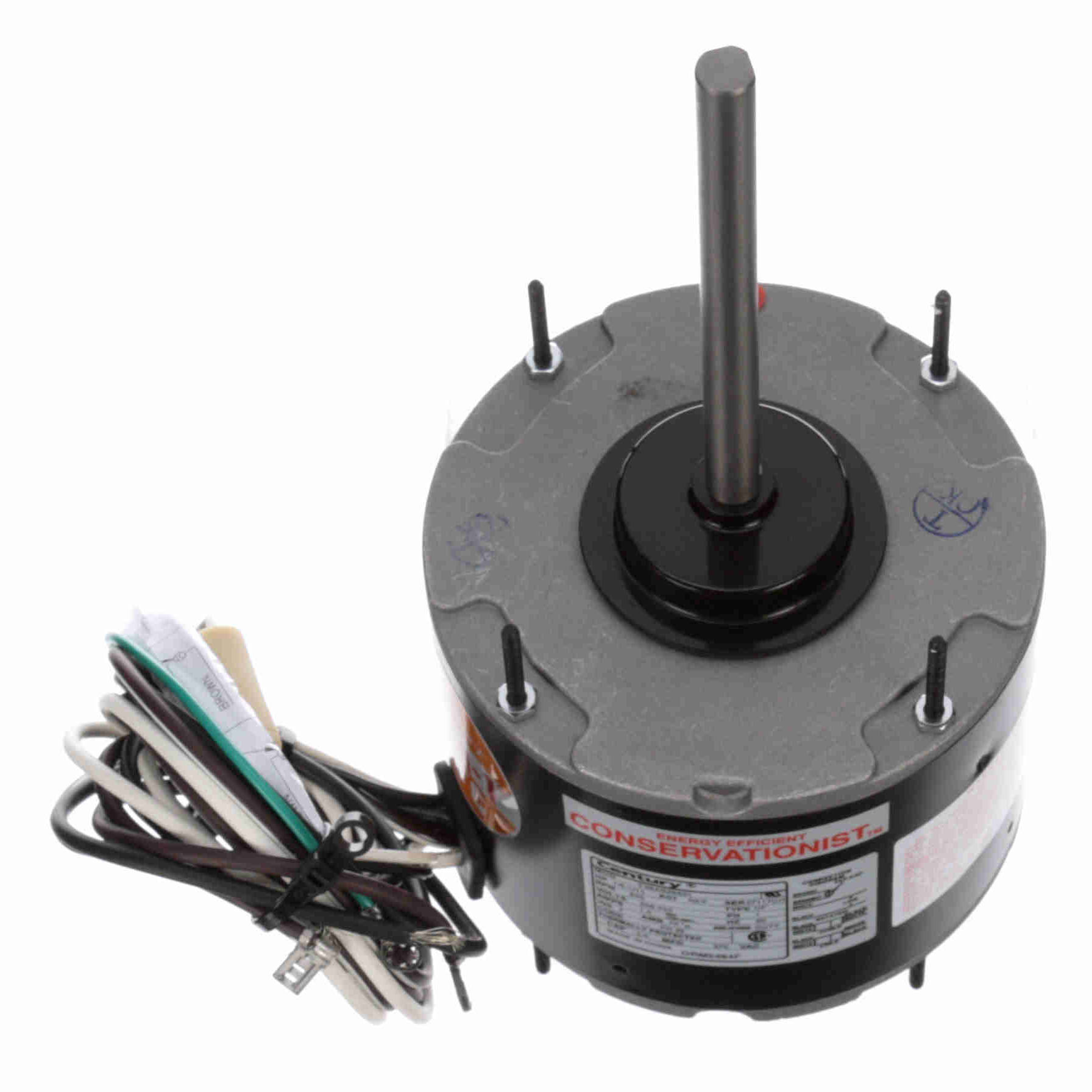

Click Image to Expand

Product ID: ORM5484F

ORM5484F Century 1/8-1/15HP Condenser Fan Electric Motor, 825RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: ORM5484F

Selected accessories will also be added to cart
$148.97 / Each
Quantity:
TEAO, 48 Frame, 208-230/460VAC Single Phase 60Hz, Single Speed, Extended Studs, 1/2" x 6.5" Shaft

Features

  • 4-in-1 HeatMaster - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 70°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads
  • Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Belly Band

General Specifications

UPC: 786674028334 Weight: 12.00 LB
Packaged Length: 13.78 IN Packaged Width: 6.42 IN
Packaged Height: 6.81 IN

Nameplate Specifications

Output HP: 1/8-1/15 Hp Output KW: 0.10 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 1.0 A Speed: 825 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: F
Frame: 48 Enclosure: Totally Enclosed
Thermal Protection: Automatic Ambient Temperature: 70 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Induction Run
Poles: 8 Rotation: Reversible
Mounting: Extended Studs Motor Orientation: Any
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Double Flat
Overall Length: 11.62 in Frame Length: 3.62 in
Shaft Diameter: 0.500 in Shaft Extension: 6.5 in

Speed & Load Characteristics
