/Products/Electric Motors/Single Phase/Century/Hot Water Circulator/OBG2004 Century 1/8HP Circulator Pump Electric Motor, 1725RPM
Click Image to Expand

Product ID: OBG2004

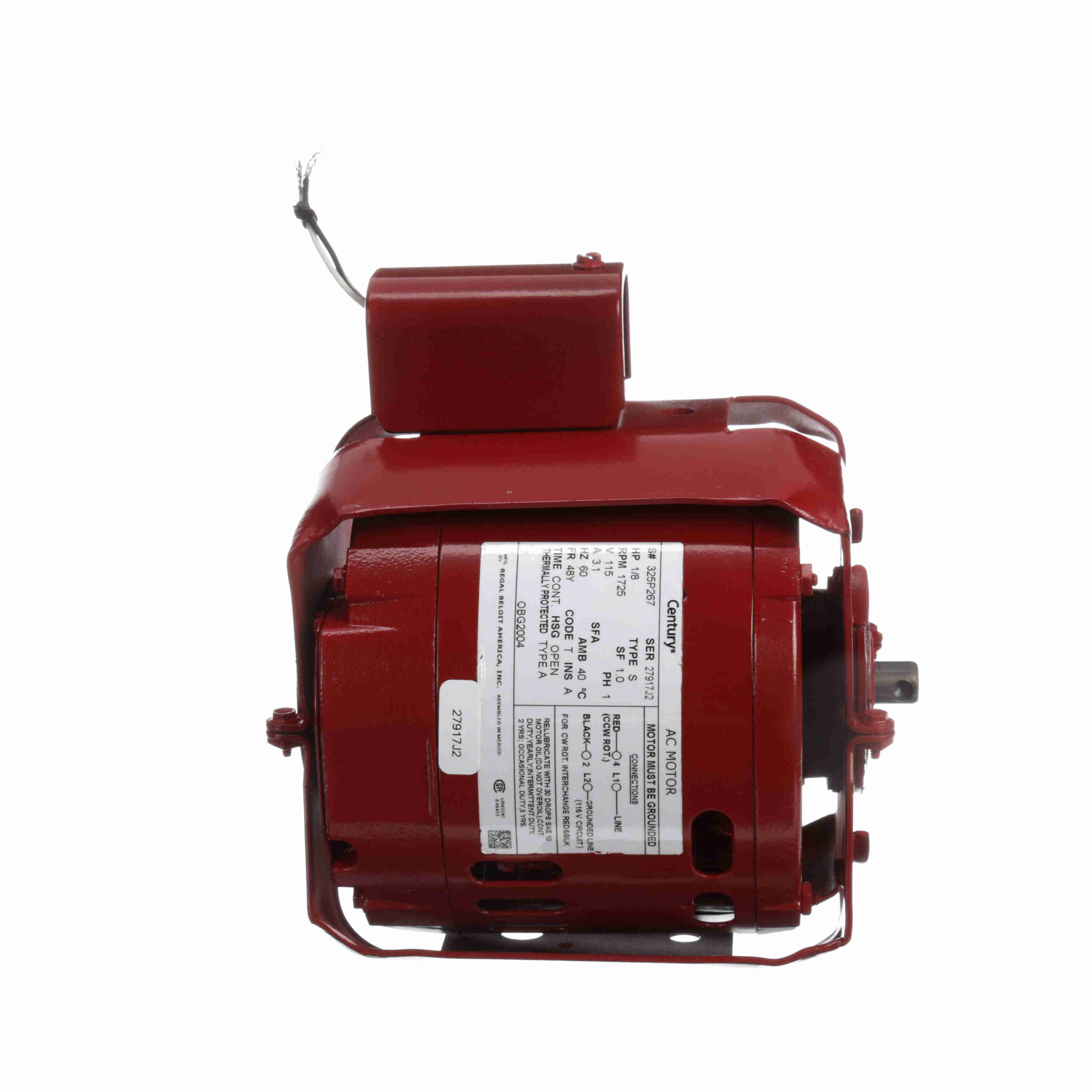

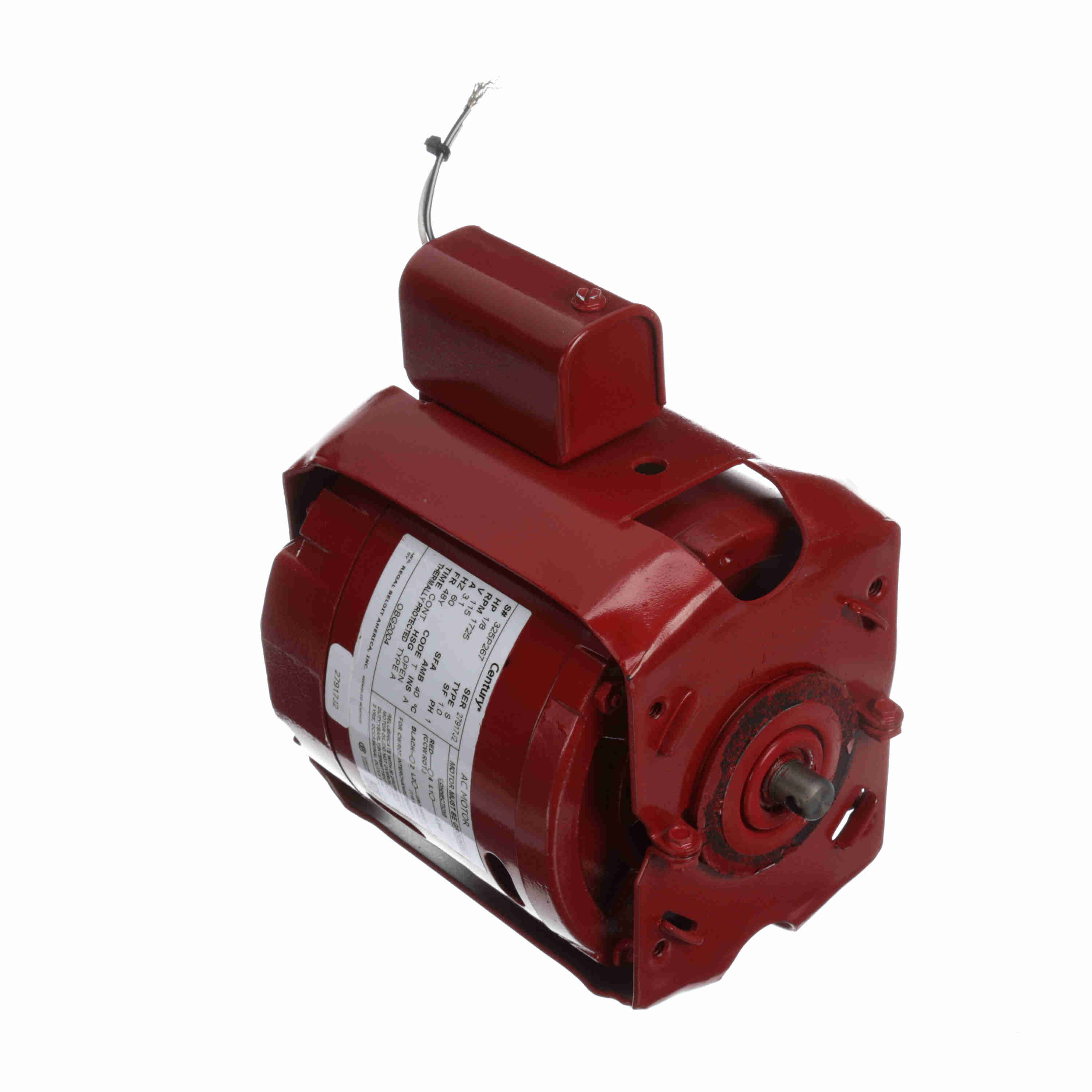

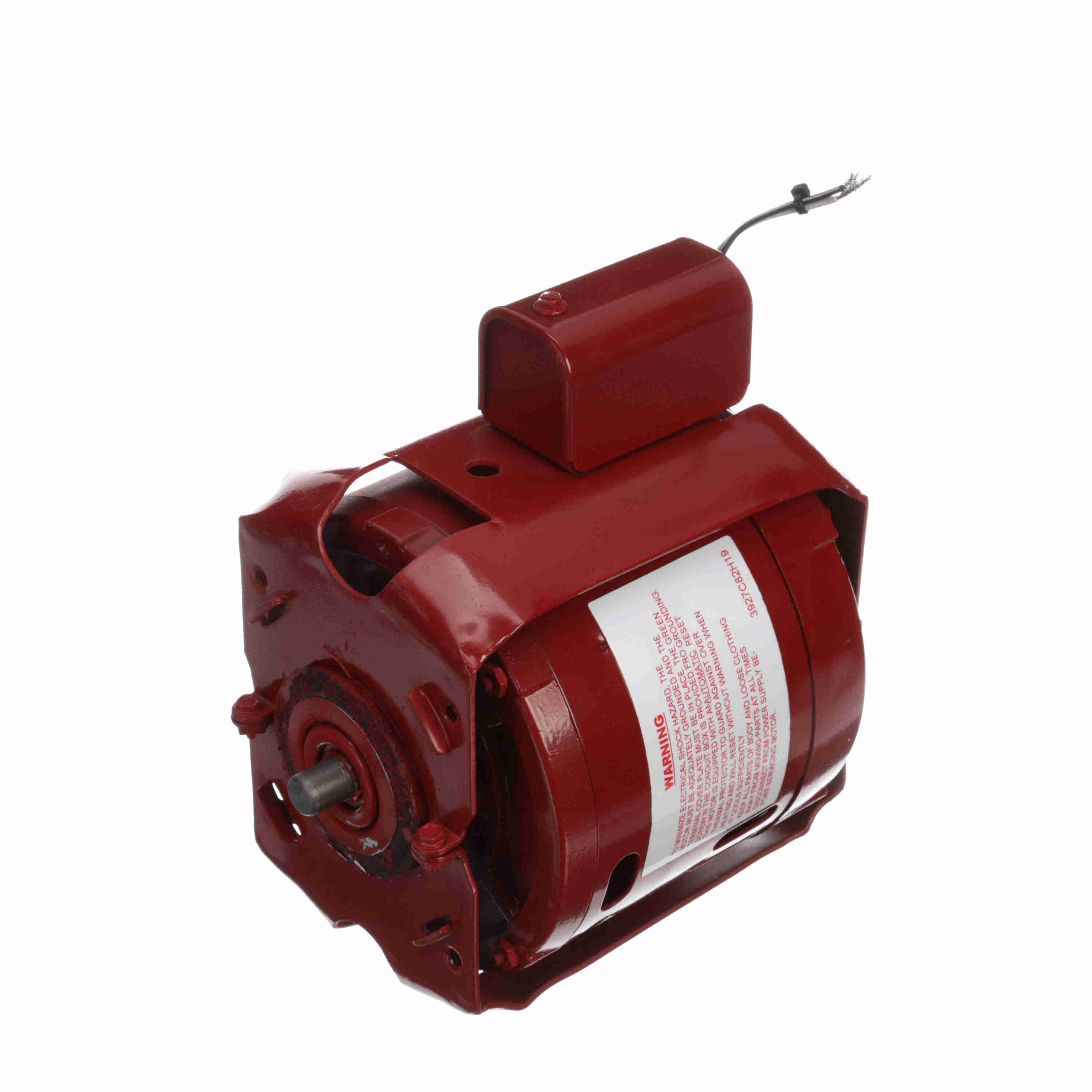

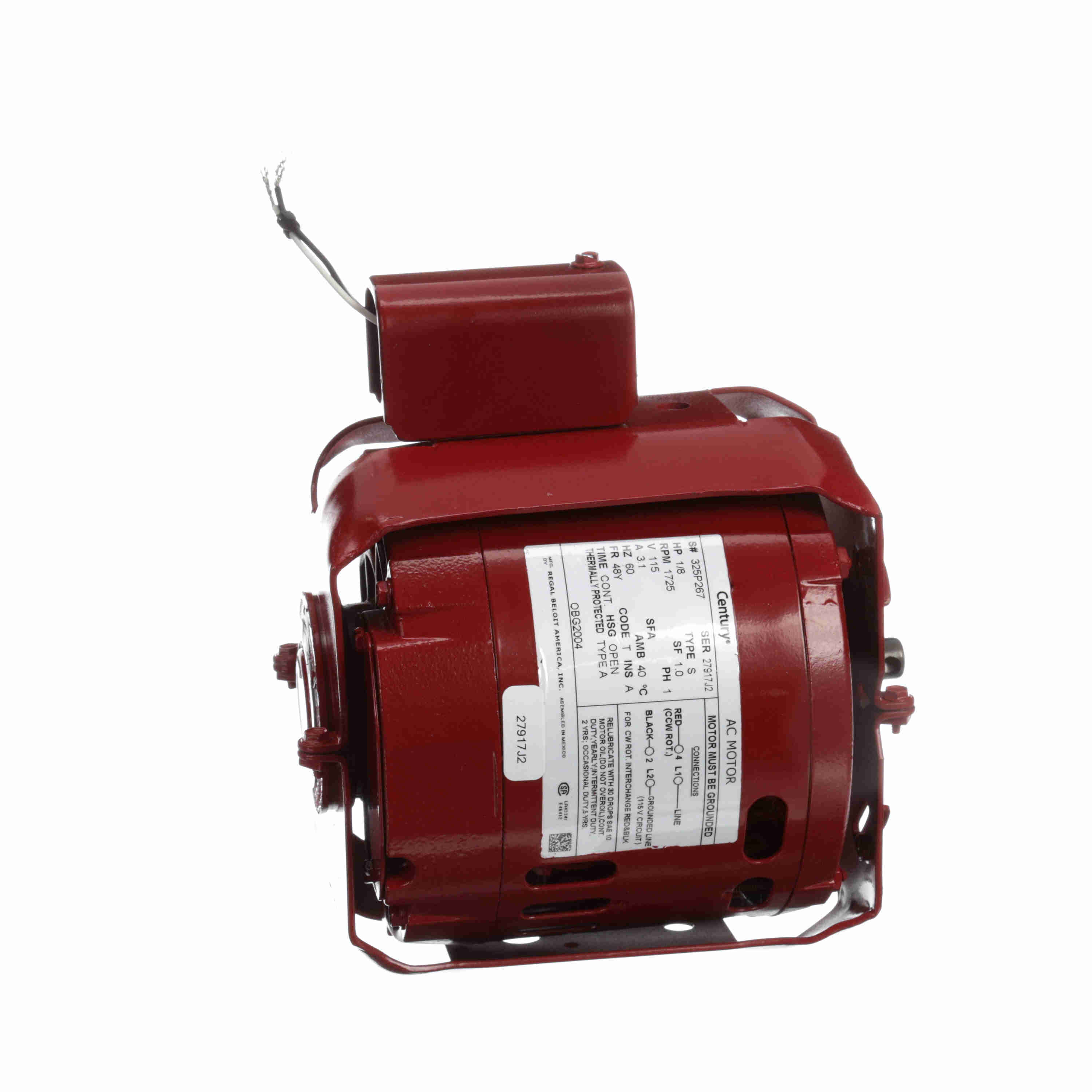

OBG2004 Century 1/8HP Circulator Pump Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: OBG2004

Selected accessories will also be added to cart
$231.97 / Each
Quantity:
Open Enclosed, 48Y Frame, 115V 1-Phase 60Hz

Features

Features
  • Automatic reset thermal protector

General Specifications

General Specifications
Model : Catalog No :OBG2004
Part Description :1/8,1725,OPEN,48Y,1/60/115 Category :Circulator pump
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/8 Hp Output KW :0.10 kW
Frequency :60 Hz Voltage :115 V
Current :3.1 A Speed :1725 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :A
Frame :48Y Enclosure :Open Enclosed
Overload Protector :Automatic Ambient Temperature :40 °C
UL :No CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Split Phase Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Resilient Base Drive End Bearing :Sleeve
Opp Drive End Bearing :Sleeve Frame Material :Rolled Steel
Shaft Type :Spot Drill Overall Length :6.84 in
Frame Length :3.44 in Shaft Diameter :0.500 in
Shaft Extension :0.68 in UPC :786674027108
Weight :12.00 LB
