/Products/Electric Motors/3 Phase/Century/OB3204V1 Century 2HP Electric Motor, 1725 RPM
Click Image to Expand

Product ID: OB3204V1

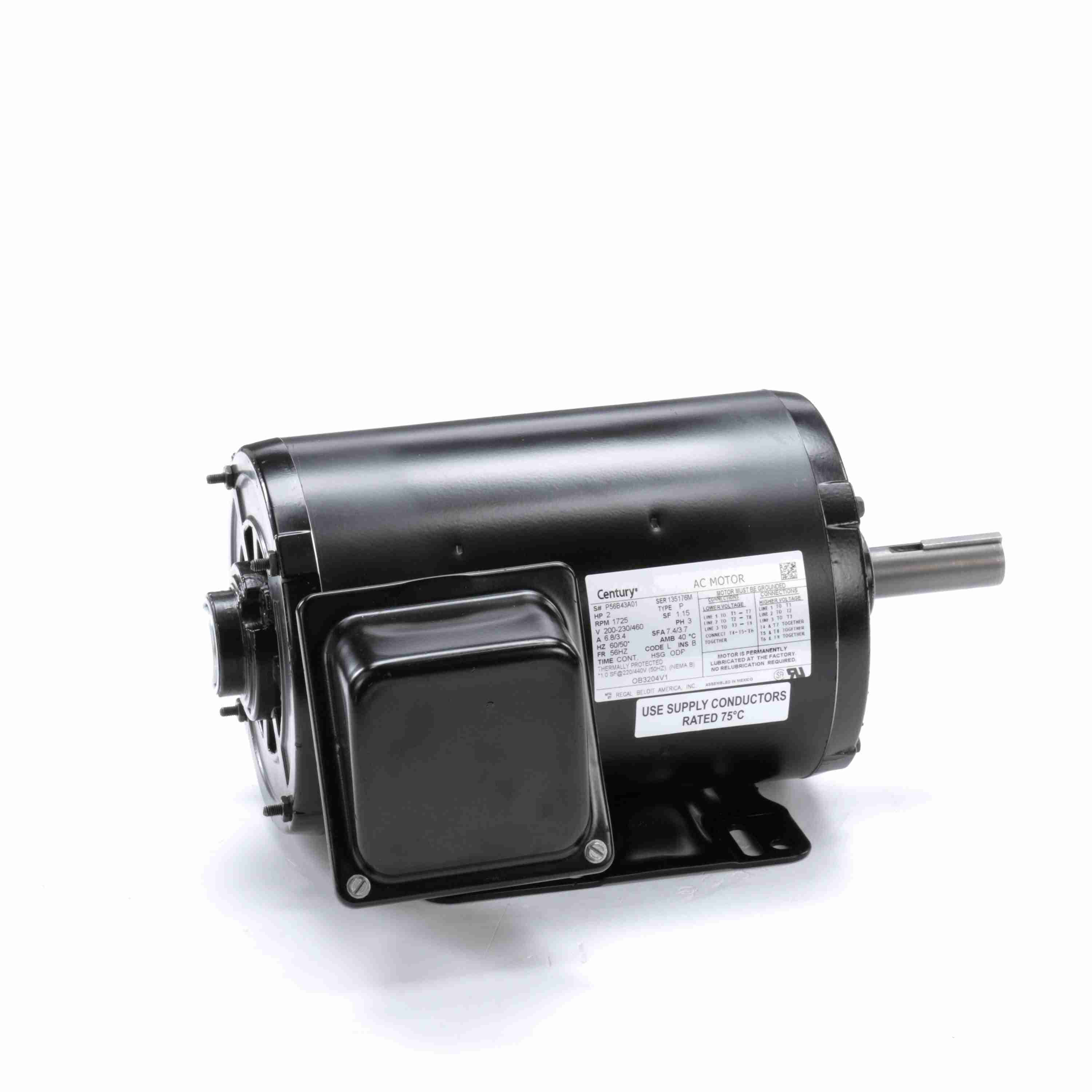

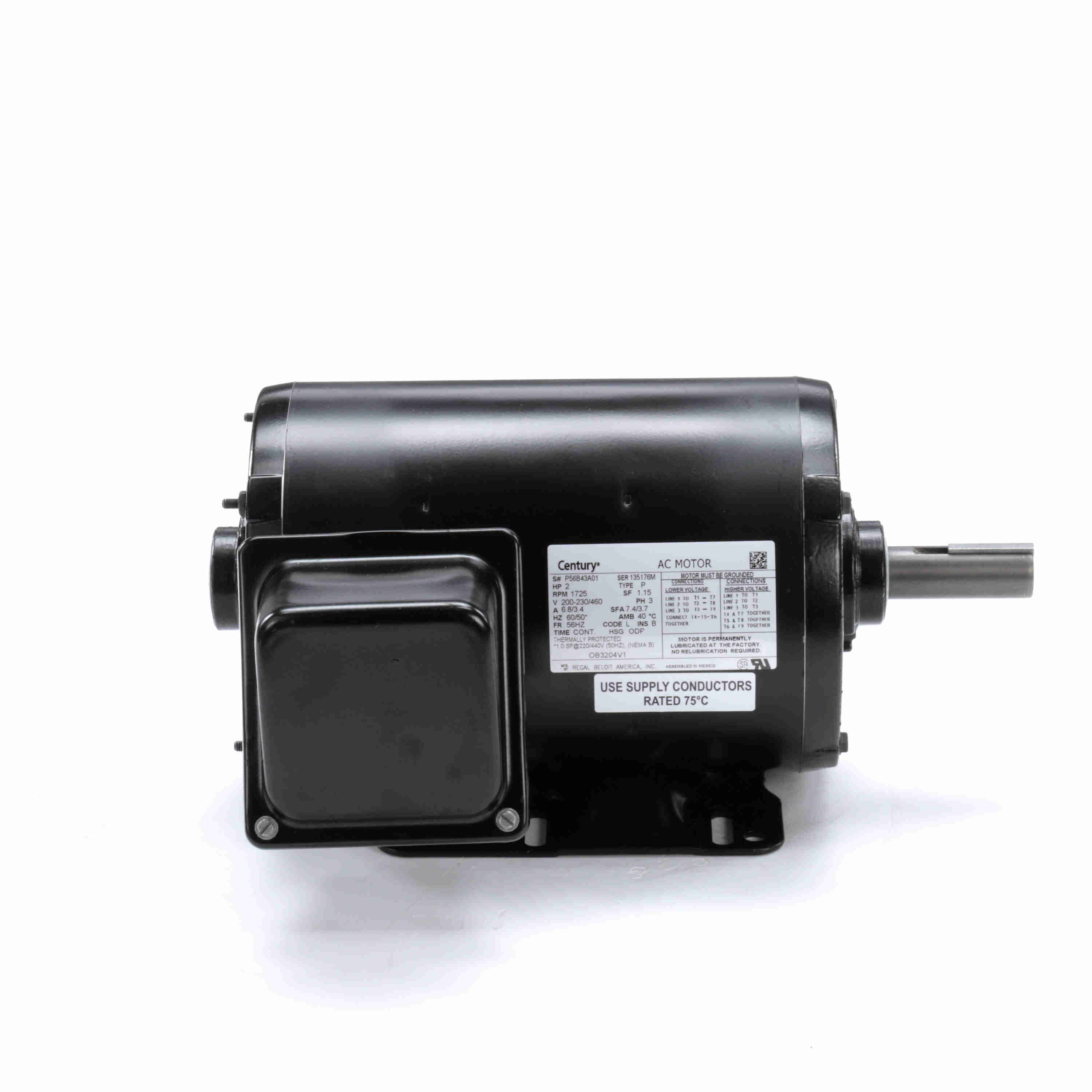

OB3204V1 Century 2HP Electric Motor, 1725 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: OB3204V1

Selected accessories will also be added to cart
$569.97 / Each
Quantity:
ODP, 56HZ Frame, 200-230/460V 3-Phase 60Hz, Rigid Base

Features

Features
  • Meets or exceeds all USA mandated effciencies
  • Rolled steel construction
  • 60/50 Hz at next horsepower

General Specifications

General Specifications
Model : Catalog No :OB3204V1
Part Description :2,1725,ODP,56HZ,3/60/200-230/460 Category :Open Drip Proof (ODP)
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :2 Hp Output KW :1.5 kW
Frequency :60 Hz Voltage :200-230/460 V
Current :6.8/3.4 A Speed :1725 rpm
Service Factor :1.15 Phase :3
Duty :Continuous Insulation Class :B
Frame :56HZ Enclosure :Open Drip Proof
Overload Protector :None Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Polyphase Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :13.22 in
Frame Length :8.19 in Shaft Diameter :0.874 in
Shaft Extension :2.38 in UPC :786674027092
Weight :33.00 LB
