Product ID: O217

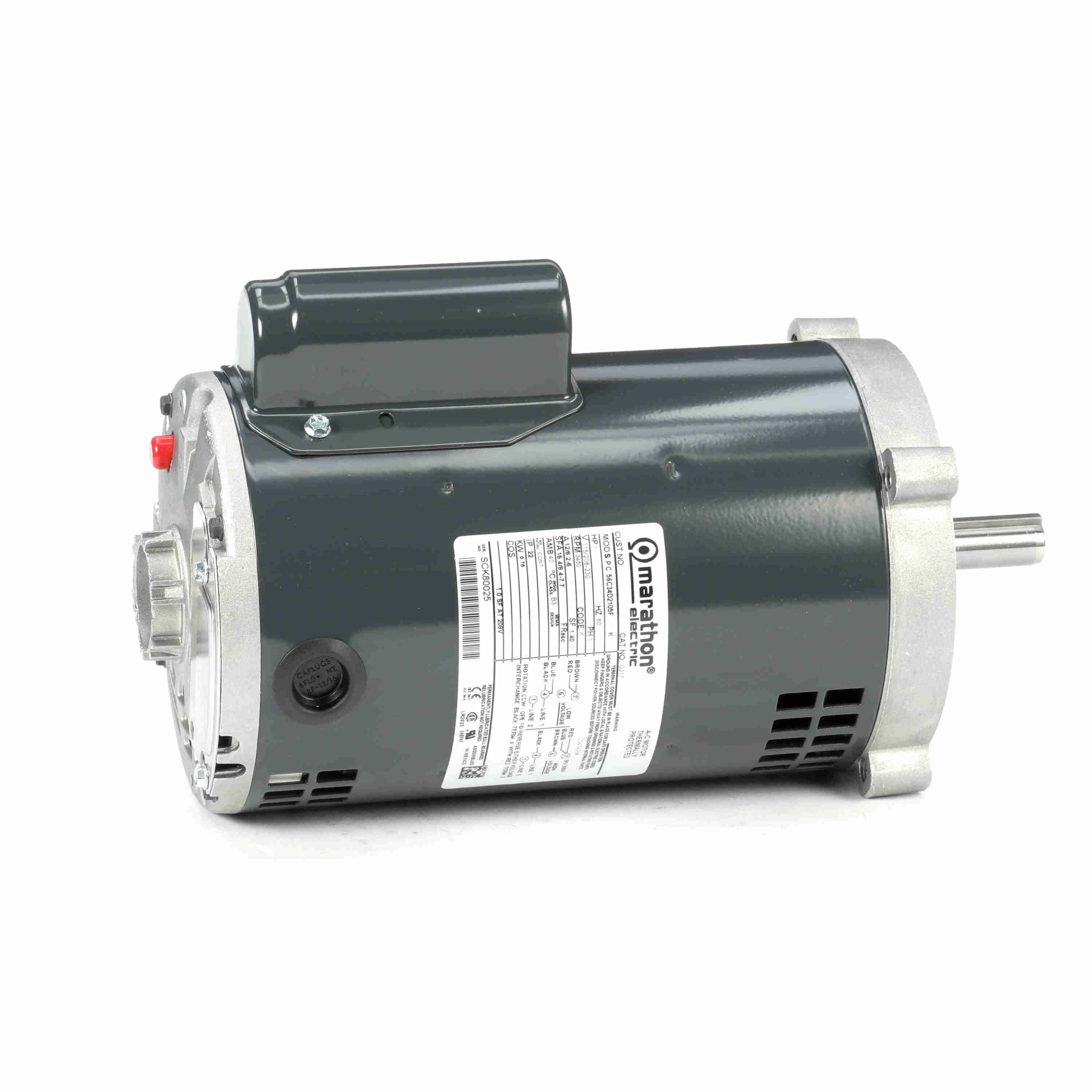

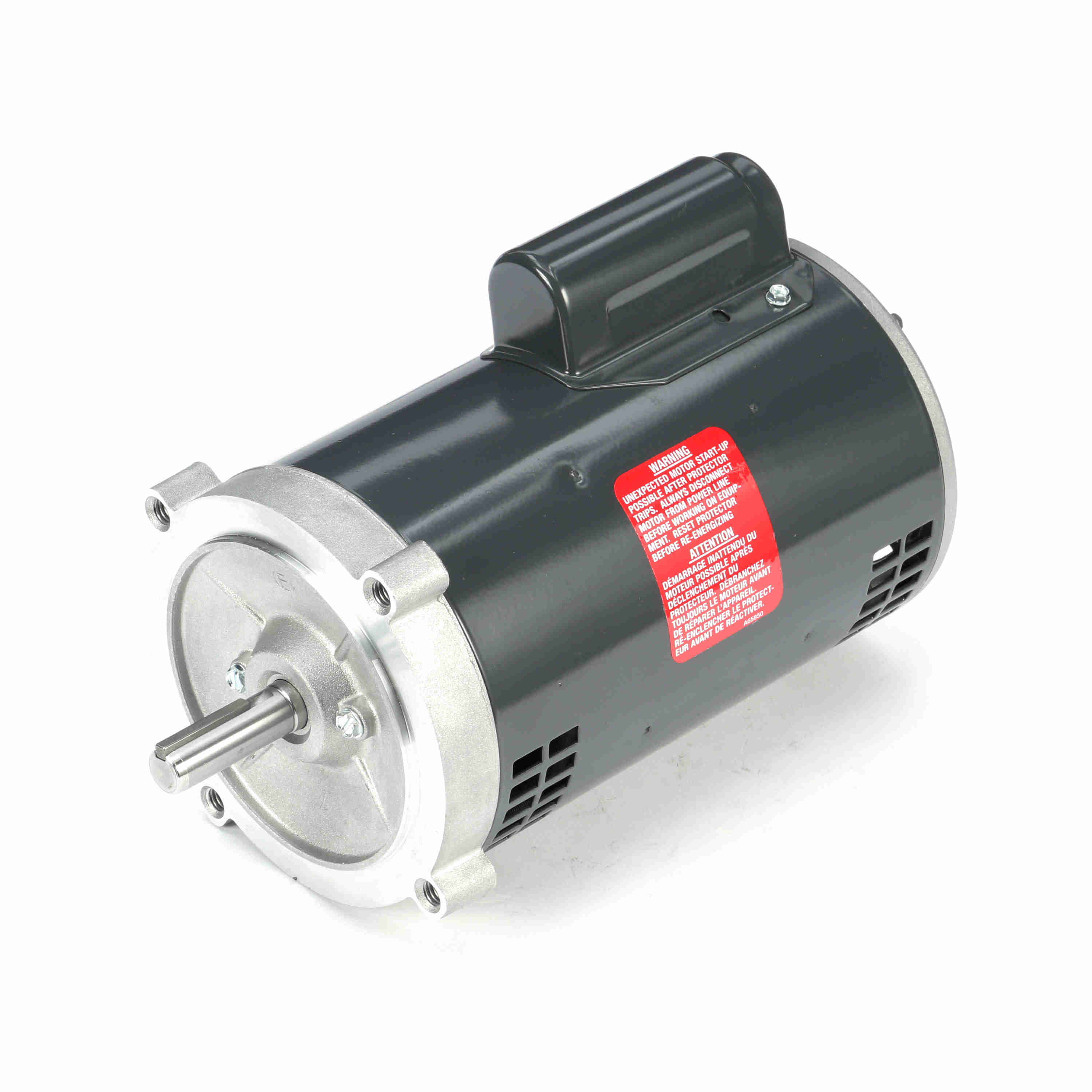

O217 Marathon 1HP Oil Burner Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: O217

Selected accessories will also be added to cart
$379.97 / Each
Quantity:
Drip Proof, 56C Frame, 115/208-230V Single Phase 60Hz, C-Face, Footless, Split Phase, Capacitor Start, 056C34D2105

Features

Features
  • Moderate starting torque
  • Capacitor start induction run design
  • NEMA 56C direct mounting
  • NEMA Jet Pump Service Factors

General Specifications

General Specifications

Model :056C34D2105 Catalog No :O217
Part Description :1,3600,DP,56C,1/60/115/208-230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications

Output HP :1 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :12.0/6.2-6.0 A Speed :3450 rpm
Service Factor :1.4 Phase :1
Efficiency :71.5 % Duty :Continous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :K Frame :56C
Enclosure :Drip Proof Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :22

Technical Specifications

Technical Specifications

Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Round Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :11.94 in Frame Length :8.00 in
Shaft Diameter :0.625 in Shaft Extension :2.06 in
Assembly/Box Mounting :F1 Only UPC :722856041708
Weight :24.00 LB

Speed & Load Characteristics

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor37.2040.5007.101.00
Pull-Up37.1039.202867.101.00
Break-Down20.8065.903,4574.201.00
Load Characteristics

  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.78
  • 0.208
  • 0.0
  • 0.0
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 3.79
  • 0.369
  • 0.0
  • 0.0
  • 3,582
  • 0.0
  • 5.90
  • 50 %
  • 4.27
  • 0.579
  • 0.0
  • 0.0
  • 3,566
  • 0.0
  • 11.80
  • 75 %
  • 4.91
  • 0.789
  • 0.0
  • 0.0
  • 3,550
  • 0.0
  • 17.80
  • 100 %
  • 6.00
  • 1.020
  • 72.0
  • 76.0
  • 3,532
  • 60.0
  • 23.80
  • 115 %
  • 6.28
  • 1.157
  • 74.0
  • 0.0
  • 3,110
  • 0.0
  • 27.52
  • 125 %
  • 6.73
  • 1.270
  • 55.0
  • 0.0
  • 3,511
  • 0.0
  • 30.00
  • 140 %
  • 7.70
  • 1.440
  • 90.0
  • 0.0
  • 3,495
  • 0.0
  • 33.70
  • 150 %
  • 7.90
  • 1.550
  • 0.0
  • 0.0
  • 3,486
  • 0.0
  • 36.20
  • 175 %
  • 9.29
  • 1.870
  • 0.0
  • 0.0
  • 3,454
  • 0.0
  • 42.60
  • 200 %
  • 11.20
  • 2.280
  • 0.0
  • 0.0
  • 3,403
  • 0.0
  • 49.40
