/Products/Electric Motors/Single Phase/Marathon/Oil Burner/O214 Marathon 3/4HP Oil Burner Electric Motor, 3600RPM
Click Image to Expand

Product ID: O214

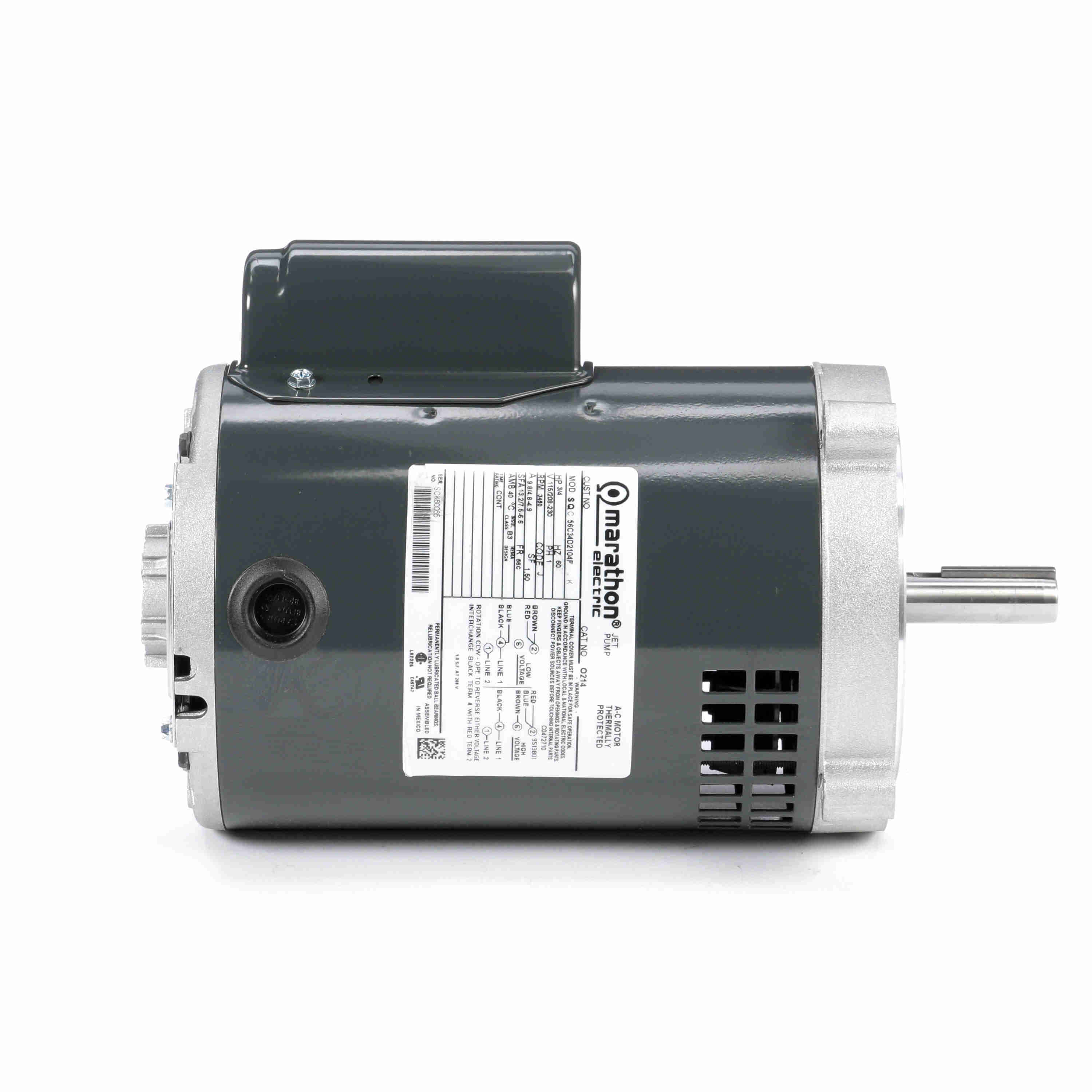

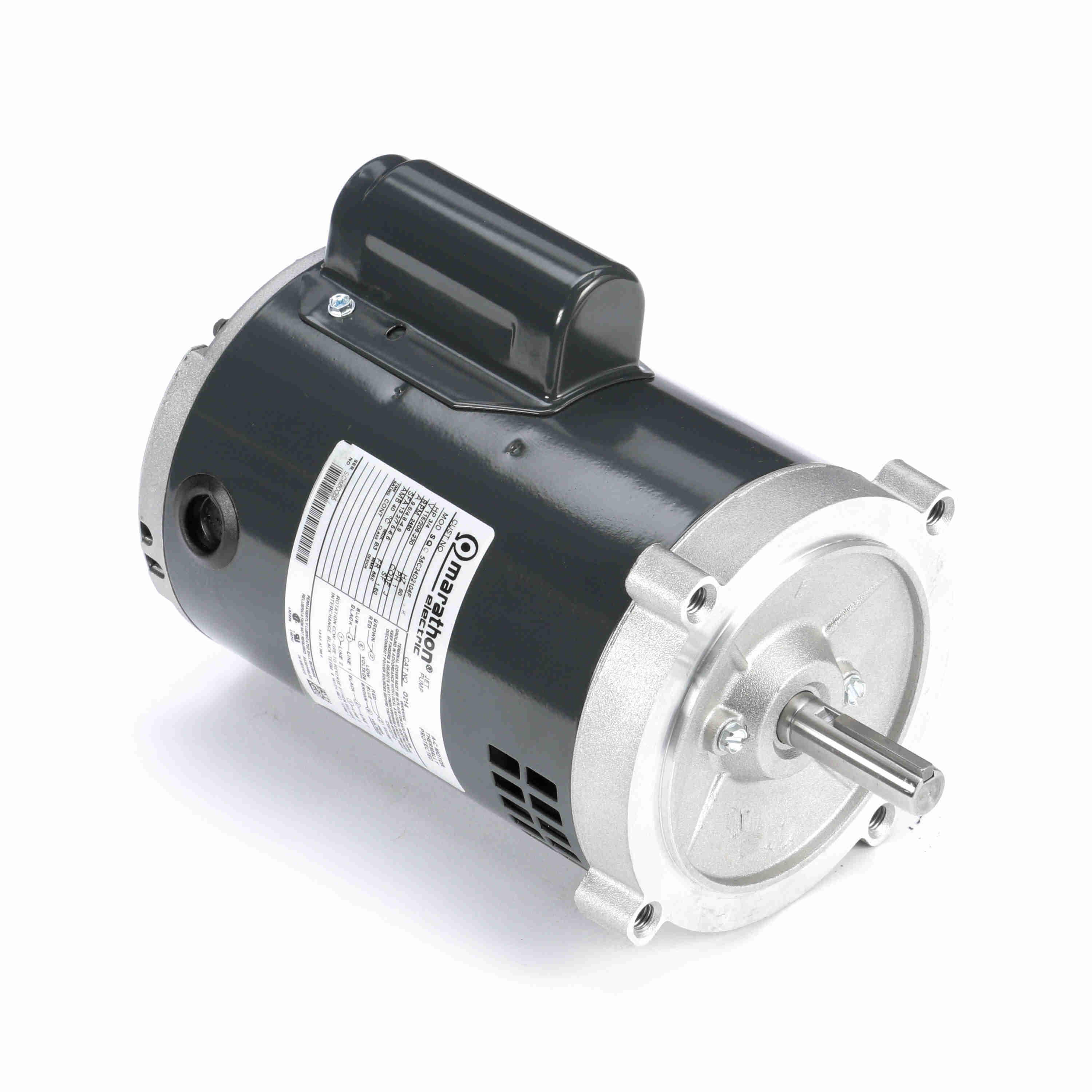

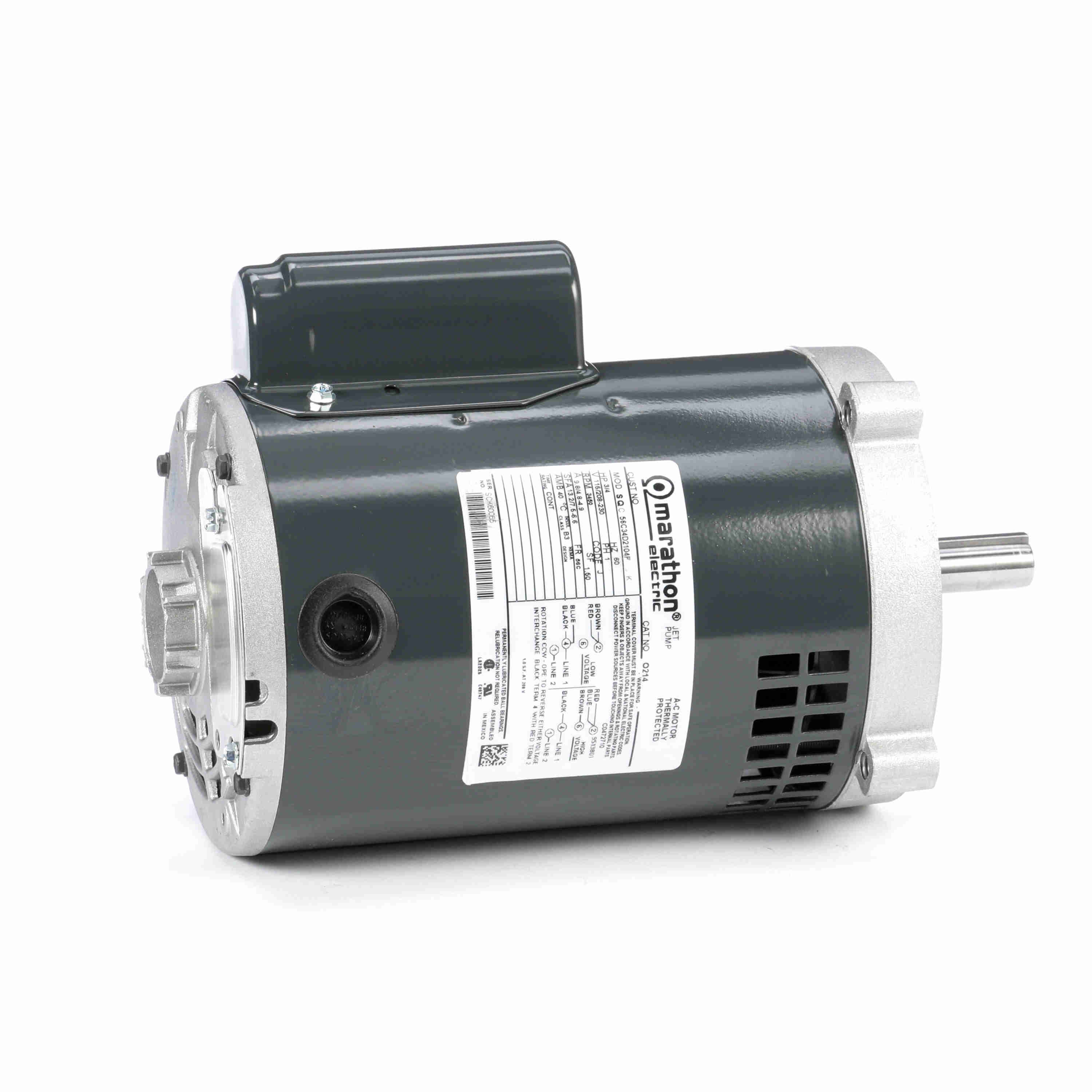

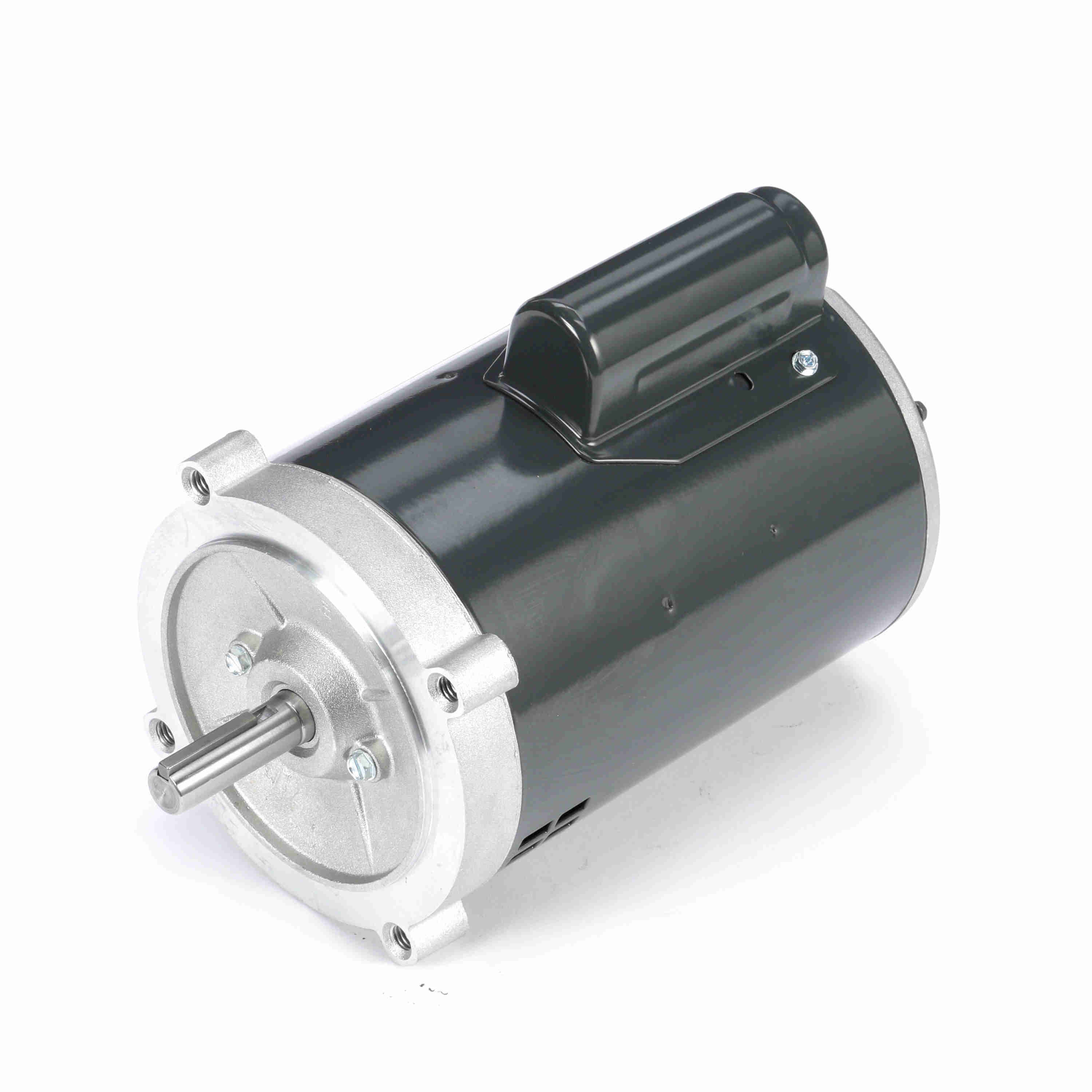

O214 Marathon 3/4HP Oil Burner Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: O214

Selected accessories will also be added to cart
$319.97 / Each
Quantity:
Drip Proof, 56C Frame, 115/208-230V Single Phase 60Hz

Features

Features
  • Moderate starting torque
  • Capacitor start induction run design
  • NEMA 56C direct mounting
  • NEMA Jet Pump Service Factors

General Specifications

General Specifications
Model :056C34D2104 Catalog No :O214
Part Description :3/4,3450,DP,56C,1/60/115/208-230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.75 Hp Output KW :0.56 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :9.8/4.8-4.9 A Speed :3450 rpm
Service Factor :1.5 Phase :1
Efficiency :70 % Duty :Continuous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :J Frame :56C
Enclosure :Drip Proof Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Round Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :10.94 in Frame Length :7.00 in
Shaft Diameter :0.625 in Shaft Extension :2.06 in
Assembly/Box Mounting :F1 ONLY UPC :722856041685
Weight :20.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down14.4046.403,1292.800.75
Pull-Up25.6032.102434.600.75
Locked-Rotor25.6035.1004.600.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.20
  • 0.190
  • 0.0
  • 25.9
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 3.40
  • 0.305
  • 45.8
  • 40.4
  • 3,576
  • 0.0
  • 4.40
  • 50 %
  • 3.60
  • 0.455
  • 61.9
  • 55.3
  • 3,559
  • 0.0
  • 8.90
  • 75 %
  • 4.10
  • 0.620
  • 68.3
  • 66.6
  • 3,540
  • 0.0
  • 13.40
  • 100 %
  • 4.90
  • 0.800
  • 70.0
  • 74.0
  • 3,520
  • 40.0
  • 17.90
  • 125 %
  • 5.40
  • 0.990
  • 71.5
  • 79.6
  • 3,494
  • 0.0
  • 22.60
  • 150 %
  • 6.60
  • 1.190
  • 70.5
  • 82.9
  • 3,460
  • 75.0
  • 27.30
  • 175 %
  • 7.40
  • 1.440
  • 68.0
  • 85.4
  • 3,425
  • 0.0
  • 32.20
  • 200 %
  • 8.80
  • 1.750
  • 63.9
  • 86.5
  • 3,370
  • 0.0
  • 37.40
