/Products/Electric Motors/Single Phase/Marathon/Oil Burner/O012 Marathon 1/5HP Oil Burner Electric Motor, 3450RPM
Click Image to Expand

Product ID: O012

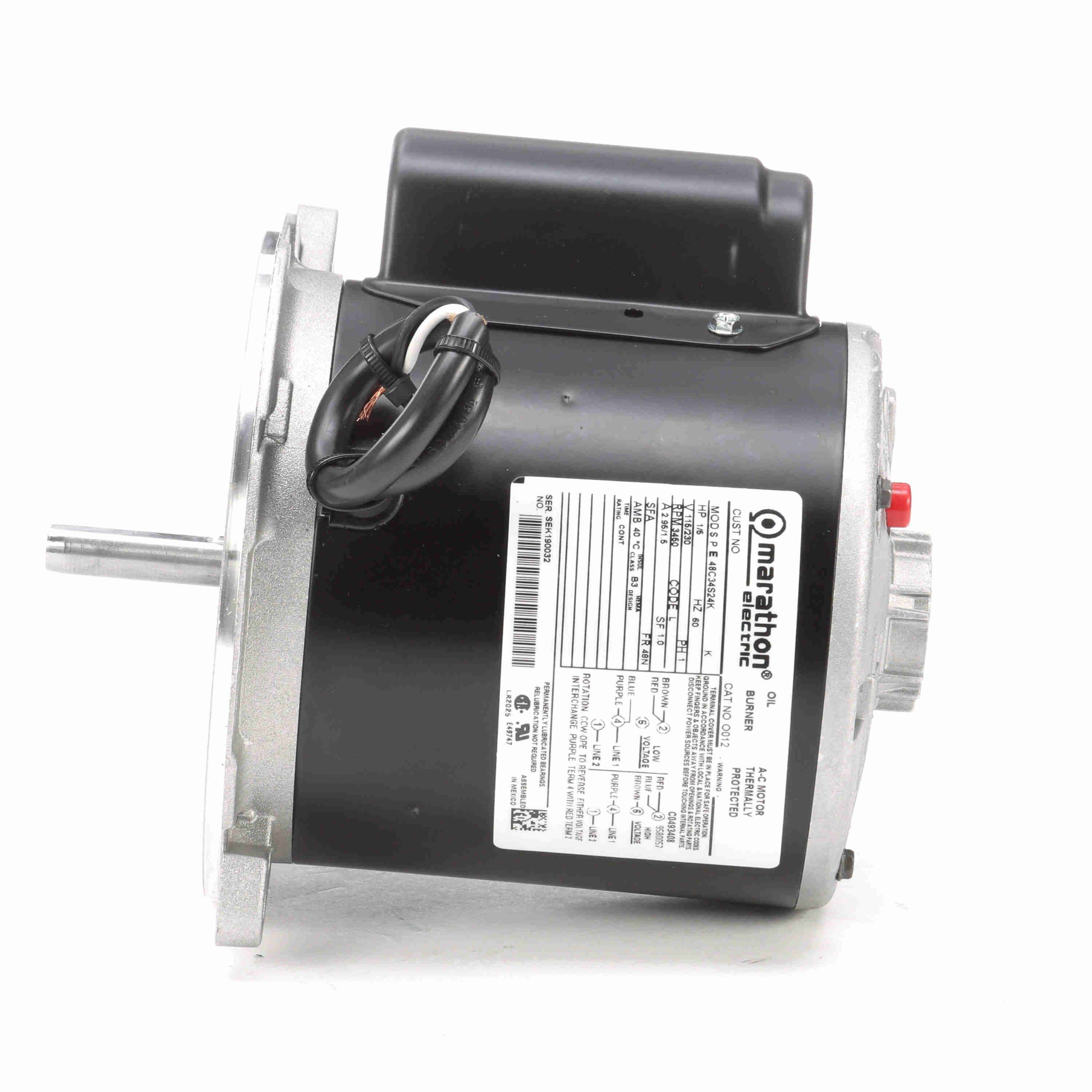

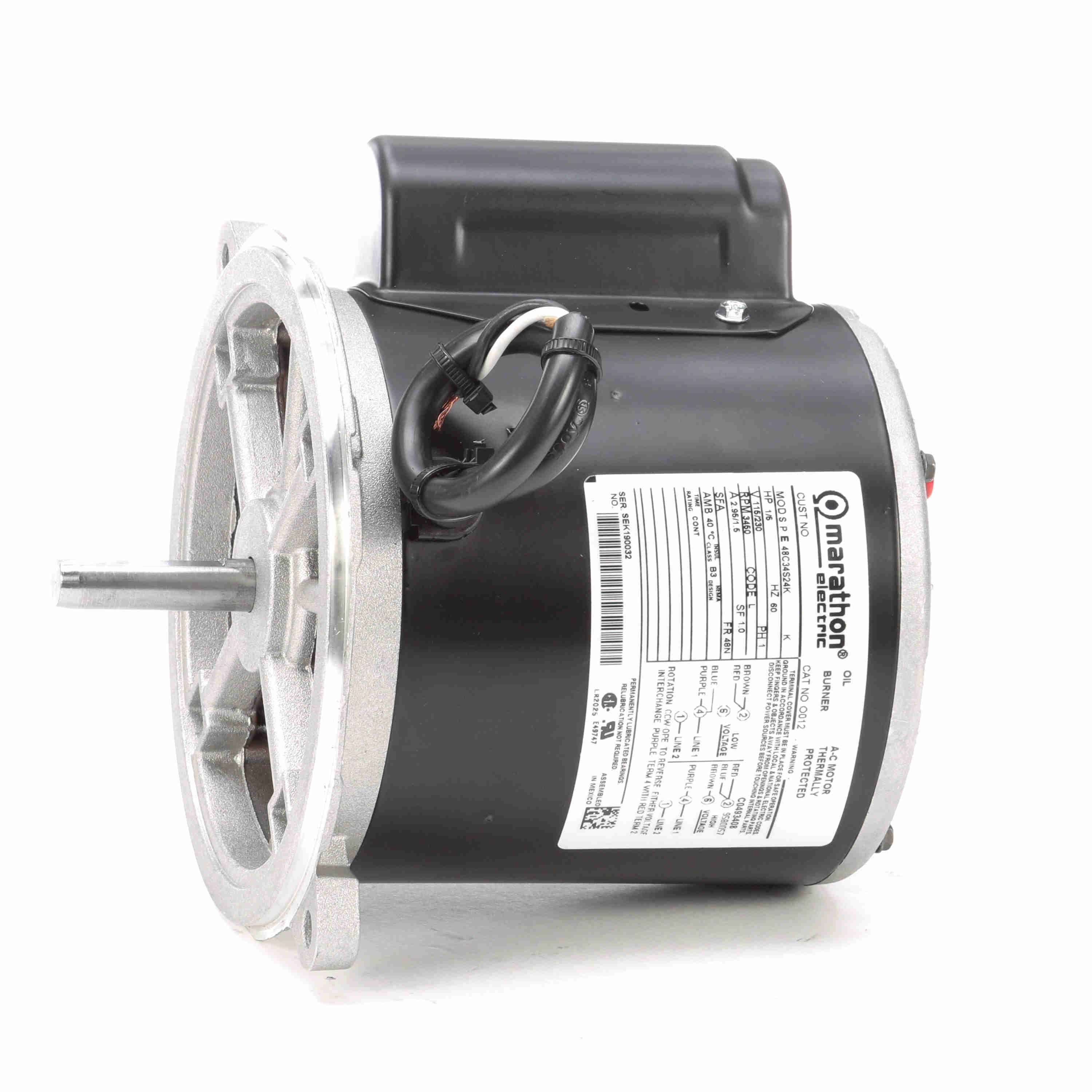

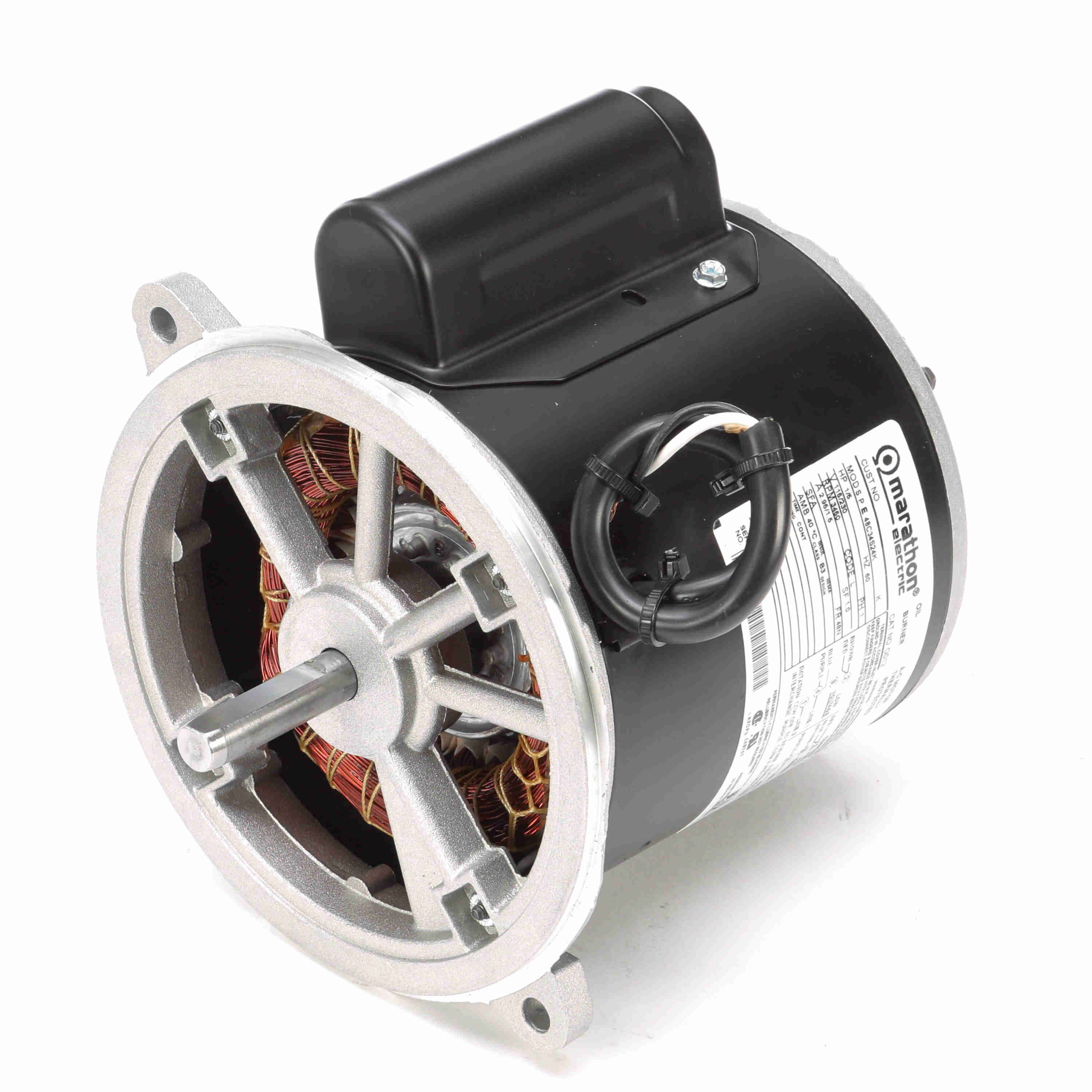

O012 Marathon 1/5HP Oil Burner Electric Motor, 3450RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: O012

Selected accessories will also be added to cart
$279.97 / Each
Quantity:
Semi Enclosed, 48N Frame, 115/230V Single Phase 60Hz, 048C34S24

Features

Features
  • Semi-enclosed steel frame
  • 10” Long leads from a 1/2” NPT opening
  • Capacitor start induction run design
  • Two-bolt, NEMA N- or M-Flange direct

General Specifications

General Specifications
Model :048C34S24 Catalog No :O012
Part Description :1/5,3450,SEMI,48N,1/60/115/230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.20 Hp Output KW :0.15 kW
Frequency :60 Hz Voltage :115/230 V
Current :3.0/1.5 A Speed :3450 rpm
Service Factor :1 Phase :1
Efficiency :61 % Duty :Continuous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :L Frame :48N
Enclosure :Semi Enclosed Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :10

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Clockwise
Mounting :Round Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :NEMA 48
Overall Length :8.35 in Frame Length :4.75 in
Shaft Diameter :0.500 in Shaft Extension :1.97 in
Assembly/Box Mounting :F1 Only UPC :722856041555
Weight :14.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor8.2014.1801.900.20
Break-Down4.2012.893,2140.800.20
Pull-Up5.4011.862,7861.000.20
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.02
  • 0.059
  • 0.0
  • 41.5
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 1.07
  • 0.114
  • 25.8
  • 56.1
  • 3,567
  • 0.0
  • 1.21
  • 50 %
  • 1.17
  • 0.155
  • 40.2
  • 65.8
  • 3,551
  • 0.0
  • 2.40
  • 75 %
  • 1.31
  • 0.199
  • 48.0
  • 72.5
  • 3,533
  • 0.0
  • 3.59
  • 100 %
  • 1.48
  • 0.248
  • 53.0
  • 77.3
  • 3,511
  • 0.0
  • 4.82
  • 115 %
  • 1.59
  • 0.277
  • 55.0
  • 81.0
  • 3,498
  • 0.0
  • 5.54
  • 125 %
  • 1.68
  • 0.300
  • 56.3
  • 83.0
  • 3,488
  • 0.0
  • 6.05
  • 150 %
  • 1.92
  • 0.356
  • 54.0
  • 85.0
  • 3,460
  • 0.0
  • 7.31
  • 175 %
  • 2.22
  • 0.422
  • 51.2
  • 0.0
  • 3,424
  • 0.0
  • 8.61
  • 200 %
  • 2.62
  • 0.505
  • 0.0
  • 0.0
  • 3,372
  • 0.0
  • 10.00
