/Products/Electric Motors/Single Phase/Marathon/Oil Burner/O010 Marathon 1/3HP Oil Burner Electric Motor, 3450RPM
Click Image to Expand

Product ID: O010

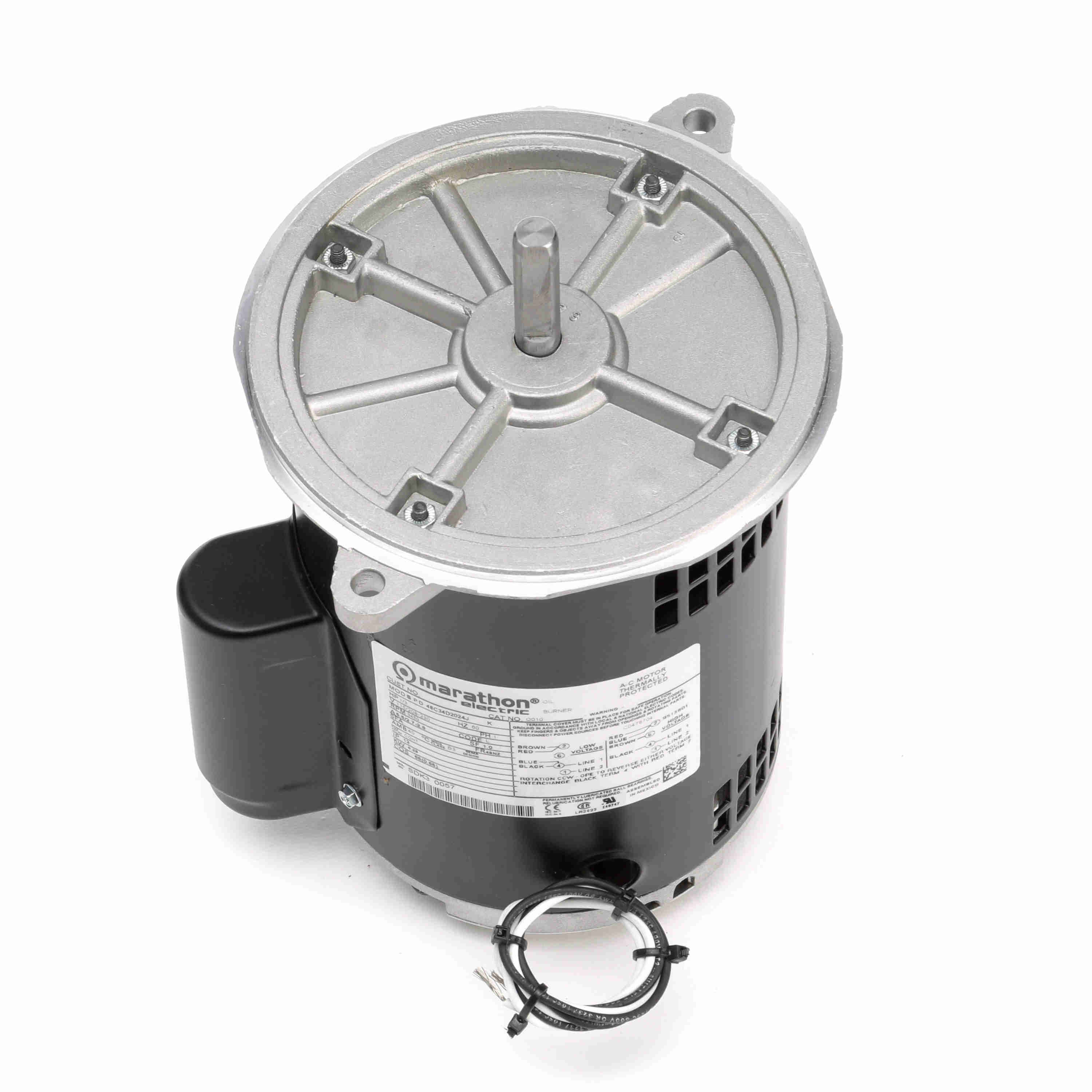

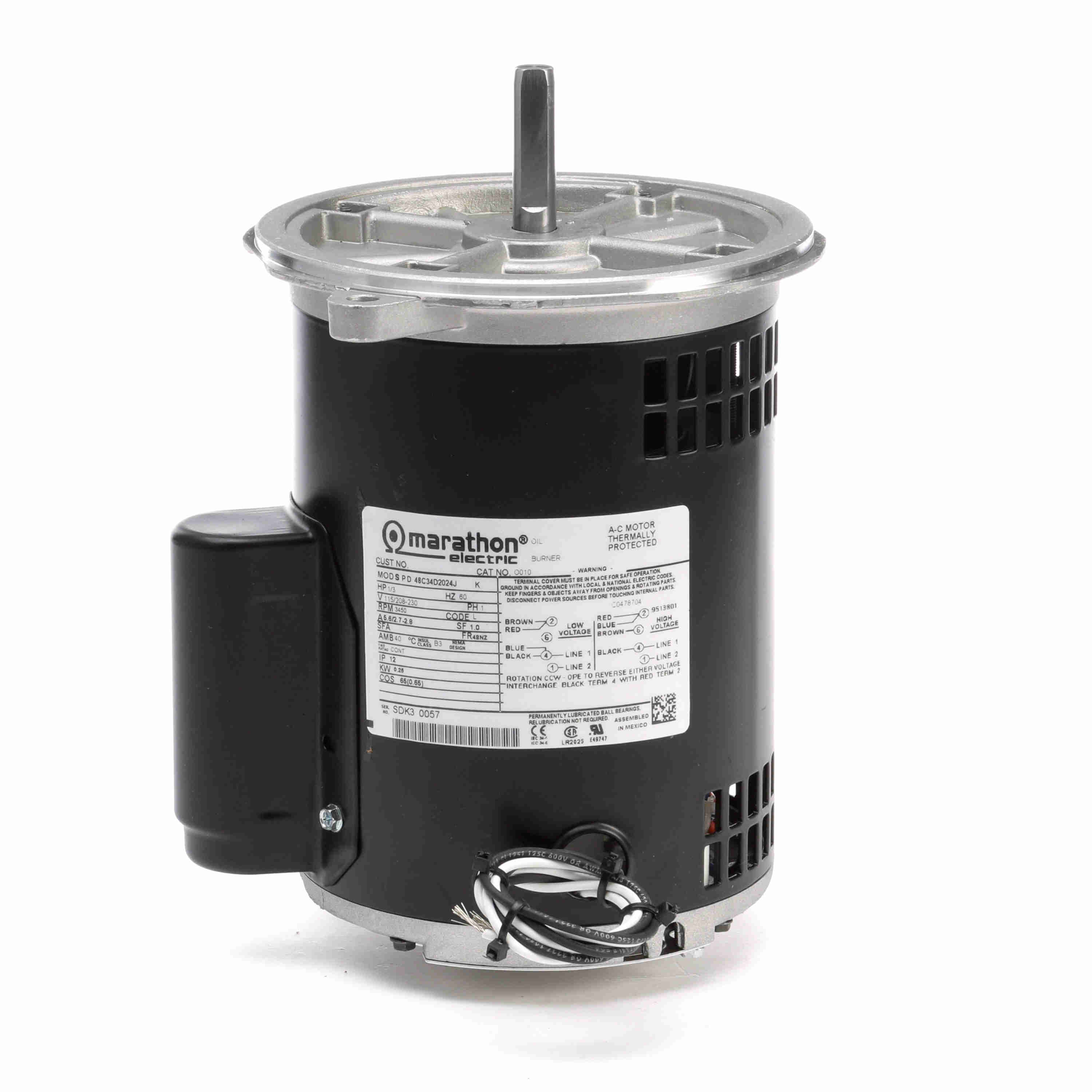

O010 Marathon 1/3HP Oil Burner Electric Motor, 3450RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: O010

Selected accessories will also be added to cart
$299.97 / Each
Quantity:
Drip Proof, 48N Frame, 115/208-230V Single Phase 60Hz, 048C34D2024

Features

Features
  • Semi-enclosed steel frame
  • 20” Long leads from a 1/2” NPT opening
  • Capacitor start induction run design
  • Two-bolt, NEMA N- or M-Flange direct
  • Dripproof enclosure

General Specifications

General Specifications
Model :048C34D2024 Catalog No :O010
Part Description :1/3,3450,DP,48NZ,1/60/115/208-230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.33 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :5.6/2.7-2.8 A Speed :3450 rpm
Service Factor :1 Phase :1
Efficiency :64 % Duty :Continuous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :L Frame :48NZ
Enclosure :Drip Proof Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :12

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Round Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :10.34 in Frame Length :6.75 in
Shaft Diameter :0.500 in Shaft Extension :1.94 in
Assembly/Box Mounting :F1 ONLY UPC :722856041531
Weight :14.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor14.1014.3002.860.33
Pull-Up14.1013.502292.860.33
Break-Down7.1923.003,2001.440.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.20
  • 0.130
  • 0.0
  • 25.0
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 2.30
  • 0.200
  • 33.0
  • 36.0
  • 3,577
  • 0.0
  • 2.00
  • 50 %
  • 2.35
  • 0.250
  • 48.0
  • 48.0
  • 3,564
  • 0.0
  • 4.00
  • 75 %
  • 2.50
  • 0.320
  • 57.0
  • 58.0
  • 3,550
  • 0.0
  • 6.00
  • 100 %
  • 2.80
  • 0.390
  • 63.0
  • 65.0
  • 3,530
  • 30.0
  • 8.00
  • 115 %
  • 2.90
  • 0.450
  • 64.0
  • 68.0
  • 3,520
  • 35.0
  • 10.00
  • 135 %
  • 3.10
  • 0.500
  • 64.0
  • 72.0
  • 3,505
  • 40.0
  • 10.40
  • 150 %
  • 3.40
  • 0.570
  • 62.5
  • 76.0
  • 3,480
  • 45.0
  • 12.00
  • 175 %
  • 3.80
  • 0.680
  • 62.0
  • 82.0
  • 3,440
  • 50.0
  • 14.30
  • 180 %
  • 3.80
  • 0.700
  • 62.0
  • 82.0
  • 3,435
  • 55.0
  • 14.50
  • 200 %
  • 4.10
  • 0.780
  • 61.0
  • 84.0
  • 3,420
  • 0.0
  • 16.30
