/Products/Electric Motors/Single Phase/Marathon/Oil Burner/O002 Marathon Split Phase Electric Motor, 1/4HP
Click Image to Expand

Product ID: O002

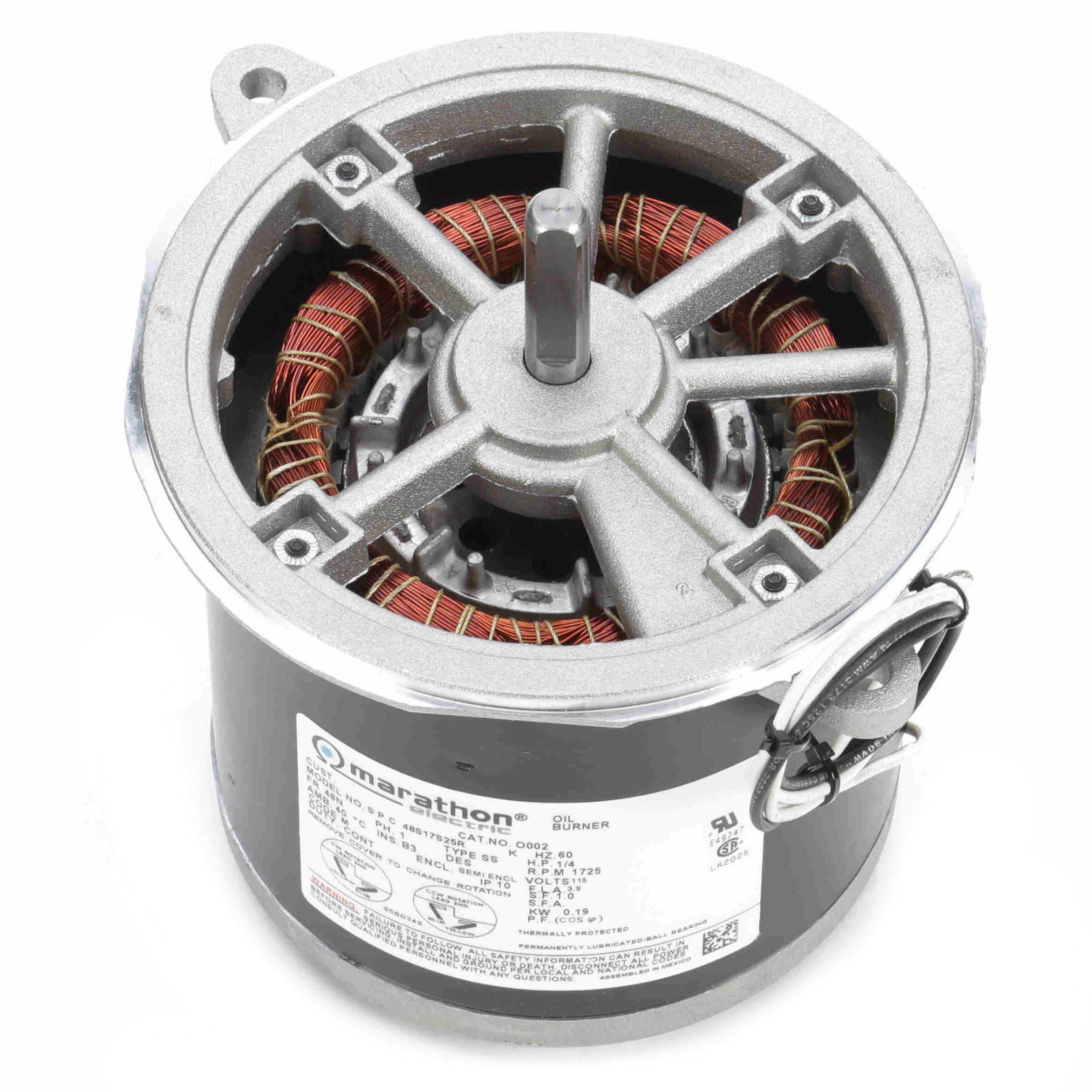

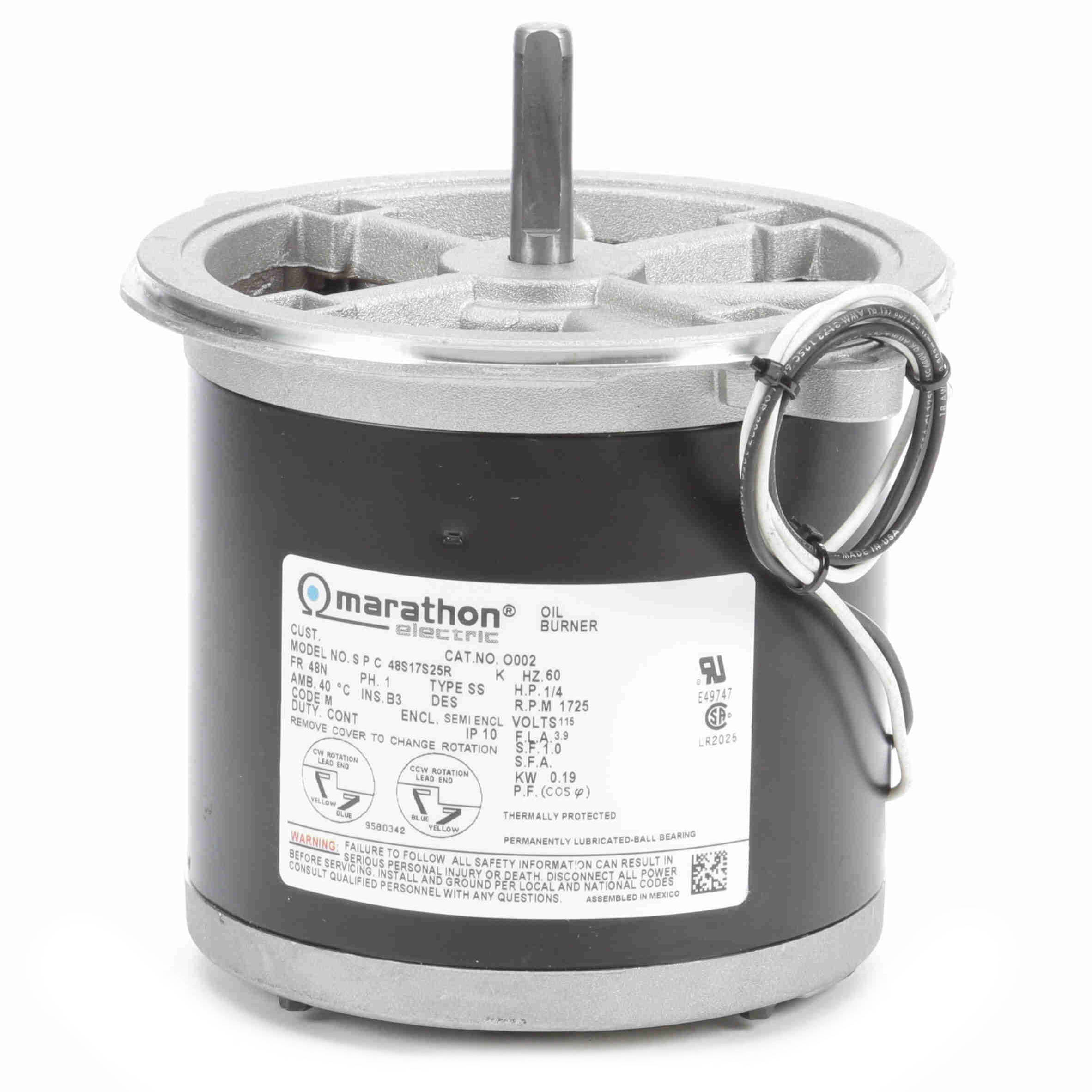

O002 Marathon Split Phase Electric Motor, 1/4HP

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: O002

Selected accessories will also be added to cart
$239.97 / Each
Quantity:
1725RPM , 48N Frame, ODP, 115VAC Single Phase 60Hz
General Specifications
Model :   048S17S25
Catalog No :   O002
Part Description :   1/4,1725,SEMI,48N,1/60/115
Category :   Single Phase
Stock :   Yes
Nameplate Specifications
Output HP :   0.25 Hp
Output KW :   0.19 kW
Frequency :   60 Hz
Voltage :   115 V
Current :   3.9 A
Speed :   1725 rpm
Service Factor :   1
Phases :   1
Efficiency :   60.19 %
Duty :   CONTINUOUS
Insulation Class :   B
Design Code :   NO DESIGN CODE
KVA Code :   M
Frame :   48N
Enclosure :   SEMI ENCLOSED
Overload Protector :   MANUAL
Ambient Temperature :   40 °C
Drive End Bearing Size :   6203
Opp Drive End Bearing Size :   6203
UL :   Recognized
CSA :   Y
CE :   N
IP Code :   10
Technical Specifications
Electrical Type :   SPLIT PHASE
Starting Method :   ACROSS THE LINE
Poles :   4
Rotation :   SELECTIVE CW
Mounting :   ROUND
Motor Orientation :   HORIZONTAL
Drive End Bearing :   BALL
Opp Drive End Bearing :   BALL
Frame Material :   ROLLED STEEL
Shaft Type :   STANDARD 48
Overall Length :   7.59 in
Frame Length :   4.25 in
Shaft Diameter :   0.5 in
Shaft Extension :   1.97 in
Assembly/Box Mounting :   F1 ONLY
UPC :   722856041494
