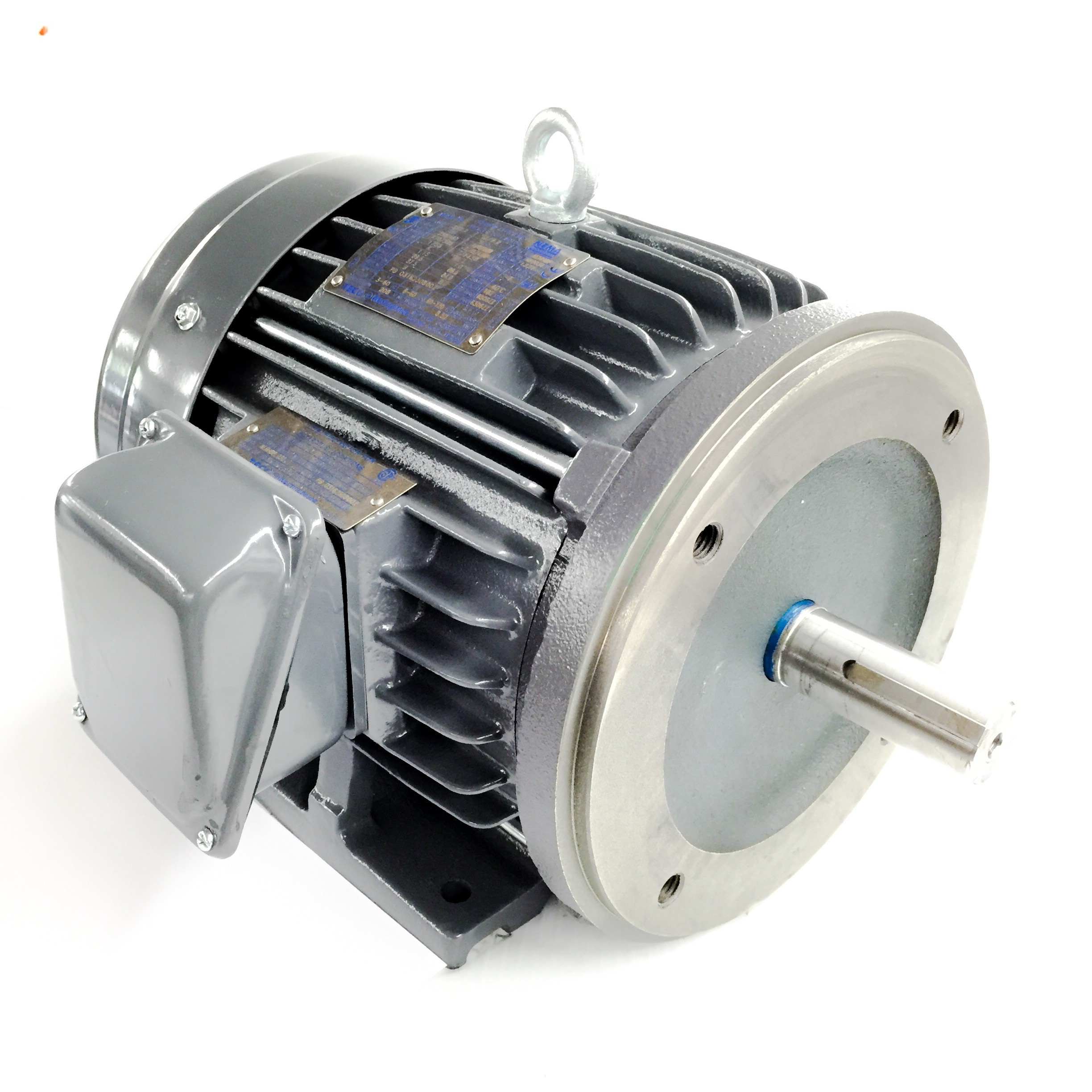

NP1506C 150 HP Teco-Westinghouse Cast Iron Electric Motor, 1200 RPM
Enlarge Photo

Product ID: NP1506C

NP1506C 150 HP Teco-Westinghouse Cast Iron Electric Motor, 1200 RPM

MFG: TECO-Westinghouse
MFG Part Number: NP1506C

Selected accessories will also be added to cart
$12,399.97 / Each
Quantity:
TEFC, 447TC, 460VAC 3-Phase 50/60Hz

Features

  • Totally Enclosed Fan Cooled (IP54 Rating)
  • Meets or Exceeds NEMA Premium Efficiency Levels
  • Department of Energy Efficiency Certificate #CC002A
  • 36 Month Warranty from Date of Manufacture
  • 1.15 Service Factor – Continuous
  • Class F Insulation with Phenolic Alkyd Resin Varnish – 2 Dips and Bakes
  • Class B Temperature Rise
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments – Fully Gasketed; F1 Mounted.
  • Designed for 40°C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Factory Self Certified for Class 1, Div. 2, Groups B, C, D; Temp Code T3C, 400T and Below
  • Bidirectional Rotation
  • Cast Iron Frame, End Brackets, Pressed Steel Fan Cover and Conduit Box
  • Dual Drilled Feet - Longer Frames
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction
  • Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
  • Paint Color: Blue Gray – Munsell 7.5 BG 3.5/ .05
  • Grounding Terminal Inside Main Box
  • Stainless Steel Nameplate
  • Inverter Duty Magnet Wire Capable of Withstanding Voltage Spikes of Up to 2200 Volts
  • VFD Rated per NEMA MG1, Part 31.4.4.2
  • 9 Leads - 5 hp and Below
    12 Leads 7.5 hp - 125 hp
    6 Leads - 150 hp and Larger
  • CE Mark on Nameplate, U.L. Recognized and CSA Approved

Specifications

Manufacturer Teco-Westinghouse
Catalog Number NP1506C
Type AEHH8PCF
Output Power 150 HP
kW
RPM 1200 RPM
Poles 6
Voltage 460VAC
3-Phase
60Hz
Enclosure TEFC
Cast Iron
Frame 447TC
C-Face Yes
Weight 2,100 lbs
Rated Ambient 40°C
Insulation Class F
NEMA Design B
Service Factor 1.15
