Product ID: NP0054C

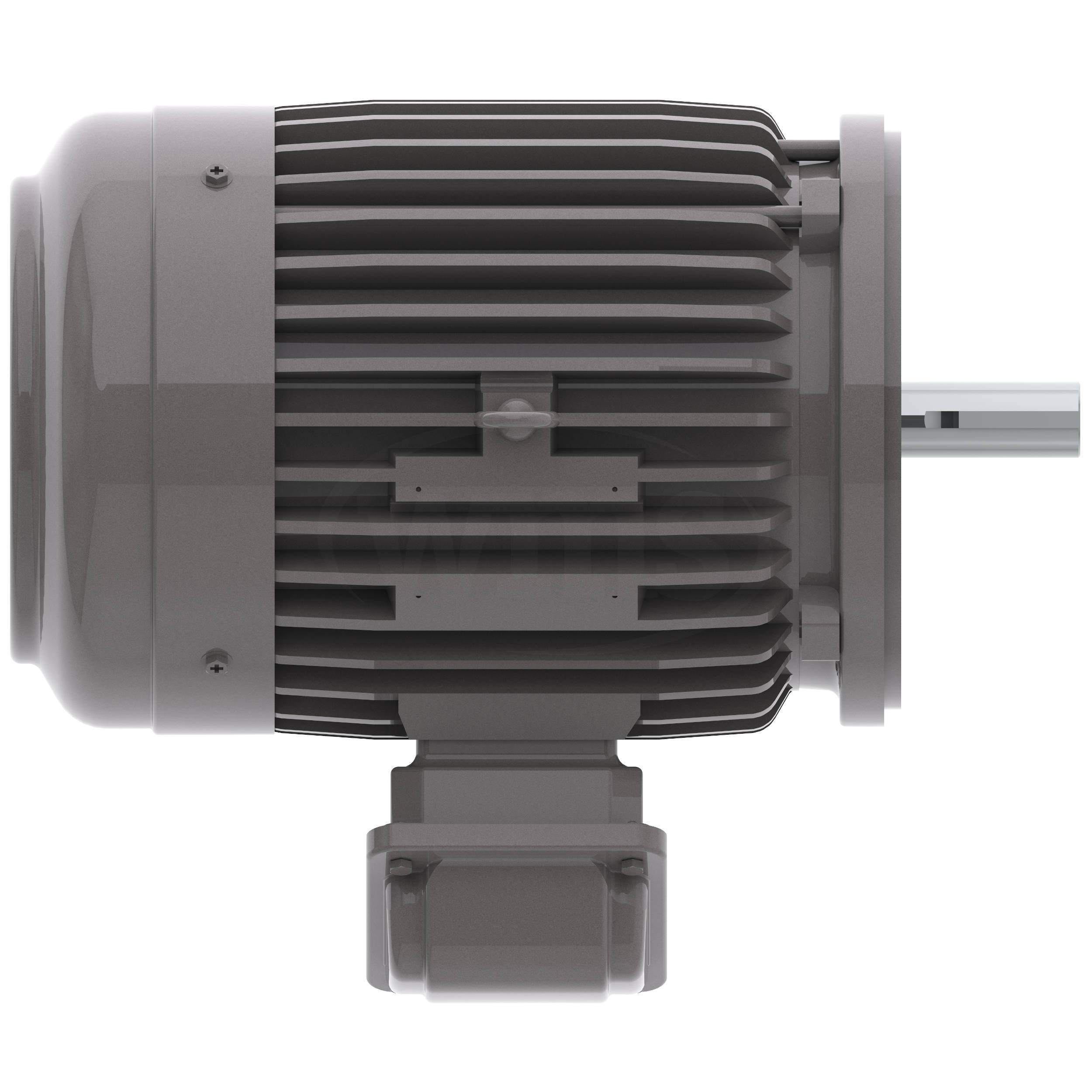

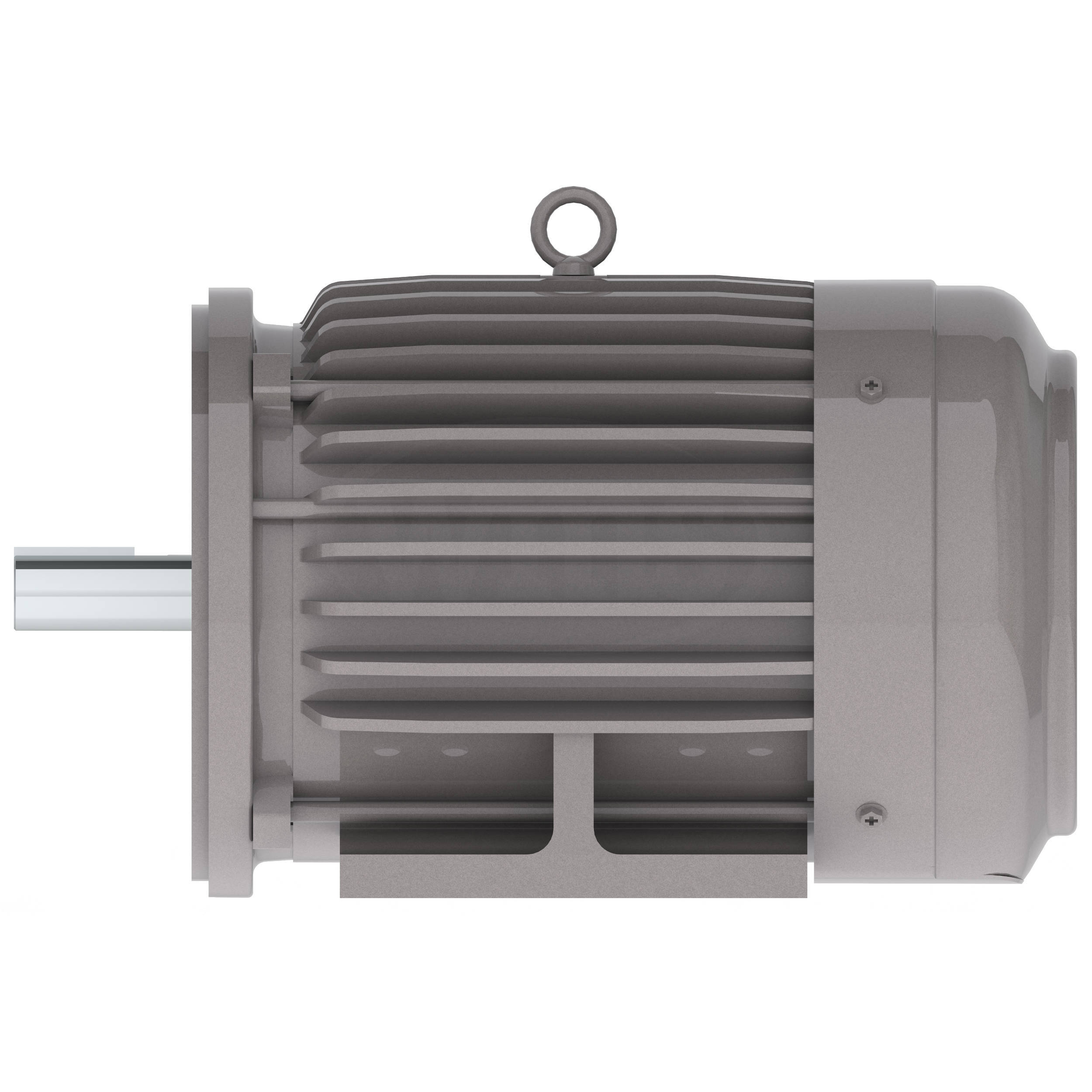

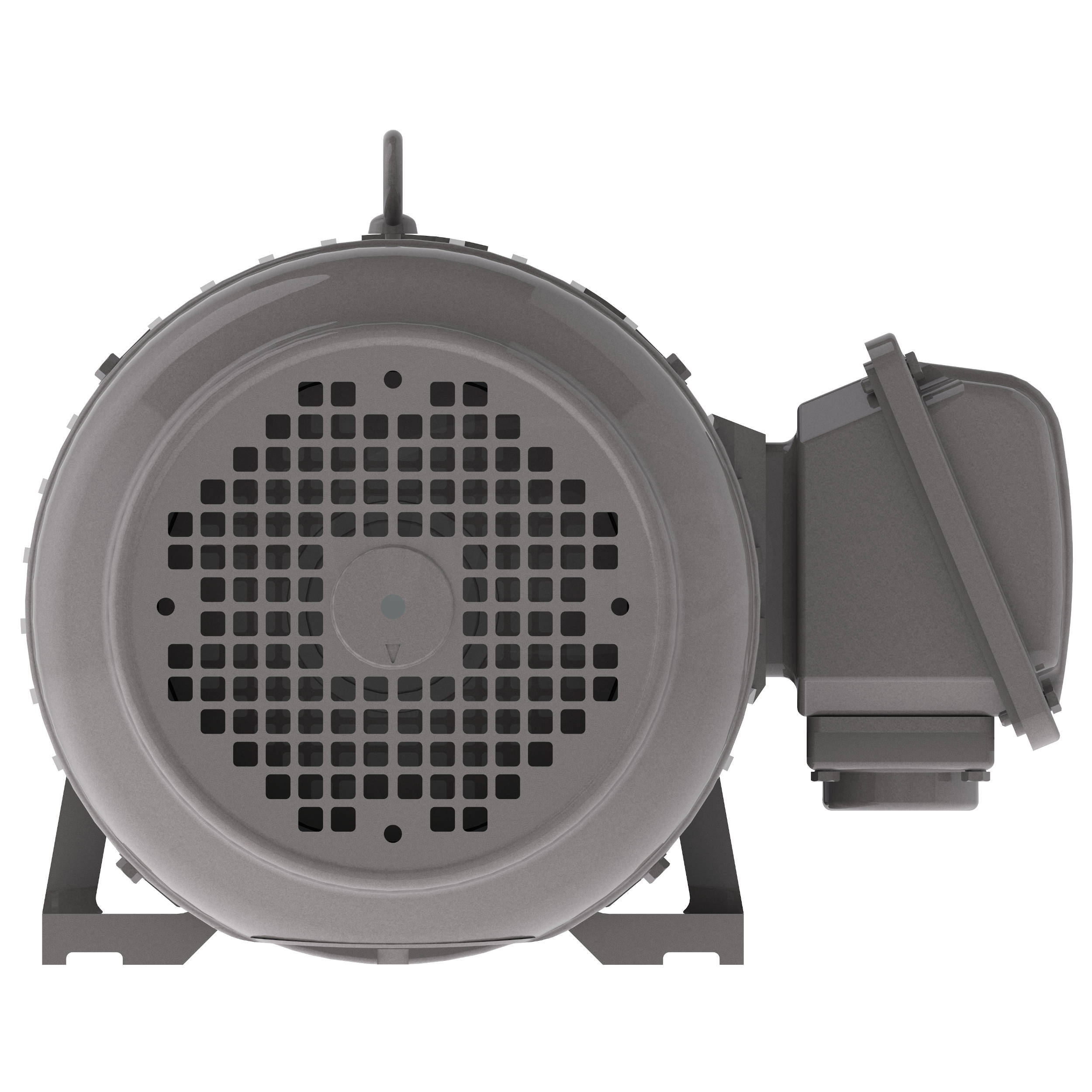

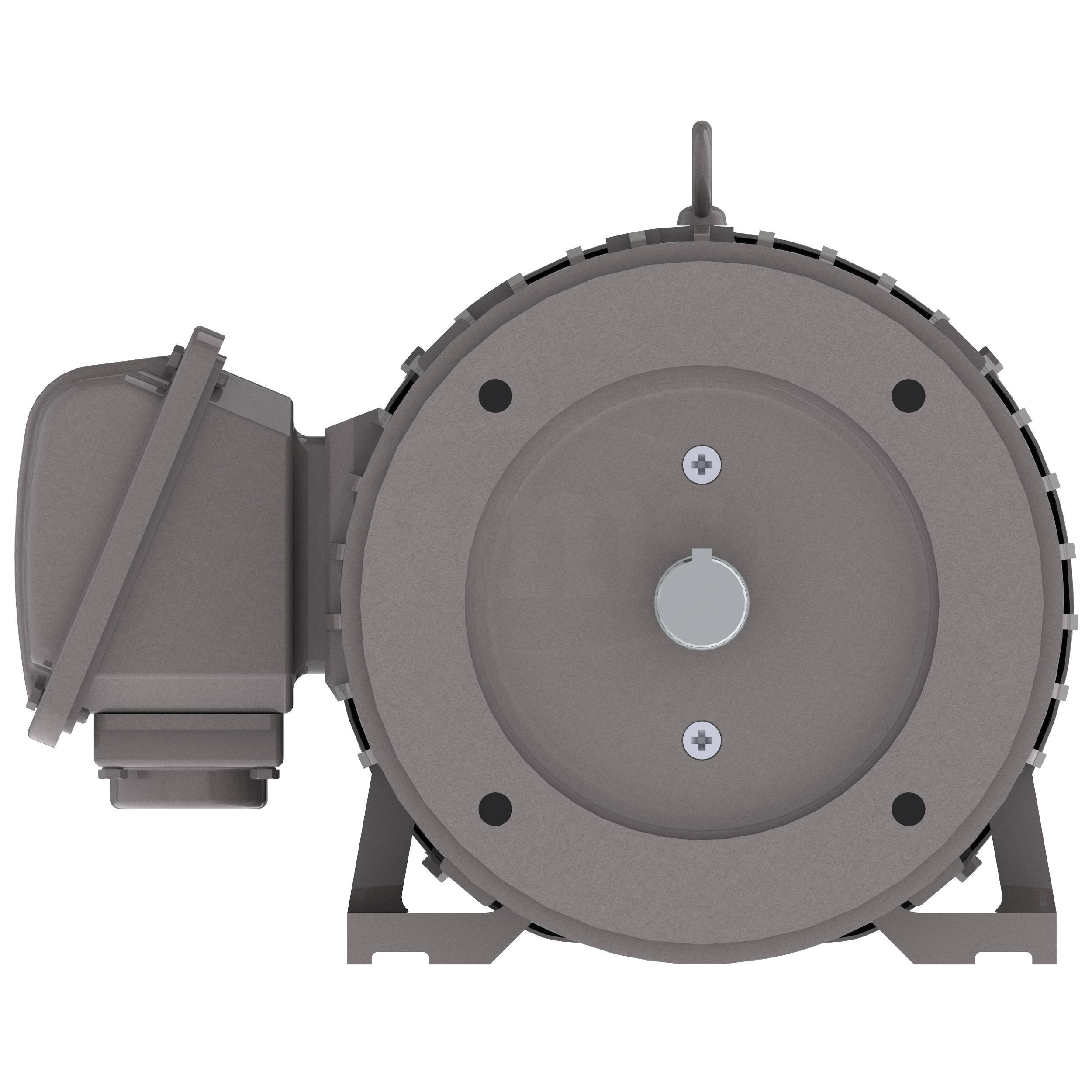

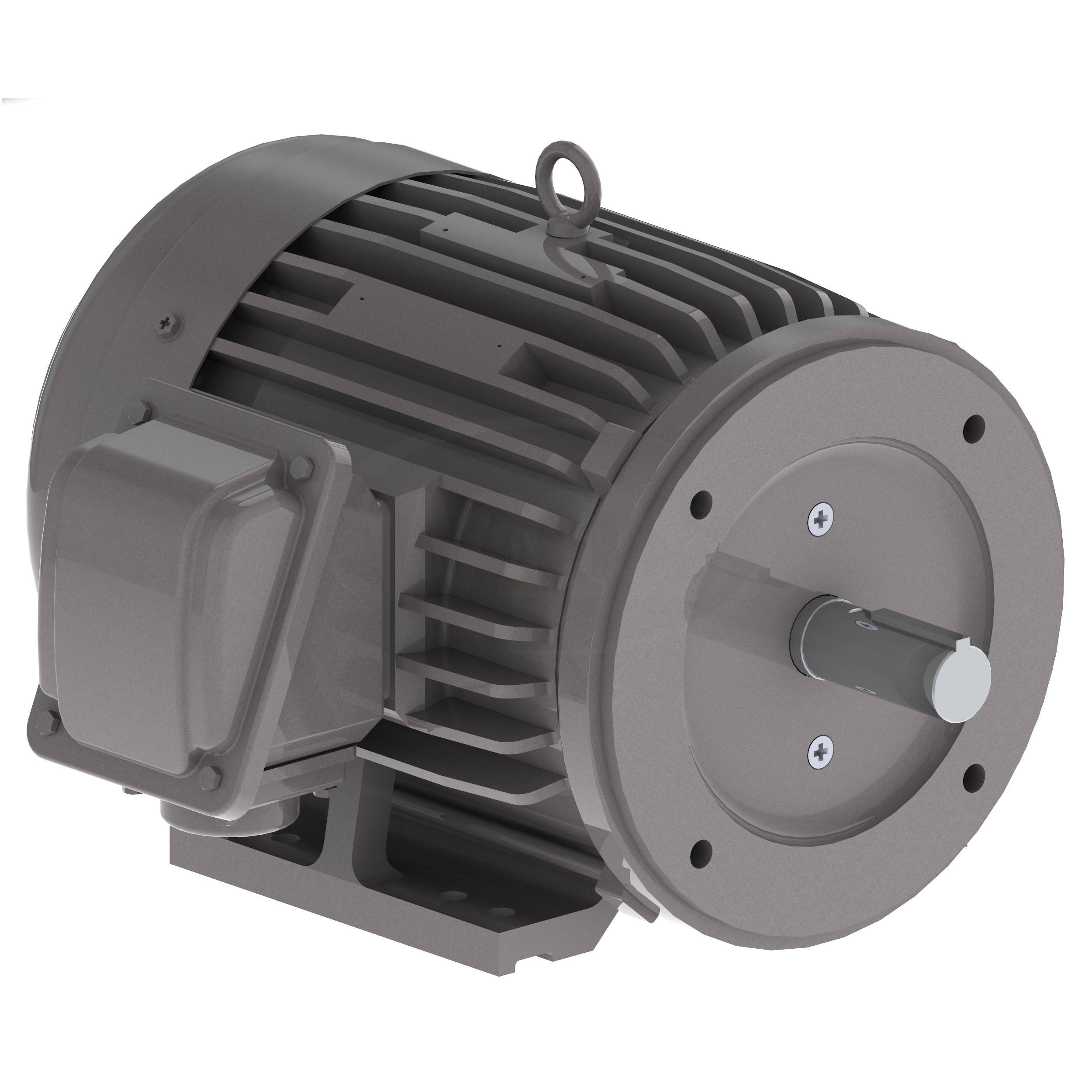

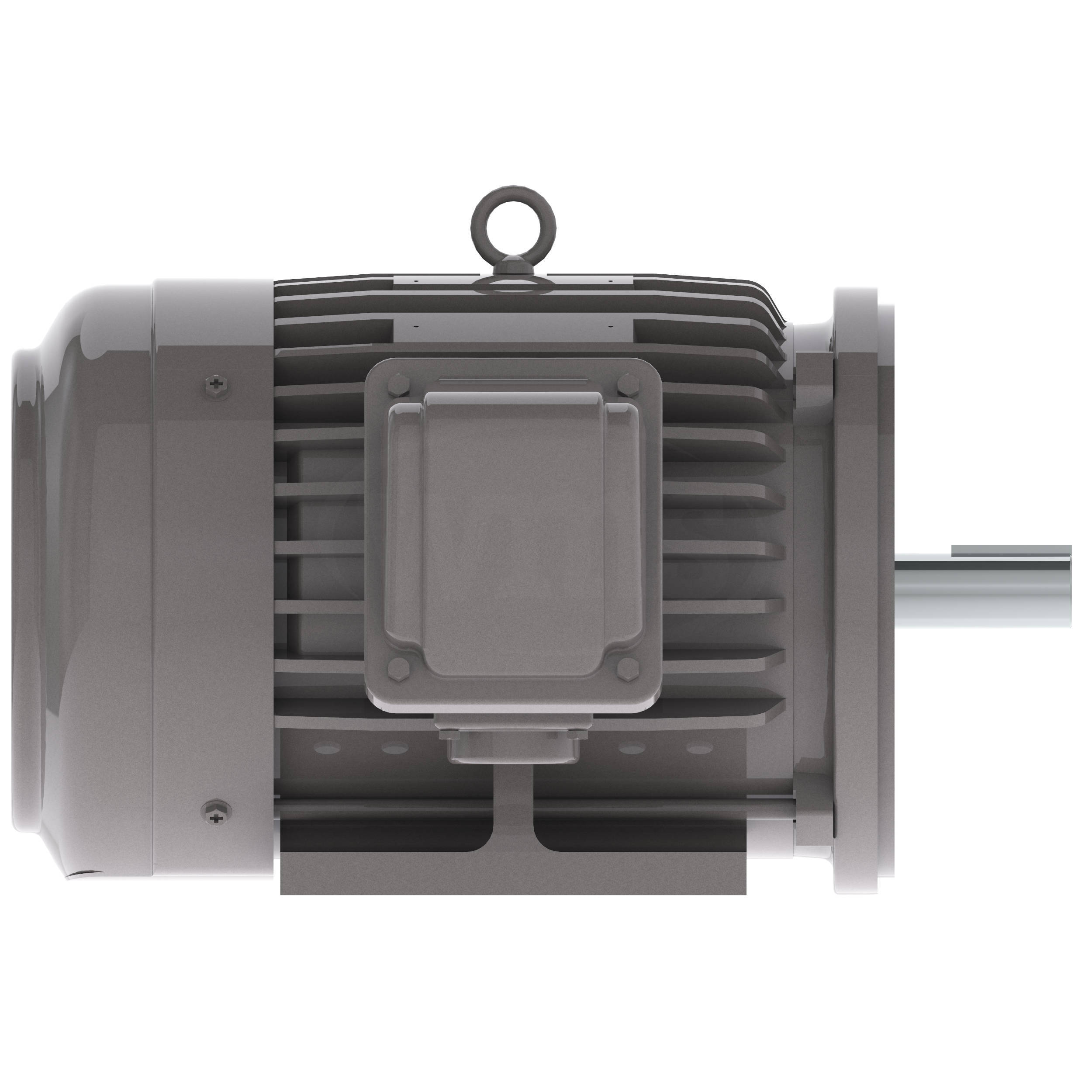

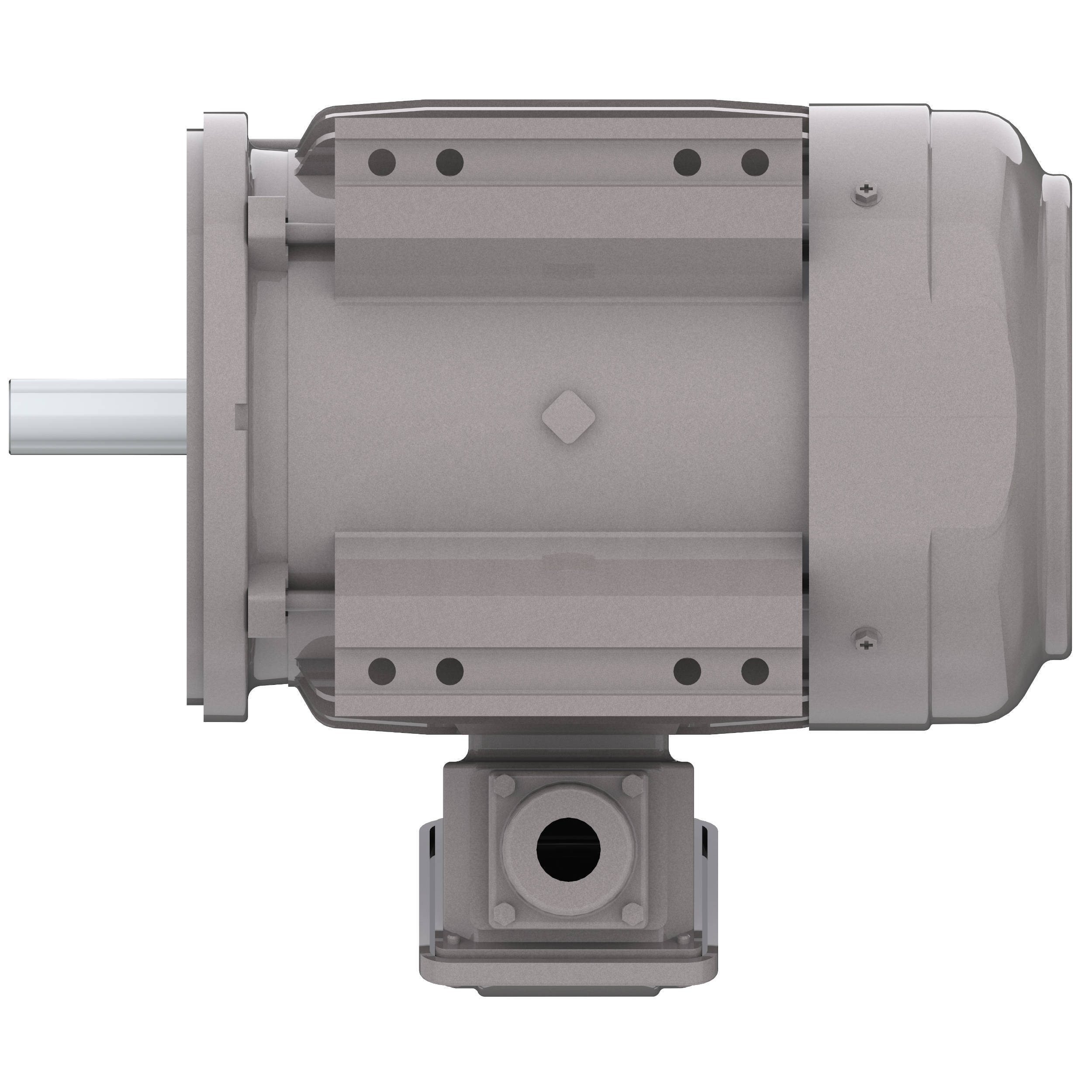

NP0054C Teco-Westinghouse 5HP Cast Iron Electric Motor, 1800 RPM

MFG: TECO-Westinghouse
MFG Part Number: NP0054C

Available Stock: 7

Selected accessories will also be added to cart

$439.97 / Each

Quantity:

TEFC, 184TC Frame, 230/460/190/380VAC 3-Phase 50/60Hz

Details
Purchase Components

Features

Specifications

Manufacturer	Teco-Westinghouse
Catalog Number	NP0054C
Type	AEHH8PCF
Output Power	5 HP 3.73 kW
RPM	1800 RPM
Poles	4
Voltage	230/460VAC 60Hz 190/380VAC 50Hz 3-Phase
Enclosure	TEFC Cast Iron
Frame	184TC
C-Face	Yes
Weight	102 lbs
Rated Ambient	40°C
Insulation Class	F
NEMA Design	B
Service Factor	1.15
UPC
Country of Origin	Taiwan
