/Products/Electric Motors/3 Phase/Teco-Westinghouse/MAX-PE, NEMA Premium/Foot Mount, C-Face (NP_C)/NP0034C Teco-Westinghouse 3HP Cast Iron Electric Motor, 1800 RPM
Click Image to Expand

Product ID: NP0034C

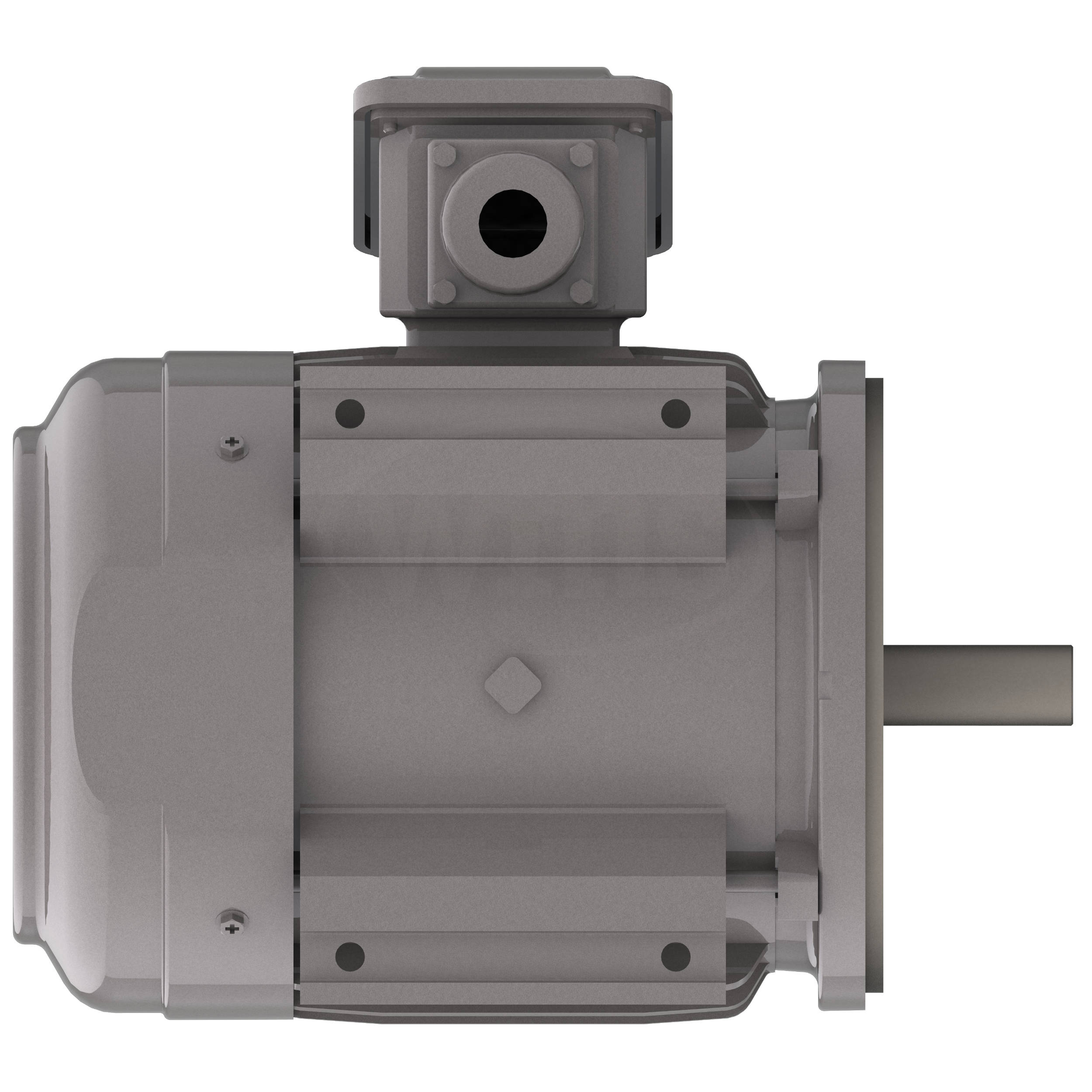

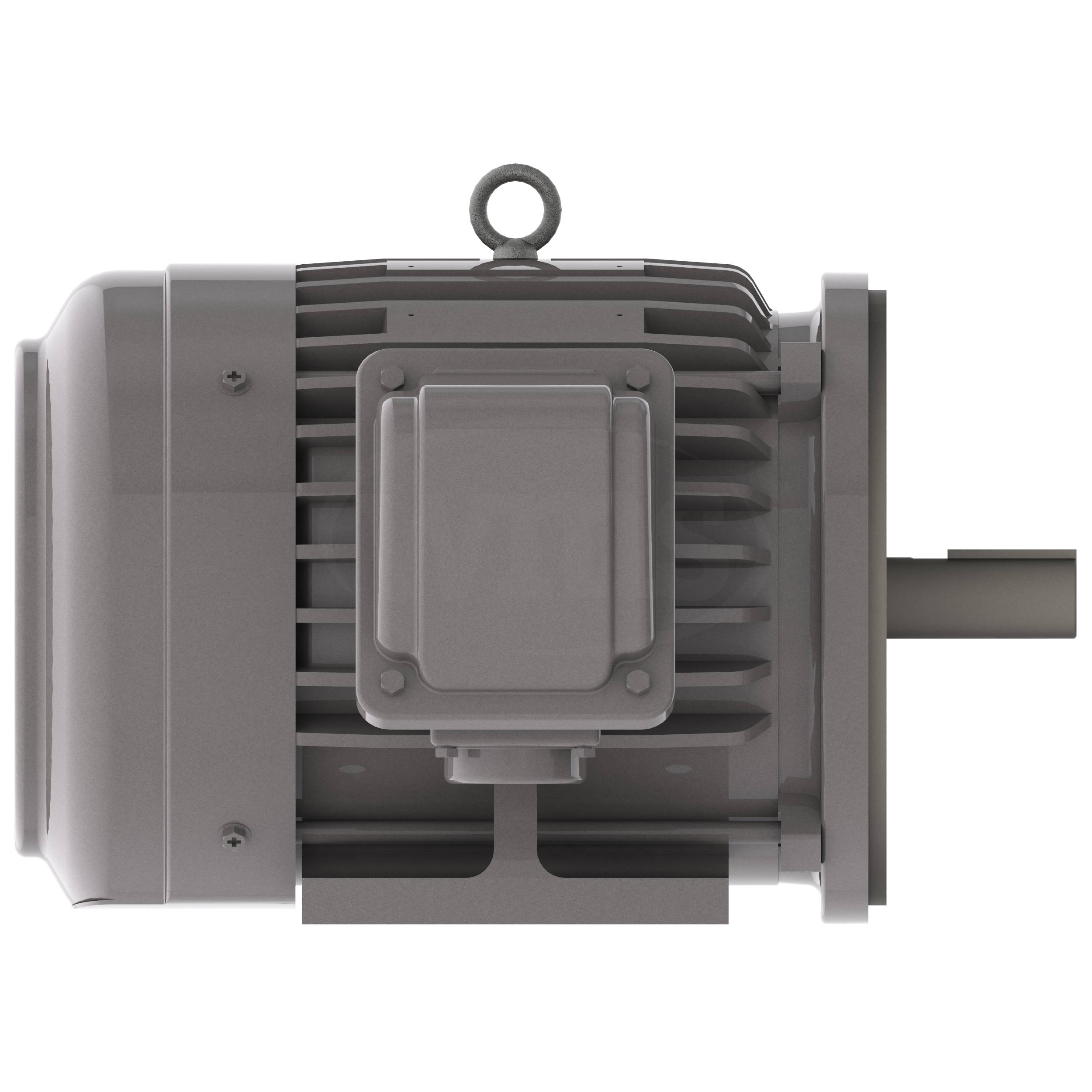

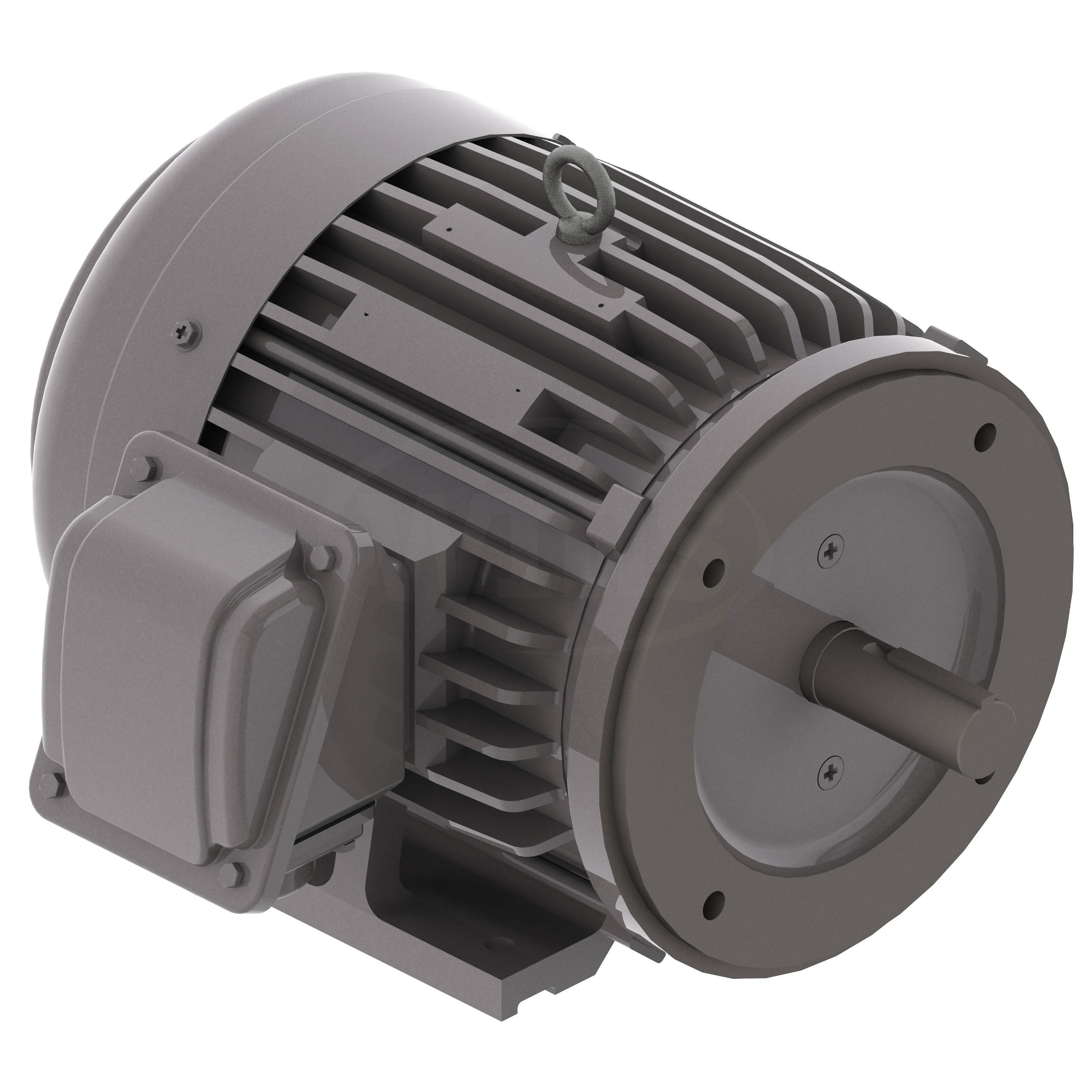

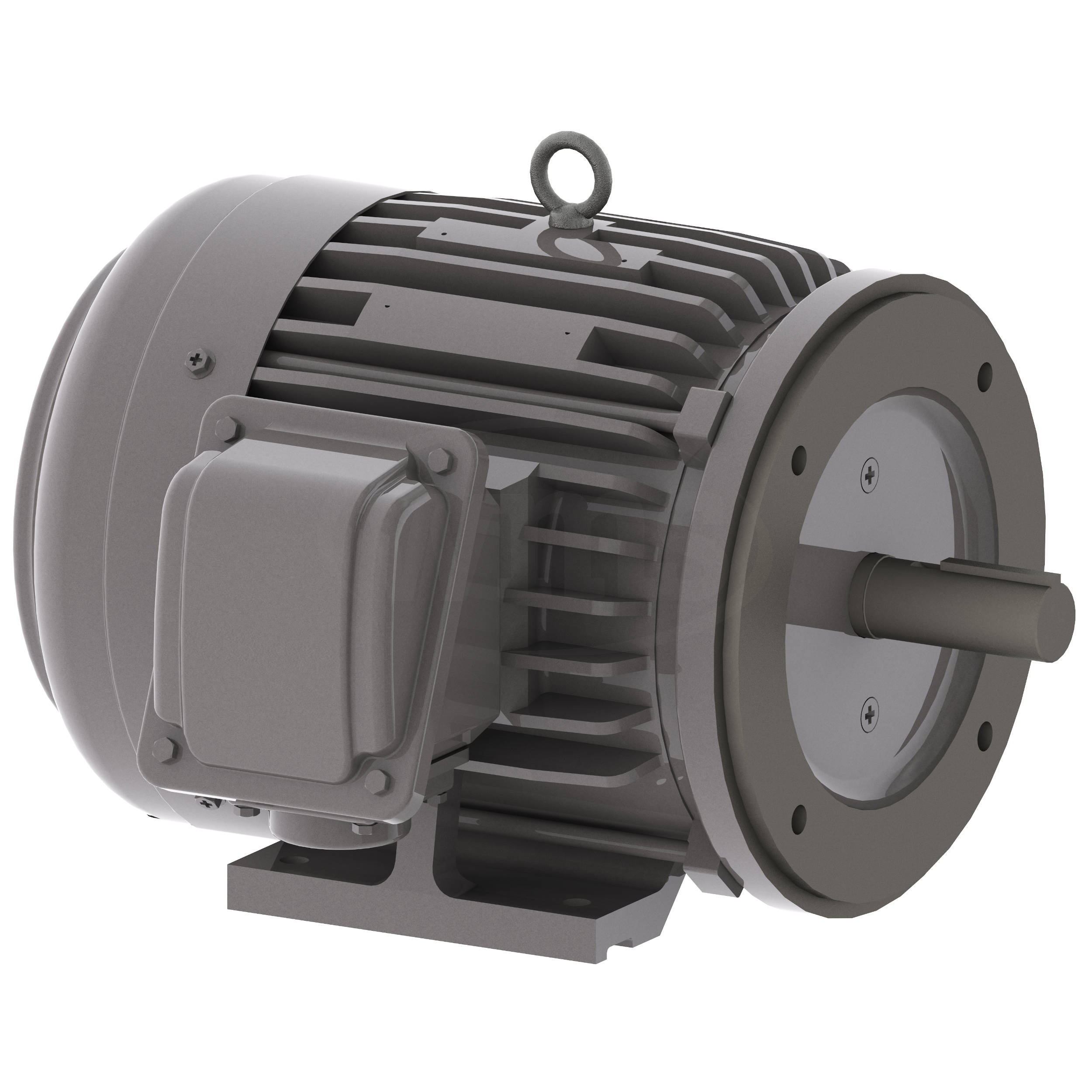

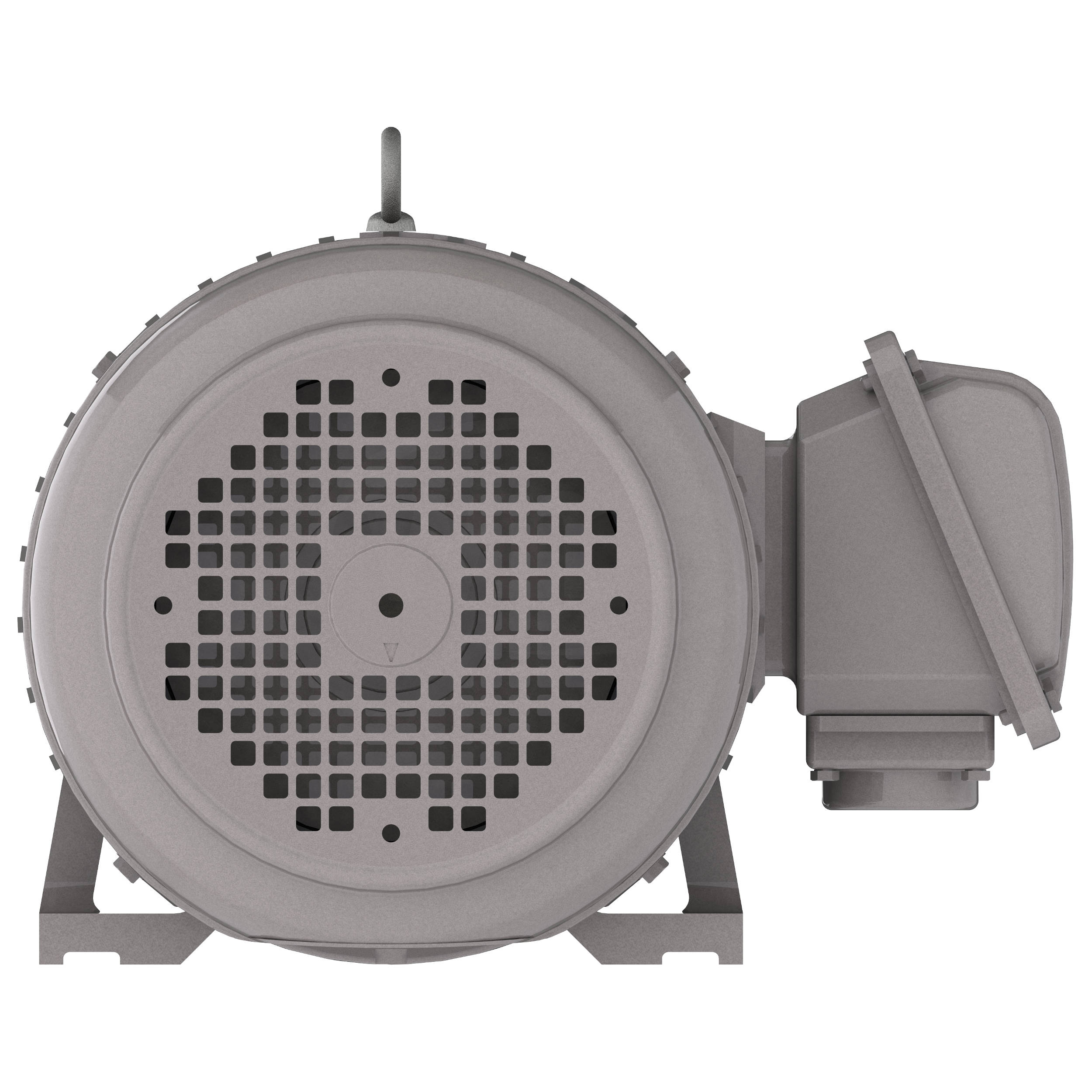

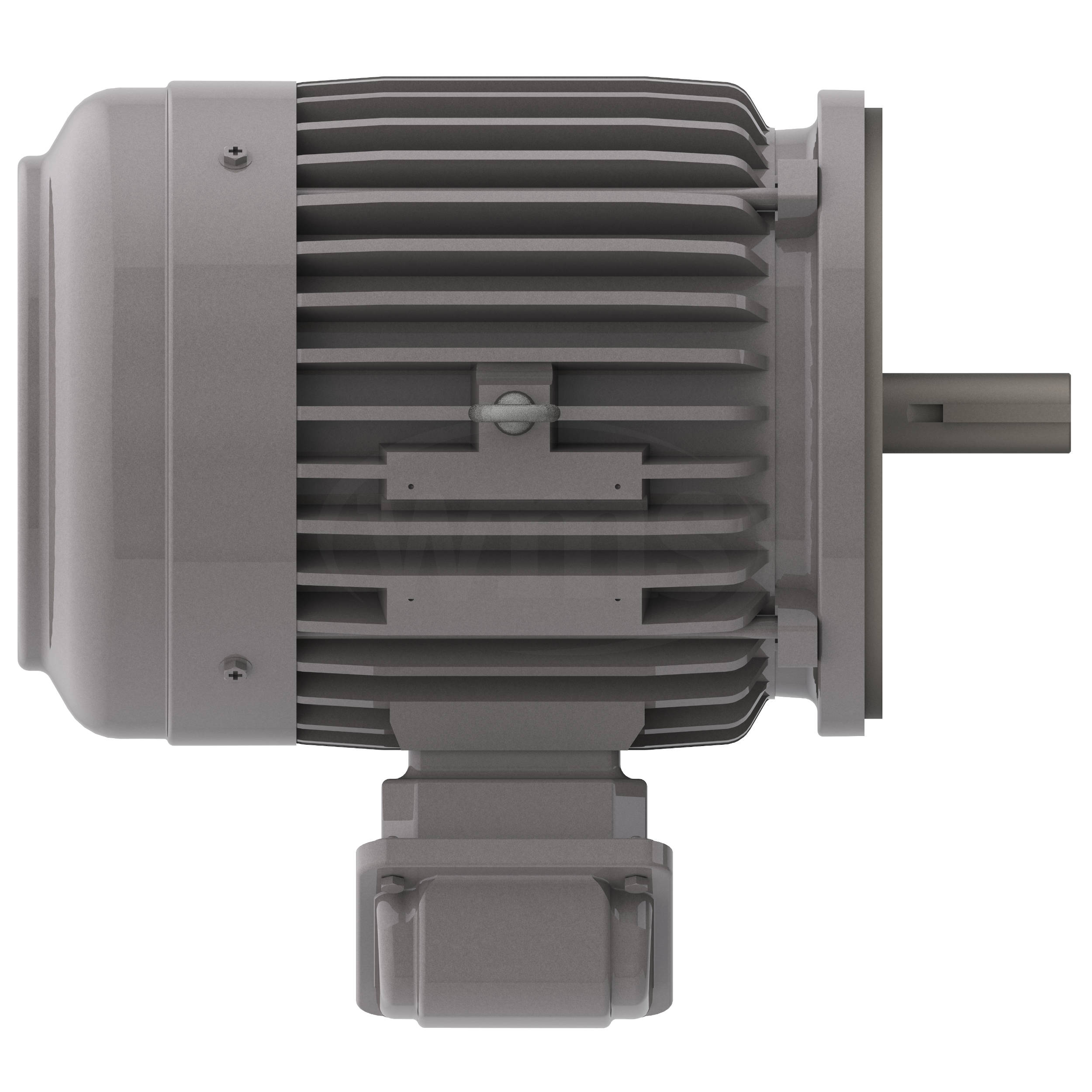

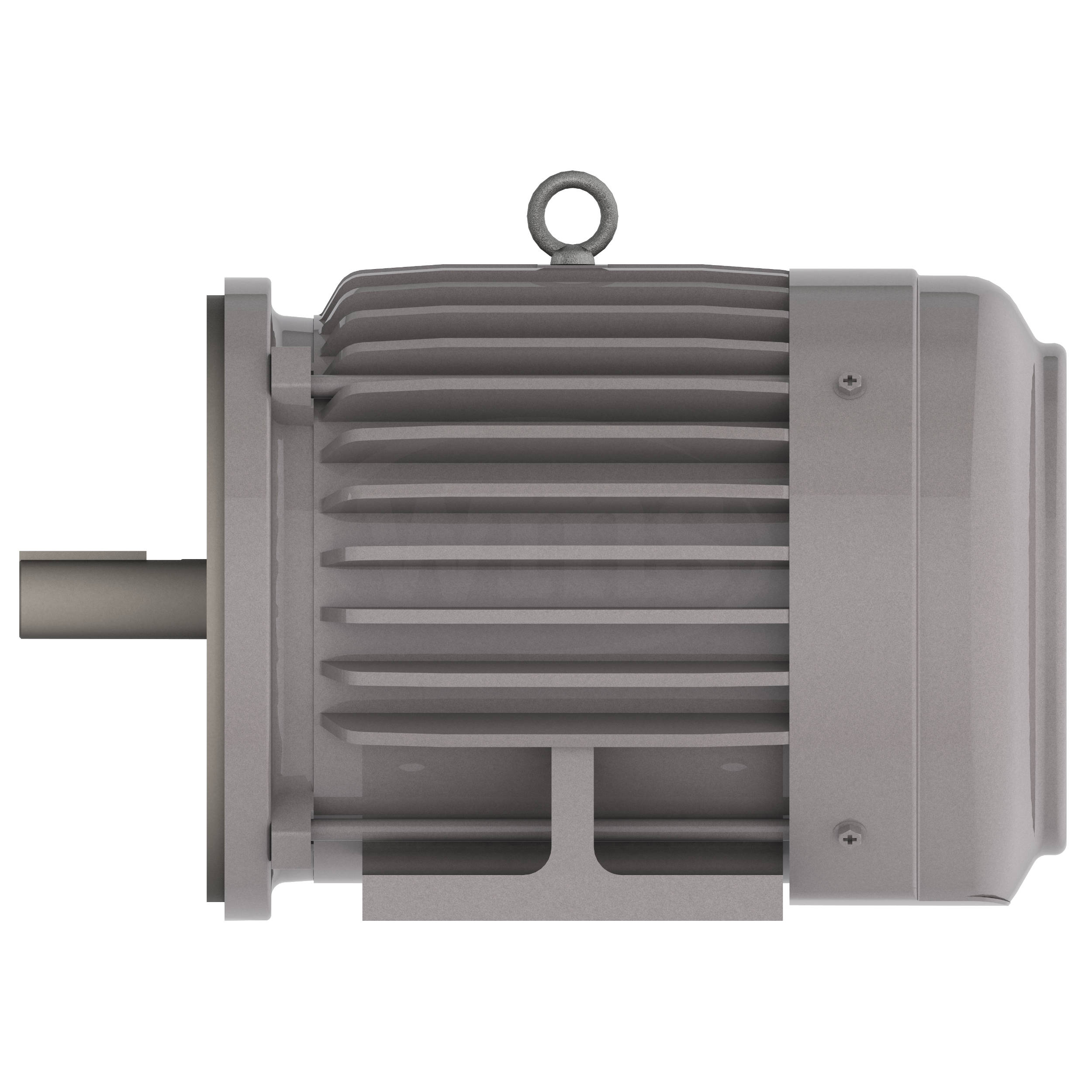

NP0034C Teco-Westinghouse 3HP Cast Iron Electric Motor, 1800 RPM

MFG: TECO-Westinghouse
MFG Part Number: NP0034C

Available Stock: 4
Selected accessories will also be added to cart
$409.97 / Each
Quantity:
TEFC, 182TC Frame, 230/460VAC 60Hz, 190/380VAC 50Hz 3-Phase

Features

  • Totally Enclosed Fan Cooled (IP54 Rating)
  • Meets or Exceeds NEMA Premium Efficiency Levels
  • Department of Energy Efficiency Certificate #CC002A
  • 36 Month Warranty from Date of Manufacture
  • 1.15 Service Factor – Continuous
  • Class F Insulation with Phenolic Alkyd Resin Varnish – 2 Dips and Bakes
  • Class B Temperature Rise
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments – Fully Gasketed; F1 Mounted.
  • Designed for 40°C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Factory Self Certified for Class 1, Div. 2, Groups B, C, D; Temp Code T3C, 400T and Below
  • Bidirectional Rotation
  • Cast Iron Frame, End Brackets, Pressed Steel Fan Cover and Conduit Box
  • Dual Drilled Feet - Longer Frames
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction
  • Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
  • Paint Color: Blue Gray – Munsell 7.5 BG 3.5/ .05
  • Grounding Terminal Inside Main Box
  • Stainless Steel Nameplate
  • Inverter Duty Magnet Wire Capable of Withstanding Voltage Spikes of Up to 2200 Volts
  • VFD Rated per NEMA MG1, Part 31.4.4.2
  • 9 Leads - 5 hp and Below
    12 Leads 7.5 hp - 125 hp
    6 Leads - 150 hp and Larger
  • CE Mark on Nameplate, U.L. Recognized and CSA Approved

Specifications

Manufacturer Teco-Westinghouse
Catalog Number NP0034C
Type AEHH8PCF
Output Power 3 HP
2.24 kW
RPM 1800 RPM
Poles 4
Voltage 230/460VAC 60Hz
190/380VAC 50Hz
3-Phase
Enclosure TEFC
Cast Iron
Frame 182TC
C-Face Yes
Weight 137 lbs
Rated Ambient 40°C
Insulation Class F
NEMA Design B
Service Factor 1.15 @ 60Hz
1.00 @ 50Hz
UPC
Country of Origin Taiwan
