/Products/Ball Bearings/Bearing Retainer Nuts/N-06 Bearing Retaining Nut
Click Image to Expand

Product ID: N-06

N-06 Bearing Retaining Nut

Available Stock: 1
Selected accessories will also be added to cart
$5.00 / Each
Quantity:
Accessories
Select any of the accessories below to purchase them with this inventory item:

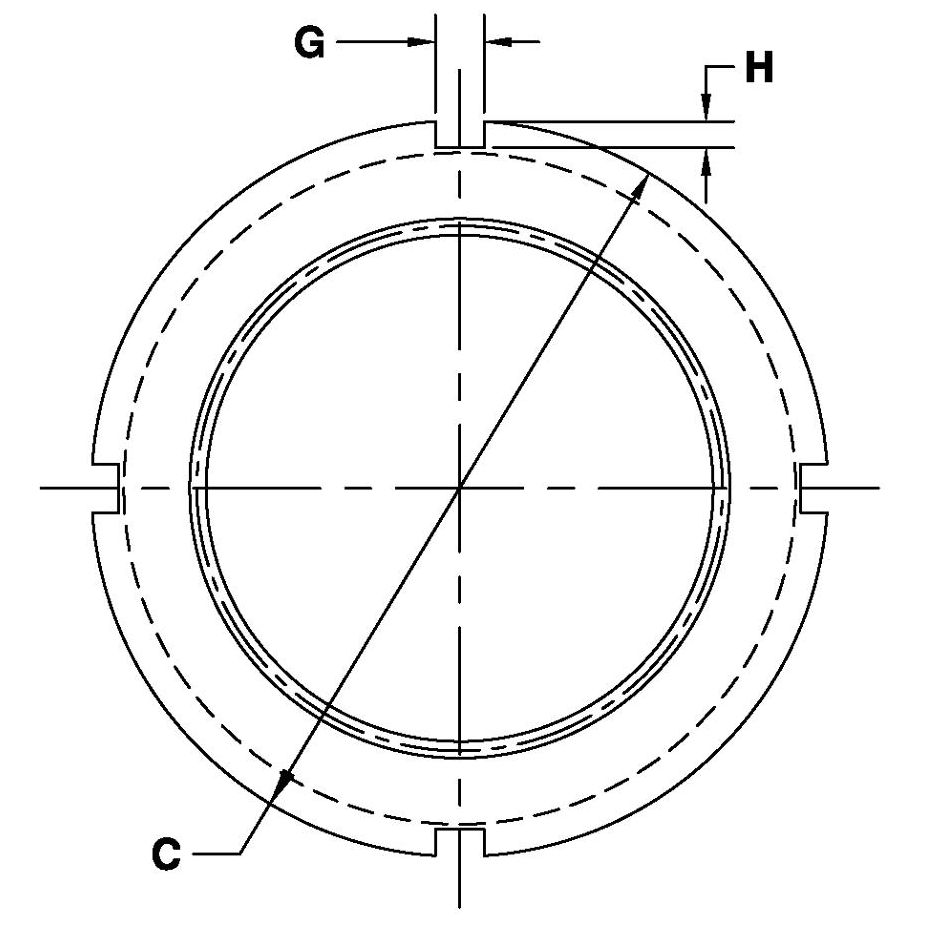

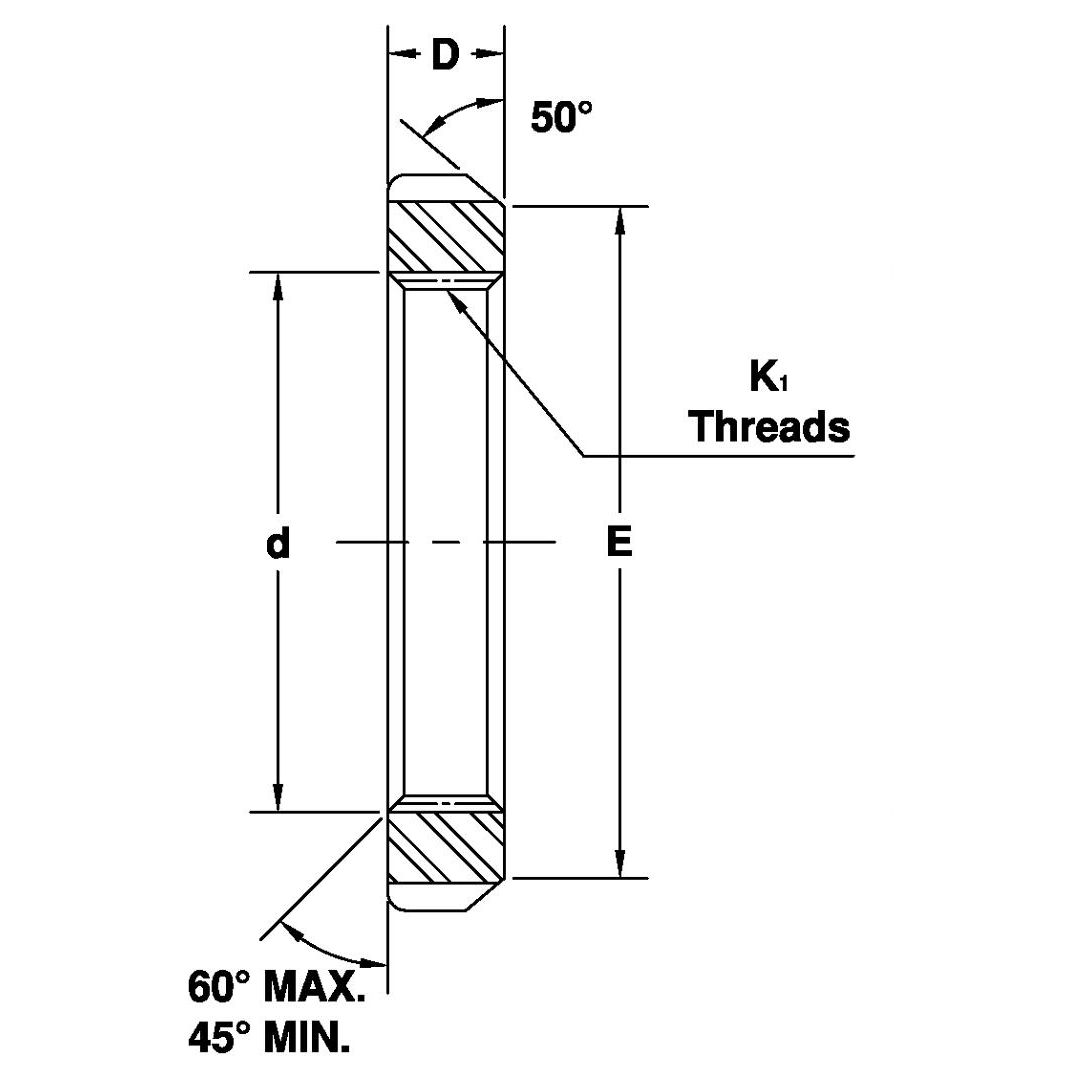

Specifications

Bearing Retainer Nut Number(s) N06
N-06
Major Diameter (d) 1.173" Minimum
Threads Per Inch (K1) 18
Outside Diameter (C) 1.750"
Face Diameter (E) 1.500" Maximum
Nut Width (D) 0.416" Maximum
Slot Width (G) 0.178" Maximum
Slot Depth (H) 0.104" Maximum
Face Runout (Sd) 0.002” Maximum
Weight 0.13 lbs
Axial Load 17,500 lbs
Bearing Retainer Lock Washer W-06
