/Products/Electric Motors/DC/WEG/Permanent Magnet/M4000/ML4401 WEG 1/6HP Permanent Magnet DC Electric Motor, 1800RPM
Click Image to Expand

Product ID: ML4401

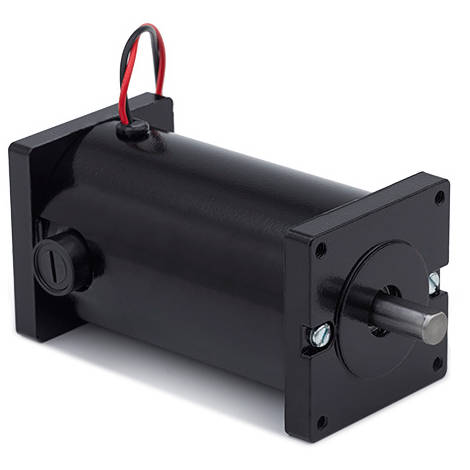

ML4401 WEG 1/6HP Permanent Magnet DC Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: ML4401

Selected accessories will also be added to cart
$279.00 / Each
Quantity:
TENV, IP55, 12VDC, 15.20 FLA, 14475886, 1/2" Shaft

Description

The M4000 Series Permanent Magnet Motor offers the design engineer a great deal of flexibility in a 3.12" diameter motor. Continuous duty torque rating.

Features

  • High Energy Ceramic Magnets
  • Double Shielded Ball Bearings
  • Dynamically Balanced Armature
  • Reversible Design
  • 36" Cord
  • TENV Design
  • Square End Bells
  • Externally Replaceable Brushes
  • Auto-Hook Tang Type Commutator
  • 2.015" Standard Pilot Diameter
  • Class "F" Insulation

Specifications

Documents
