/Products/Electric Motors/DC/WEG/Permanent Magnet/M4000/MH4301 WEG 1/8HP Permanent Magnet DC Electric Motor, 1800RPM
Click Image to Expand

Product ID: MH4301

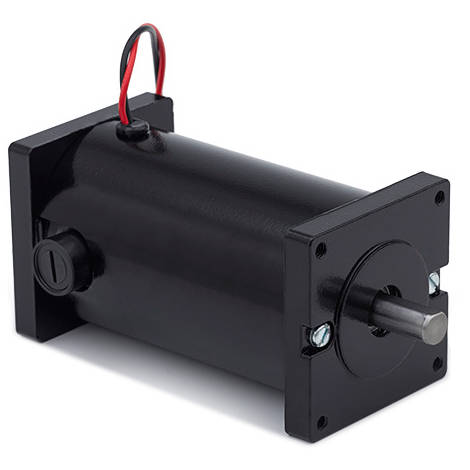

MH4301 WEG 1/8HP Permanent Magnet DC Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: MH4301

Selected accessories will also be added to cart
$252.75 / Each
Quantity:
TENV, IP55, 90VDC, 1.30 FLA

Description

The M4000 Series Permanent Magnet Motor offers the design engineer a great deal of flexibility in a 3.12" diameter motor. Continuous duty torque rating.

Features

  • High Energy Ceramic Magnets
  • Double Shielded Ball Bearings
  • Dynamically Balanced Armature
  • Reversible Design
  • 36" Cord
  • TENV Design
  • Square End Bells
  • Externally Replaceable Brushes
  • Auto-Hook Tang Type Commutator
  • 2.015" Standard Pilot Diameter
  • Class "F" Insulation

Specifications

Documents
