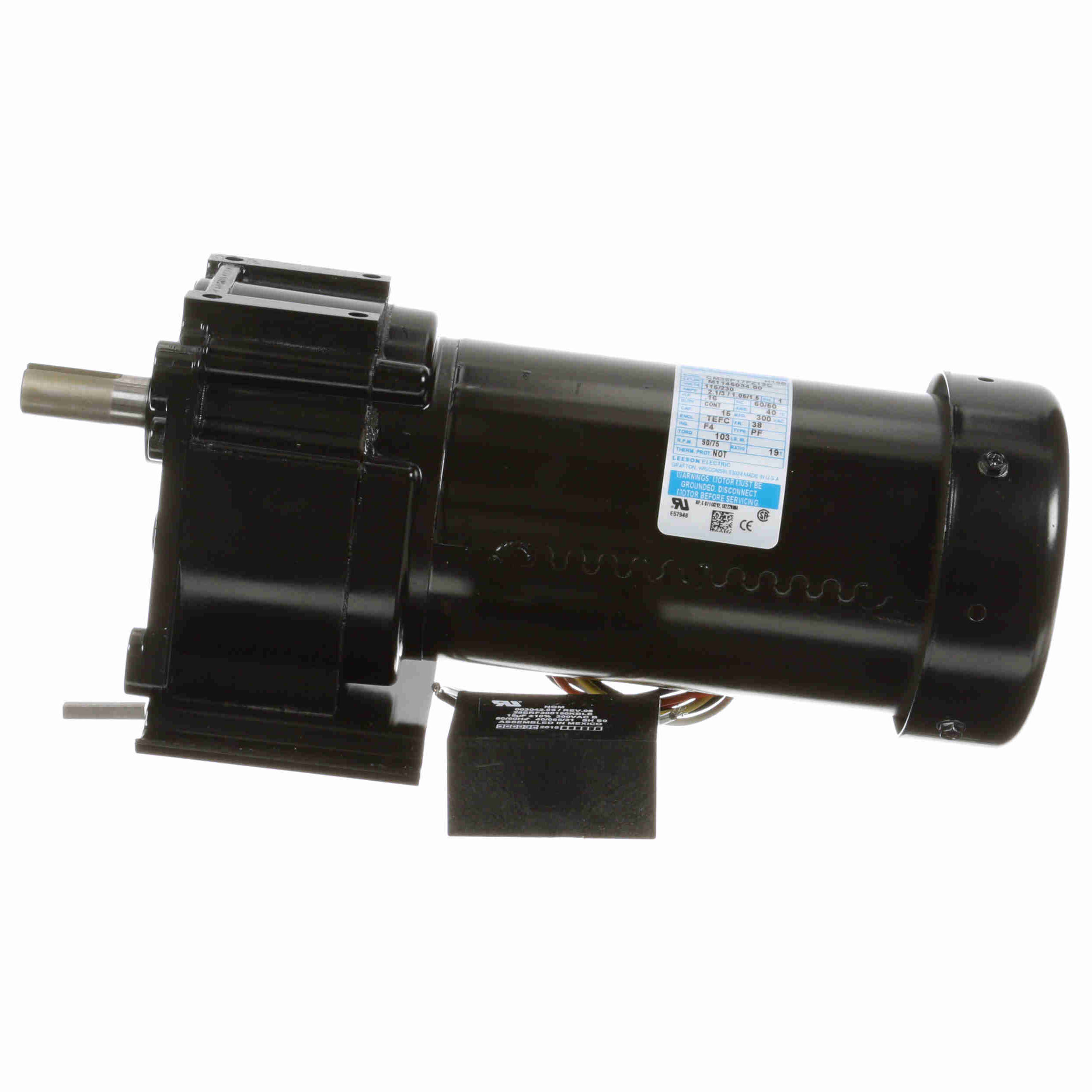

M1145034.00 Leeson 0.16HP Gearmotor, 90 RPM
Click Image to Expand
Previous
Next
Product ID: M1145034.00
M1145034.00 Leeson 0.16HP Gearmotor, 90 RPM
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M1145034.00
Selected accessories will also be added to cart
$752.06 / Each
Quantity:
TEFC, 38 Frame, 115/230VAC Single Phase 60Hz
Details
Features
Features
Permanent split capacitor design rated for 115/230VAC 60/50 HZ input
Precision machined in-line steel gears
First stage steel helical gear followed by spur-type gears
Lubrication is permanent semi-fluid grease, reducing possibility of leakage
Output shafts have needle bearings for high load capacities
Shafts are hardened steel
Optional conduit box available
General Specifications
General Specifications
Model :
CM38P17FZ13C
Catalog No :
M1145034.00
Part Description :
..1/6HP..90RPM.38.TEFC.115/230V.1PH.60HZ.....CM38P17FZ13C.P240...19:1.AC GEARMOTORS SUB-FHP..103LBIN......
Category :
P240 Series
Stock :
No
Nameplate Specifications
Nameplate Specifications
Output HP :
0.16 Hp
Output KW :
0.12 kW
Frequency :
60 Hz
Voltage :
115 V
Current :
2.1/1.1 A
Speed :
90 rpm
Service Factor :
1
Phase :
1
Duty :
Continuous
Insulation Class :
F
KVA Code :
D
Frame :
38
Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No
Ambient Temperature :
40 °C
Drive End Bearing Size :
6201
Opp Drive End Bearing Size :
6201
UL :
Recognized
CSA :
Y
CE :
Y
Technical Specifications
Technical Specifications
Rotation :
Reversible
Mounting :
Special
Shaft Type :
Parallel
Overall Length :
12.13 in
Frame Length :
5.88 in
Shaft Diameter :
0.625 in
Shaft Extension :
1.5 in
UPC :
691720092170
Weight :
19.00 LB
