/Products/Electric Motors/DC/Leeson/Right-Angle Gearmotor/M1135039.00 Leeson 1/8HP DC Right-Angle Gearmotor, 125 RPM, 45 lb-in
Click Image to Expand

Product ID: M1135039.00

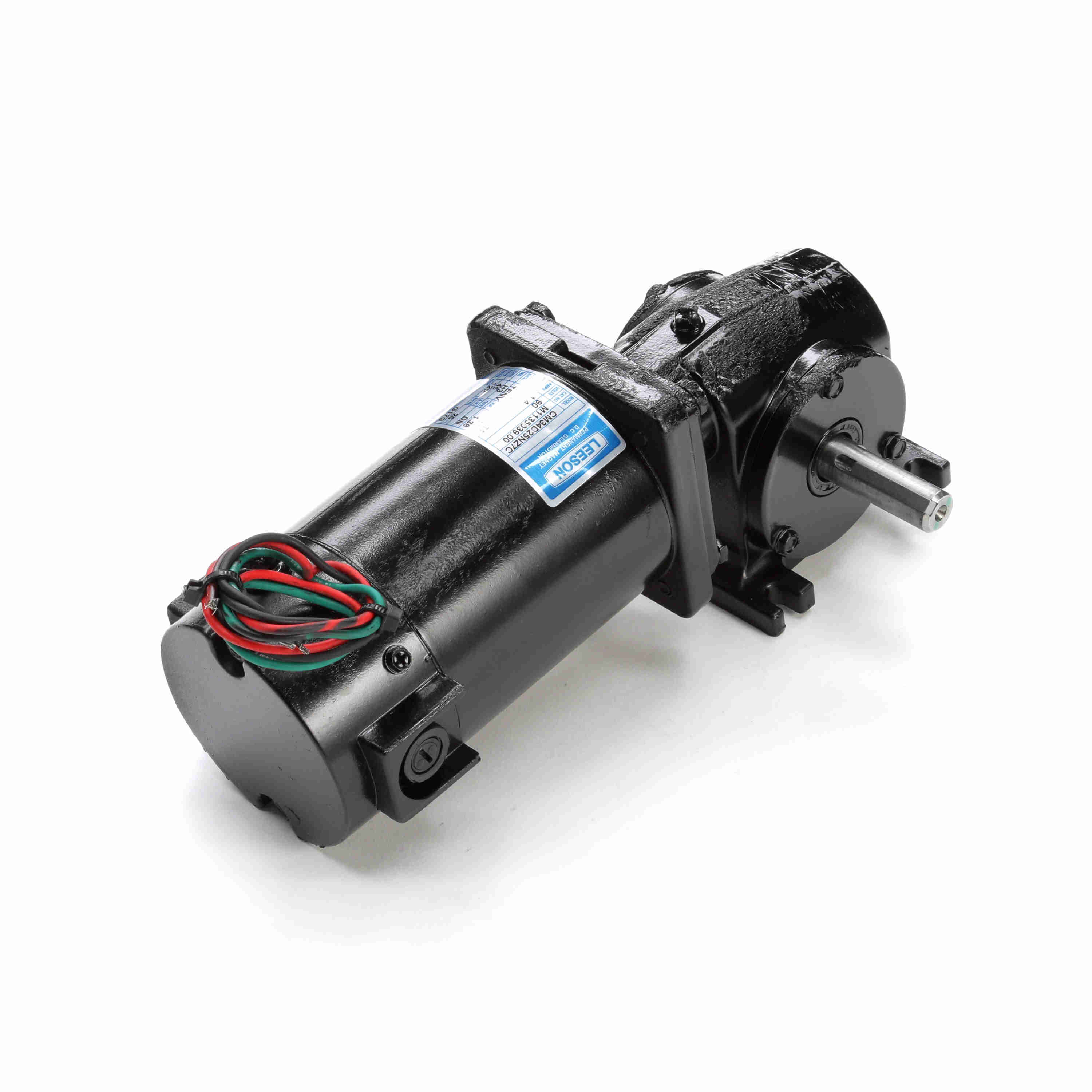

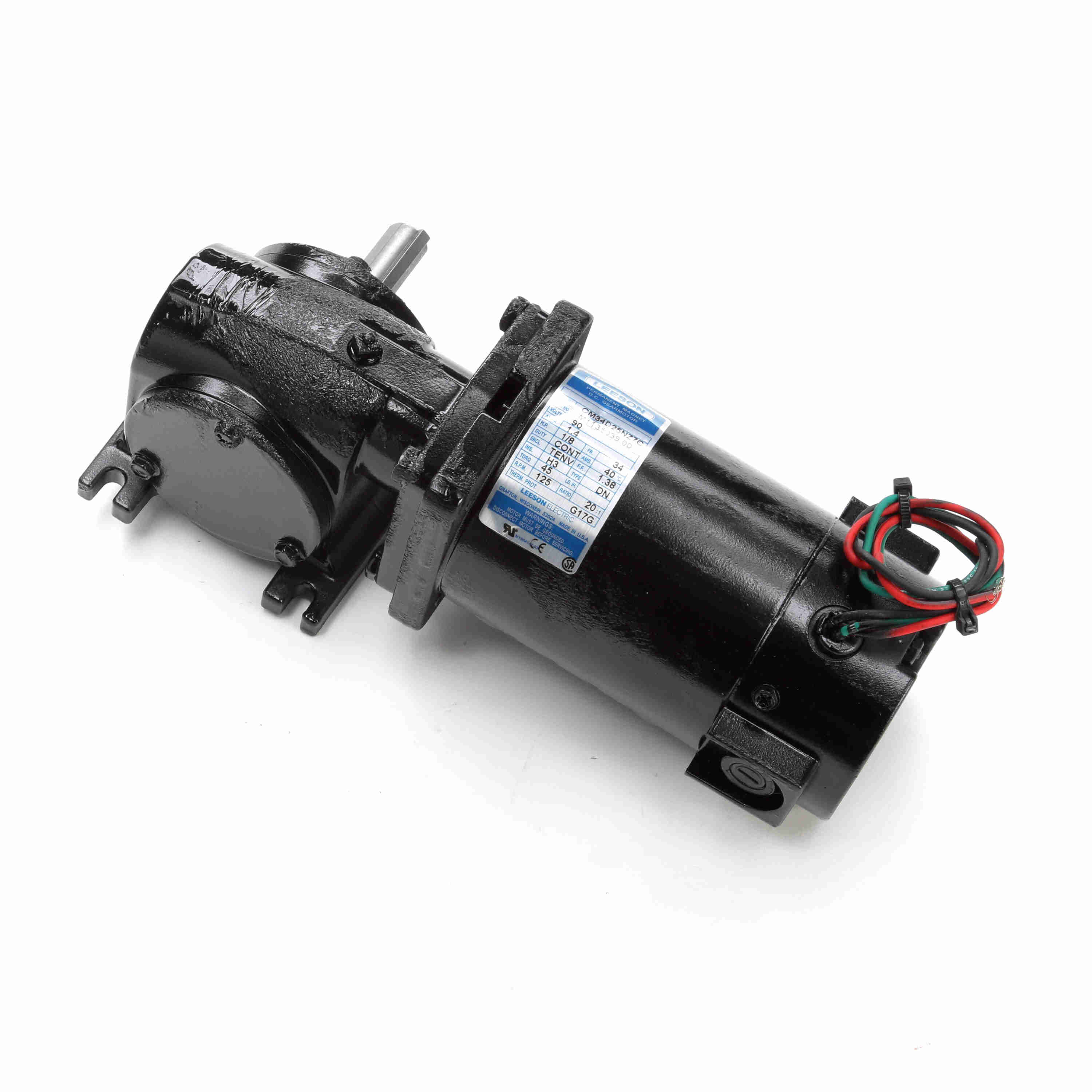

M1135039.00 Leeson 1/8HP DC Right-Angle Gearmotor, 125 RPM, 45 lb-in

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M1135039.00

Selected accessories will also be added to cart
$639.97 / Each
Quantity:
TENV, 34 Frame, 90VDC, CM34D25NZ7C, 13F20-34C

Features

Features
  • Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
  • Precision machined aluminum gear housing
  • Lubrication is permanent with an oil bath
  • Gearbox has all ball bearings
  • Output shaft is field interchangeable from left hand to right hand style by reassembly
  • Double output shaft available as a factory option
  • Optional conduit box available

General Specifications

General Specifications
Model :CM34D25NZ7C Catalog No :M1135039.00
Part Description :...20:1.125RPM.45LBIN.1/8HP.34...DC GEARMOTORS SUB-FHP.90V..TENV.CM34D25NZ7C Category :Right Angle
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.13 Hp Output KW :0.10 kW
Voltage :90 V Current :1.4 A
Speed :125 rpm Service Factor :1
Efficiency :31.5 % Duty :Continuous
Insulation Class :H Frame :34
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6201
Opp Drive End Bearing Size :608 UL :Recognized
CSA :Y CE :Y

Technical Specifications

Technical Specifications
Rotation :Reversible Mounting :Special
Shaft Type :Right Angle Overall Length :10.64 in
Frame Length :3.81 in Shaft Diameter :0.625 in
Shaft Extension :1.8 in UPC :691720091593
Weight :11.00 LB
