/Products/Electric Motors/Single Phase/Lincoln/Air Compressor/LM24682 Lincoln 5HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: LM24682

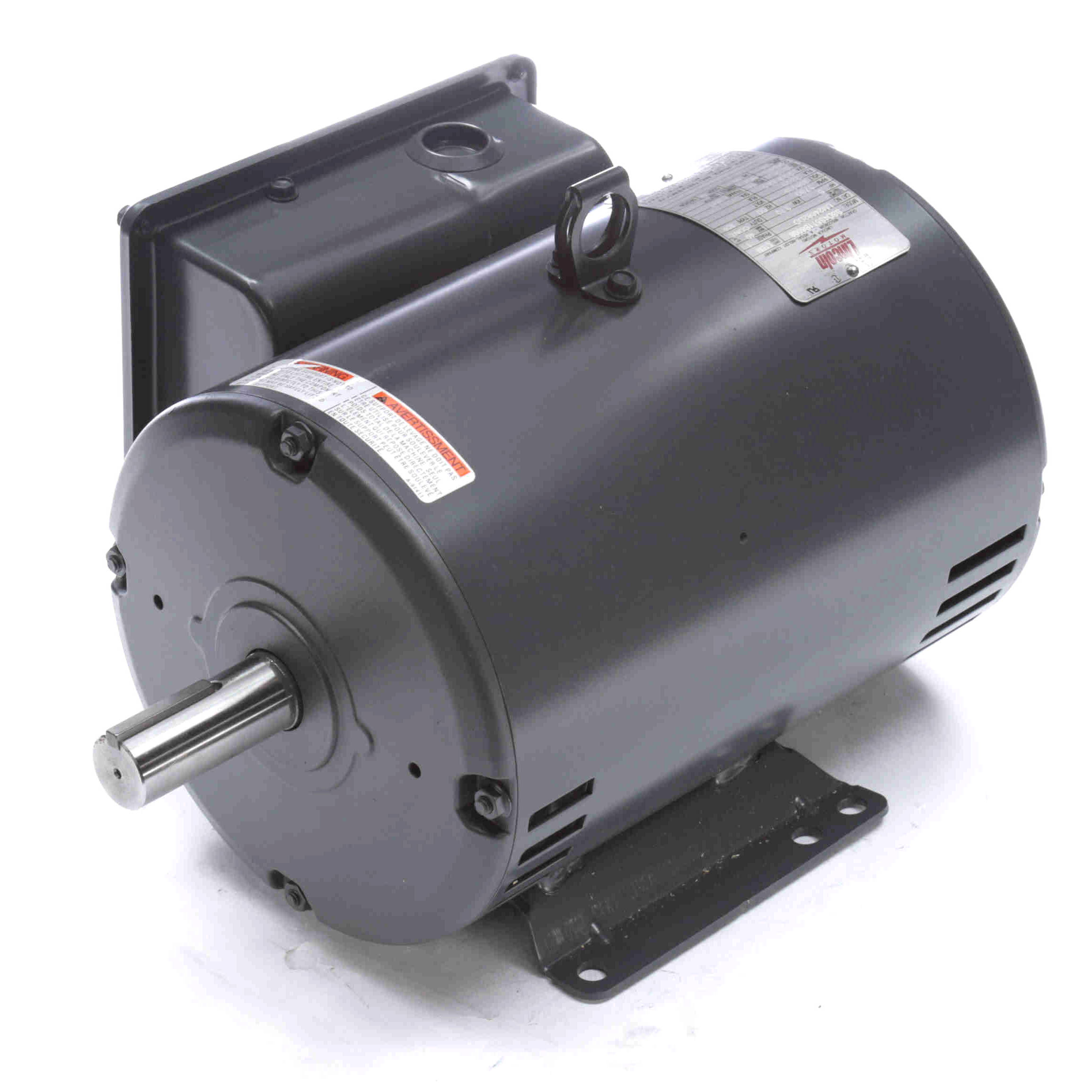

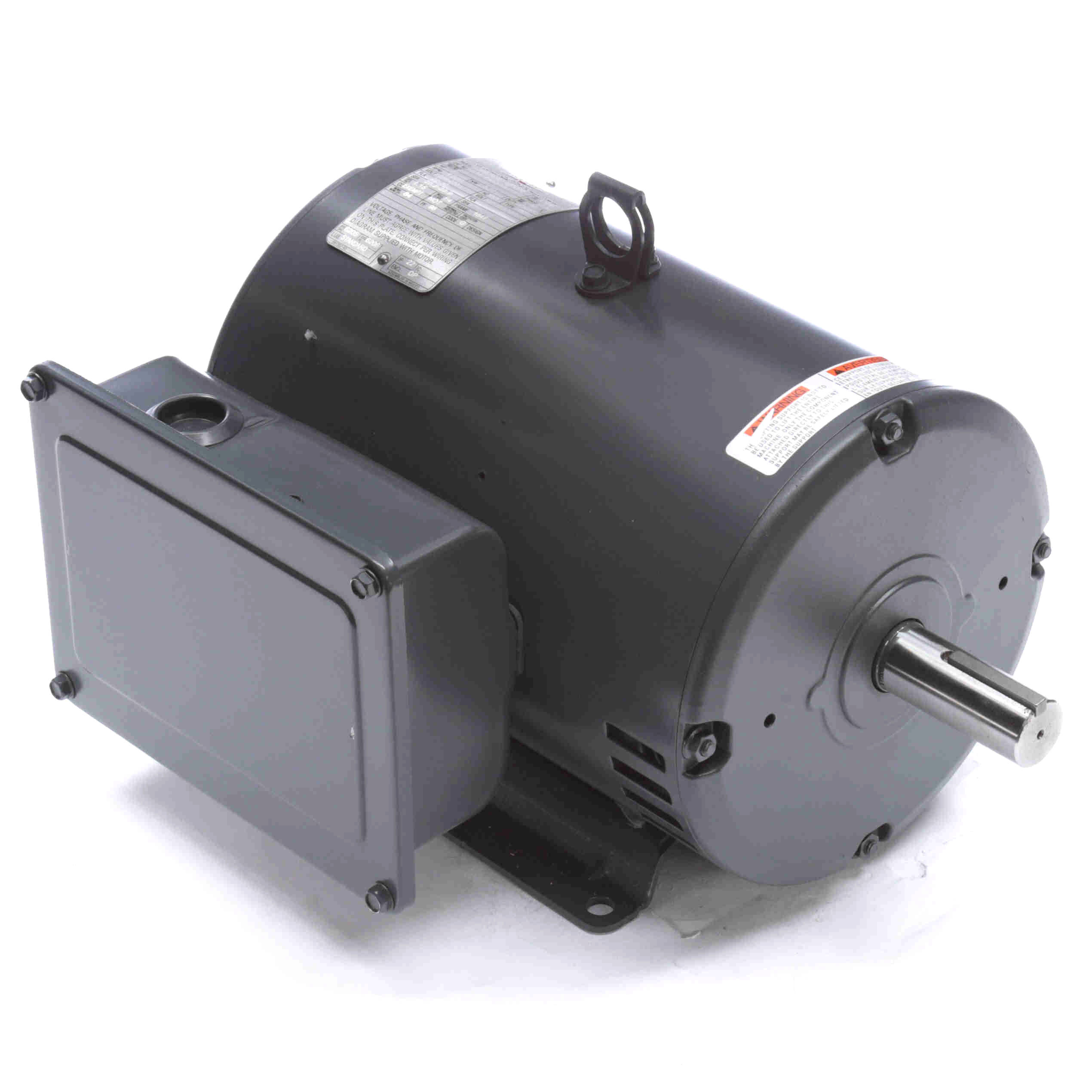

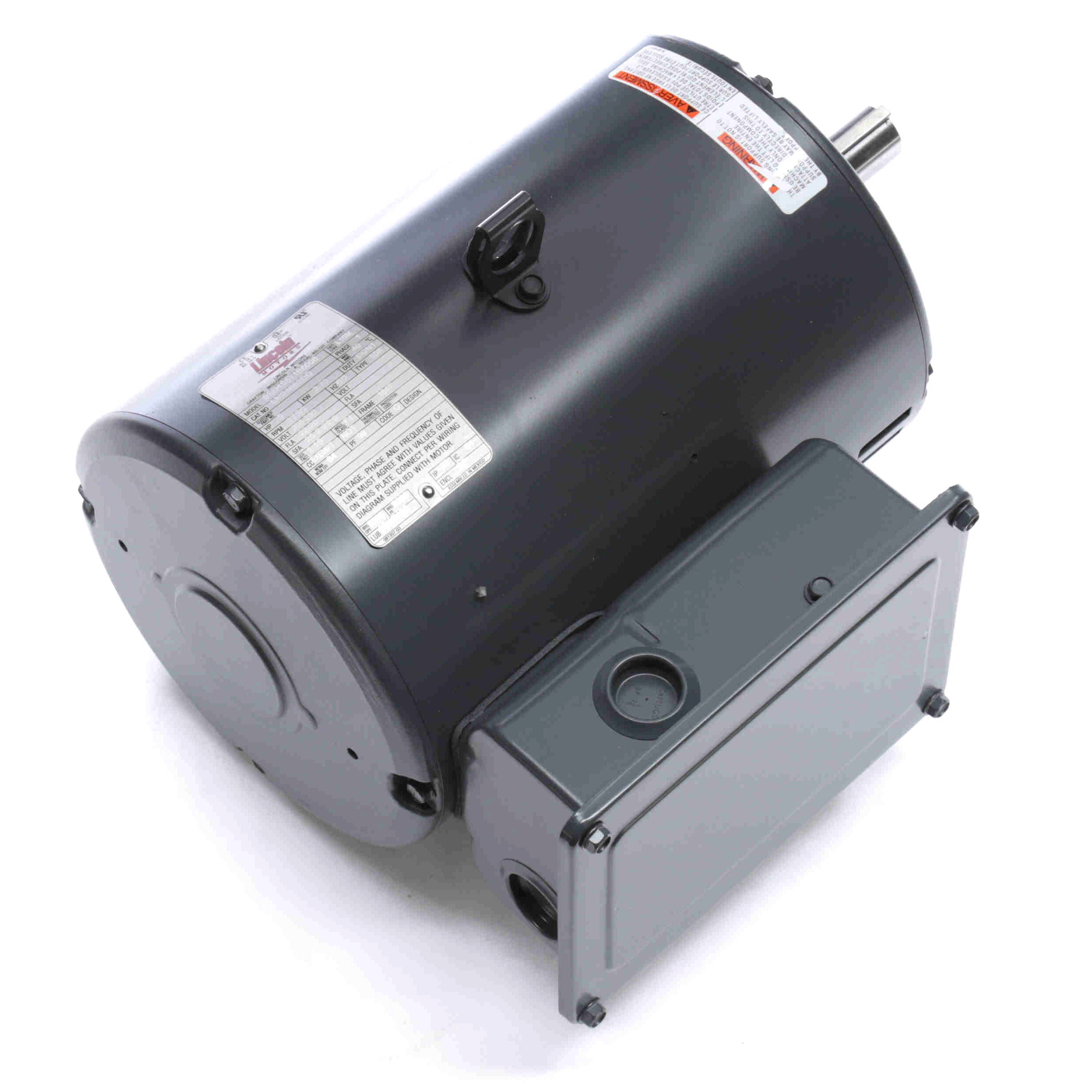

LM24682 Lincoln 5HP Electric Motor, 1800RPM

MFG: Lincoln Motors
MFG Part Number: LM24682

Selected accessories will also be added to cart
$824.90 / Each
Quantity:
Compressor Duty, DP, 184T Frame, 208-230VAC
Features
  • Double shielded ball bearings
  • Designed for belted loads
  • High efficient copper windings
  • High starting and breakdown torque
  • Dual rotation
General Specifications
Model : SSD4S5T1B6008 Catalog No : LM24682
Part Description : 5,1800,DP,184T,1/60/208-230 Category : Air Compressor
Stock : No
Nameplate Specifications
Output HP : 5 Hp Output KW : 3.7 kW
Frequency : 60 Hz Voltage : 208-230 V
Current : 22-20 A Speed : 1750 rpm
Service Factor : 1.15 Phase : 1
Efficiency : 84 % Duty : CONTINUOUS
Insulation Class : F Design Code : NO DESIGN CODE
KVA Code : G Frame : 184T
Enclosure : DP Overload Protector : NOT
Ambient Temperature : 40 °C Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 22
Technical Specifications
Electrical Type : CAP START CAP RUN Starting Method : ACROSS THE LINE
Poles : 4 Rotation : SELECTIVE CCW
Mounting : RIGID Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL Shaft Type : T
Overall Length : 15.21 in Frame Length : 11 in
Shaft Diameter : 1.13 in Shaft Extension : 2.75 in
Assembly/Box Mounting : F1 ONLY UPC : 691720017166
Weight : 89.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 22.00 100.0 15.00 100.0 1,750 4.42 98.0 5.00
Break-Down 74.30 338.0 39.00 260.0 1,550 16.18 75.7 5.00
Pull-Up 133.20 605.0 29.30 195.0 200 26.75 87.3 5.00
Locked-Rotor 131.50 598.0 34.90 233.0 0 26.75 87.3 5.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.90
  • 0.500
  • 0.0
  • 75.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 6.50
  • 1.360
  • 68.4
  • 91.0
  • 1,785
  • 0.0
  • 3.67
  • 50 %
  • 10.60
  • 2.300
  • 80.8
  • 94.3
  • 1,775
  • 0.0
  • 7.37
  • 75 %
  • 14.85
  • 3.300
  • 84.3
  • 96.6
  • 1,765
  • 0.0
  • 11.10
  • 100 %
  • 20.00
  • 4.420
  • 84.0
  • 98.0
  • 1,750
  • 60.0
  • 15.00
  • 115 %
  • 22.90
  • 5.100
  • 83.4
  • 96.8
  • 1,740
  • 75.0
  • 17.20
  • 125 %
  • 24.90
  • 5.575
  • 83.1
  • 97.3
  • 1,735
  • 0.0
  • 18.80
  • 150 %
  • 30.40
  • 6.805
  • 81.8
  • 97.3
  • 1,718
  • 0.0
  • 22.82
