Product Detail:

Drives Type	L510 MICRO DRIVE
Amps	7.5
HP	2
Phase	3
Voltage	230
Enclosure	CHASSIS
Height	5.67
Width	4.65
Depth	5.8
Approx. Weight	4.000 LB
List Price	$360.00

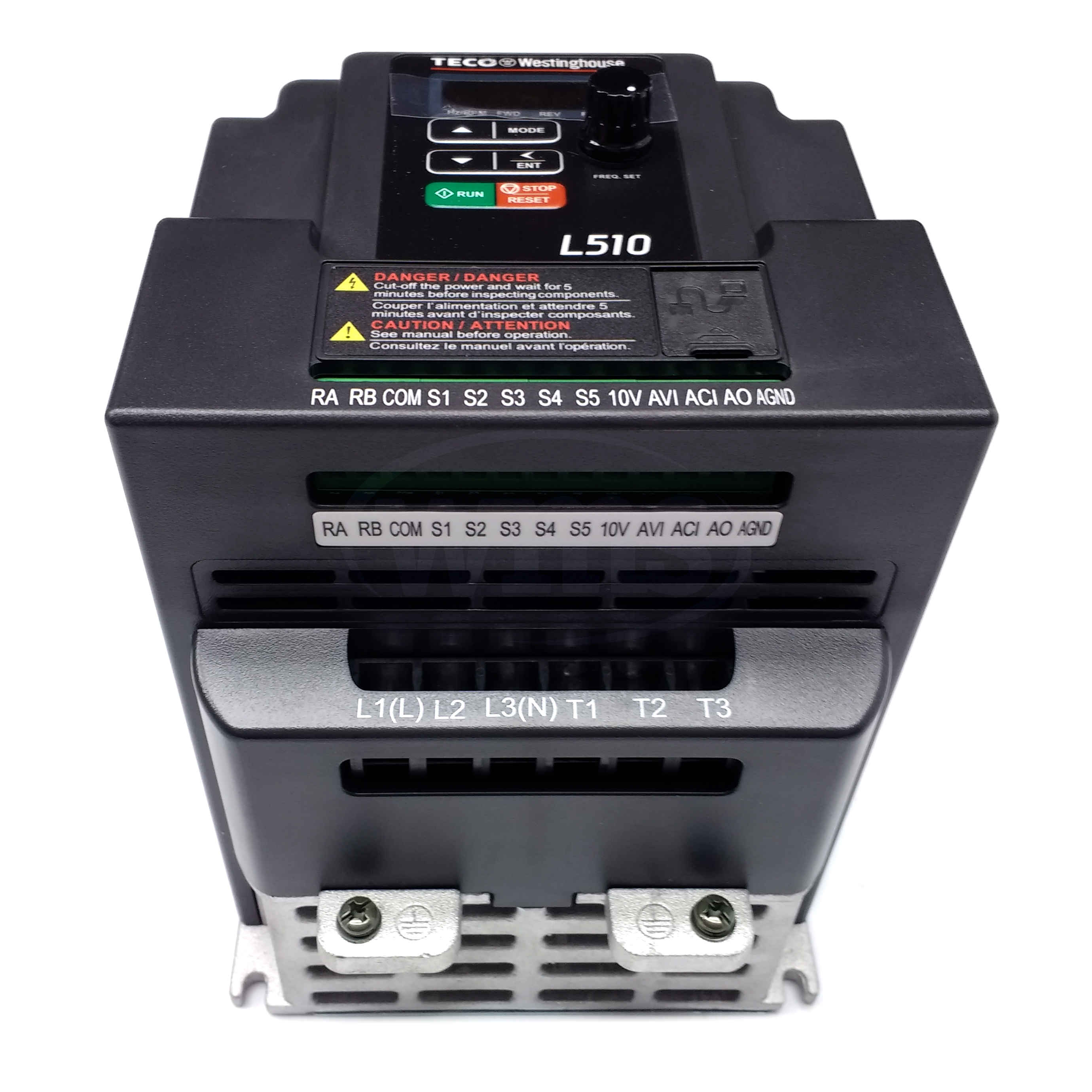

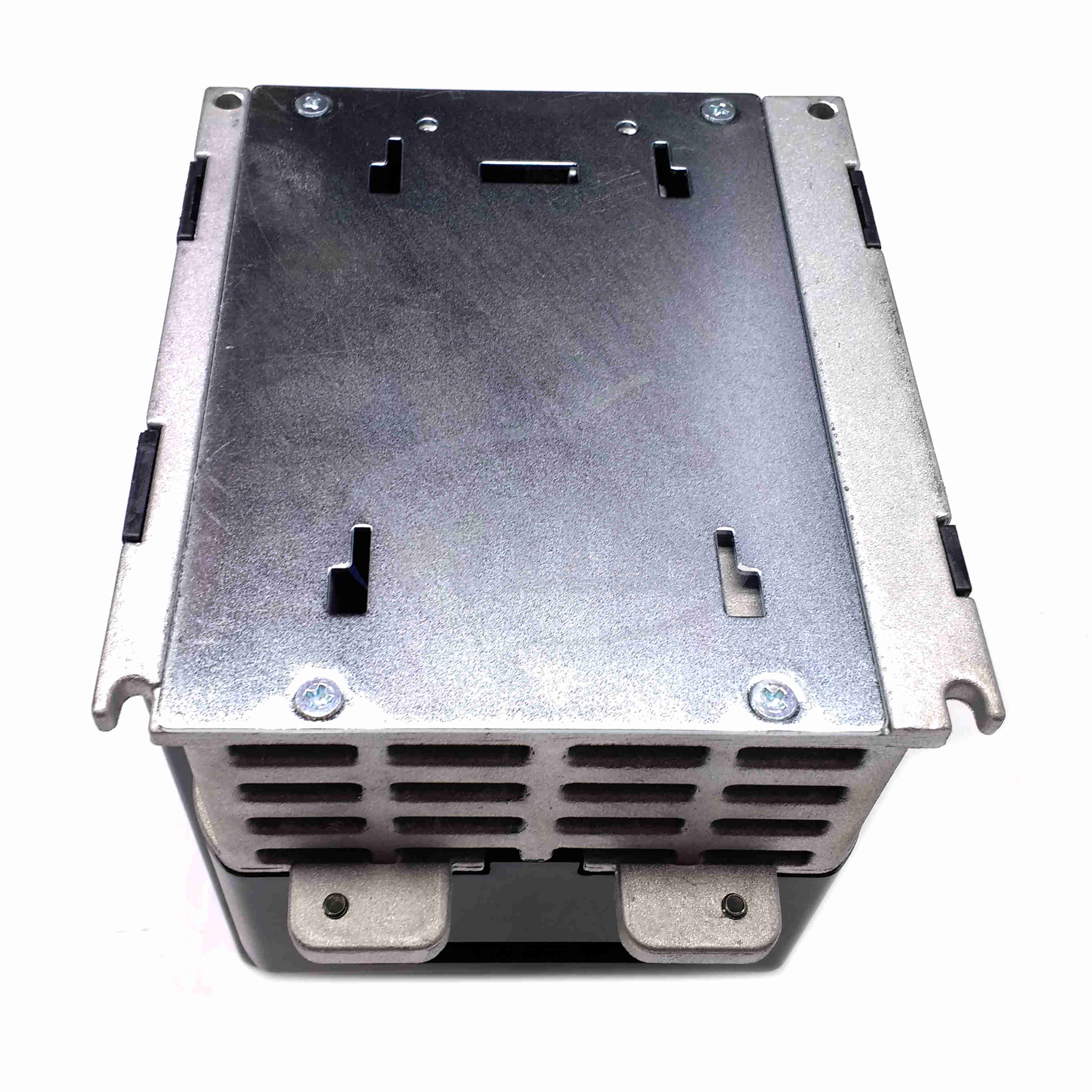

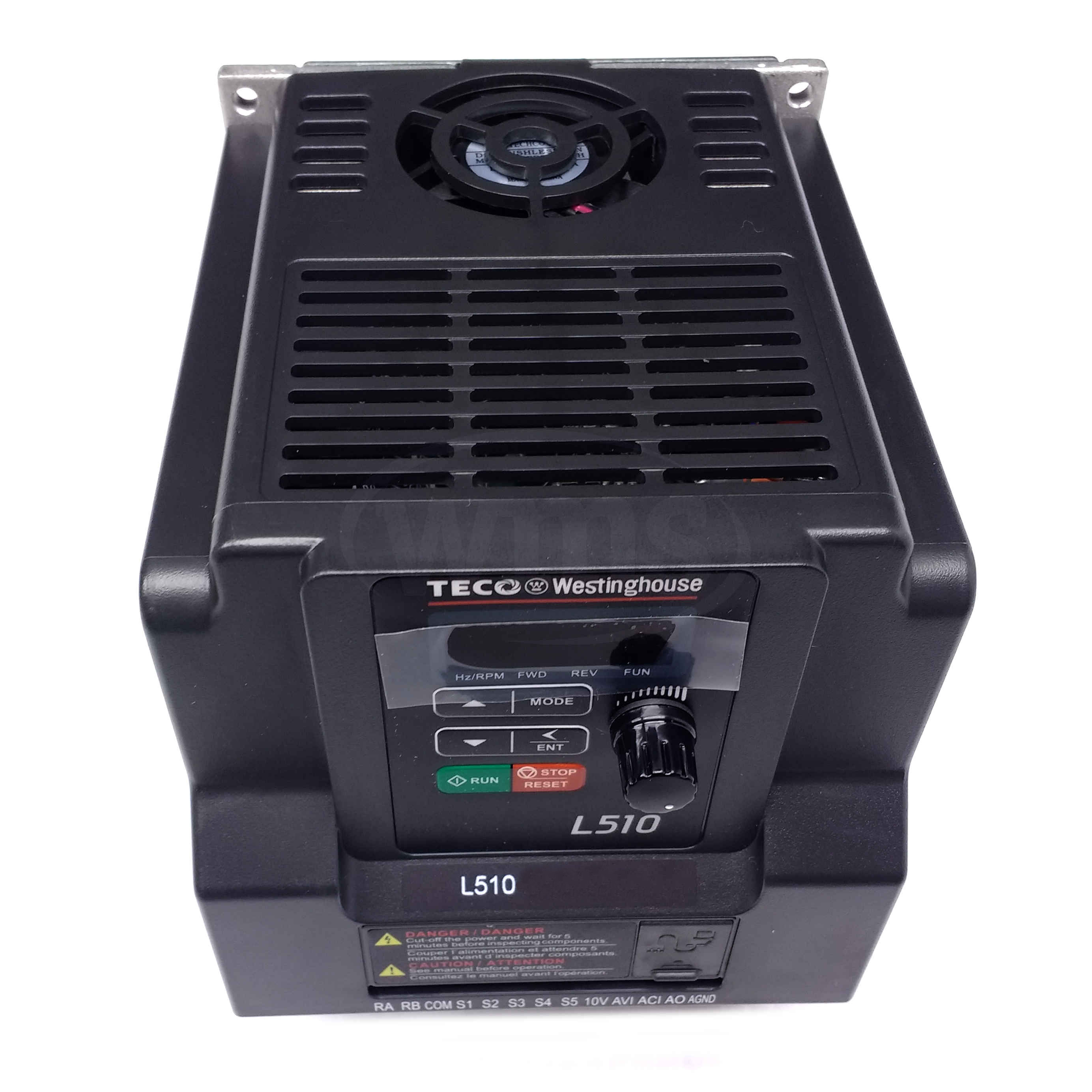

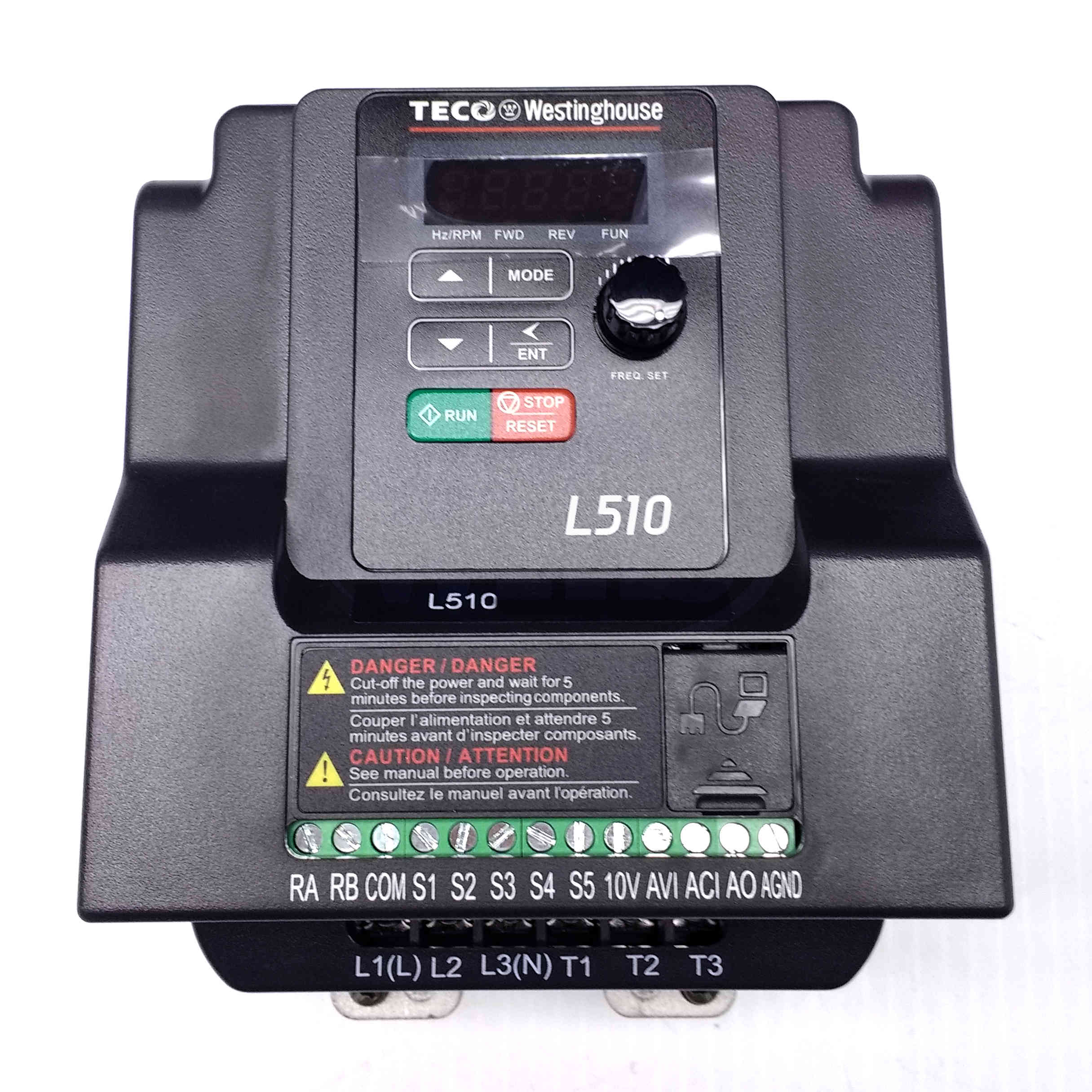

L510 MICRO DRIVE MEDIUM DUTY

A compact, low cost, and versatile AC Drive that is easy to program and ideal for OEM's.

APPLICATIONS:
• Mixing
• Treadmills
• Lathes
• Fans
• AC Contactor Replacement
• Milling
• Small Conveyors
• Pumps

FEATURES:
• Chassis Style Enclosure (IP20)
• Sensorless Vector or V/ Hz with Auto Torque Boost Feature
• 0.25 to 1 HP, 115V, 50/ 60Hz,1-Phase
• 0.25 to 3 HP, 230V, 50/ 60Hz,1-Phase
• 0.5 to 3 HP, 230V, 50/ 60Hz,3-Phase
• 1 to 3 HP, 460V, 50/ 60Hz, 3-Phase
• Extensive Diagnostic and Monitoring Capabilities
• Din Rail Option
• PID Control
• 8 Preset speeds
• Two Multi-Function Analog Input/ Qty 1 Analog Output
• Built-in Modbus or BACnet Protocol Via RJ 45 Interface
• UL, cUL, and CE Approved
