/Products/Electric Motors/Single Phase/Baldor/TEFC - Foot Mounted/L3407 Baldor 1/3HP Electric Motor, 1200 RPM

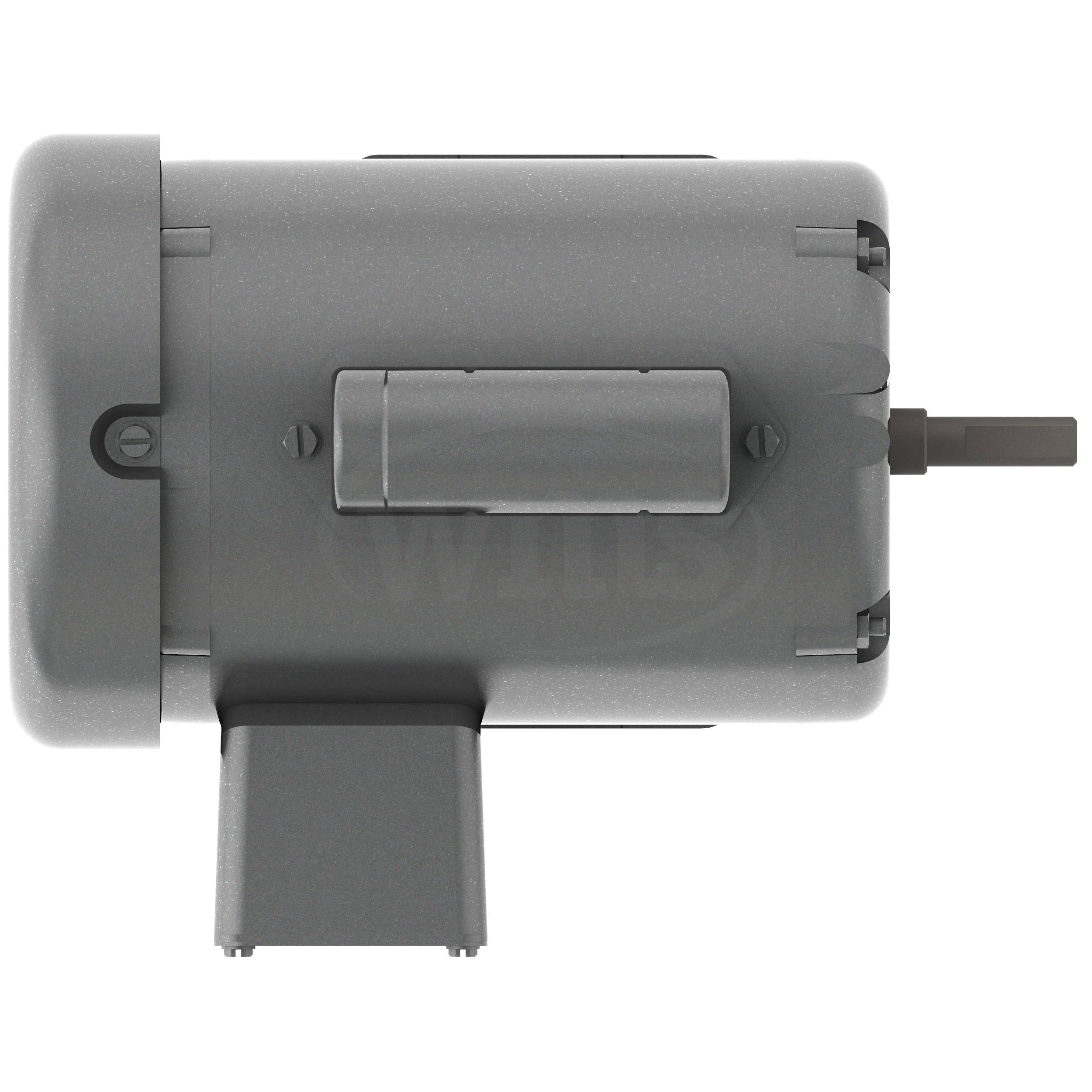

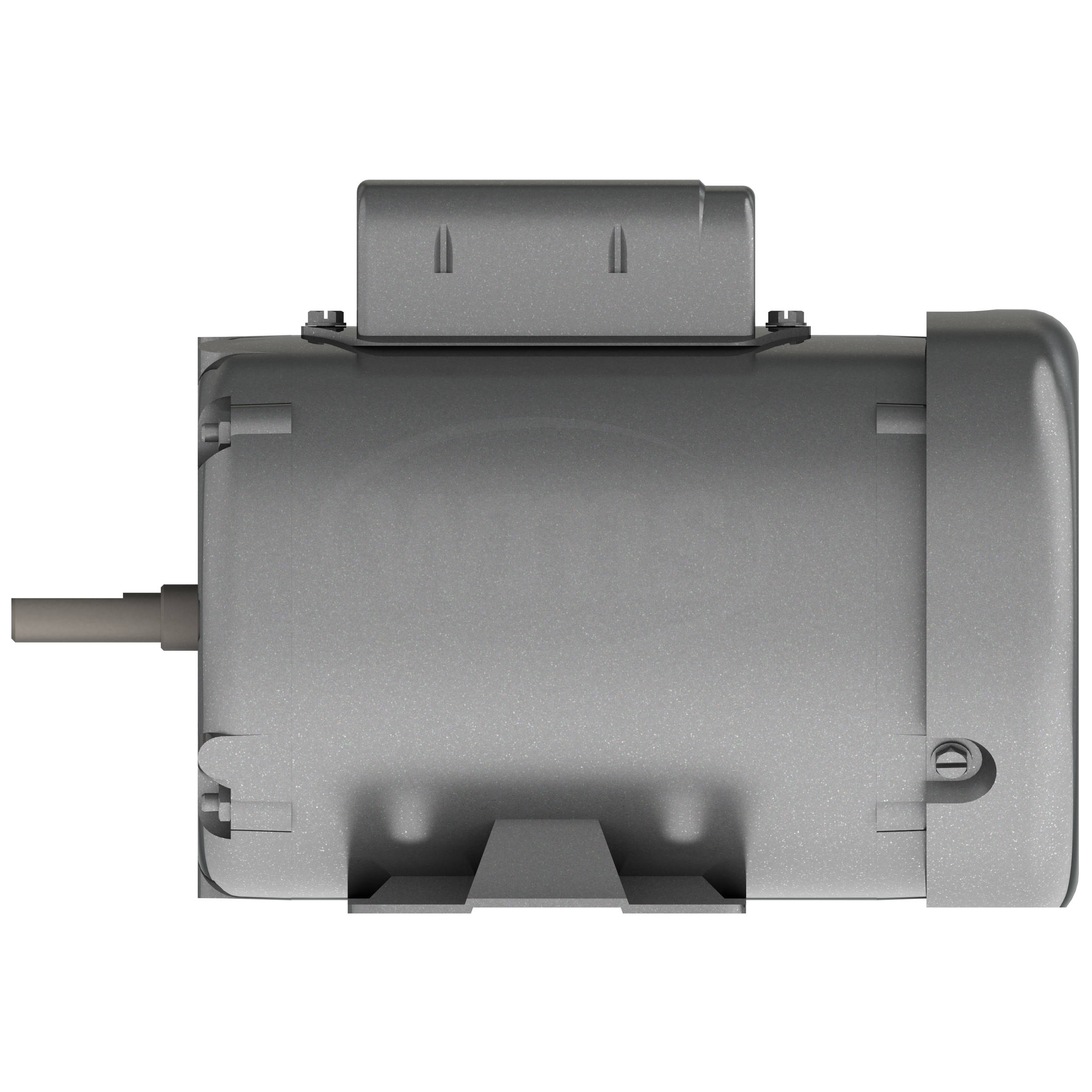

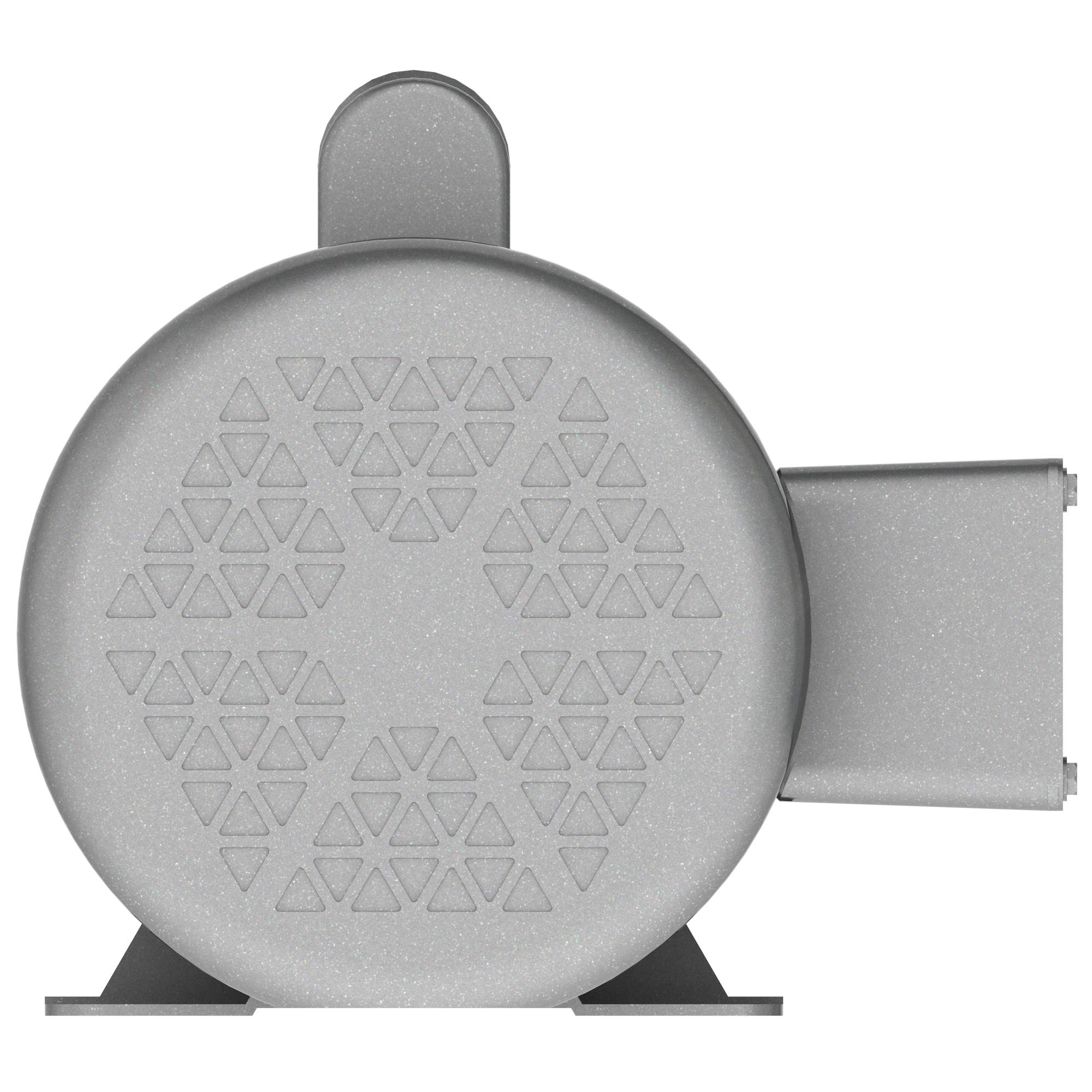

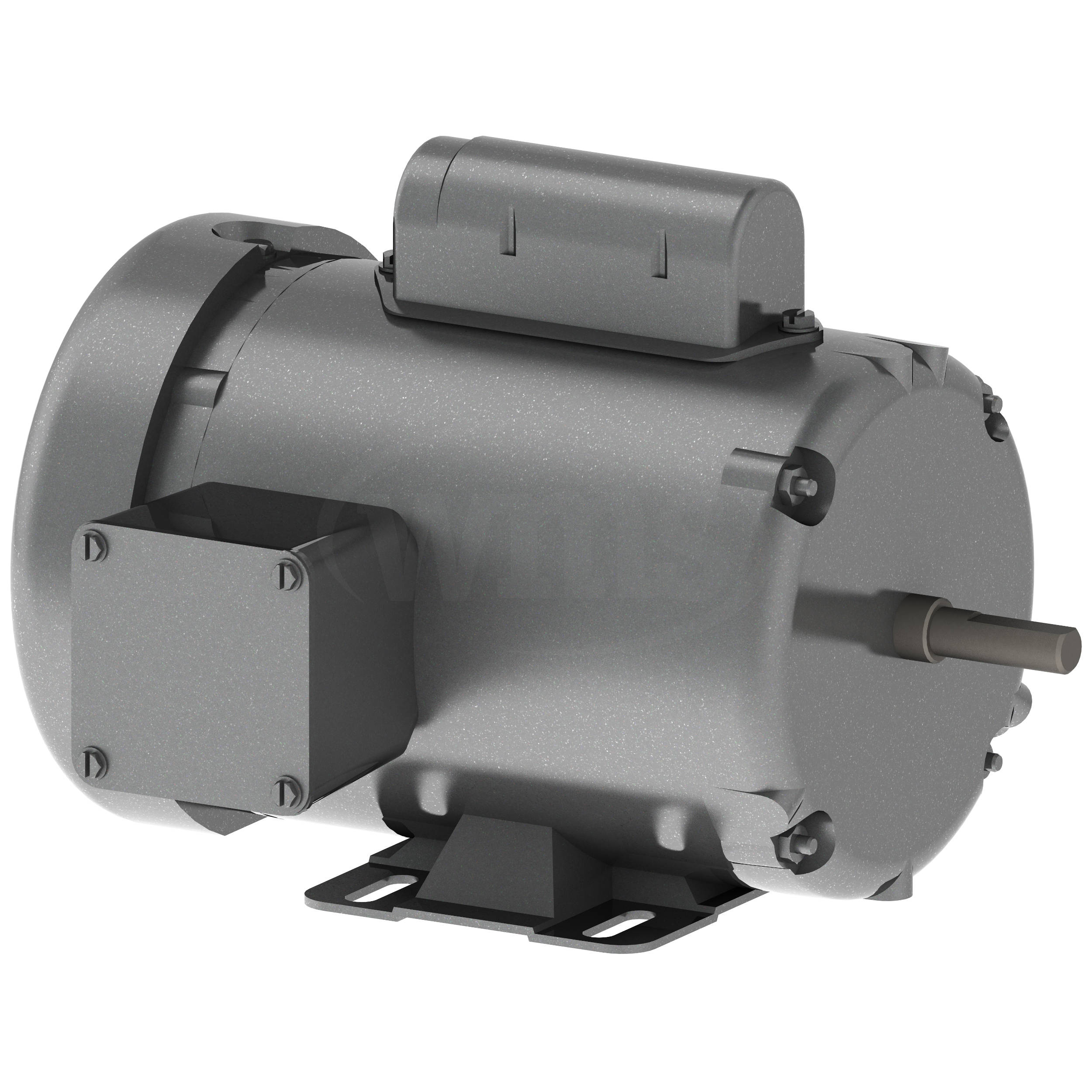

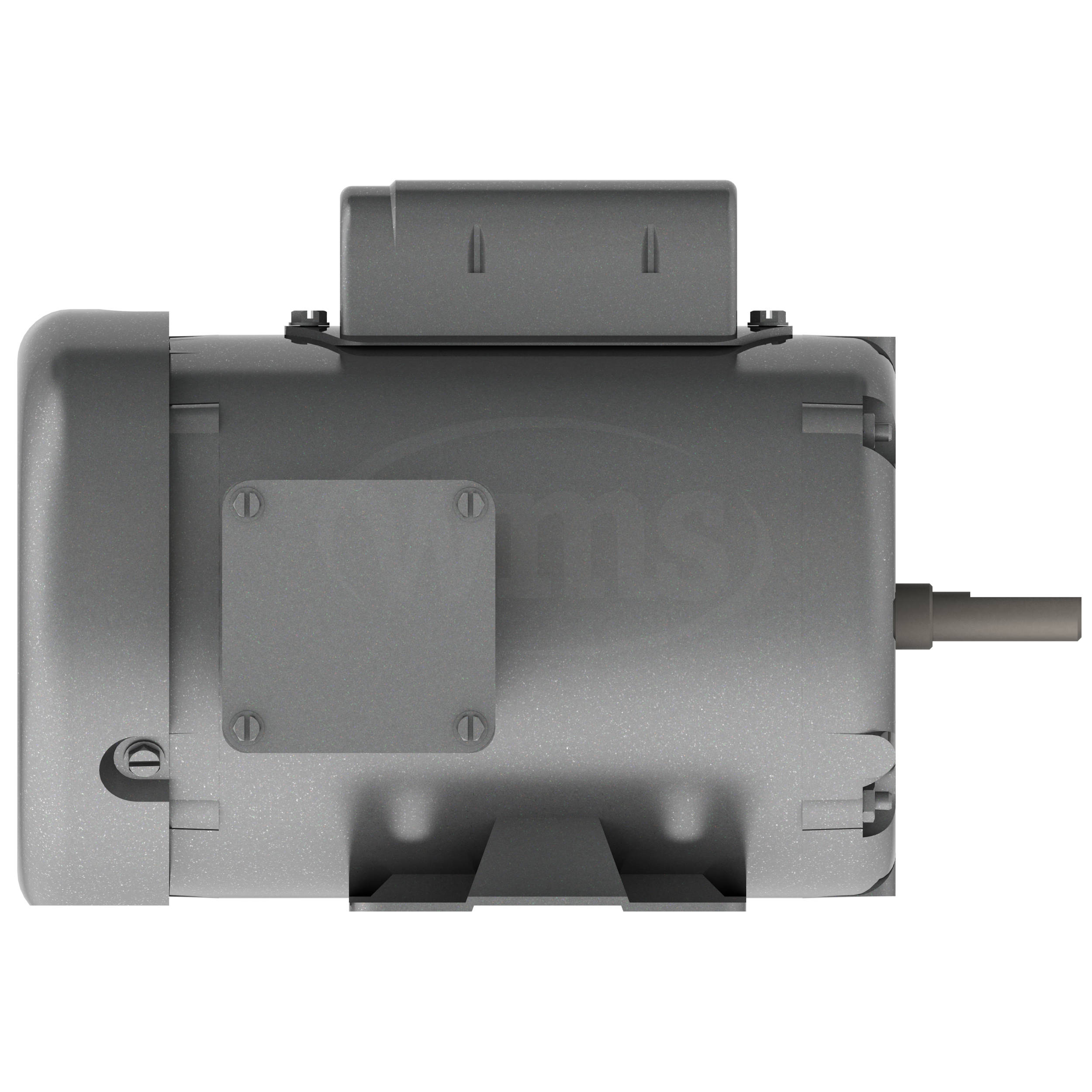

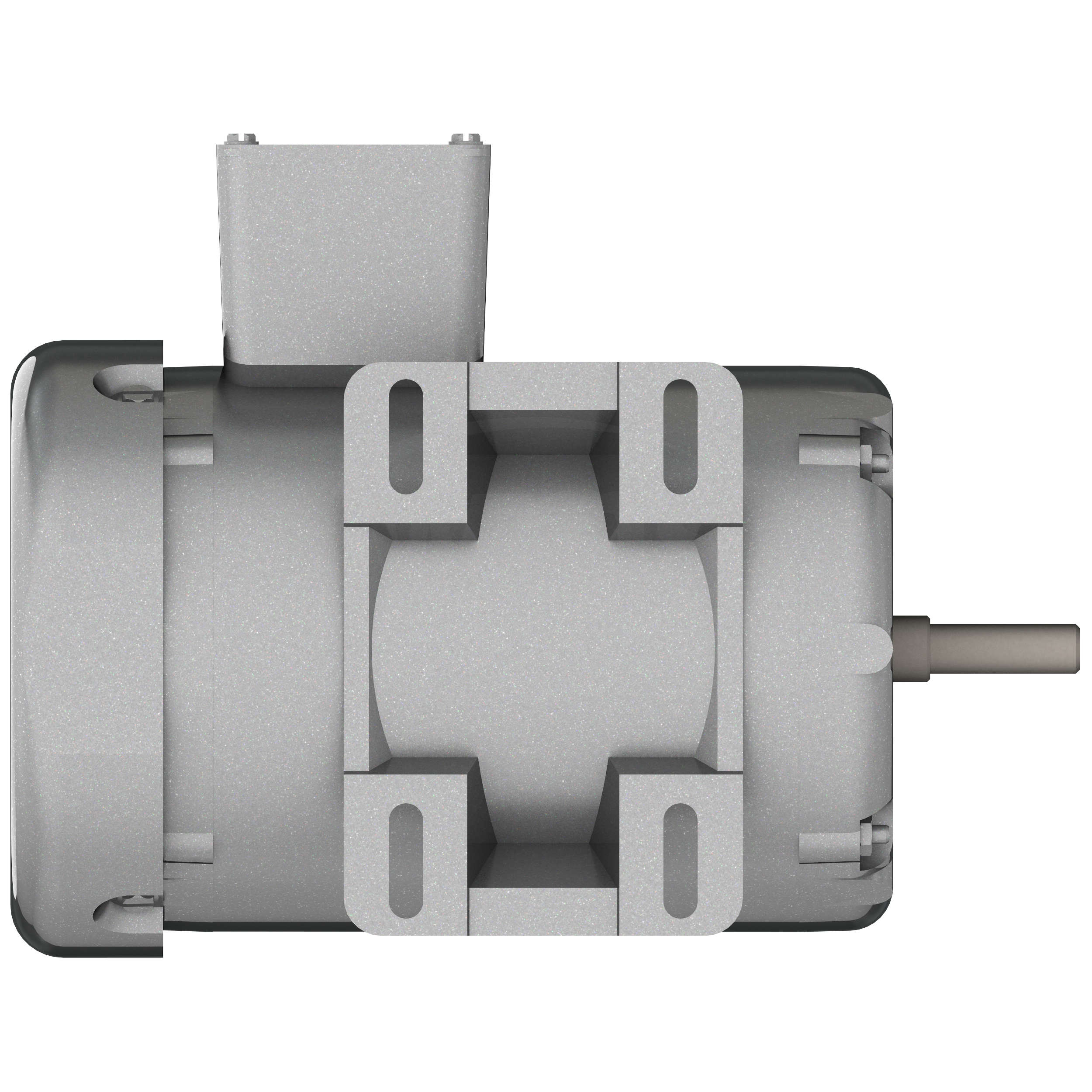

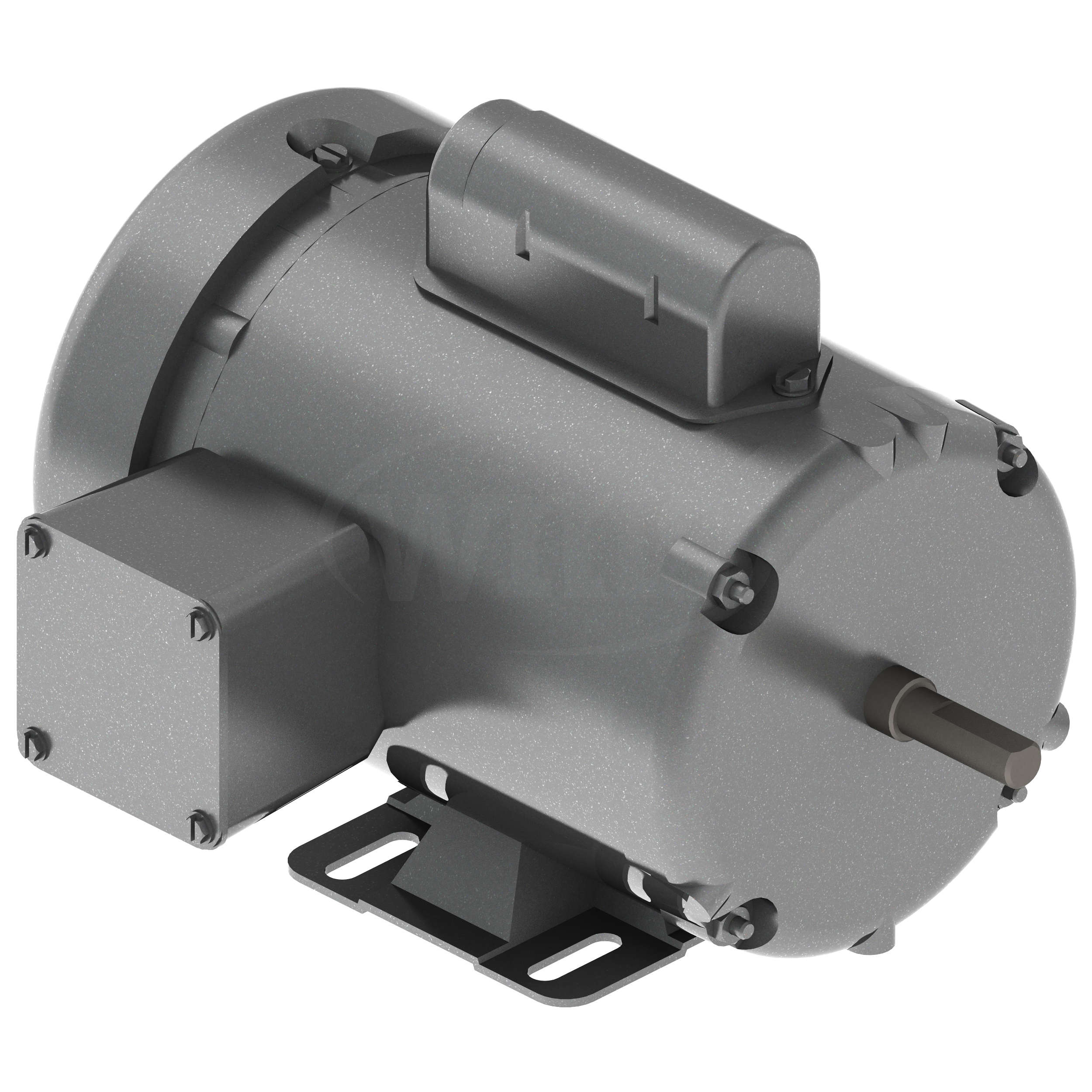

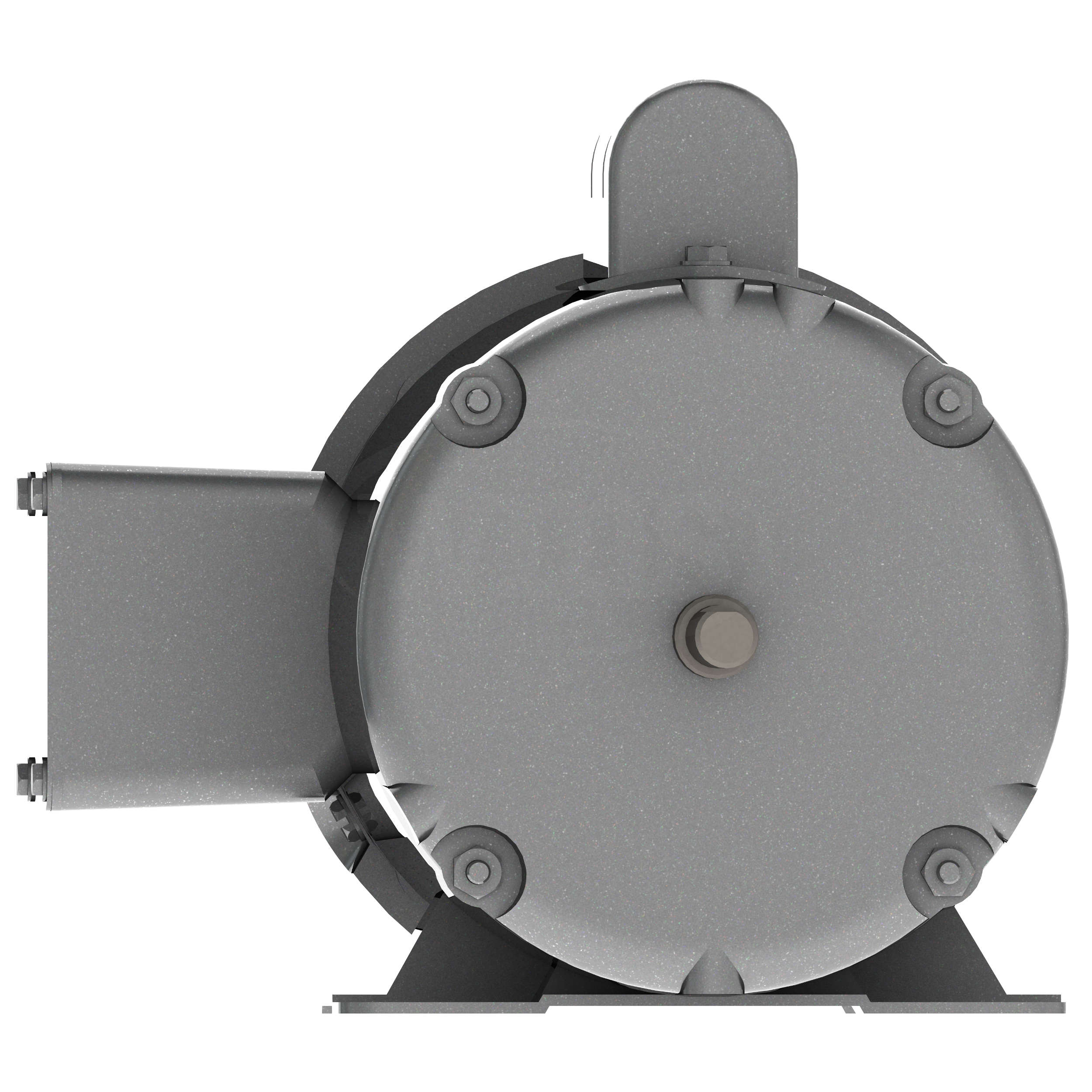

Click Image to Expand

Product ID: L3407

L3407 Baldor 1/3HP Electric Motor, 1200 RPM

MFG: Baldor Electric Company
MFG Part Number: L3407

Selected accessories will also be added to cart
$671.97 / Each
Quantity:
TEFC, IP44, 48 Frame, 115/208-230VAC 60Hz, Single Phase, Foot Mounted, Rolled Steel, 34C51-5855
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Specs

Output 0.330 hp
Phase 1
Synchronous Speed 1,200 rpm
Frequency 60.00 Hz
Voltage 230 V
115 V
Frame Material Steel
Frame 48
XP Class and Group NONE
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Blower None
Current 7.4 A @ 115 V
4.3 A @ 208 V
3.7 A @ 230 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 54.0%
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device No feedback
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No heater
High Voltage Full Load Amps 3.7 A
Insulation Class B
Inverter Code Not inverter
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 3424L
Number of Poles 6
Overall Length 11.34 in
Power Factor 55
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.35
Shaft Diameter 0.500 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1,140 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing NONE (OLD)
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Applications

  • Air Handling
  • Material Handling
  • Machine Tools
  • Conveyors
  • Pumps
  • Fans

Features

  • Low noise vibration dampening base
  • Dynamically balanced rotor to increase bearing life
  • Superior switch design provides optimized torque profiles
  • Robust heavy gauge steel design

Nameplate

Nameplate

CAT.NO. L3407
SPEC. 34C51-5855
HP .33
VOLTS 115/230
AMP 7.4/3.7
RPM 1140
FRAME 48 HZ 60 PH 1
SER.F. 1.35 CODE M DES N CLASS B
NEMA-NOM-EFF 54 PF 55
RATING 40C AMB-CONT
CC USABLE AT 208V 4.3
DE 6203 ODE 6203
ENCL TEFC SN
SFA 8.2/4.1
NP1256L

Performance

Performance

Performance at 230 V, 60 Hz, 0.33 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 6.12 Ohms A Ph / 5.66 Ohms B Ph
Temp. Rise @ Rated Load 67° C
Temp. Rise @ S.F. Load 82° C
Start Configuration DOL
Break-Down Torque 3.6 LB-FT
Pull-Up Torque 3.08 LB-FT
Locked-Rotor Torque 3.83 LB-FT
Starting Current 15.4 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 18.0 30.0 39.0 48.0 55.0 61.0 67.0 65.0
Efficiency 0.0 27.0 41.0 50.0 54.0 56.0 56.0 56.0
Speed (RPM) 1,195 1,185 1,170 1,160 1,145 1,125 1,105 1,115
Line Amps 3.10 3.10 3.35 3.50 3.70 3.90 4.40 4.10

Performance Curves
