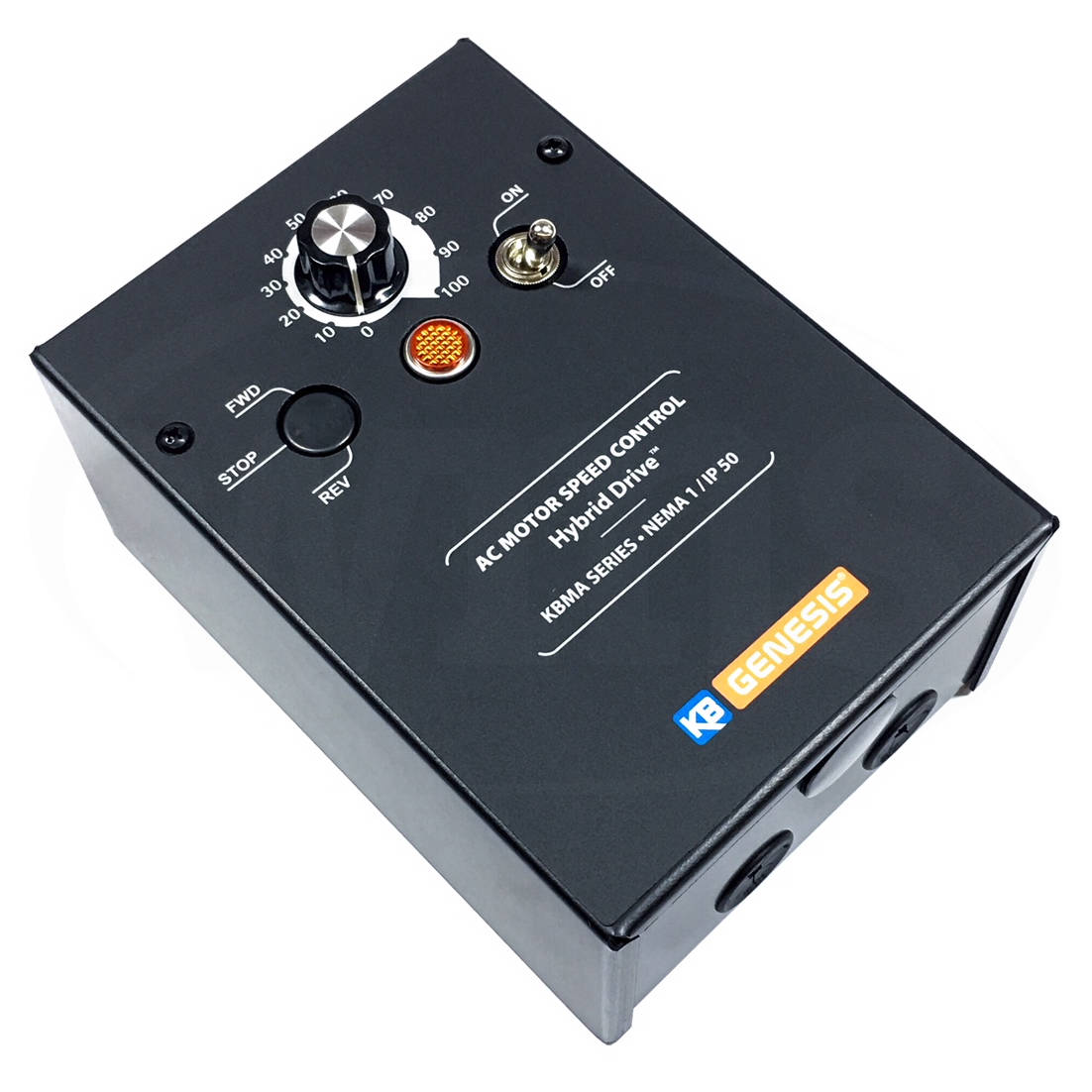

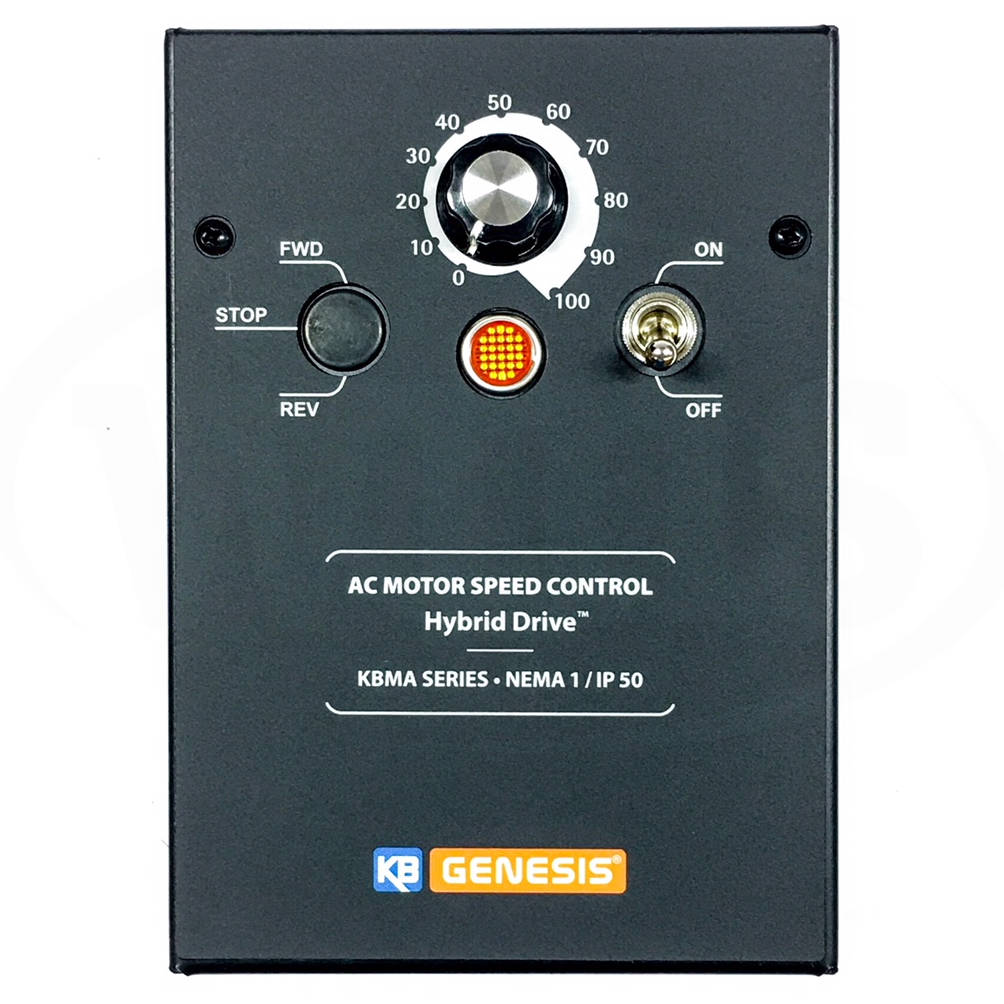

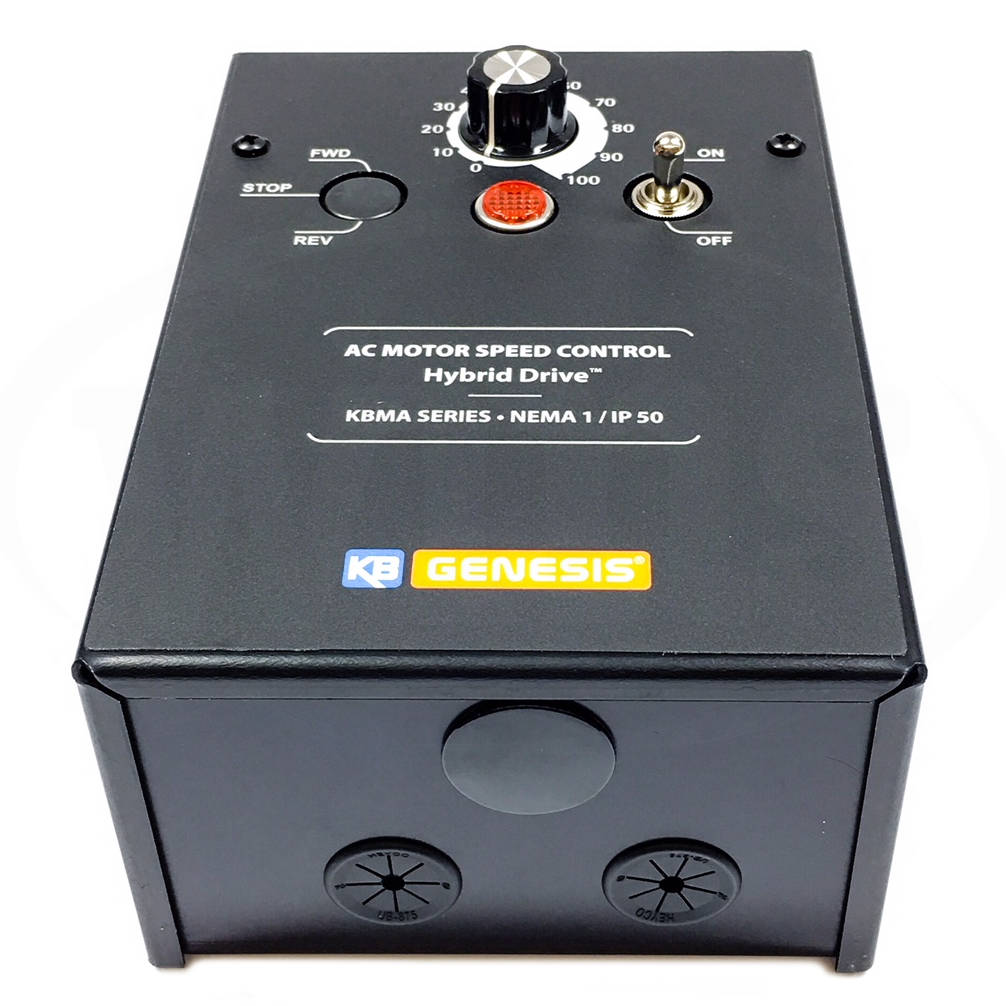

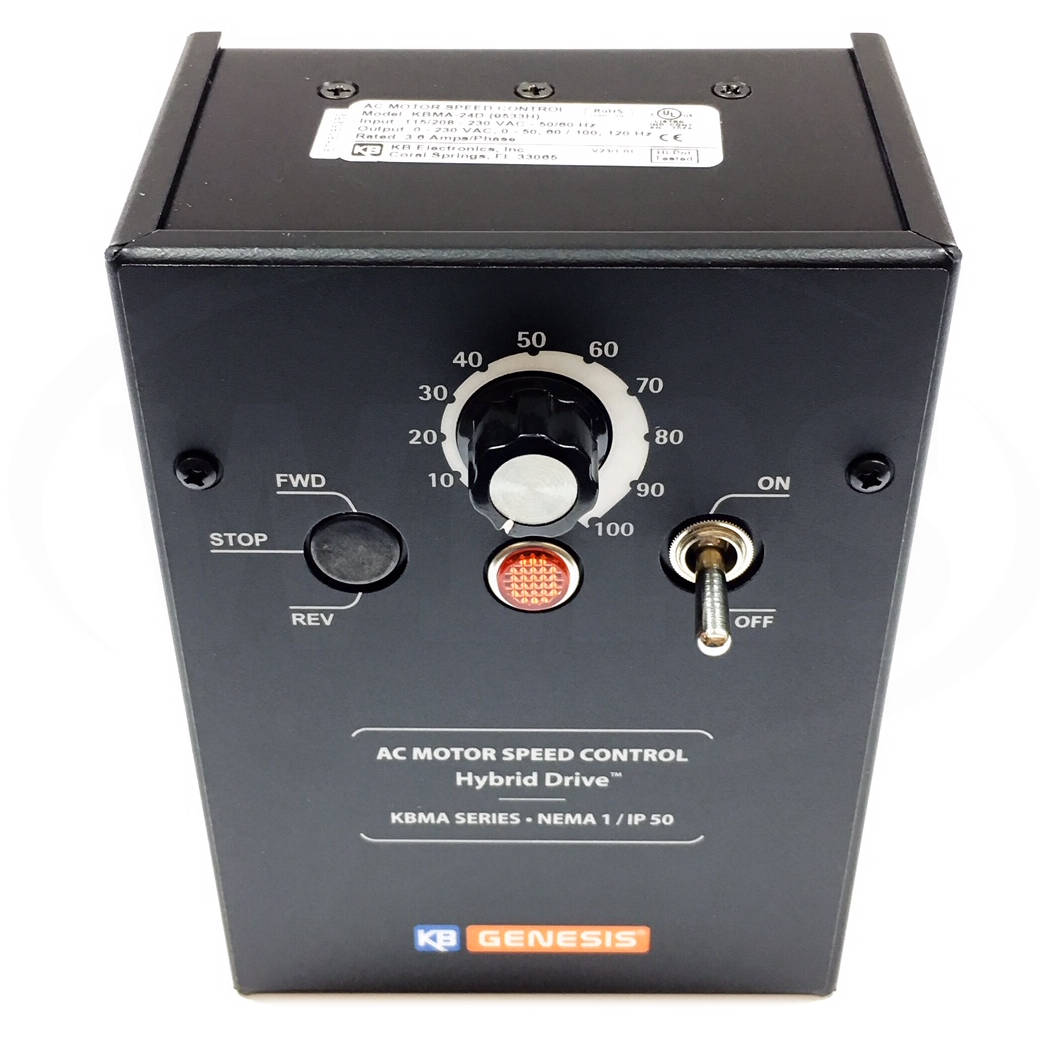

KBMA-24D Hybrid AC Drive, A Digital Drive with Analog Interface

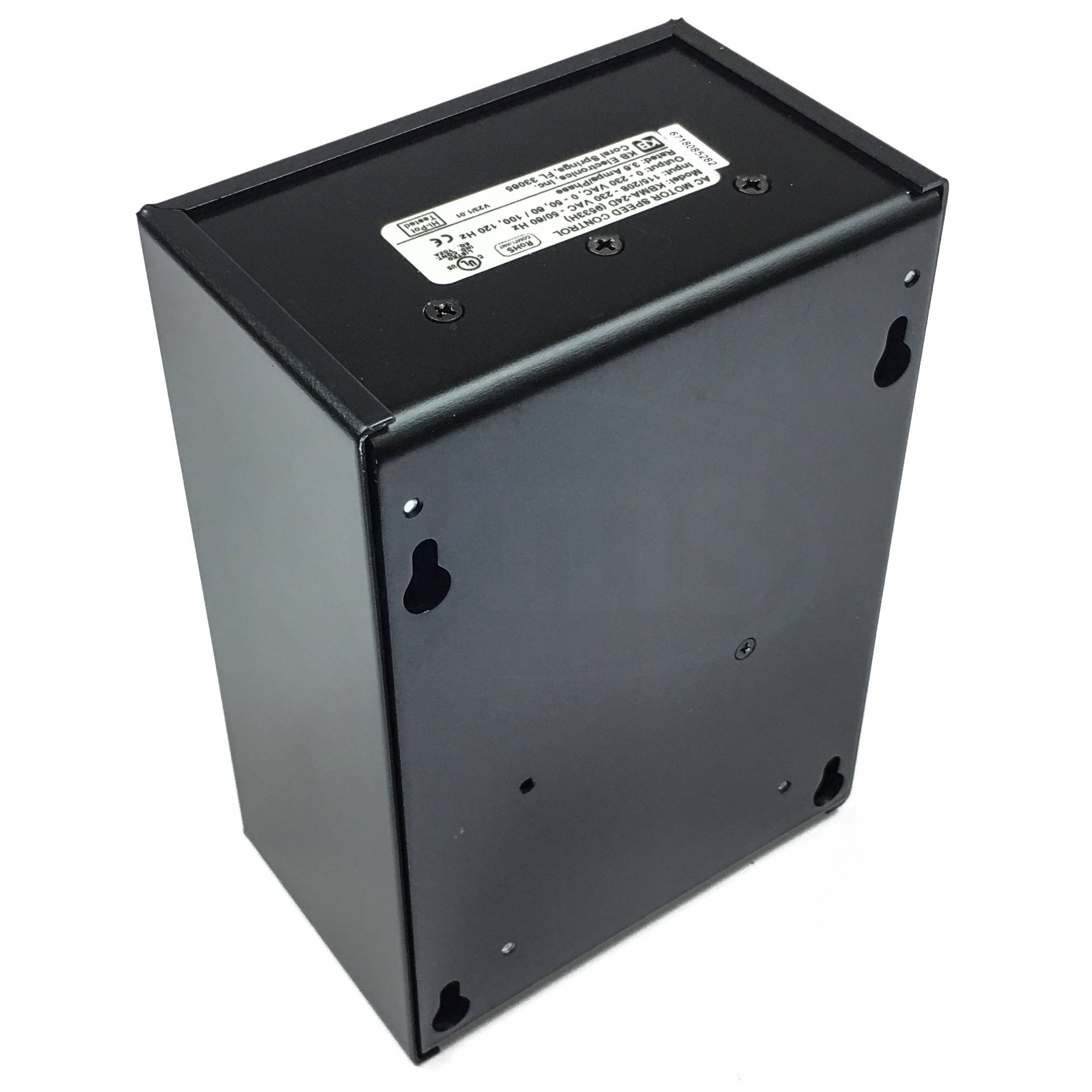

Rugged Aluminum NEMA-1 / IP-50 Enclosure

Primary Features:
Horsepower (Kw) 1/8 (.09) to 1.0 (.75), Jumper Selectable
1Ø Input 115/230 VAC, 50/60 Hz
3Ø Output 230 VAC
On/Off AC Line Switch,
200% Starting Torque
Diagnostic LED Status Indicators

Additional Features:
Flux Vector Compensation with Static Auto-Tune provides excellent speed regulation with high torque loads throughout the entire speed range.
Auto energy saving at light loads.
Smooth motor torque.
Electronic Inrush Current Limit (EICLTM) Protection
Run/Fault Relay Output Contacts
Holding Torque at Zero Speed in "Stop" mode
Undervoltage and Overvoltage Protection
Short Circuit Protection, phase to phase
Ride-Through momentary power loss
Regeneration Protection eliminates tripping
Basic Programmable Trimpot Adjustments


Dimensions approx. in (cm). 7.00" (17.8) x 4.95" (12.7) x 4.15" (10.7). Agency approvals: UL, CE, CSA, C-Tick.
