/C-Frame/K670 Fasco 1/150HP C-Frame / Skeleton Electric Motor, 3000RPM
Click Image to Expand

Product ID: K670

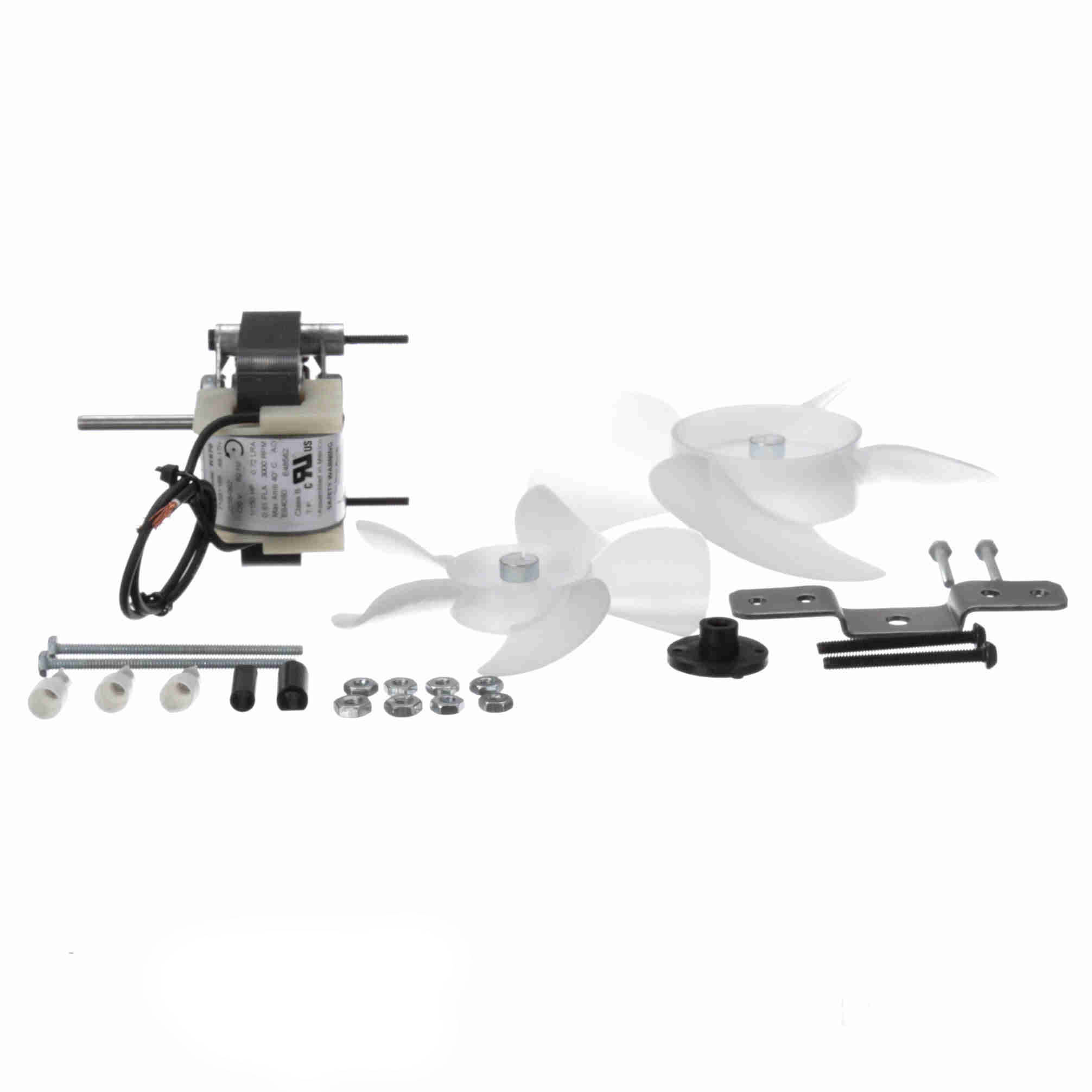

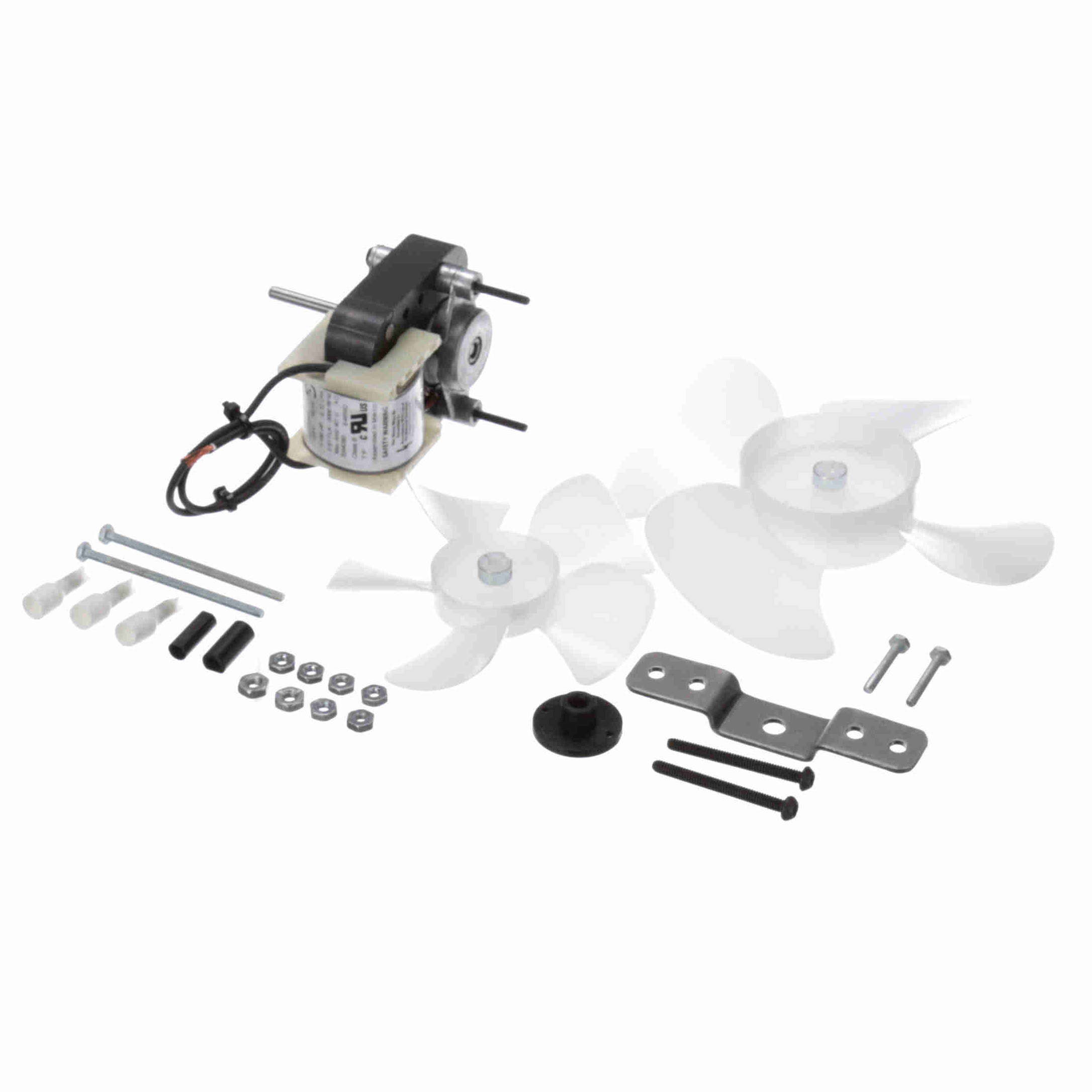

K670 Fasco 1/150HP C-Frame / Skeleton Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: K670

Selected accessories will also be added to cart
$54.97 / Each
Quantity:
Open Air Over, 120VAC Single Phase 60Hz, CCWSE, Shaded Pole, Extended Studs, 3/16"x 1.30" Shaft

Features

Features
  • Heating - Refrigeration - Ventilating Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected, One-Shot Fuse
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • .1875" Diameter Shaft
  • 7.5"/6.5" Leads with .3" Strip
  • Extended Studs Opposite Shaft End

General Specifications

General Specifications
Model : Catalog No : K670
Part Description : 71581188.C-FRAME..1/150 HP.1 SPD. Category : C-Frame / Skeleton
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/150 HP Output KW : 0.01 kW
Frequency : 60 Hz Voltage : 120 V
Current : .61 A Speed : 3000 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : C-FRAME Enclosure : Open
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : N
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 2 Rotation : Counterclockwise Shaft End
Mounting : Extended Studs Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Round Overall Length : 3.69 in
Shaft Diameter : 0.188 in Shaft Extension : 1.30 in
UPC : 818508021737 Weight : 2.00 LB
