/C-Frame/K628 Fasco 1/200HP C-Frame / Skeleton Electric Motor, 3000RPM
Click Image to Expand

Product ID: K628

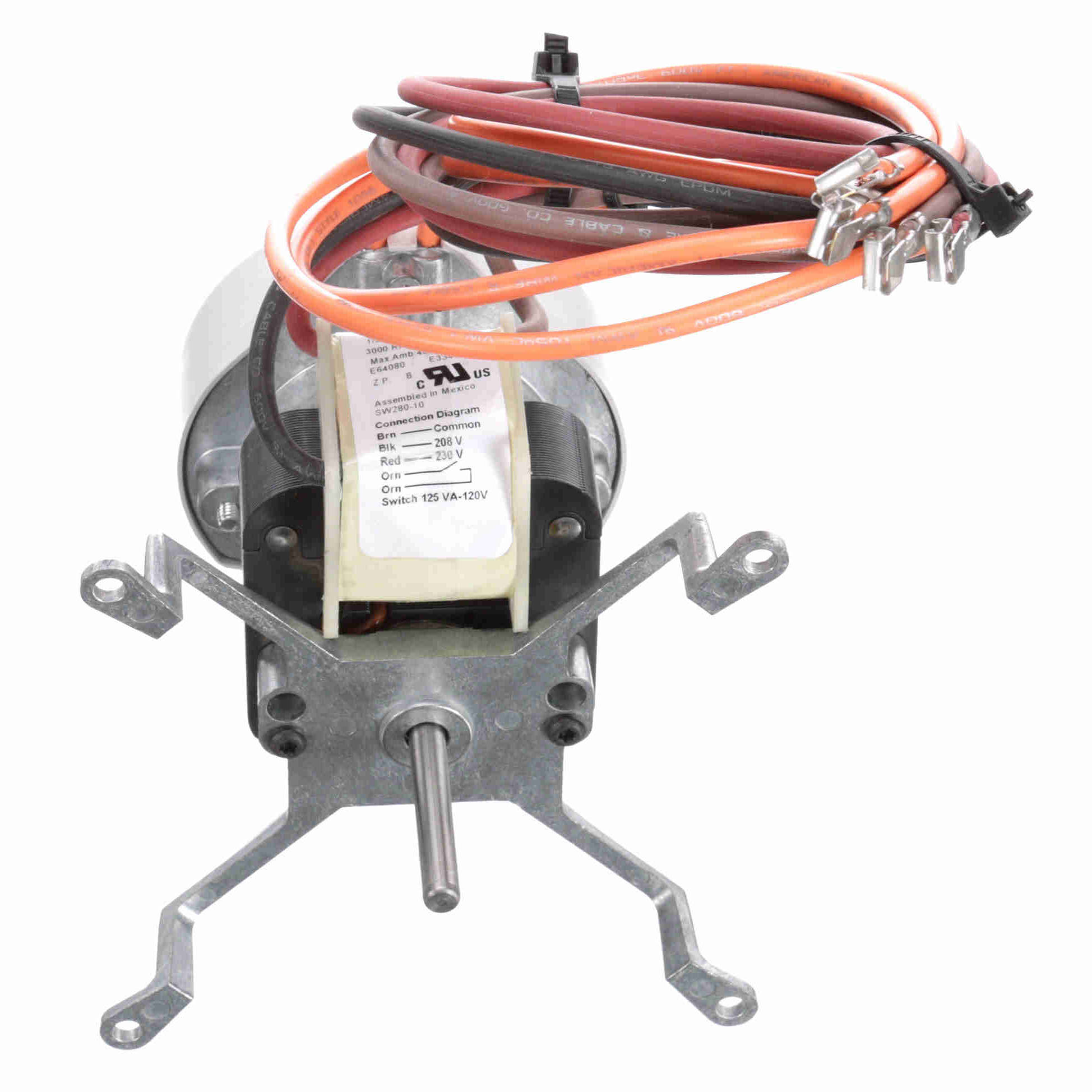

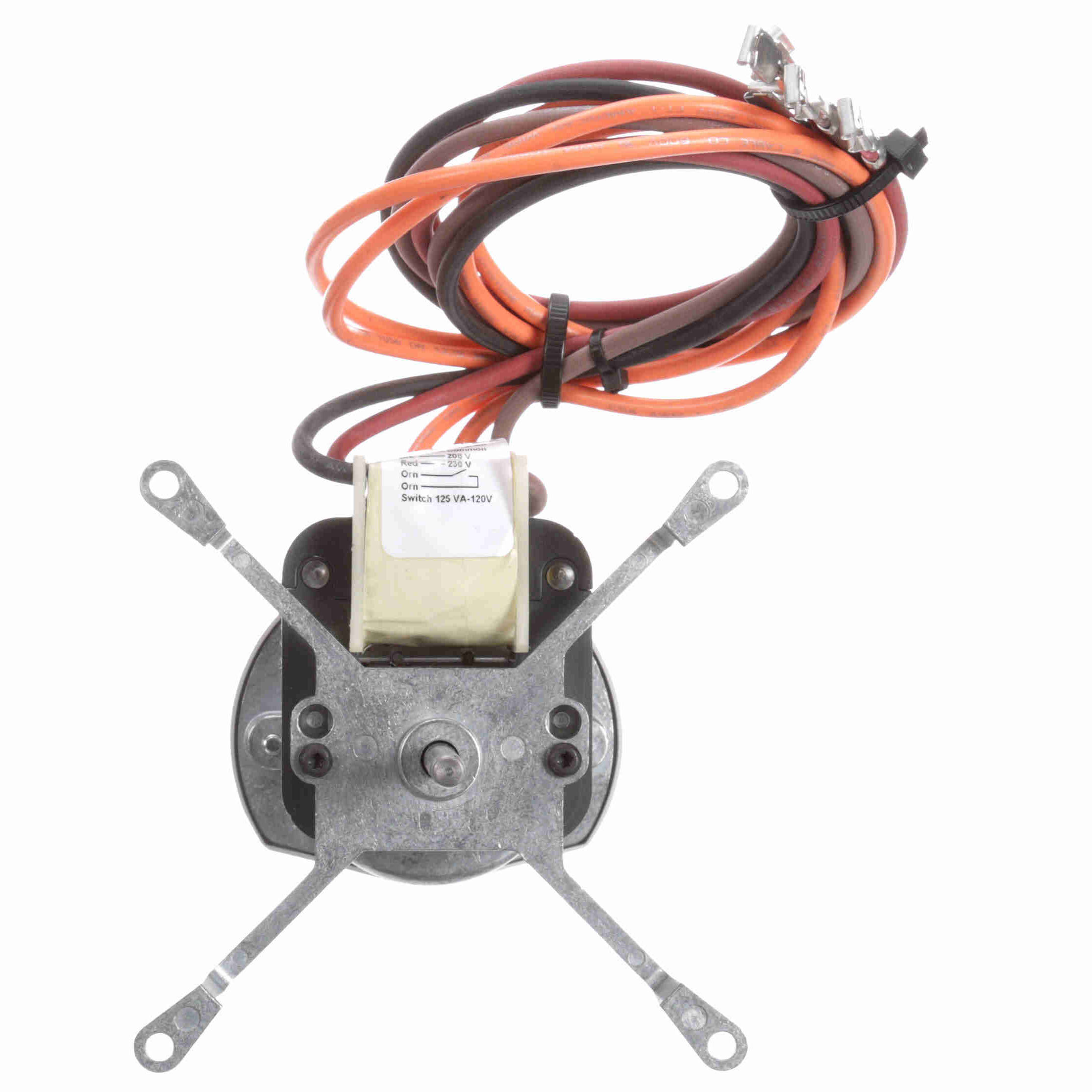

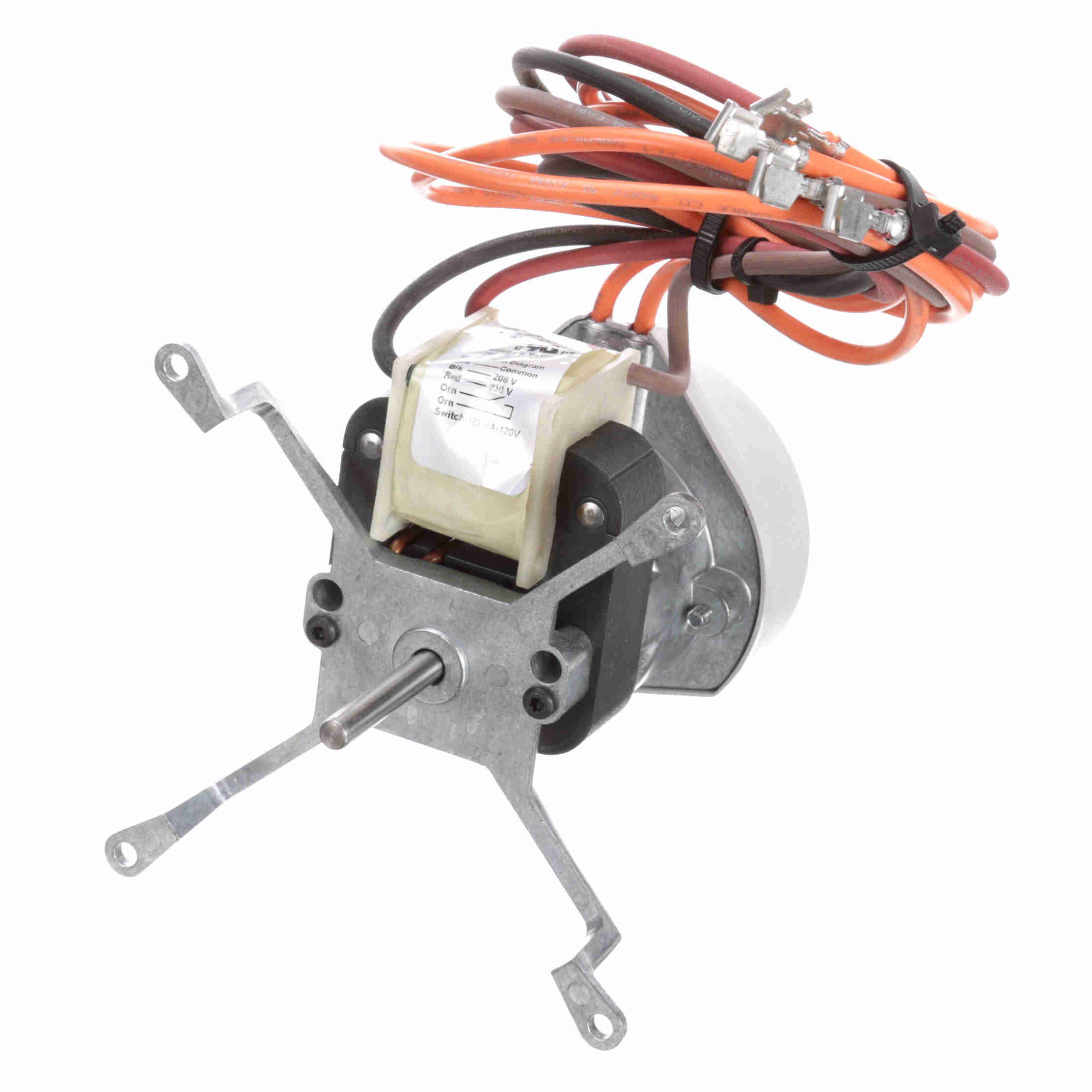

K628 Fasco 1/200HP C-Frame / Skeleton Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: K628

Selected accessories will also be added to cart
$127.97 / Each
Quantity:
Open Air Over, 208-230VAC Single Phase 60Hz, CW, Shaded Pole, Bracket Mount, 1/4" x 1.50" Shaft

Features

Features
  • OEM Direct Replacement Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected, One-Shot Fuse
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/4" Diameter Shaft
  • 30"/28" Leads with Flag Terminal
  • Flex Mount

General Specifications

General Specifications
Model : Catalog No : K628
Part Description : 71581033.C-FRAME..1/200 HP.1 SPD. Category : C-Frame / Skeleton
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/200 HP Output KW : 0.01 kW
Frequency : 60 Hz Voltage : 208/230 V
Current : .25 A Speed : 3000 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : C-FRAME Enclosure : Open
Overload Protector : Impedence Ambient Temperature : 40 °C
UL : Recognized CSA : N
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 2 Rotation : Clockwise
Mounting : Bracket Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Round Overall Length : 5.46 in
Shaft Diameter : 0.250 in Shaft Extension : 1.50 in
UPC : 818508021713 Weight : 3.00 LB

Speed & Load Characteristics
