/C-Frame/K610 Fasco 1/60HP C-Frame /Skeleton Electric Motor, 3000RPM
Click Image to Expand

Product ID: K610

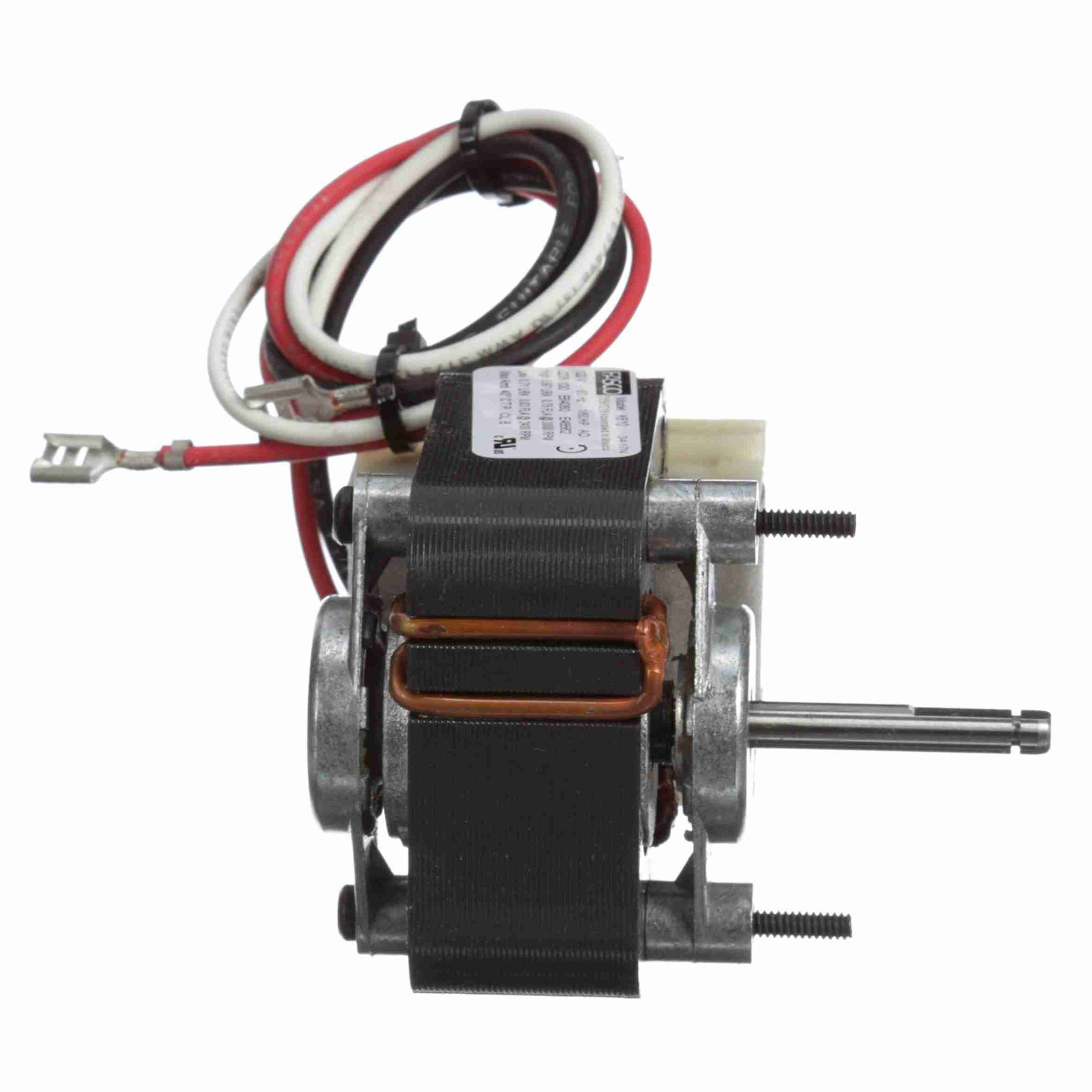

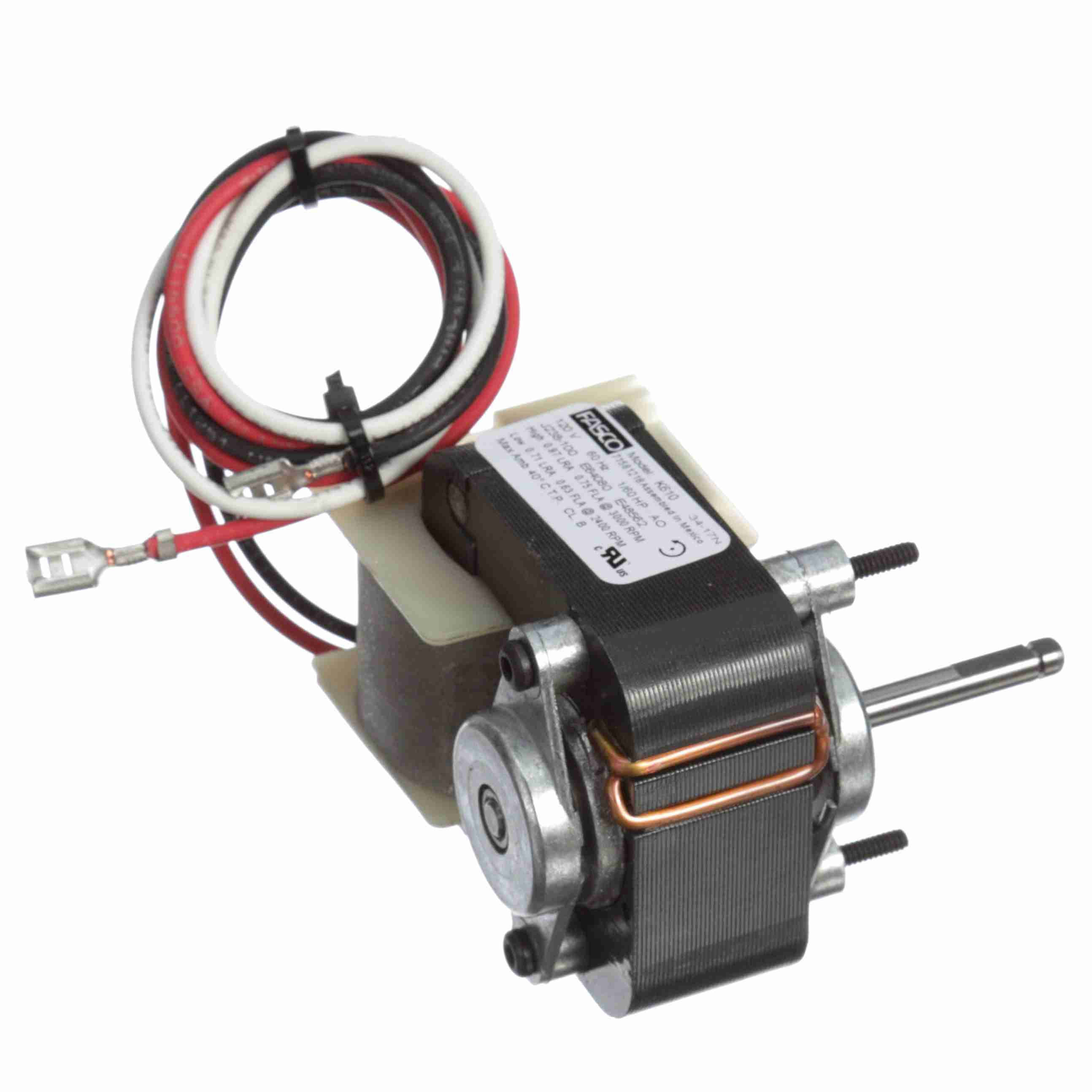

K610 Fasco 1/60HP C-Frame /Skeleton Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: K610

Selected accessories will also be added to cart
$51.97 / Each
Quantity:
Open Air Over, 120VAC Single Phase 60Hz, CCW, Shaded Pole, Extended Studs, 0.218" x 1.33" Shaft

Features

Features
  • OEM Direct Replacement Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected, One-Shot Fuse
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • .2178" Diameter Shaft with Flat
  • (1) 16"/14" Lead with .5" Strip, (1) 18"/16" Lead with Spade Terminal, (1) 20"/18" Lead with Spade Teminal
  • Extended Studs Shaft End

General Specifications

General Specifications
Model : Catalog No : K610
Part Description : 71581218.C-FRAME..1/60 HP.2 SPD.. Category : C-Frame / Skeleton
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/60 HP Output KW : 0.01 kW
Frequency : 60 Hz Voltage : 120 V
Current : 0.75-0.63 A Speed : 3000 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : C-FRAME Enclosure : Open
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : N
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 2 Rotation : Counterclockwise
Mounting : Extended Studs Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Flat & Groove Overall Length : 3.34 in
Shaft Diameter : 0.218 in Shaft Extension : 1.33 in
UPC : 818508021676 Weight : 2.00 LB

Speed & Load Characteristics
