/Products/Electric Motors/Single Phase/Century/Farm Duty/K311M2 Century 7.5HP Farm Duty Electric Motor, 1745RPM
Click Image to Expand

Product ID: K311M2

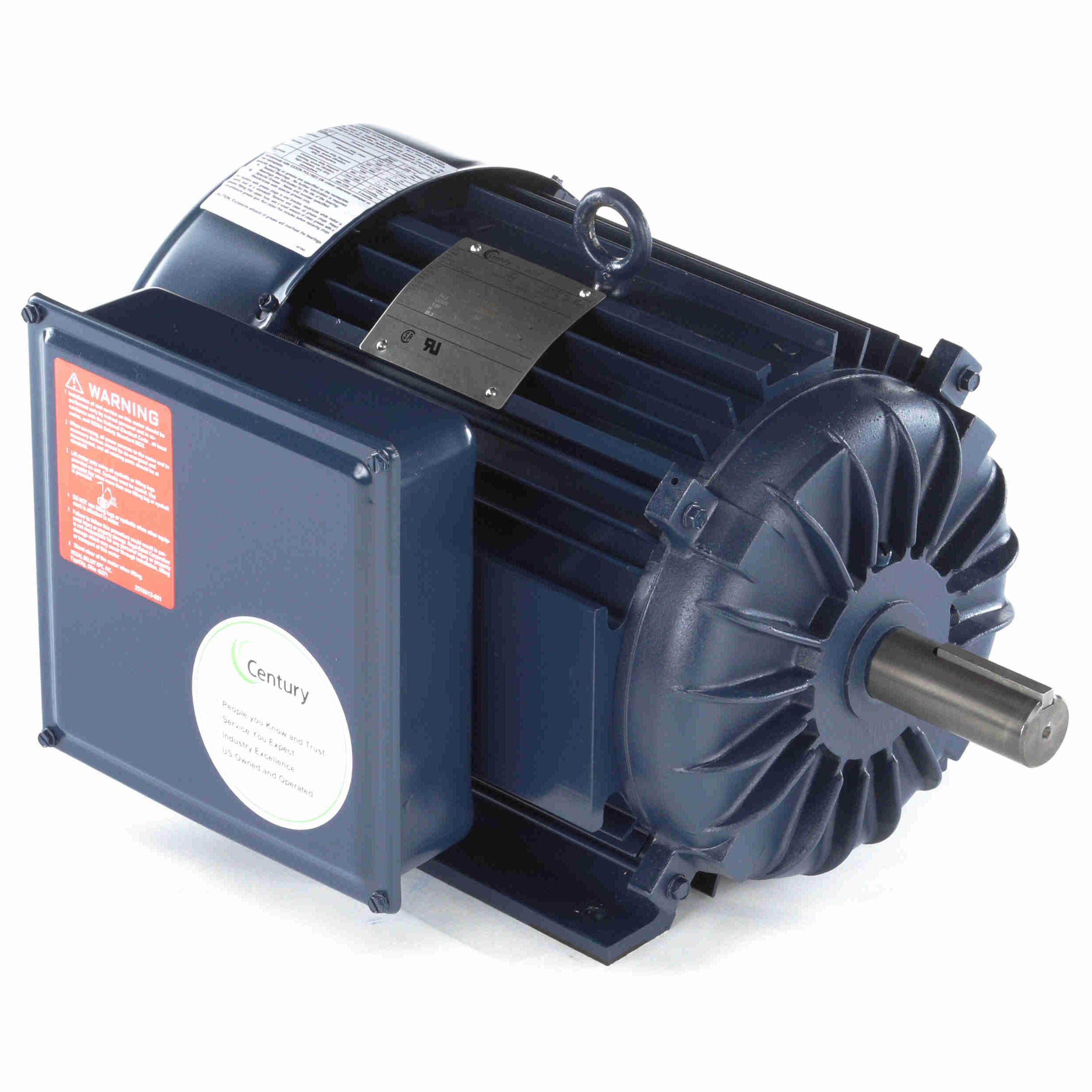

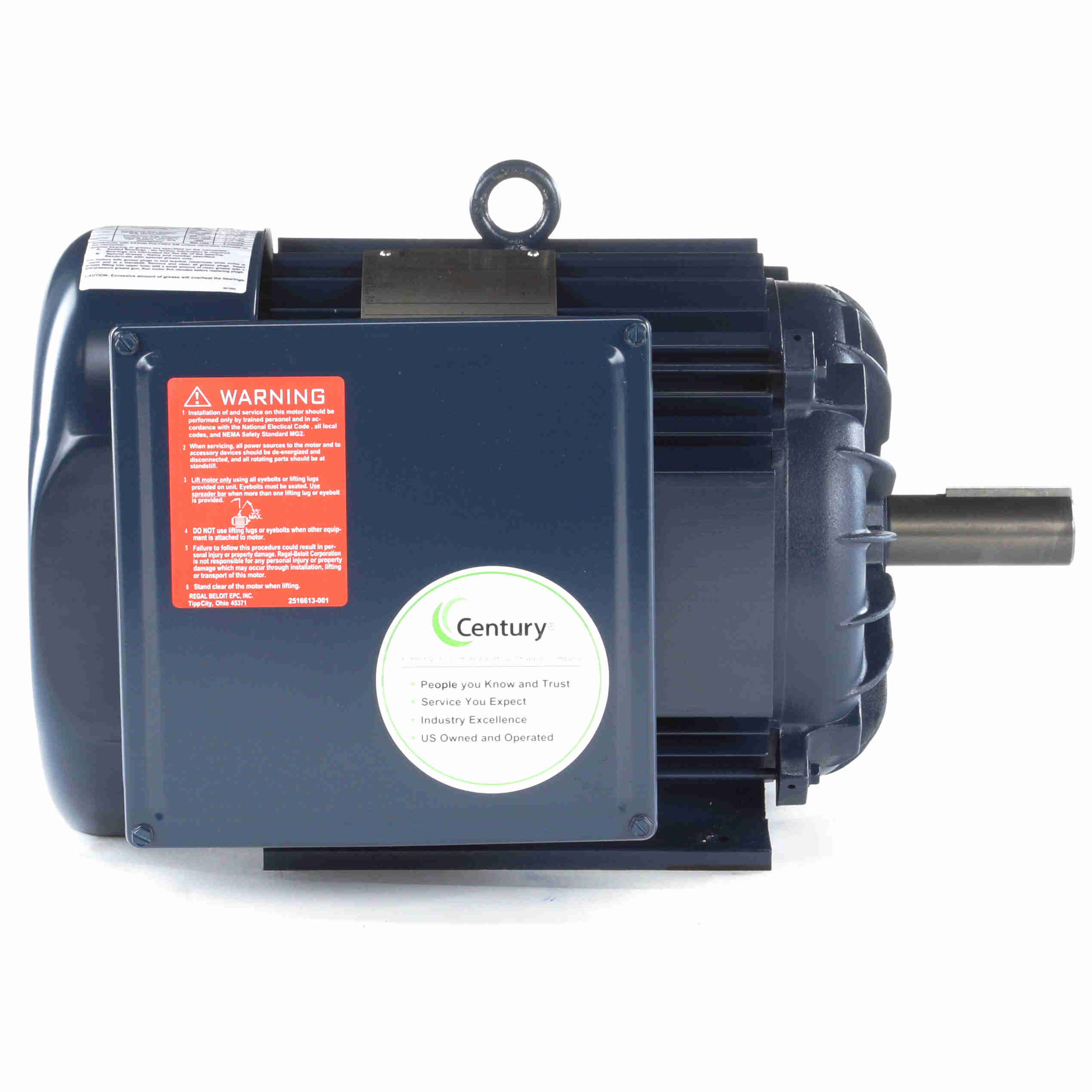

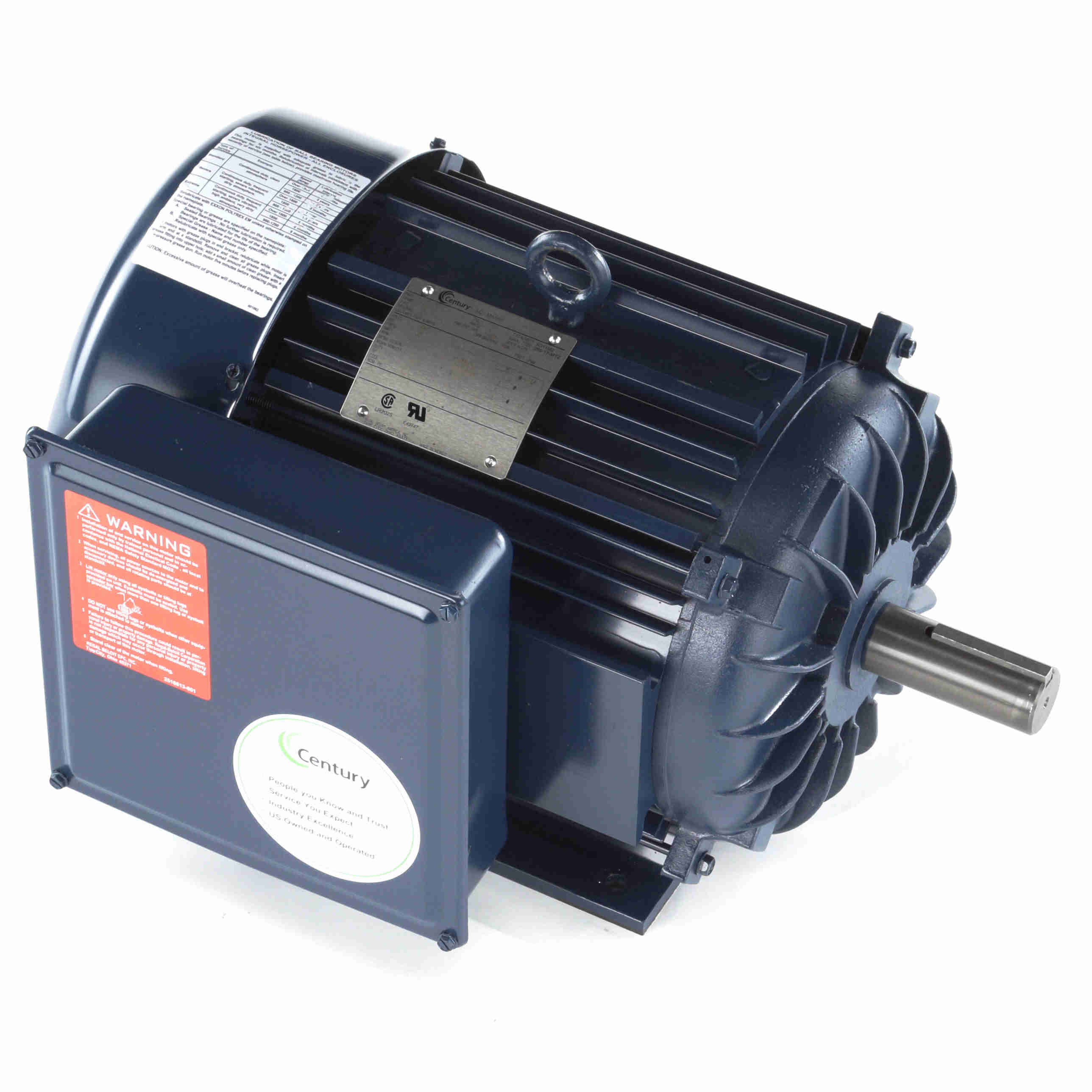

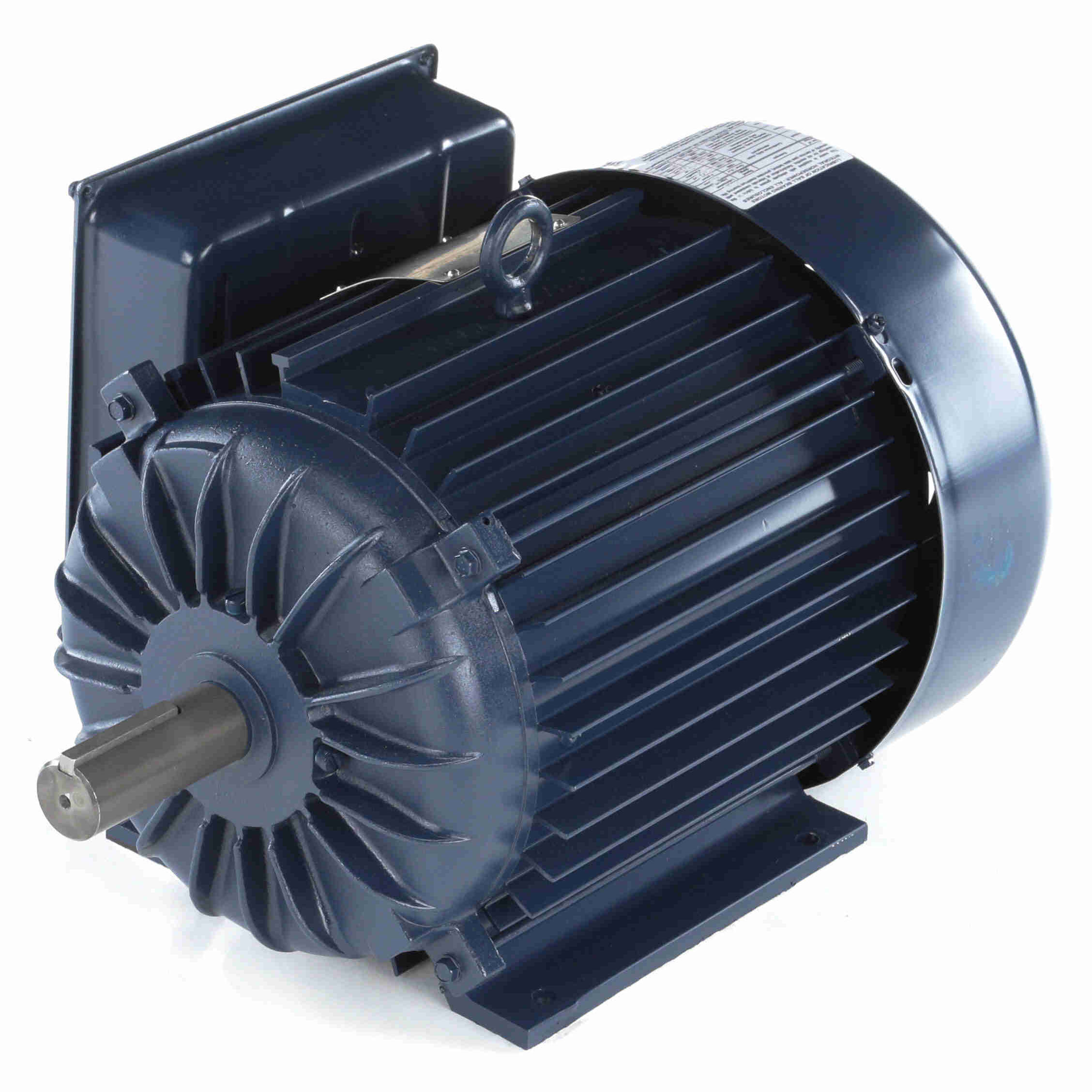

K311M2 Century 7.5HP Farm Duty Electric Motor, 1745RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K311M2

Selected accessories will also be added to cart
$1,897.97 / Each
Quantity:
TEFC, 215T Frame, 230V Single Phase 60Hz, Rigid Base

Features

Features
  • Shaft end mechanically locked on C-face models
  • Shaft slinger
  • Low temperature manual reset thermal protector
  • Condensate drains

General Specifications

General Specifications
Model : Catalog No :K311M2
Part Description :7.5,1745,TEFC,215T,1/60/230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :7.5 HP Output KW :5.6 kW
Frequency :60 Hz Voltage :230 V
Current :34.0 A Speed :1745 RPM
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :F215T Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :19.12 in
Frame Length :9.00 in Shaft Diameter :1.375 in
Shaft Extension :3.50 in UPC :786674069504
Weight :150.00 LB

Speed & Load Characteristics
