K310M2 Century 5HP Farm Duty Electric Motor, 1750RPM
Click Image to Expand
Previous
Next
Product ID: K310M2

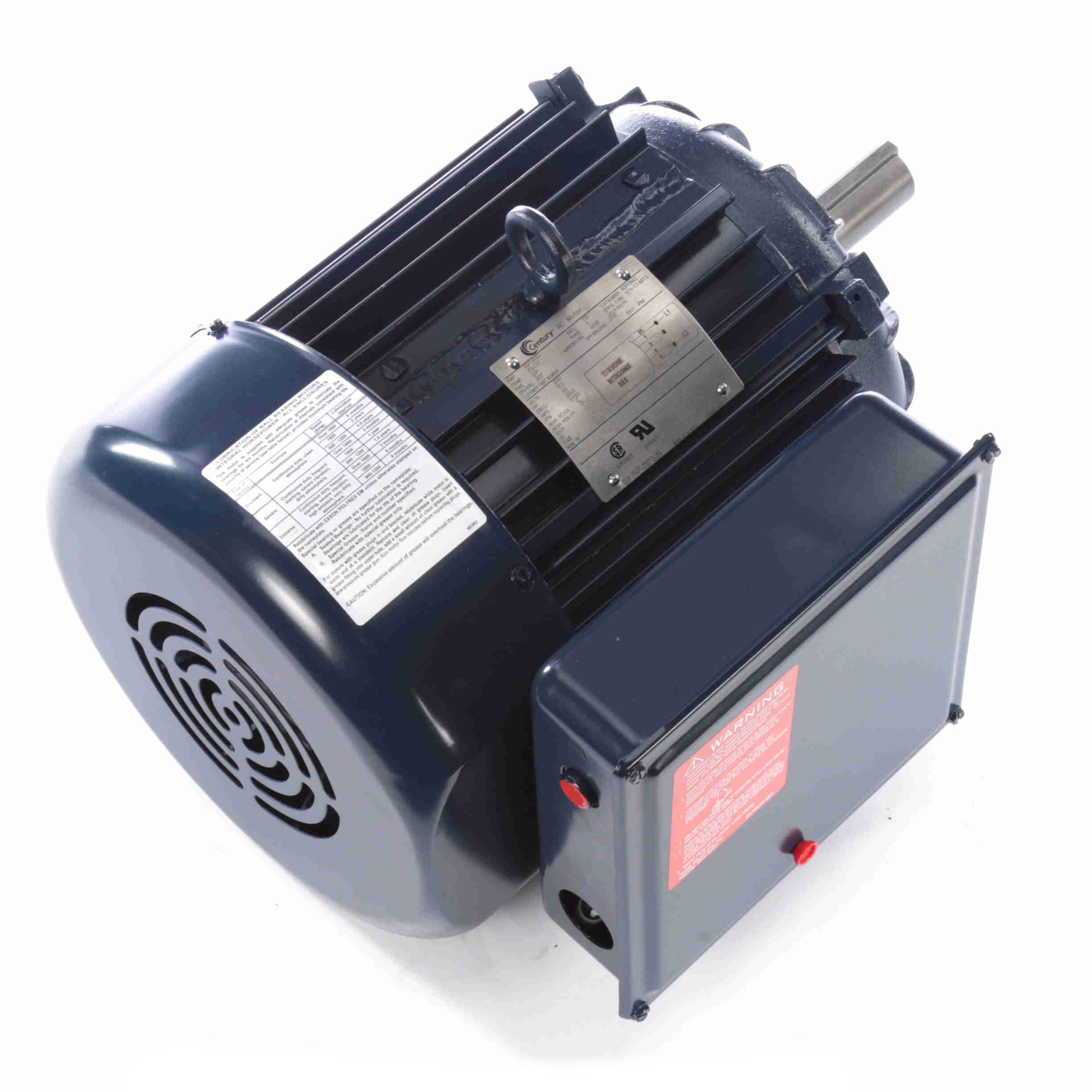

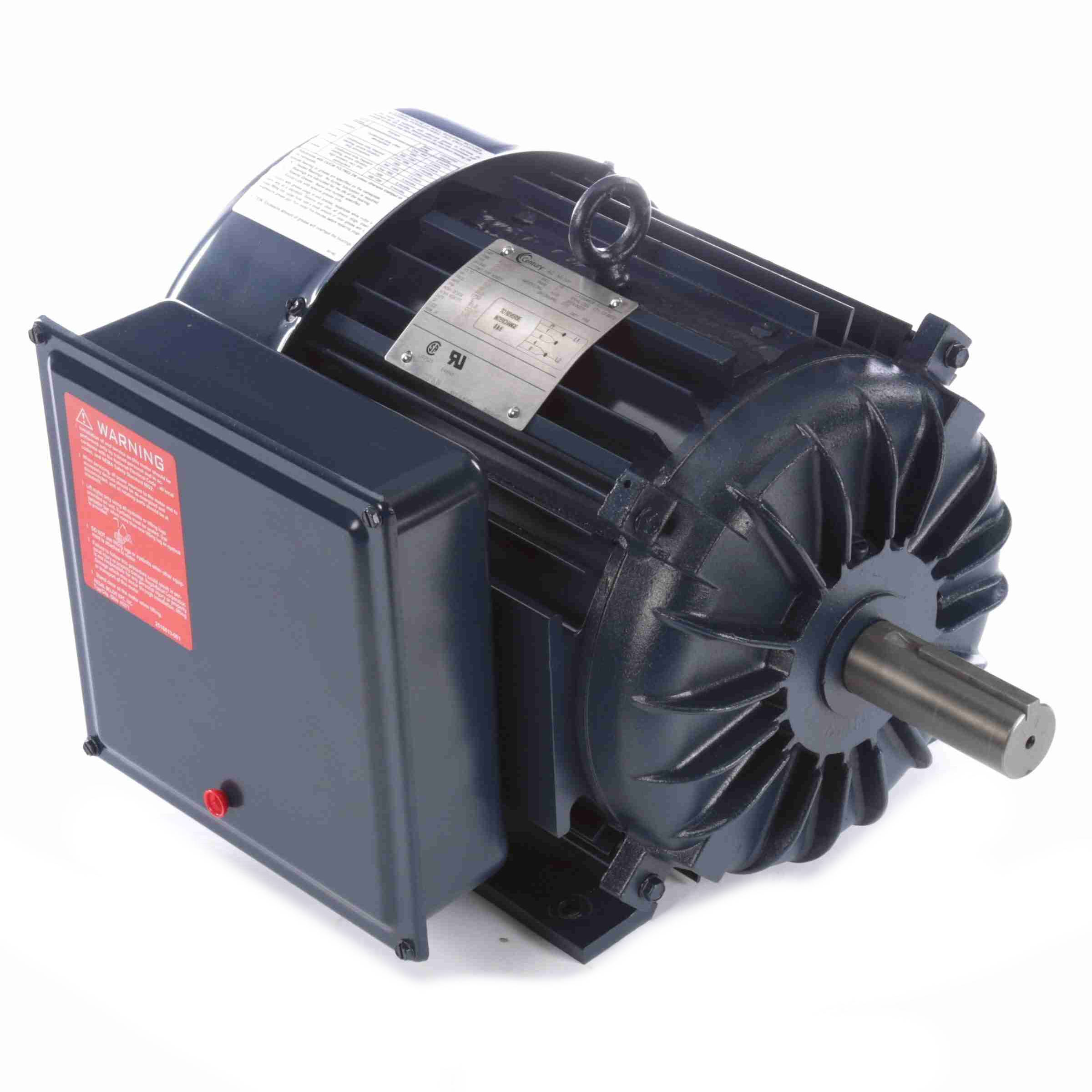

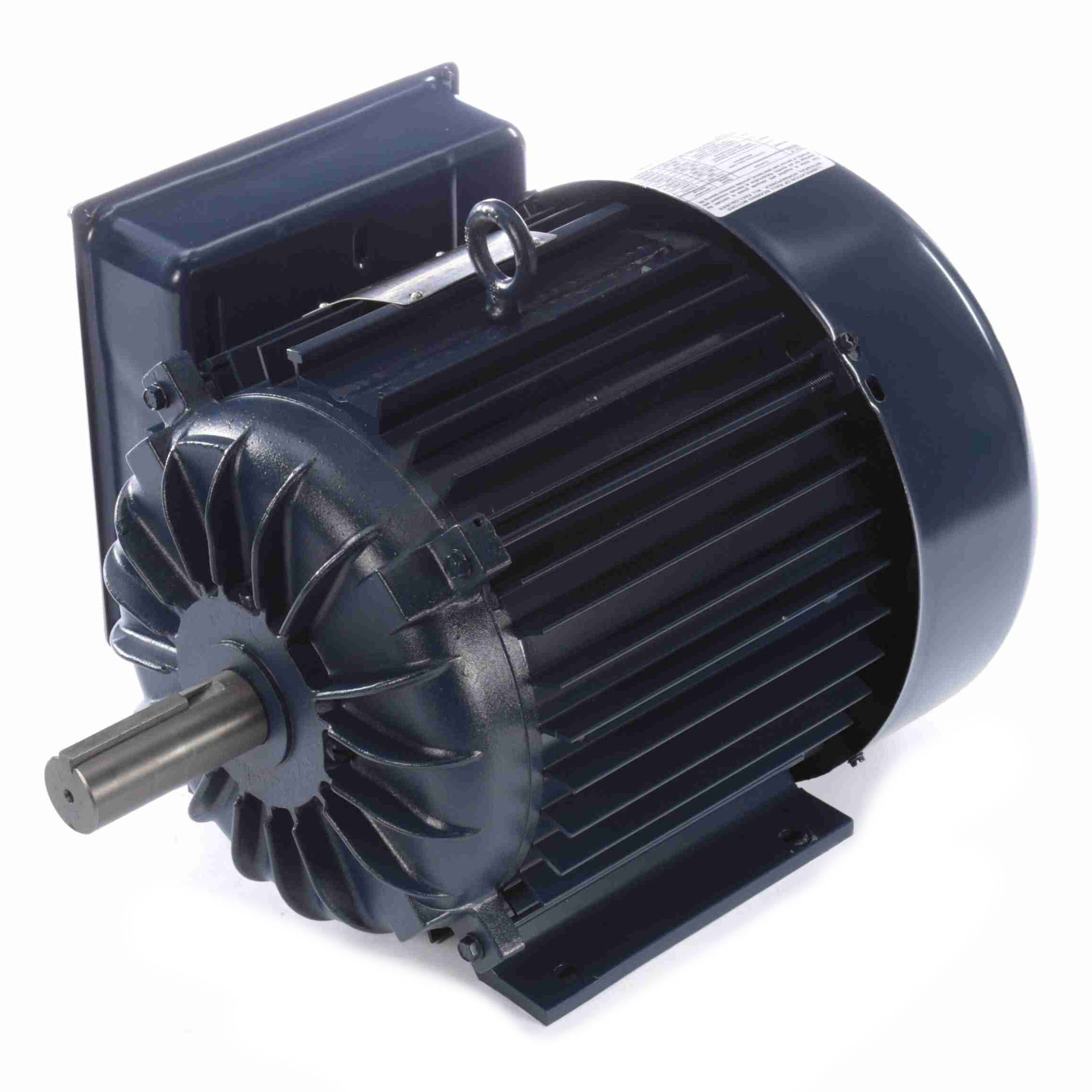

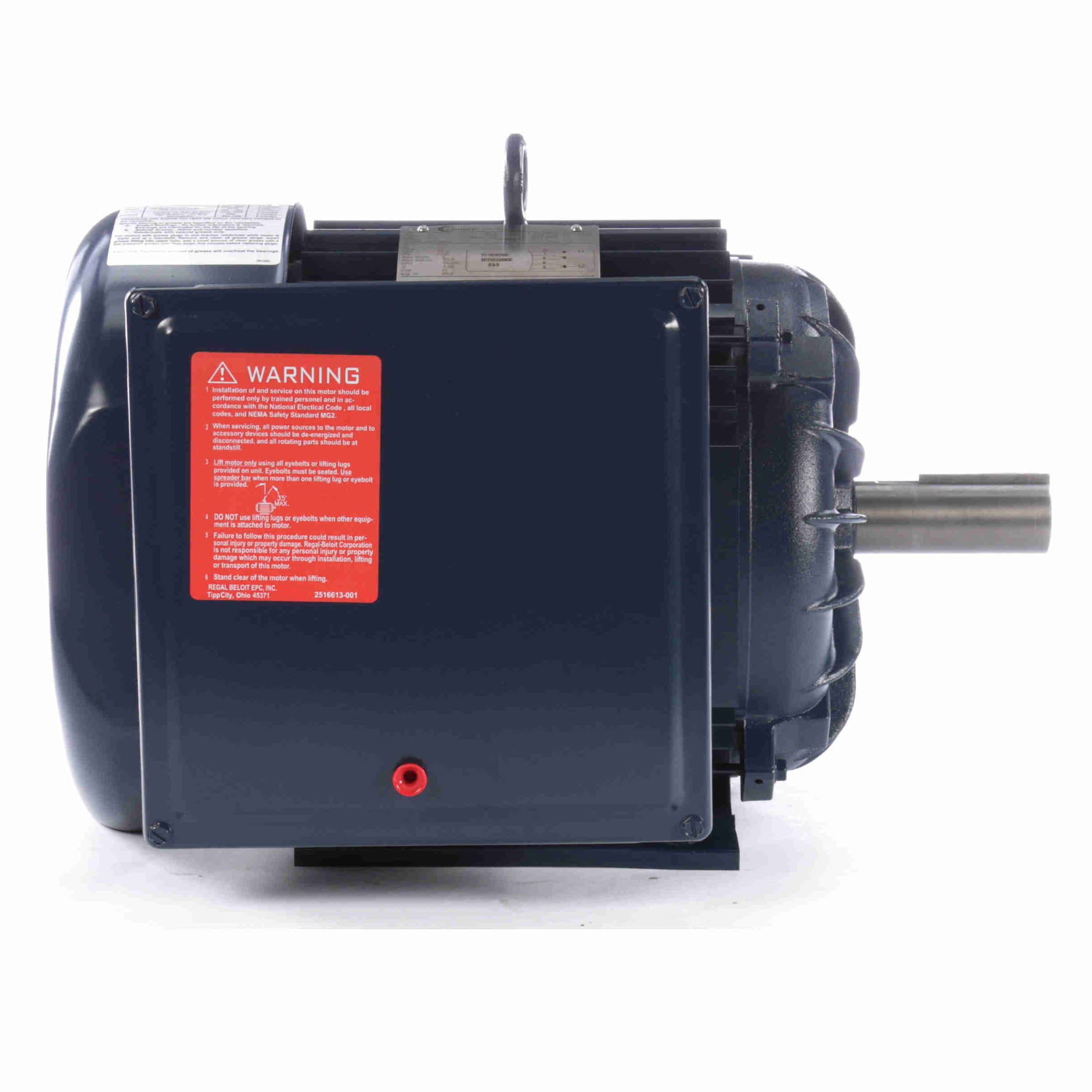

K310M2 Century 5HP Farm Duty Electric Motor, 1750RPM
MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K310M2
Selected accessories will also be added to cart
$1,426.97 / Each
Quantity:
TEFC, 213T Frame, 230V Single Phase 60Hz
Details
Features
Features
Shaft end mechanically locked on C-face models
Shaft slinger
Low temperature manual reset thermal protector
Condensate drains
General Specifications
General Specifications
Model :
Catalog No :
K310M2
Part Description :
5,1750,TEFC,213T,1/60/230
Category :
Single Phase
Stock :
Yes
Nameplate Specifications
Nameplate Specifications
Output HP :
5.0 Hp
Output KW :
3.7 kW
Frequency :
60 Hz
Voltage :
230 V
Current :
23.0 A
Speed :
1750 rpm
Service Factor :
1
Phase :
1
Duty :
Continuous
Insulation Class :
B
Frame :
F213T
Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
None
Ambient Temperature :
40 °C
UL :
Recognized
CSA :
Y
CE :
N
Technical Specifications
Technical Specifications
Electrical Type :
Capacitor Start, Capacitor Run, Single Or Dual Voltage
Starting Method :
Across The Line
Poles :
4
Rotation :
Reversible
Mounting :
Rigid Base
Drive End Bearing :
Ball
Opp Drive End Bearing :
Ball
Frame Material :
Rolled Steel
Shaft Type :
Keyed
Overall Length :
17.62 in
Frame Length :
7.50 in
Shaft Diameter :
1.375 in
Shaft Extension :
3.50 in
UPC :
786674069498
Weight :
125.00 LB
Speed & Load Characteristics
