/C-Frame/K130 Fasco 1/150HP C-Frame/Skeleton Electric Motor, 3000RPM
Click Image to Expand

Product ID: K130

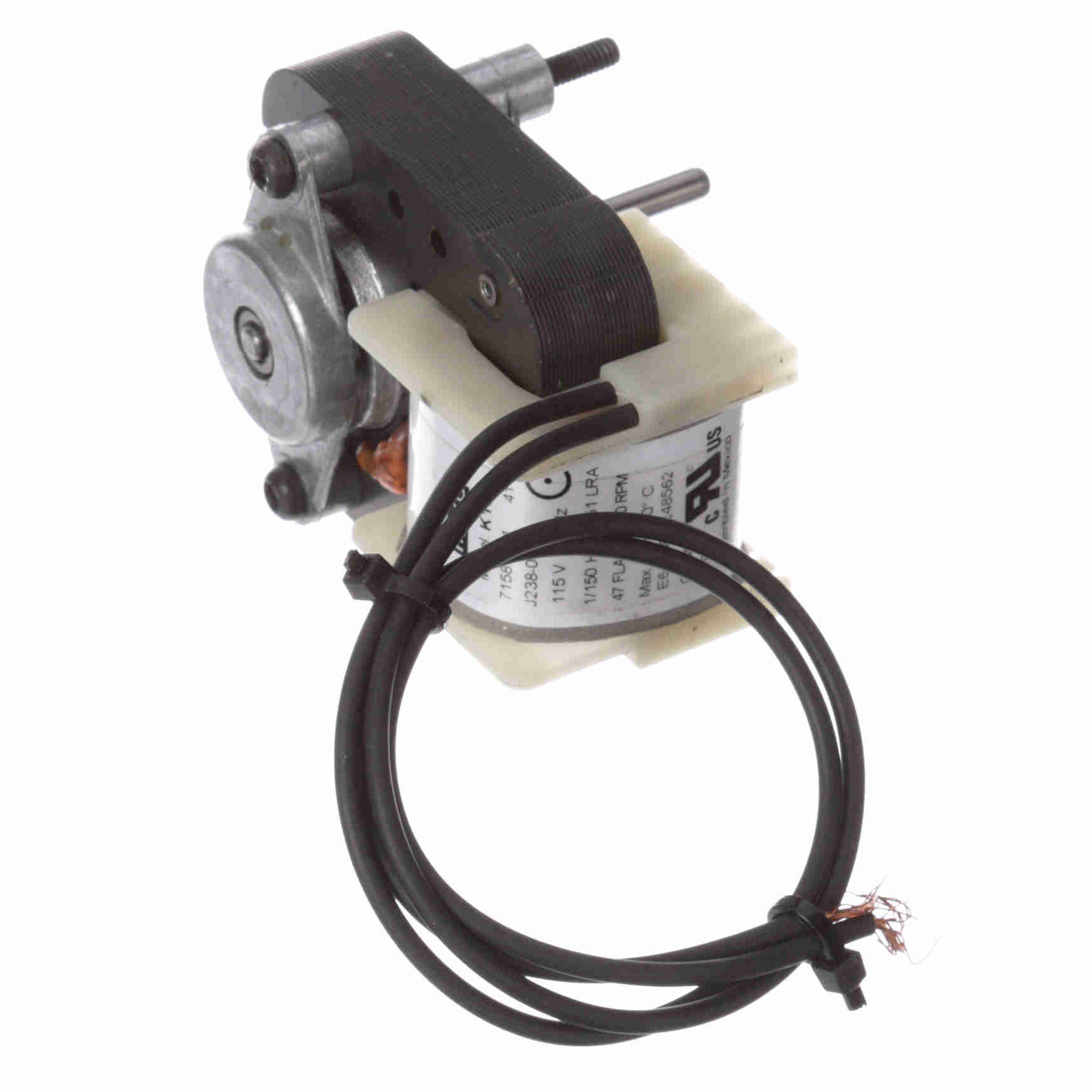

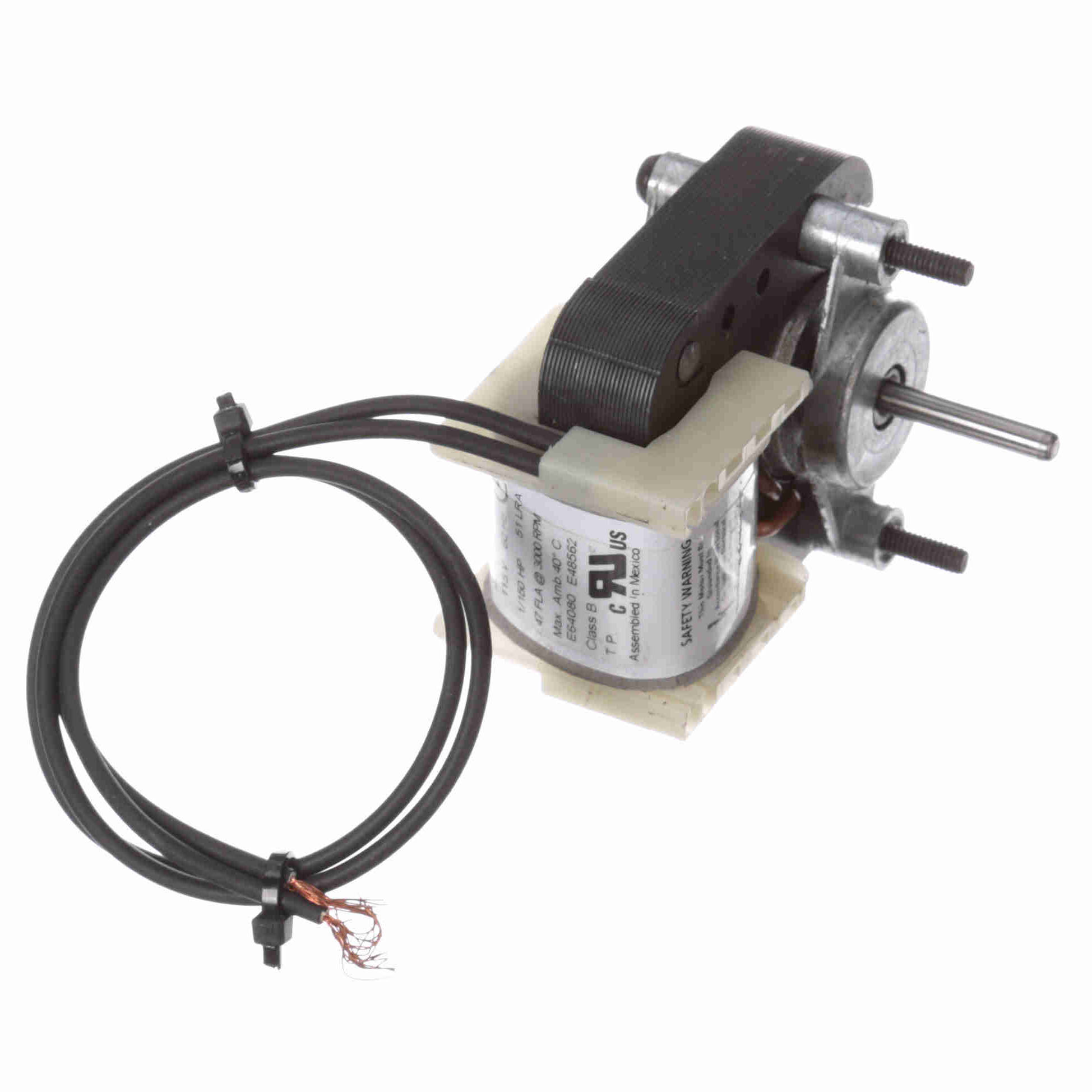

K130 Fasco 1/150HP C-Frame/Skeleton Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: K130

Selected accessories will also be added to cart
$37.97 / Each
Quantity:
Open Air Over, 115VAC Single Phase 60Hz, CW, Shaded Pole, Extended Studs, Sleeve Bearings, 0.181" x 1.00" Shaft

Features

Features
  • Heating - Refrigeration - Ventilating Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected, One-Shot Fuse
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • .1811" Diameter Shaft
  • 14"/12" Leads with .5" Strip
  • Extended Studs Opposite Shaft End

General Specifications

General Specifications

Model : Catalog No : K130
Part Description : 71581194.C-FRAME..1/150 HP.1 SPD. Category : C-Frame / Skeleton
Stock : No

Nameplate Specifications

Nameplate Specifications

Output HP : 1/150 HP Output KW : 0.01 kW
Frequency : 60 Hz Voltage : 115 V
Current : .47 A Speed : 3000 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : C-FRAME Enclosure : Open
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : N
CE : N

Technical Specifications

Technical Specifications

Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 2 Rotation : Clockwise
Mounting : Extended Studs Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Flat Overall Length : 2.68 in
Shaft Diameter : 0.181 in Shaft Extension : 1.00 in
UPC : 818508021584 Weight : 1.00 LB
