/Products/Electric Motors/Single Phase/Century/Farm Duty/K119 Century 2HP Farm Duty Electric Motor, 1725RPM
Click Image to Expand

Product ID: K119

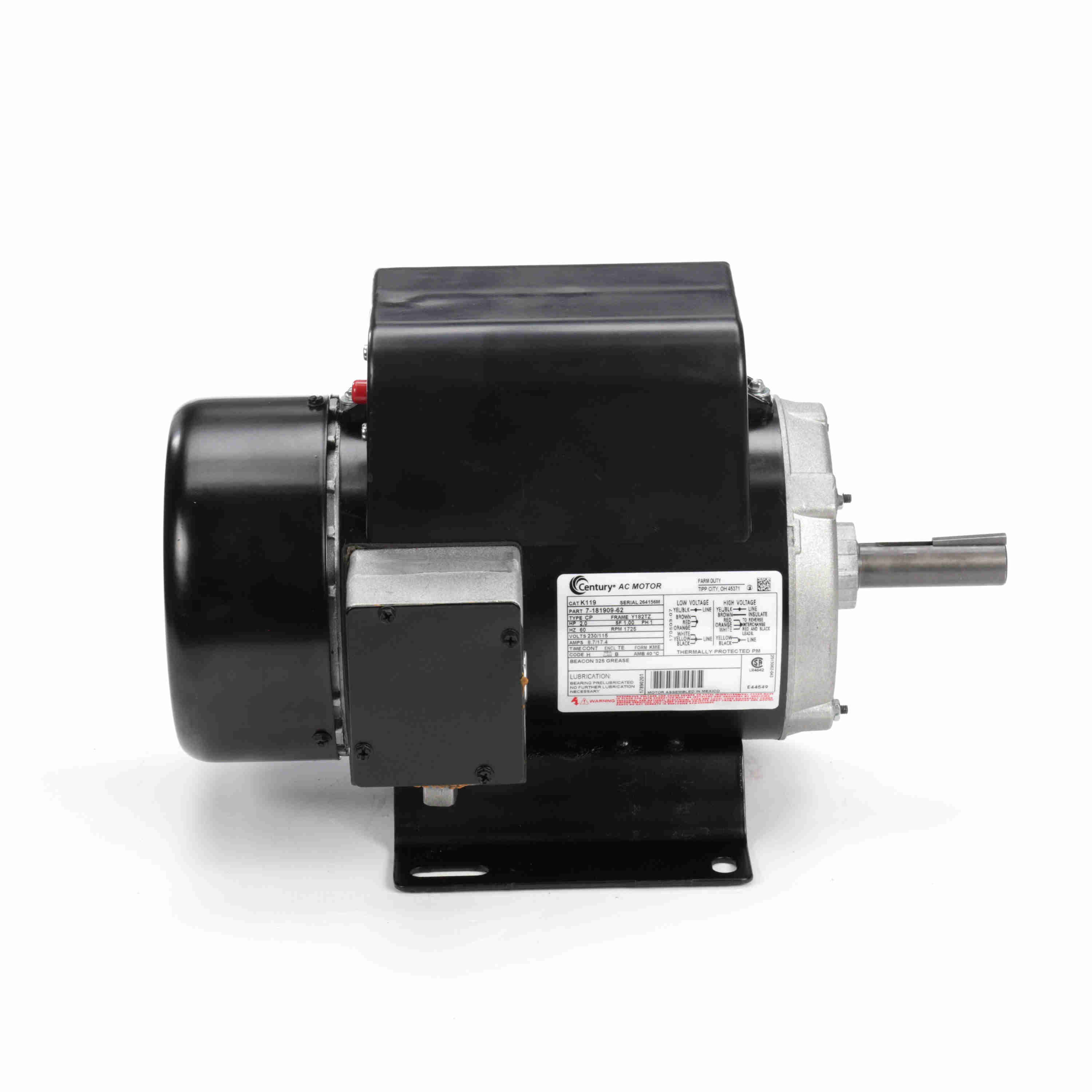

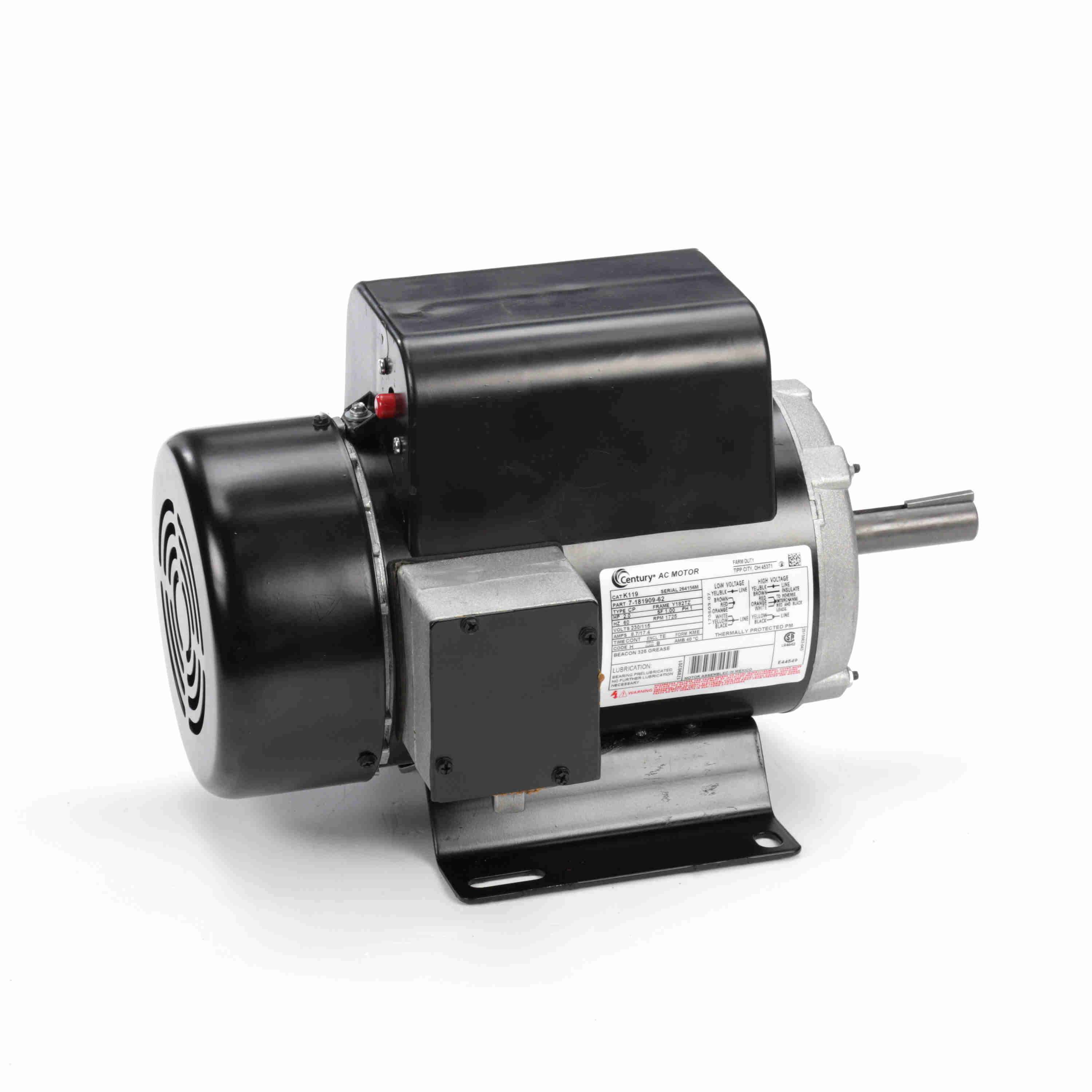

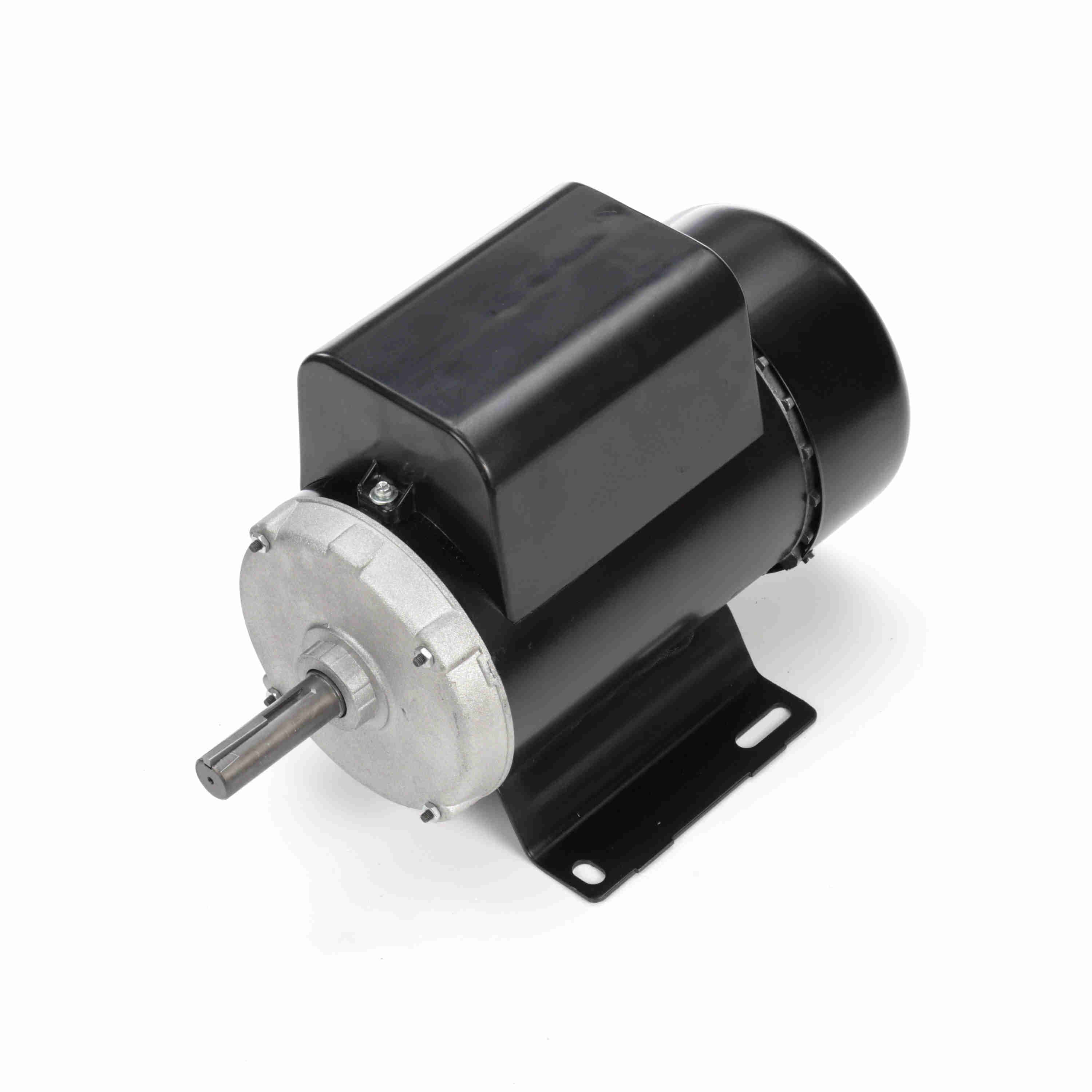

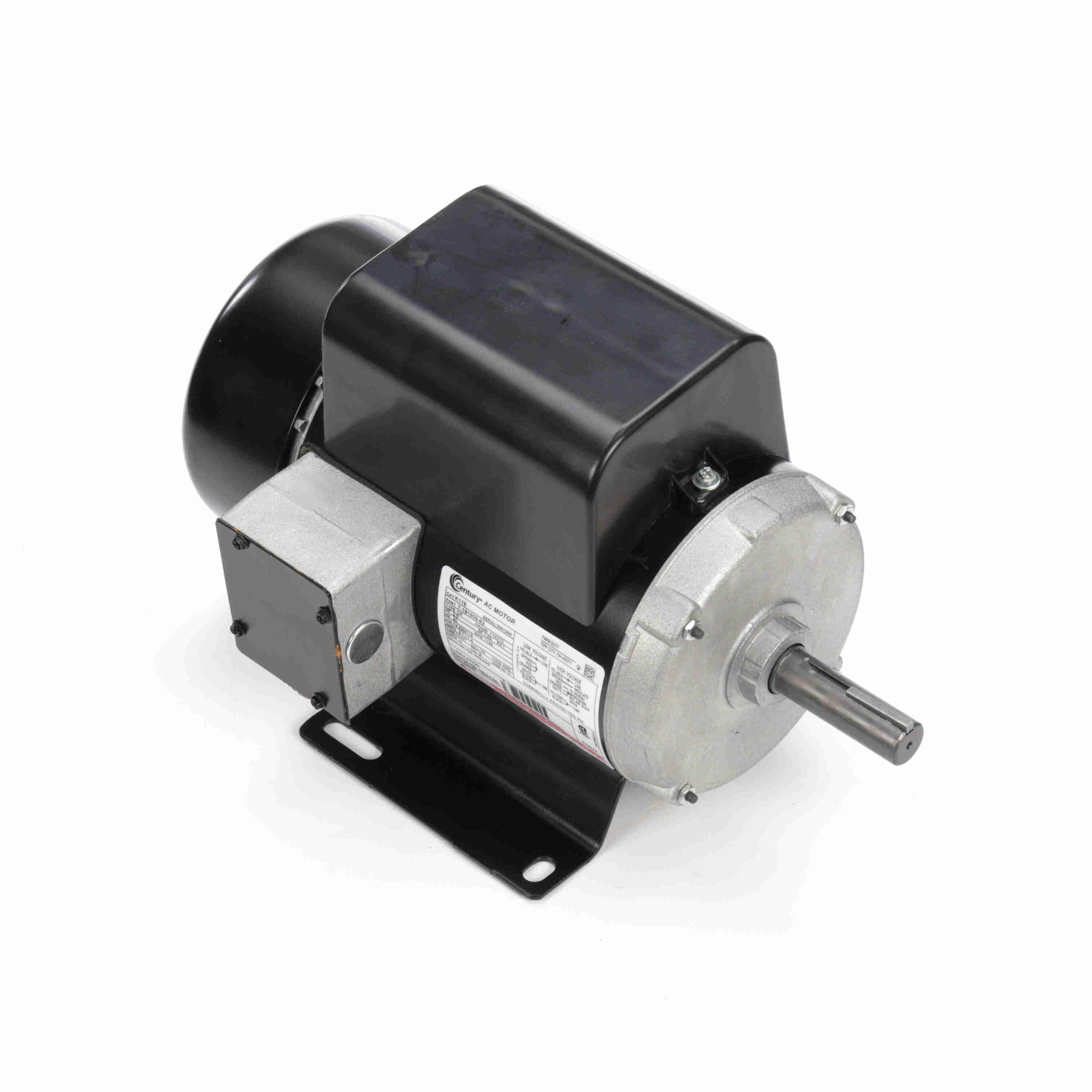

K119 Century 2HP Farm Duty Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K119

Selected accessories will also be added to cart
$1,128.97 / Each
Quantity:
TEFC, 182TZ Frame, 115/230V Single Phase 60Hz, Rigid Base

Features

Features
  • Shaft end mechanically locked on C-face models
  • Shaft slinger
  • Low temperature manual reset thermal protector
  • Condensate drains

General Specifications

General Specifications
Model : Catalog No :K119
Part Description :2,1725,TEFC,182TZ,1/60/230/115 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :2.0 Hp Output KW :1.5 kW
Frequency :60 Hz Voltage :230/115 V
Current :8.7/17.4 A Speed :1725 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :Y182TZ Enclosure :Totally Enclosed Fan Cooled
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method :Across The Line
Poles :4 Rotation :Reversible Counterclockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :15.11 in
Frame Length :8.00 in Shaft Diameter :0.625 in
Shaft Extension :2.07 in UPC :786674025715
Weight :50.00 LB

Speed & Load Characteristics
