/C-Frame/K113 Fasco 1/70HP C-Frame Electric Motor, 3000RPM
Click Image to Expand

Product ID: K113

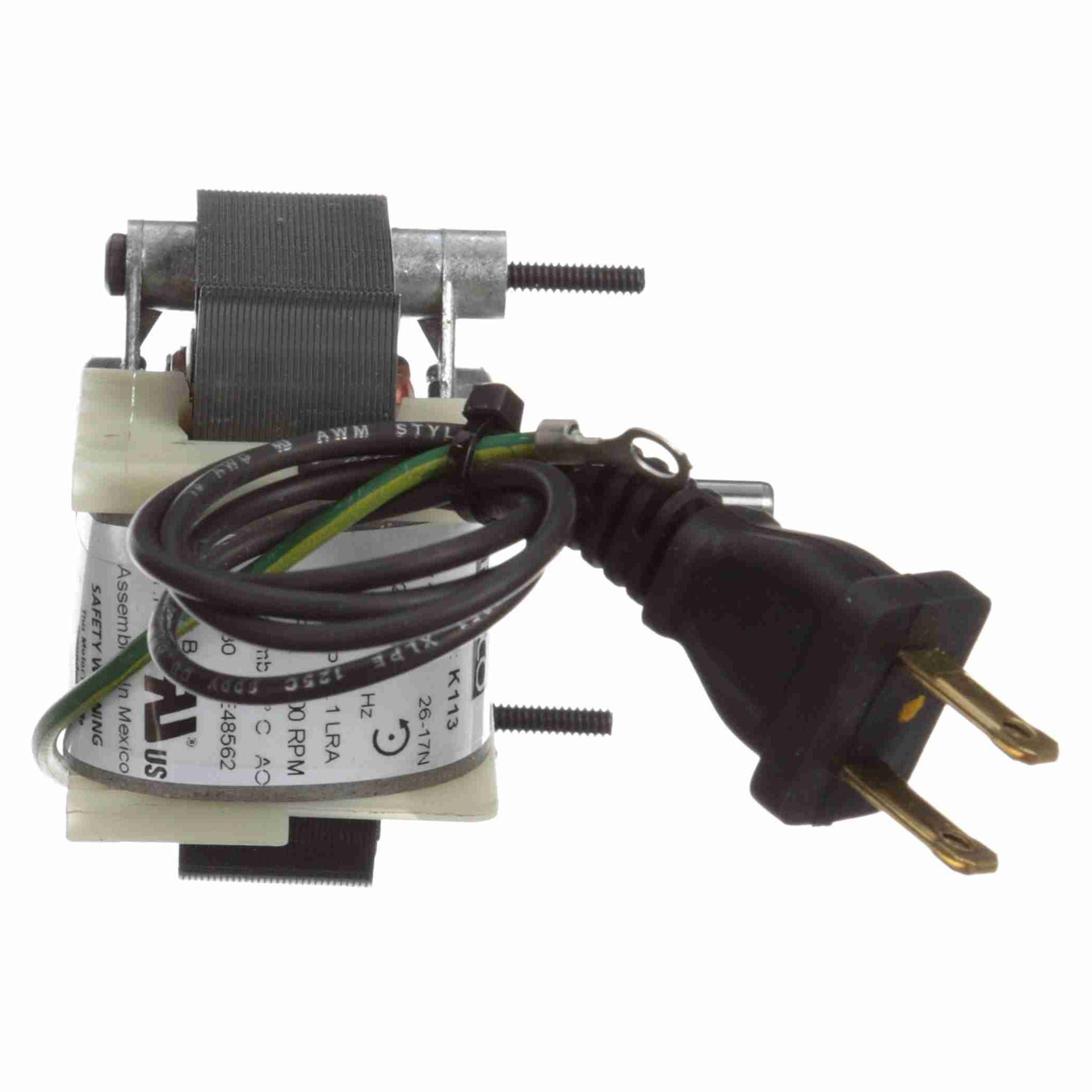

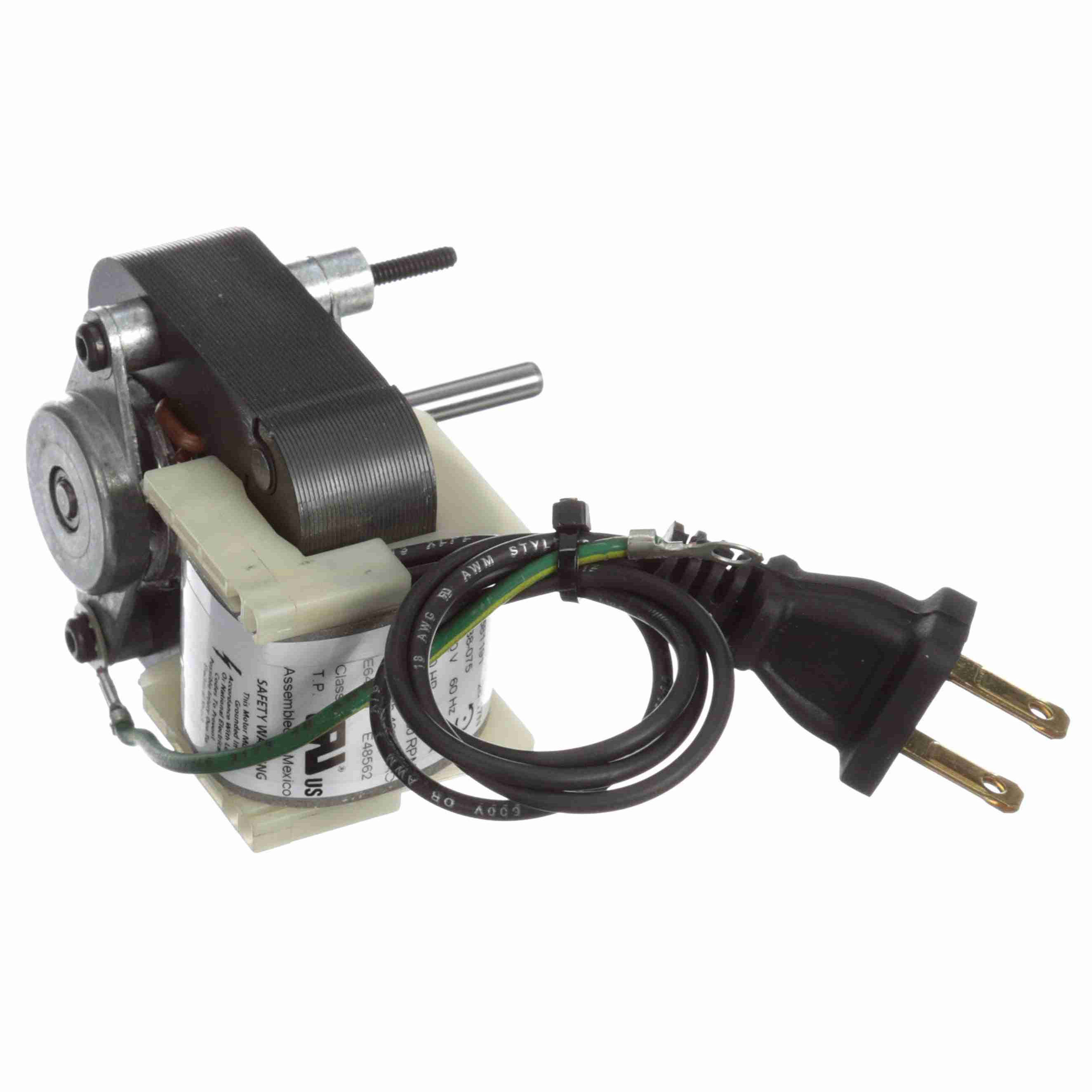

K113 Fasco 1/70HP C-Frame Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: K113

Selected accessories will also be added to cart
$48.97 / Each
Quantity:
120VAC Single Phase 60Hz, CWSE, Shaded Pole

Features

Features
  • Heating - Refrigeration - Ventilating Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected, One-Shot Fuse
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • .2178" Diameter Shaft with Flat
  • 13"/11" Leads with Molded Plug
  • Extended Studs Shaft End

General Specifications

General Specifications

Model : Catalog No : K113
Part Description : 71581191.C-FRAME..1/70 HP.1 SPD. Category : C-Frame / Skeleton
Stock : No

Nameplate Specifications

Nameplate Specifications

Output HP : 1/70 HP Output KW : 0.01 kW
Frequency : 60 Hz Voltage : 120 V
Current : .90 A Speed : 3000 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : C-FRAME Enclosure : Open
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : N
CE : N

Technical Specifications

Nameplate Specifications

Output HP : 1/70 HP Output KW : 0.01 kW
Frequency : 60 Hz Voltage : 120 V
Current : .90 A Speed : 3000 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : C-FRAME Enclosure : Open
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : N
CE : N

Speed & Load Characteristics
