/C-Frame/K112 Fasco 1/50HP C-Frame/Skeleton Electric Motor, 3000RPM
Click Image to Expand

Product ID: K112

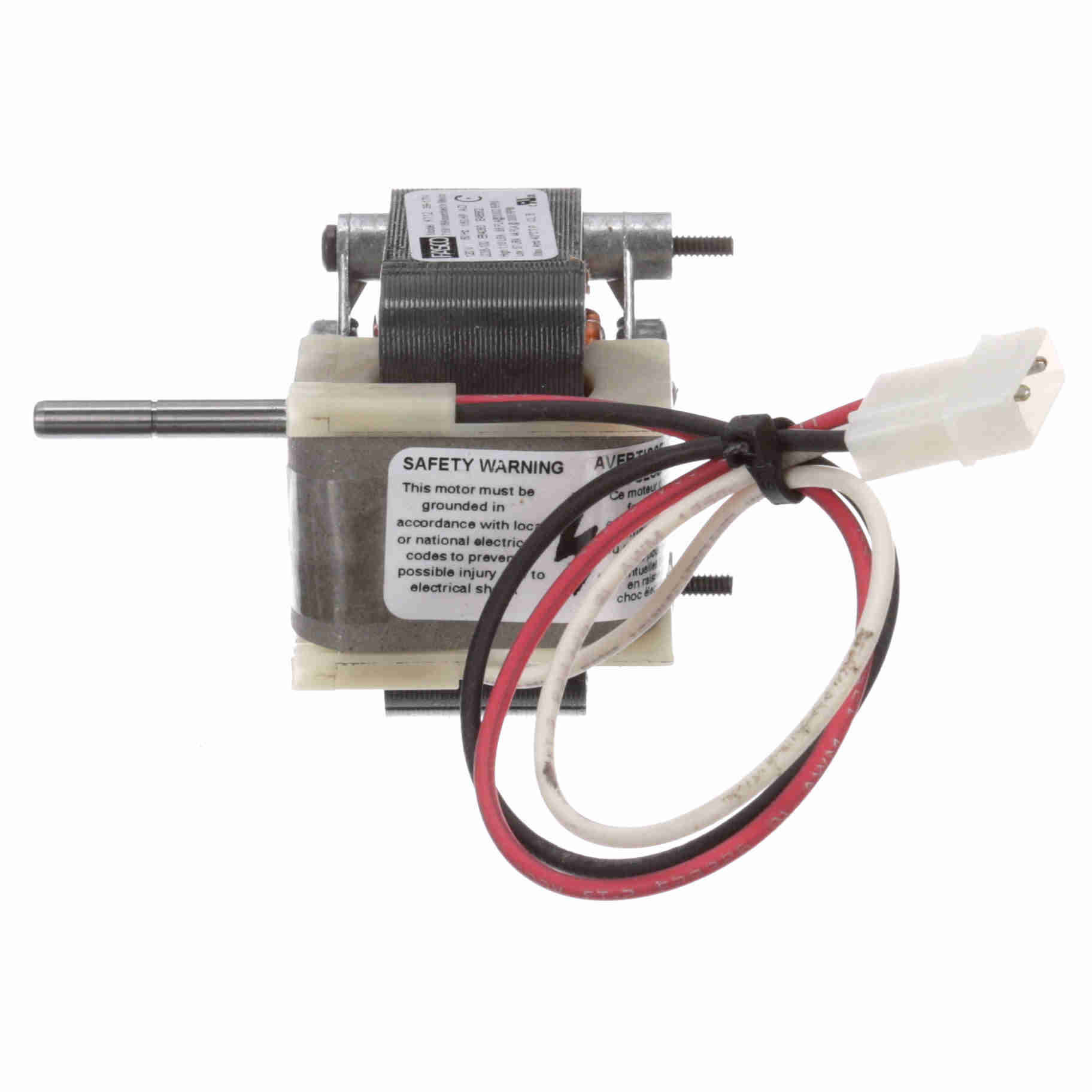

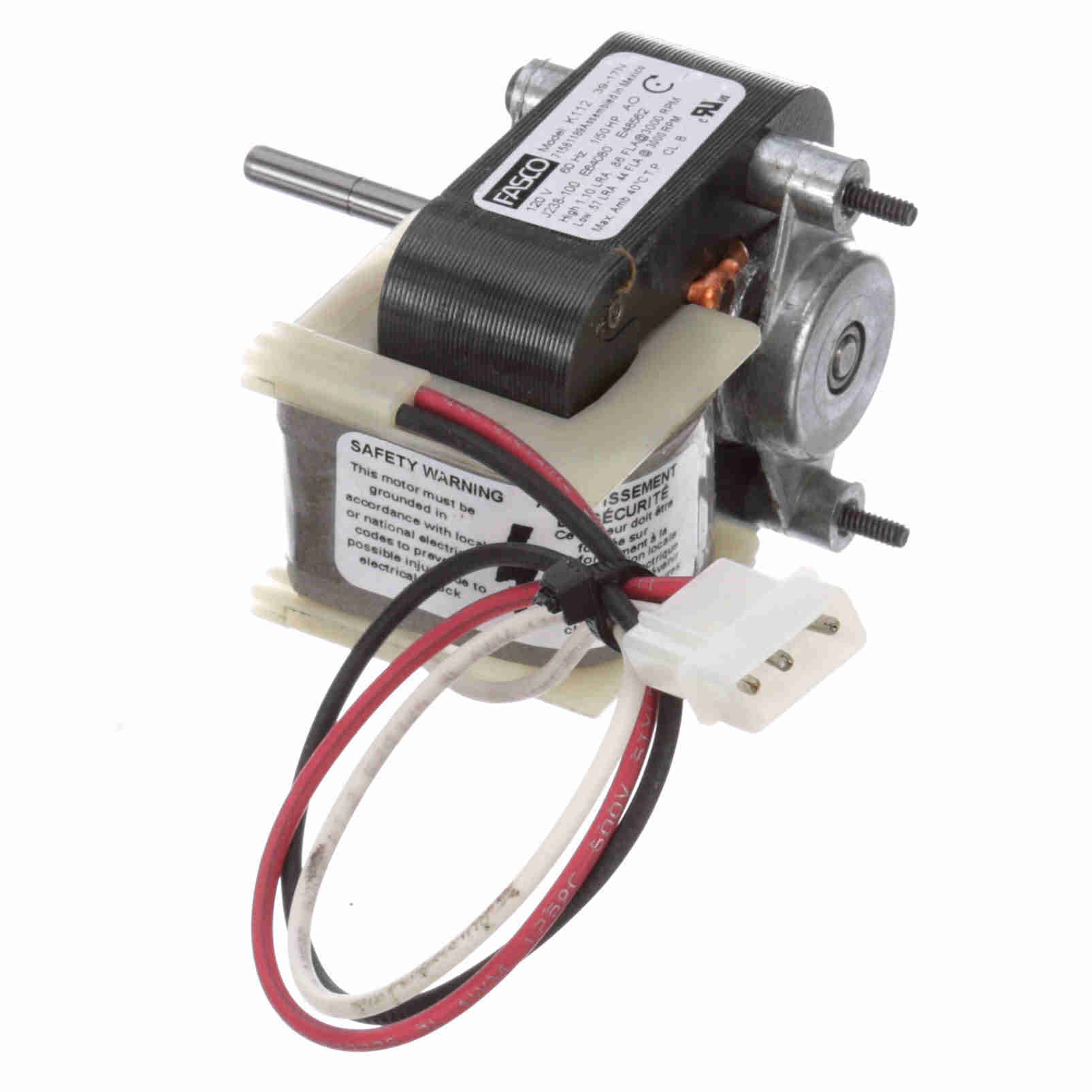

K112 Fasco 1/50HP C-Frame/Skeleton Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: K112

Selected accessories will also be added to cart
$54.97 / Each
Quantity:
Open Air Over, 120VAC Single Phase 60Hz, CWSE, Shaded Pole, Extended Studs, Sleeve Bearings, 0.218" x 1.44" Shaft

Features

Features
  • Heating - Refrigeration - Ventilating Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected, One-Shot Fuse
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • .1811" Diameter Shaft
  • 4.75"/3.75" Leads with Molded Plug
  • Extended Studs Opposite Shaft End

General Specifications

General Specifications

Model : Catalog No : K112
Part Description : 71581189.C-FRAME..1/50 HP.2 SPD. Category : C-Frame / Skeleton
Stock : No

Nameplate Specifications

Nameplate Specifications

Output HP : 1/50 HP Output KW : 0.01 kW
Frequency : 60 Hz Voltage : 120 V
Current : .86/.44 A Speed : 3000 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : C-FRAME Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : N
CE : N

Technical Specifications

Technical Specifications

Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 2 Rotation : Clockwise Shaft End
Mounting : Extended Studs Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Flat & Groove Overall Length : 3.80 in
Shaft Diameter : 0.218 in Shaft Extension : 1.44 in
UPC : 818508021546 Weight : 2.10 LB

Speed & Load Characteristics
