/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/K1072 Century 3/4HP Pool / Spa Jet Pump Electric Motor, 3450 RPM
Click Image to Expand

Product ID: K1072

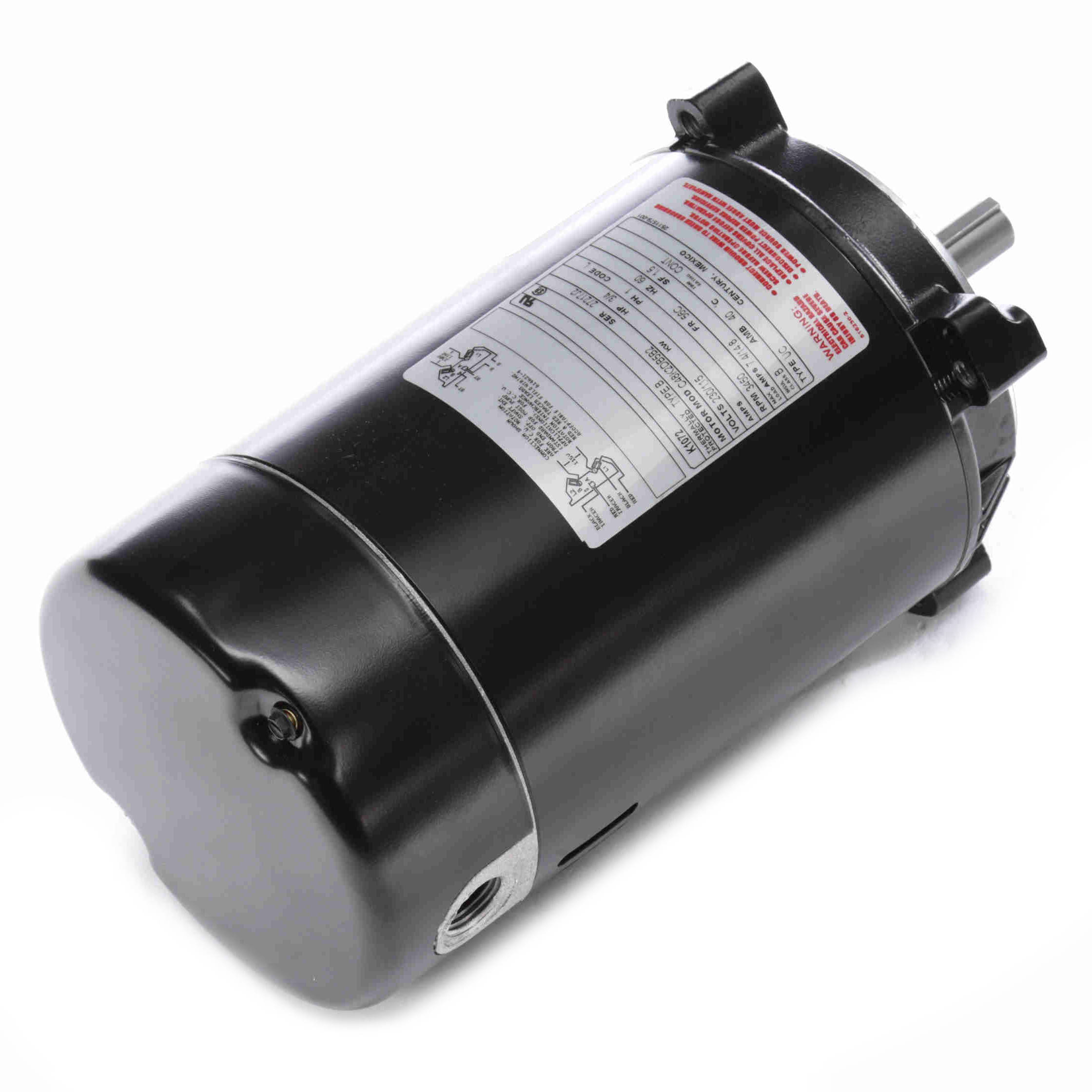

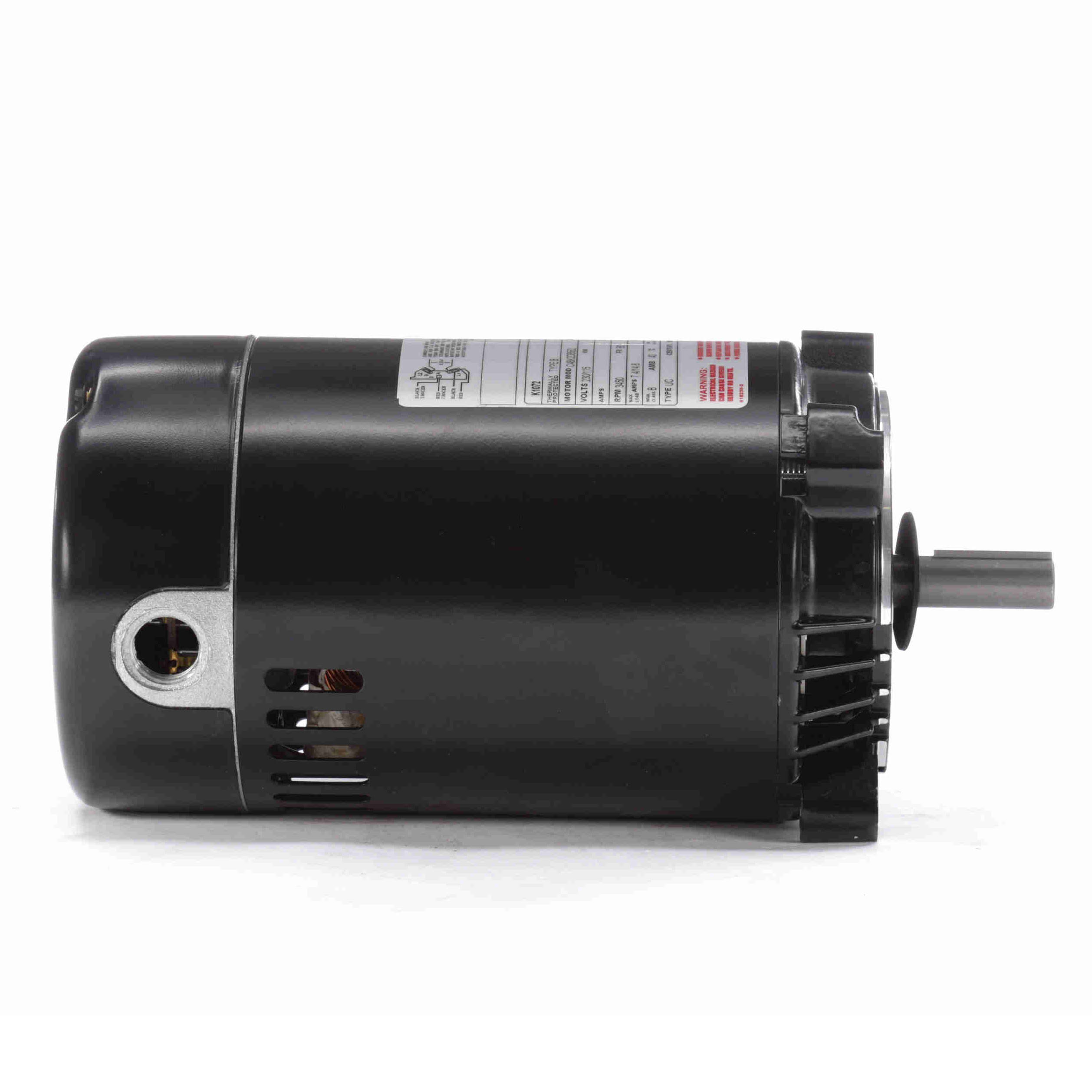

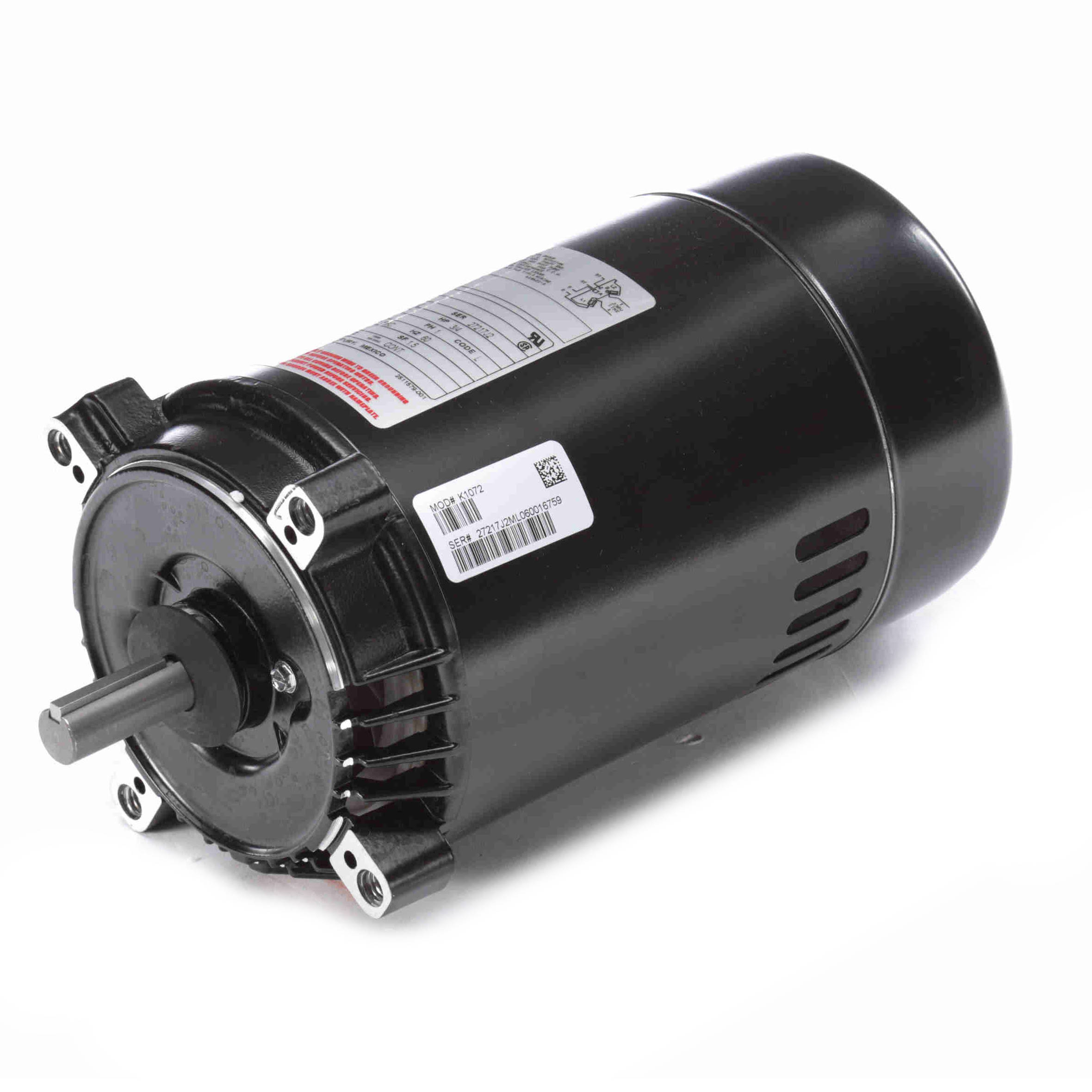

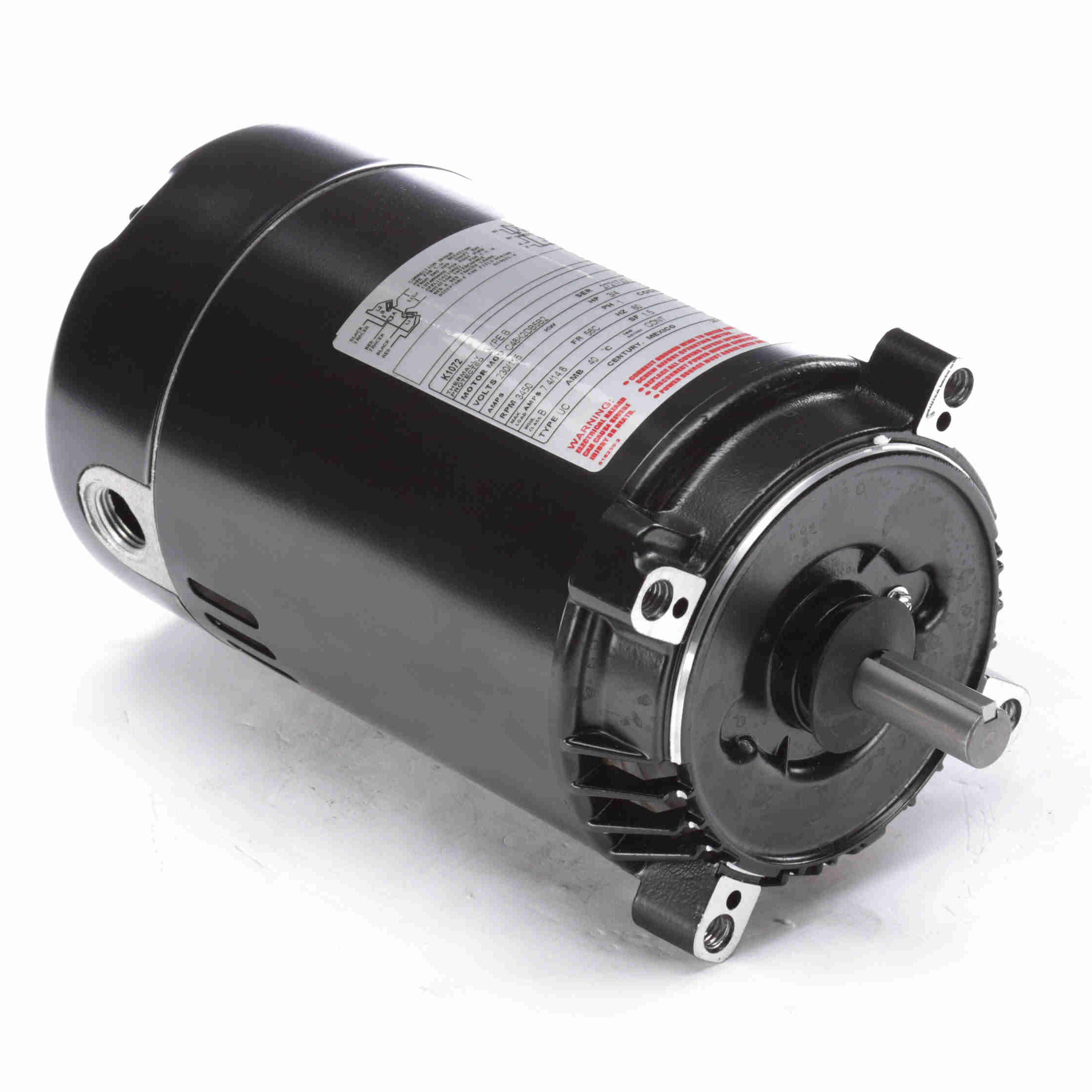

K1072 Century 3/4HP Pool / Spa Jet Pump Electric Motor, 3450 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K1072

Available Stock: 1
Selected accessories will also be added to cart
$251.97 / Each
Quantity:
New, Surplus Stock

Features

Features
  • Internally mounted capacitor
  • Sealed switch design
  • Keyed shaft

General Specifications

General Specifications
Model : Catalog No :K1072
Part Description :3/4,3450,ODP,56C,1/60/230/115 Category :Jet Pump
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :3/4 Hp Output KW :0.56 kW
Frequency :60 Hz Voltage :230/115 V
Current :7.4/14.8 A Speed :3450 rpm
Service Factor :1.5 Phase :1
Duty :Continuous Insulation Class :B
Frame :56C Enclosure :Open Drip Proof
Overload Protector :Automatic Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :Round Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :11.56 in
Frame Length :6.25 in Shaft Diameter :0.625 in
Shaft Extension :2.06 in UPC :786674025609
Weight :21.00 LB
