/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/K1070 Century 3/4HP Pool Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: K1070

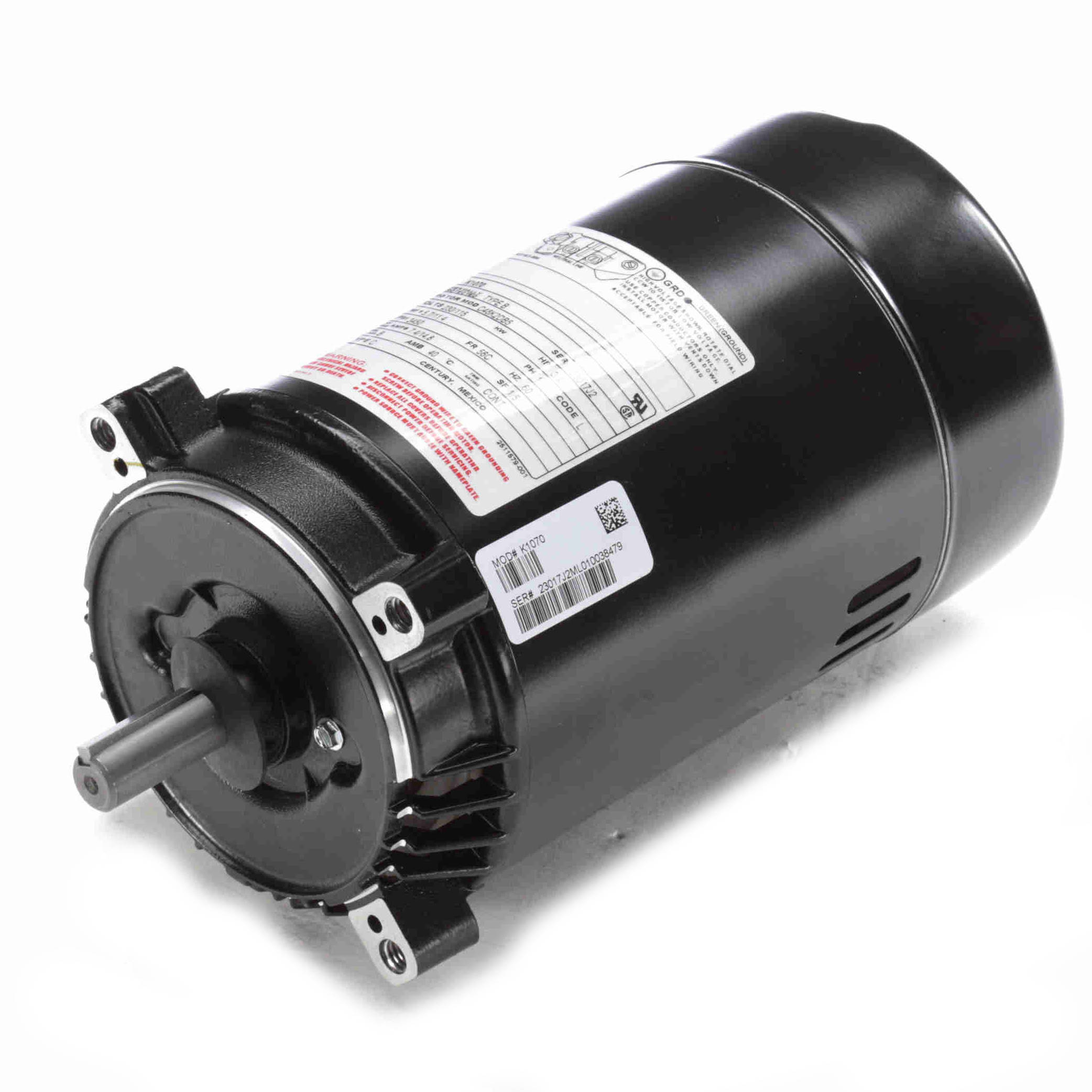

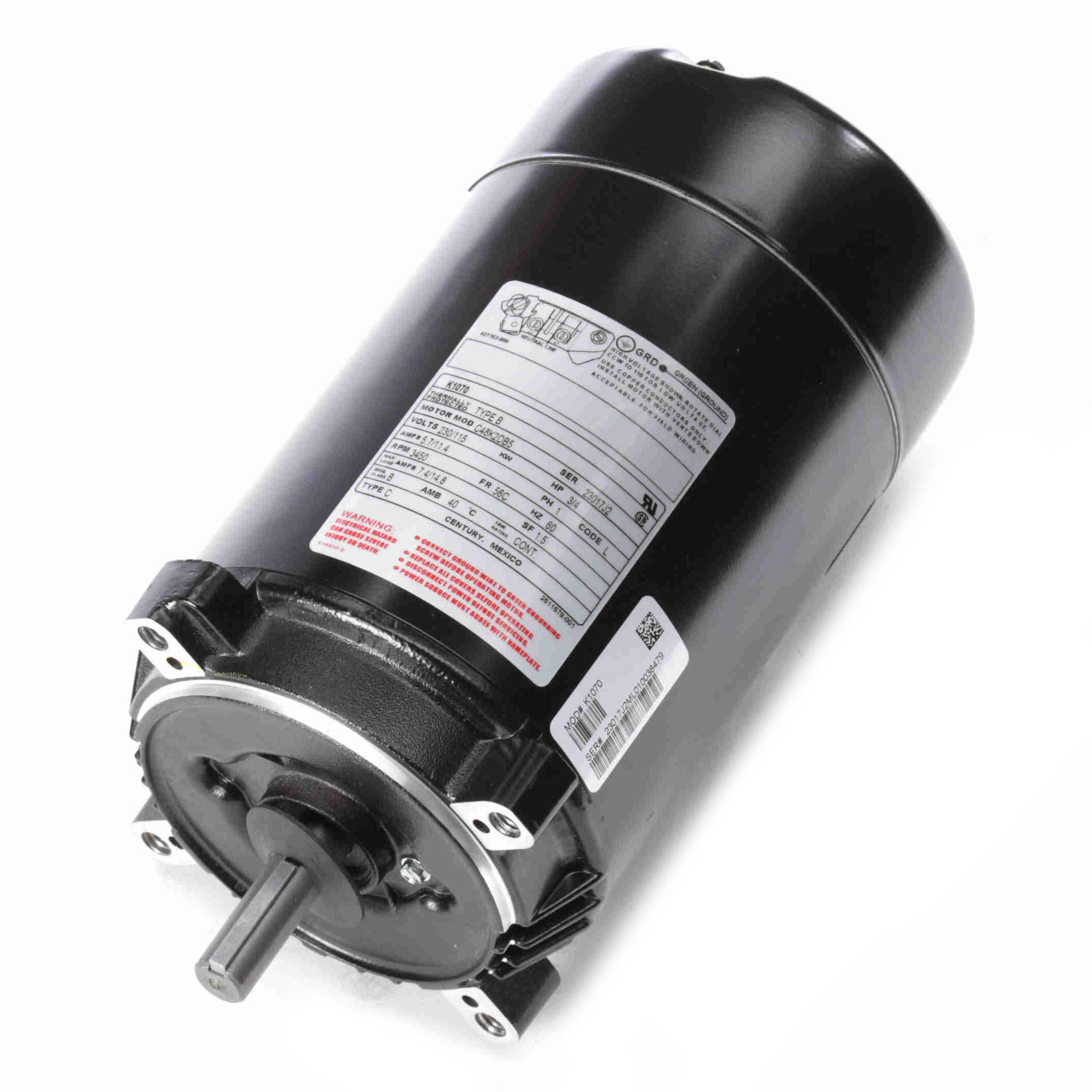

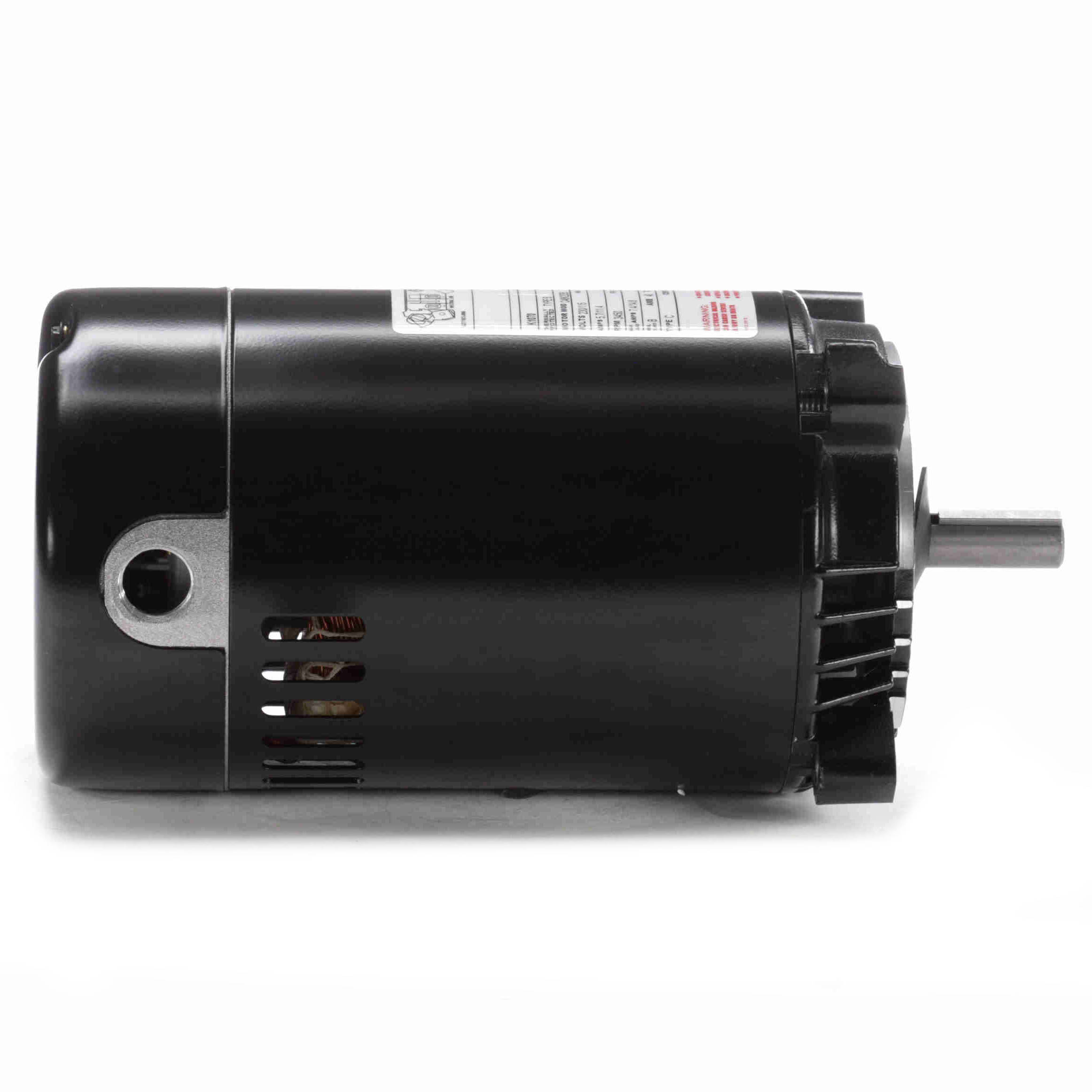

K1070 Century 3/4HP Pool Pump Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K1070

Selected accessories will also be added to cart
$251.97 / Each
Quantity:
ODP, 56C Frame, 115/230VAC Single Phase 60Hz, Round Body, Rolled Steel, 5/8" Keyed Shaft

Features

  • Internally mounted capacitor
  • Sealed switch design
  • Keyed shaft

General Specifications

UPC: 786674025593 Weight: 19.00 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 9.5 IN

Nameplate Specifications

Output HP: 3/4 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 230/115 V
Current: 5.7/11.4 A Speed: 3450 rpm
Service Factor: 1.5 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Pump End
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.56 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in
