/Products/Electric Motors/Single Phase/Century/Farm Duty/Extra High Torque/K102V2 Century 1HP General Purpose Farm Duty Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: K102V2

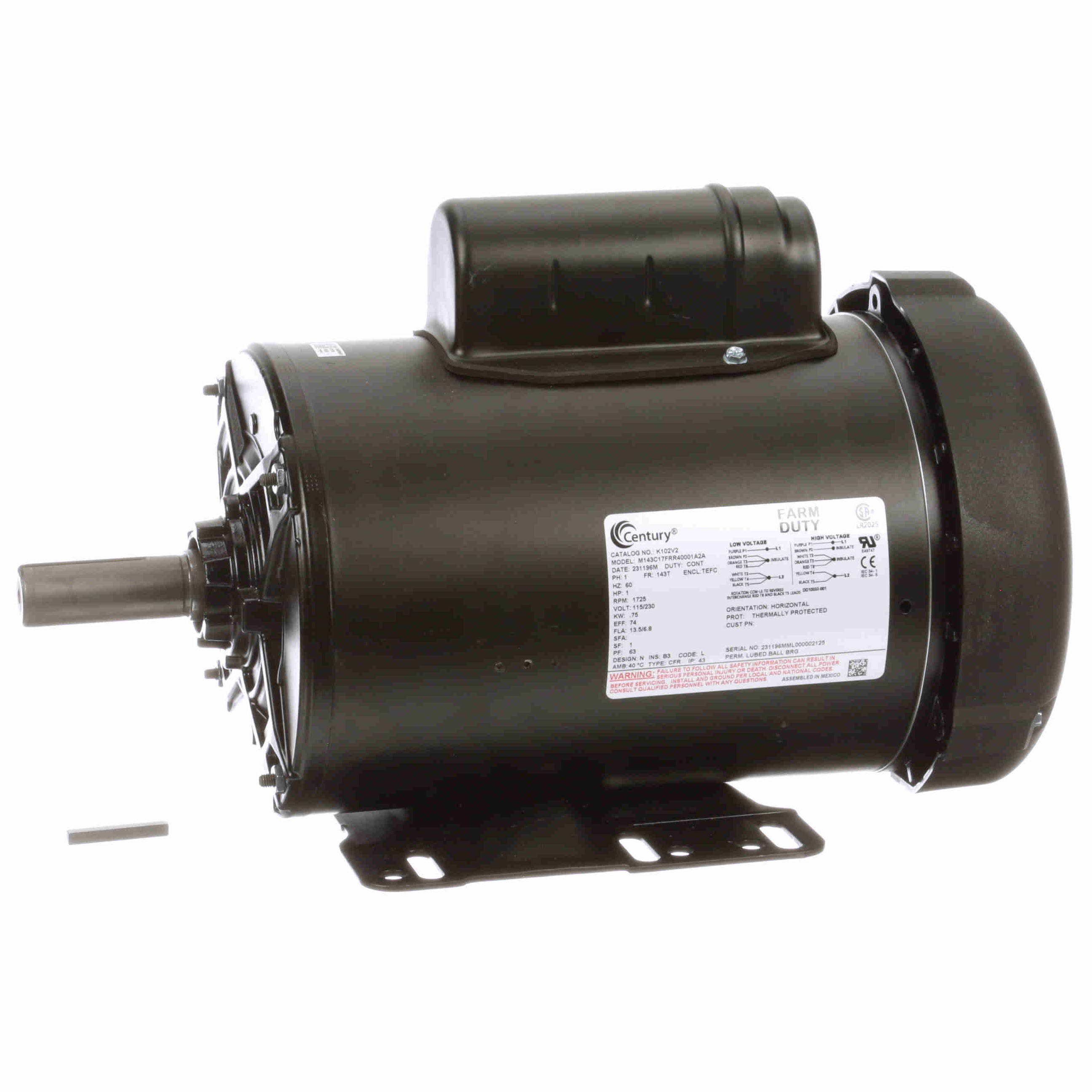

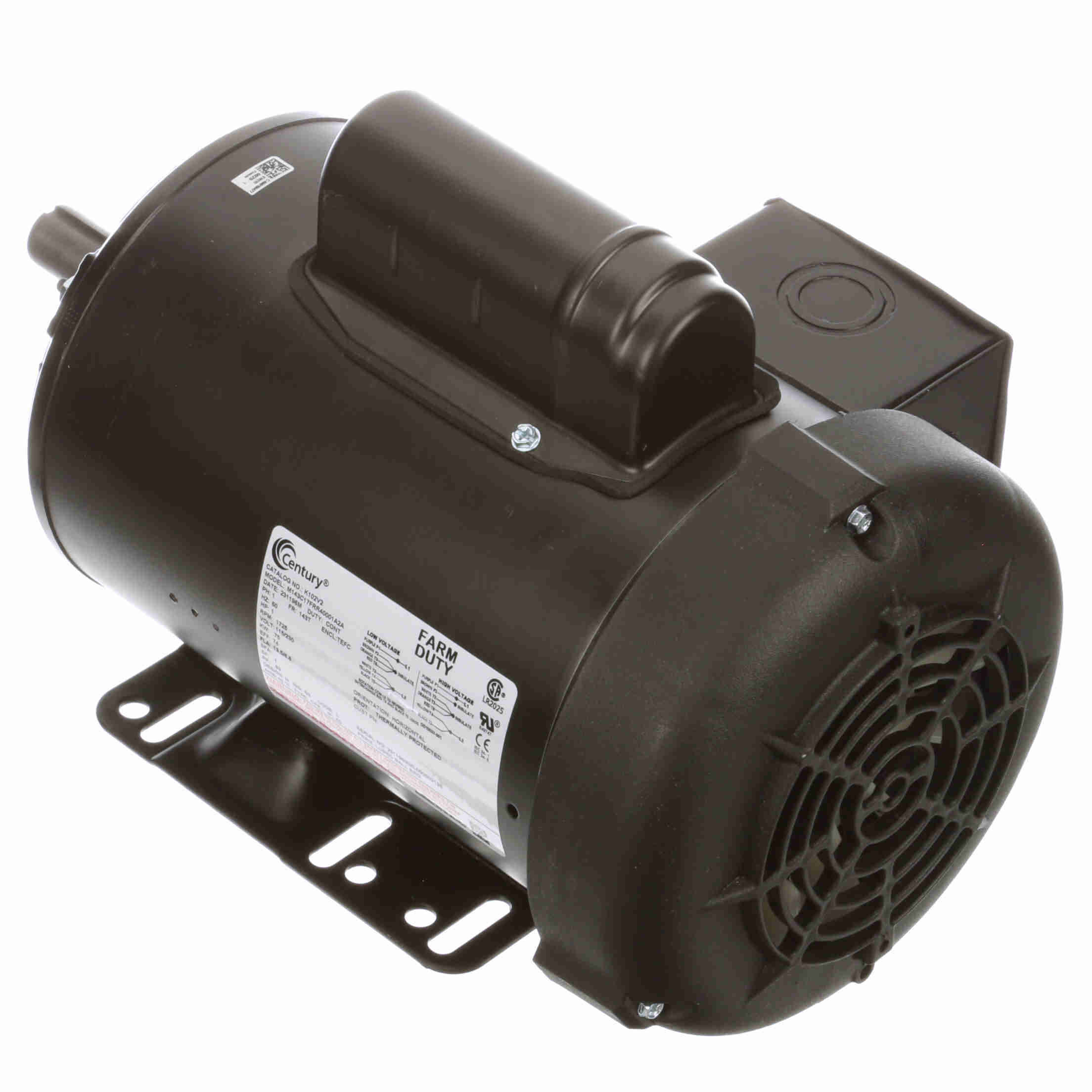

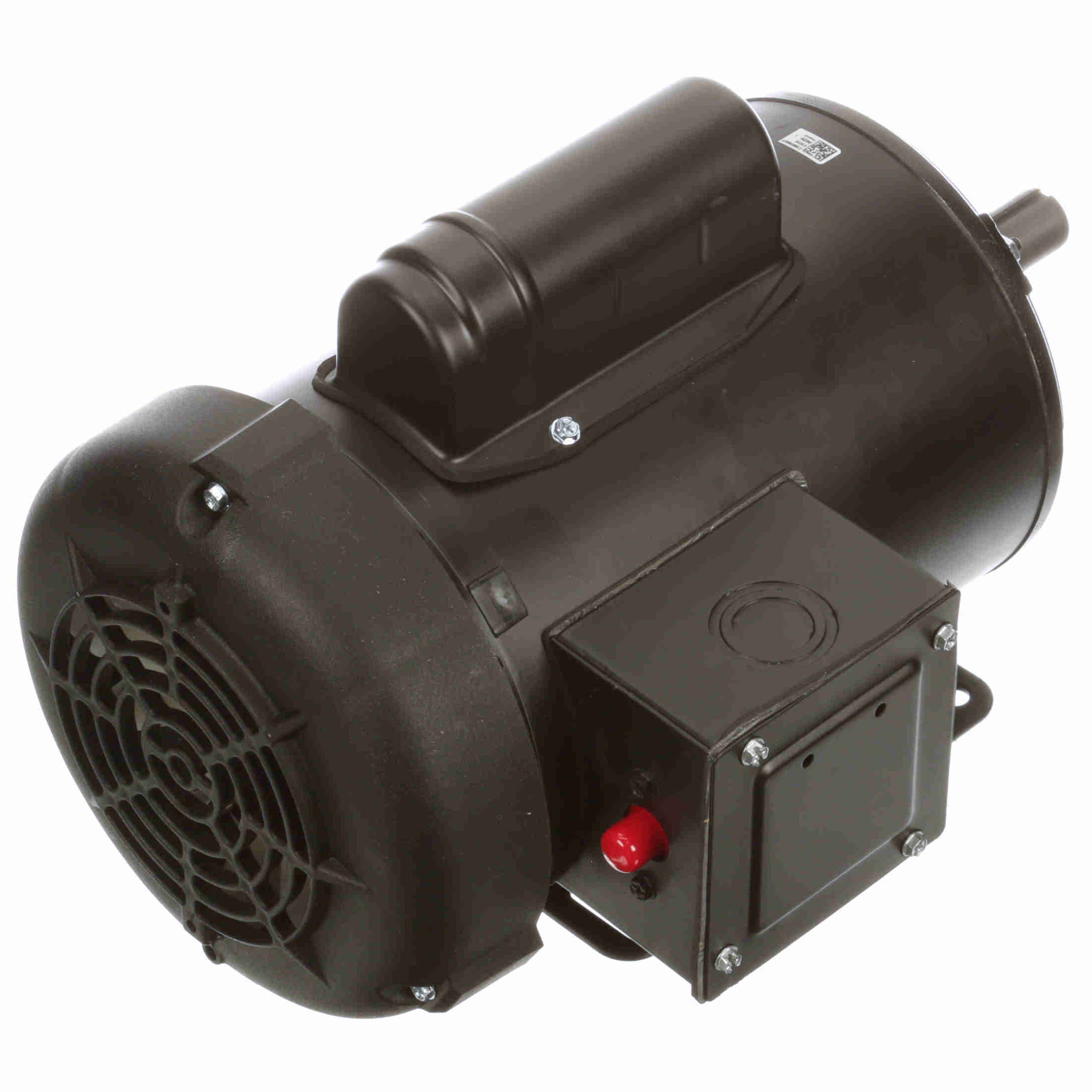

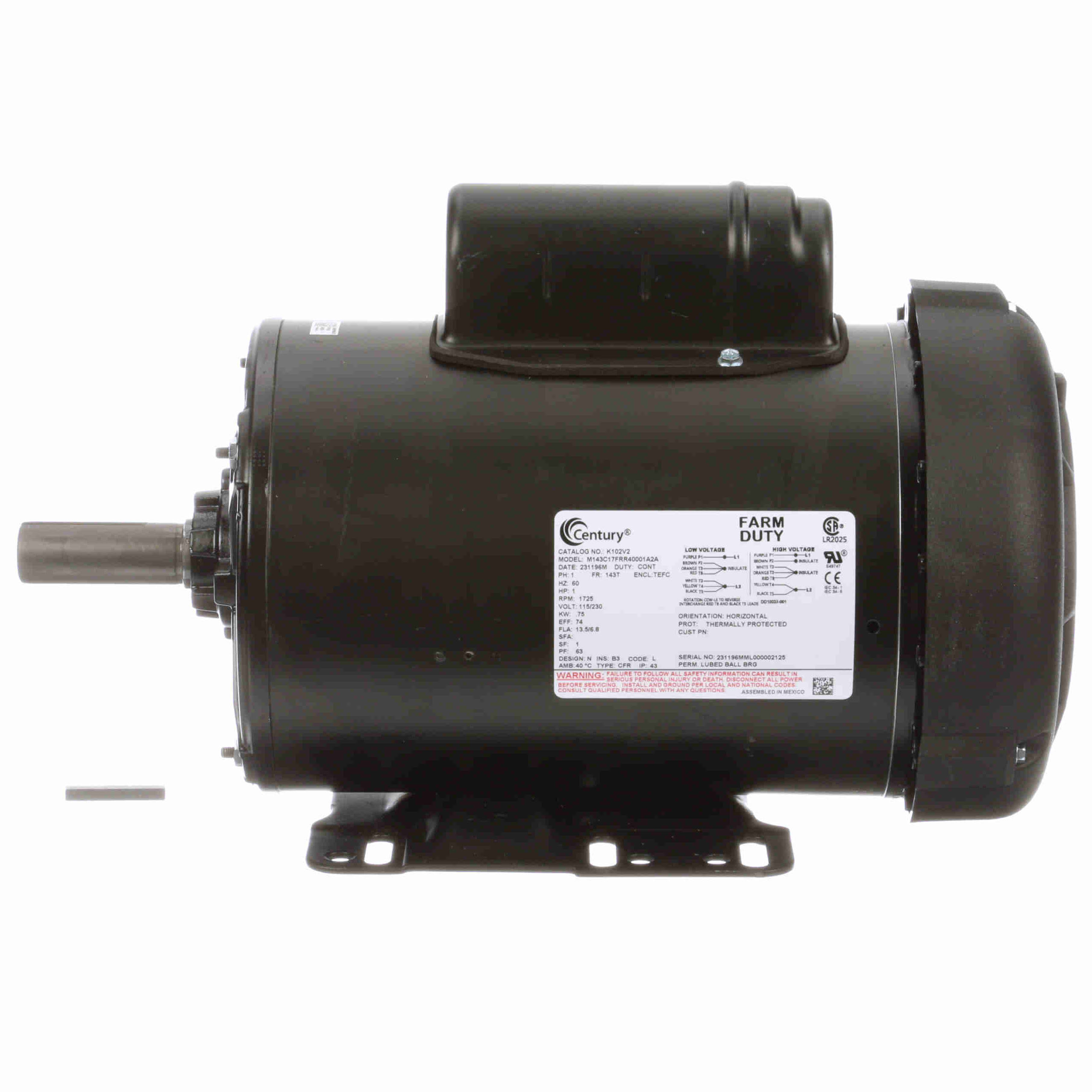

K102V2 Century 1HP General Purpose Farm Duty Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K102V2

Selected accessories will also be added to cart

$167.97 / Each

Quantity:

TEFC, 143T Frame, 115/230VAC 60Hz Single Phase, Rigid Base, Rolled Steel, 7/8" Keyed Shaft

Details

Features

High starting torque
Removable condensate drain plugs
Manual reset thermal protector
All parts are corrosion resistant

General Specifications

UPC:	786674074973	Weight:	38.00 LB
Packaged Length:	15.5 IN	Packaged Width:	10.5 IN
Packaged Height:	10 IN

Nameplate Specifications

Output HP:	1 Hp	Output KW:	0.75 kW
Frequency:	60 Hz	Voltage:	115/230 V
Current:	13.5/6.8 A	Speed:	1725 rpm
Service Factor:	1	Phase:	1
Duty:	Continuous	Insulation Class:	B
Frame:	143T	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	Thermally Protected	Ambient Temperature:	40 °C
UL:	Recognized	CSA:	Y
CE:	Y

Technical Specifications

Electrical Type:	Capacitor Start Induction Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Mounting:	Rigid base	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	T	Overall Length:	14.20 in
Frame Length:	8.15 in	Shaft Diameter:	0.875 in
Shaft Extension:	2.25 in
