/C-Frame/K102 Fasco 1/500HP C-Frame/Skeleton Electric Motor, 1100RPM
Click Image to Expand

Product ID: K102

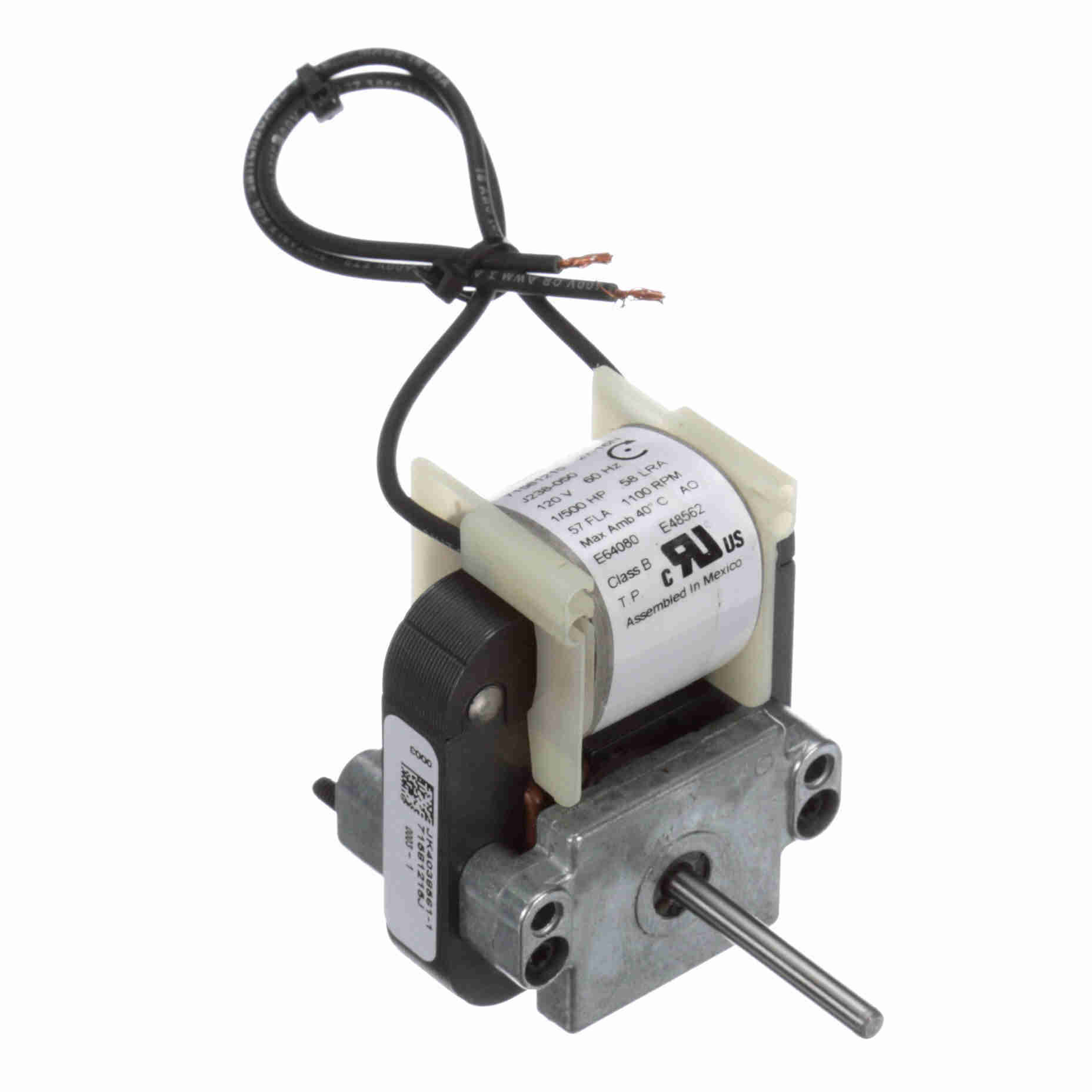

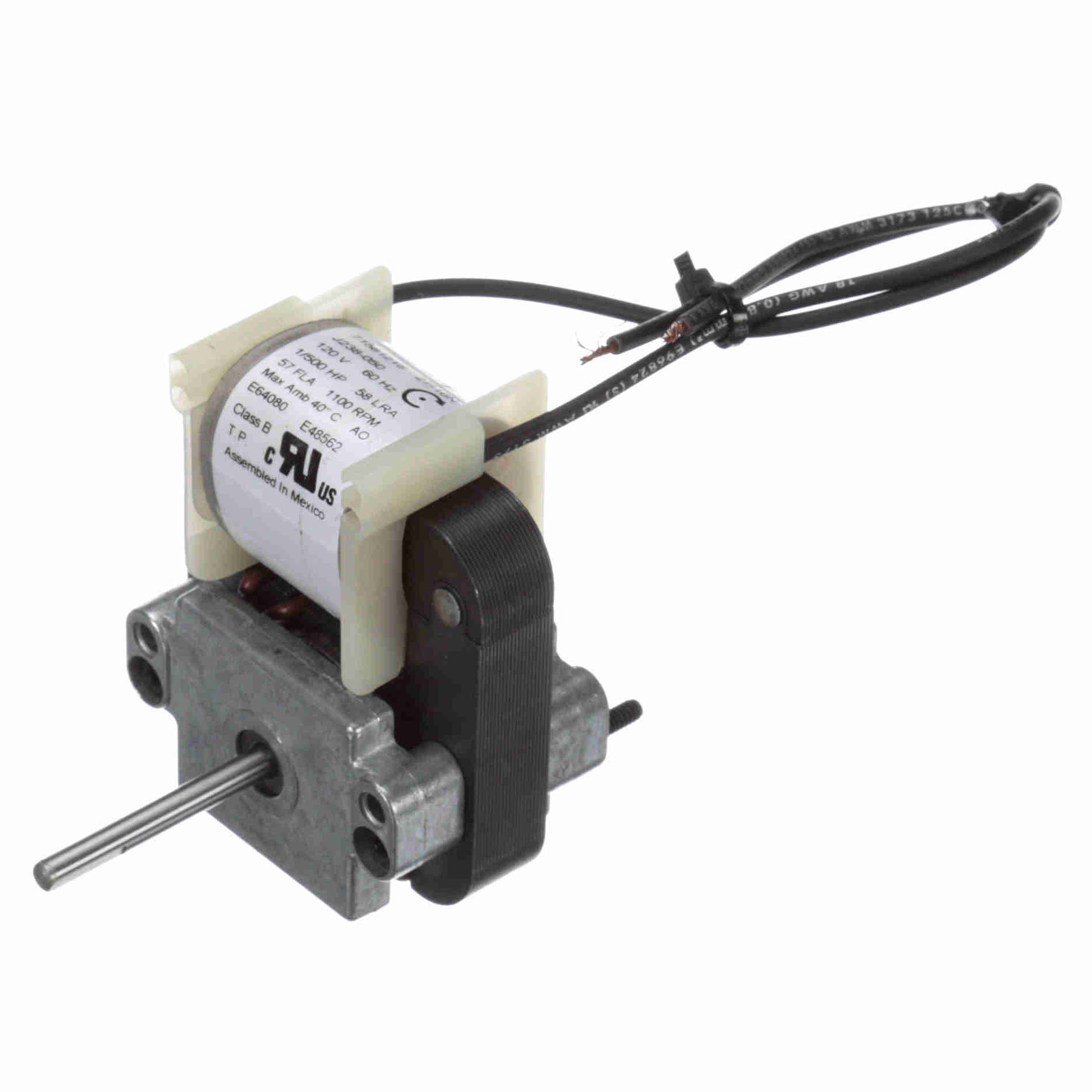

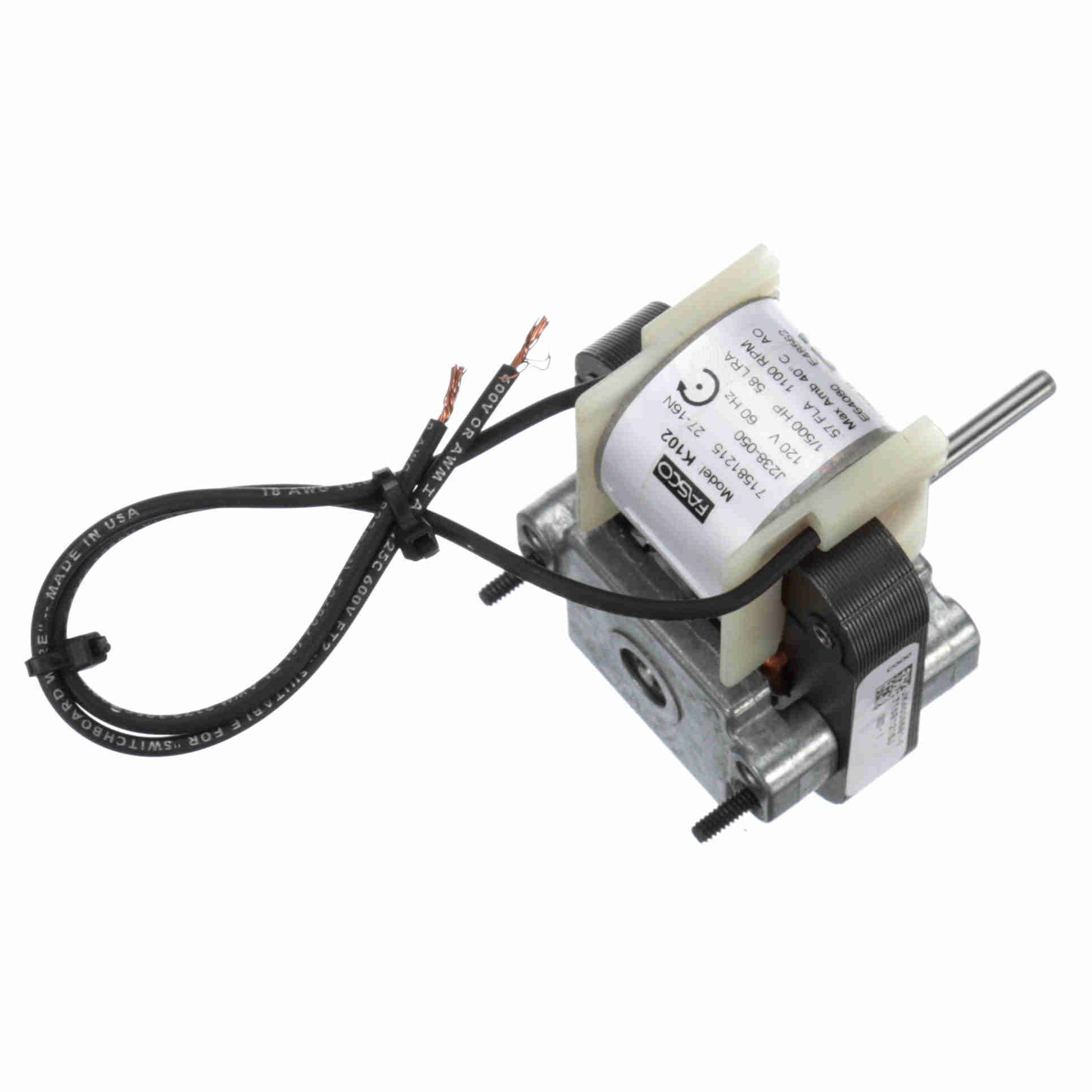

K102 Fasco 1/500HP C-Frame/Skeleton Electric Motor, 1100RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: K102

Selected accessories will also be added to cart
$61.97 / Each
Quantity:
Open Air Over, 120VAC Single Phase 60Hz, CWSE, Shaded Pole, Extended Studs, Sleeve Bearings, 0.181" x 1.50" Shaft

Features

Features
  • OEM Direct Replacement Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected, One-Shot Fuse
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • .1811" Diameter Shaft with Flat
  • 8.5"/7.5" Leads with .25" Strip
  • Extended Studs Opposite Shaft End

General Specifications

General Specifications
Model : Catalog No : K102
Part Description : 71581215.C-FRAME..1/500 HP.1 SPD. Category : C-Frame / Skeleton
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/500 HP Output KW : 0.001 kW
Frequency : 60 Hz Voltage : 120 V
Current : 0.57 A Speed : 1100 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : C-FRAME Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : N
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 6 Rotation : Clockwise Shaft End
Mounting : Extended Studs Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Flat Overall Length : 3.46 in
Shaft Diameter : 0.181 in Shaft Extension : 1.50 in
UPC : 818508021508 Weight : 1.00 LB
