/Products/Electric Motors/3 Phase/Teco-Westinghouse/Closed Coupled Pump/Cast Iron, NEMA Premium (JPP)/JPP0052 Teco-Westinghouse 5HP Close-Coupled Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: JPP0052

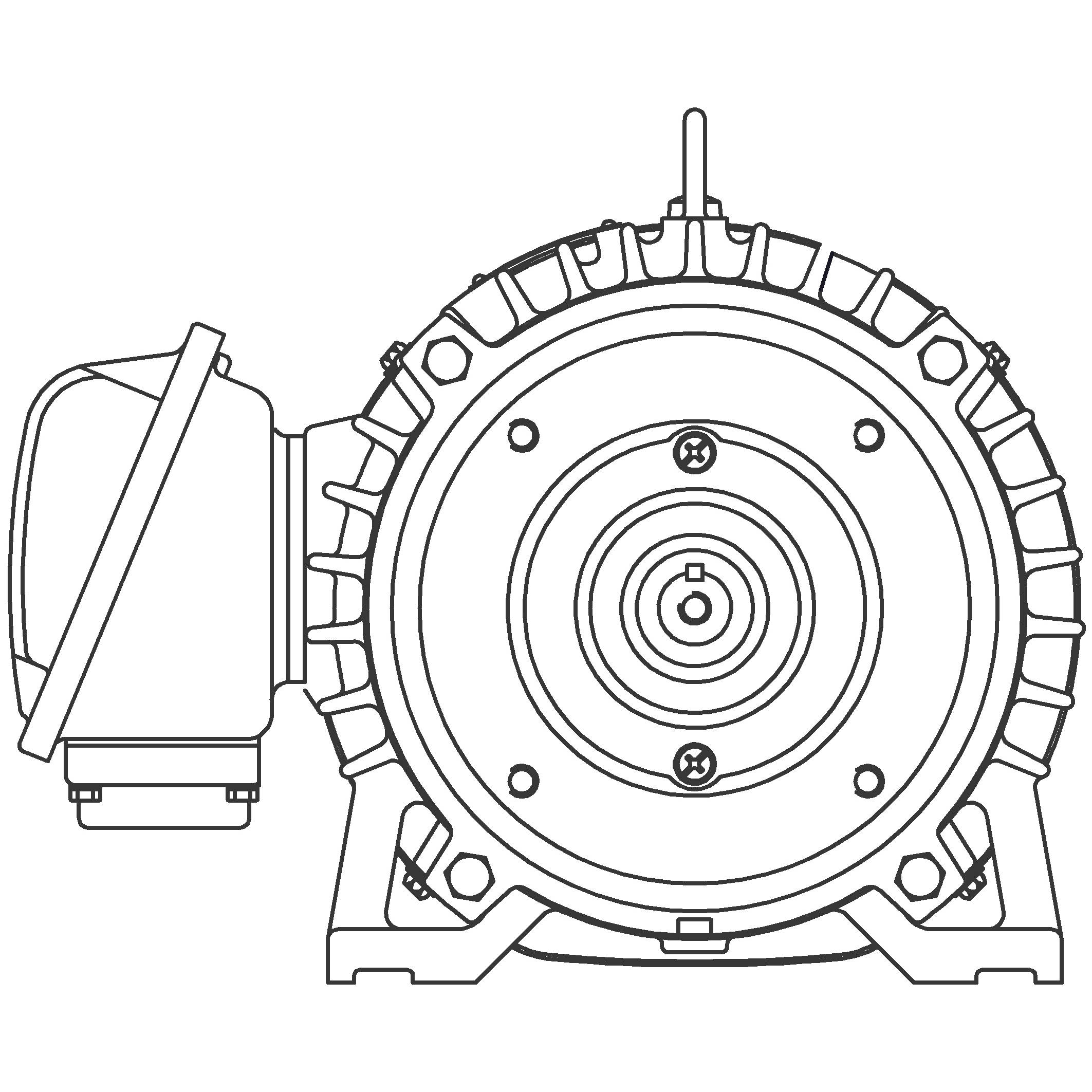

JPP0052 Teco-Westinghouse 5HP Close-Coupled Pump Electric Motor, 3600RPM

MFG: TECO-Westinghouse
MFG Part Number: JPP0052

Selected accessories will also be added to cart
$669.97 / Each
Quantity:
TEFC, 184JP, 208-230/460VAC 60Hz 3-Phase, Cast Iron Frame, NEMA Premium Efficiency

Specifications

Brand Teco-Westinghouse
Catalog JPP0052
Type AEHH8NJP
Frame 184JP
Output Power 5 HP
3.7 kW
RPM 3600 RPM
Voltage 208-230/460VAC
60Hz 3-Phase
Enclosure TEFC
Rated Ambient 40°C
Insulation Class F
NEMA Design B
Service Factor 1.15
Time Rating Continuous
Full Load Efficiency 87.5 %
Full Load Power Factor 88.0 %
Full Load Amps 12.2Amps @ 230VAC
Shipping Weight 95 lbs

Features

  • Enclosure: Totally Enclosed Fan Cooled (IP54)
  • Voltage: 230/460VAC (Usable on 208VAC)
  • Three Phase
    60Hz, 1.15 Service Factor
    50Hz, 1.00 Service Factor
  • CSA Certified for Class I, Division 2, Groups B, C & D – Temp Code T3C Minimum
  • Class F Insulation
  • Class B Temperature Rise
  • NEMA Design B Torques
  • Cast Iron Frame, End Brackets, Fan Cover and Main Conduit Box
  • Grounding Terminal Inside Main Conduit Box
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments – F1 Mounted
  • Designed for 40°C Ambient Temperature
  • Designed for 3300 Feet Elevation
  • Bi-Directional Rotation
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction
  • Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
  • Paint Color: Premium – Light Gray – Munsell N5.0
  • Double Shielded Ball Bearings Pre-Packed with MULTEMP SRL for Frames 140JP/JM – 280JP/JM (Non-Regreasable)
  • Rubber Dust Flinger on DE for Frames 140JP/JM – 280JP/JM
  • Stainless Steel Nameplate
    Dual Column Design Nameplate as Standard (50/60Hz)
  • Suitable for Inverter use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 10:1 Variable Torque, 5:1 Constant Torque
  • 9 Leads for 5HP and Smaller
  • Motors are UL Recognized, CSA Approved and CE Marked

Applications

  • Pumps
