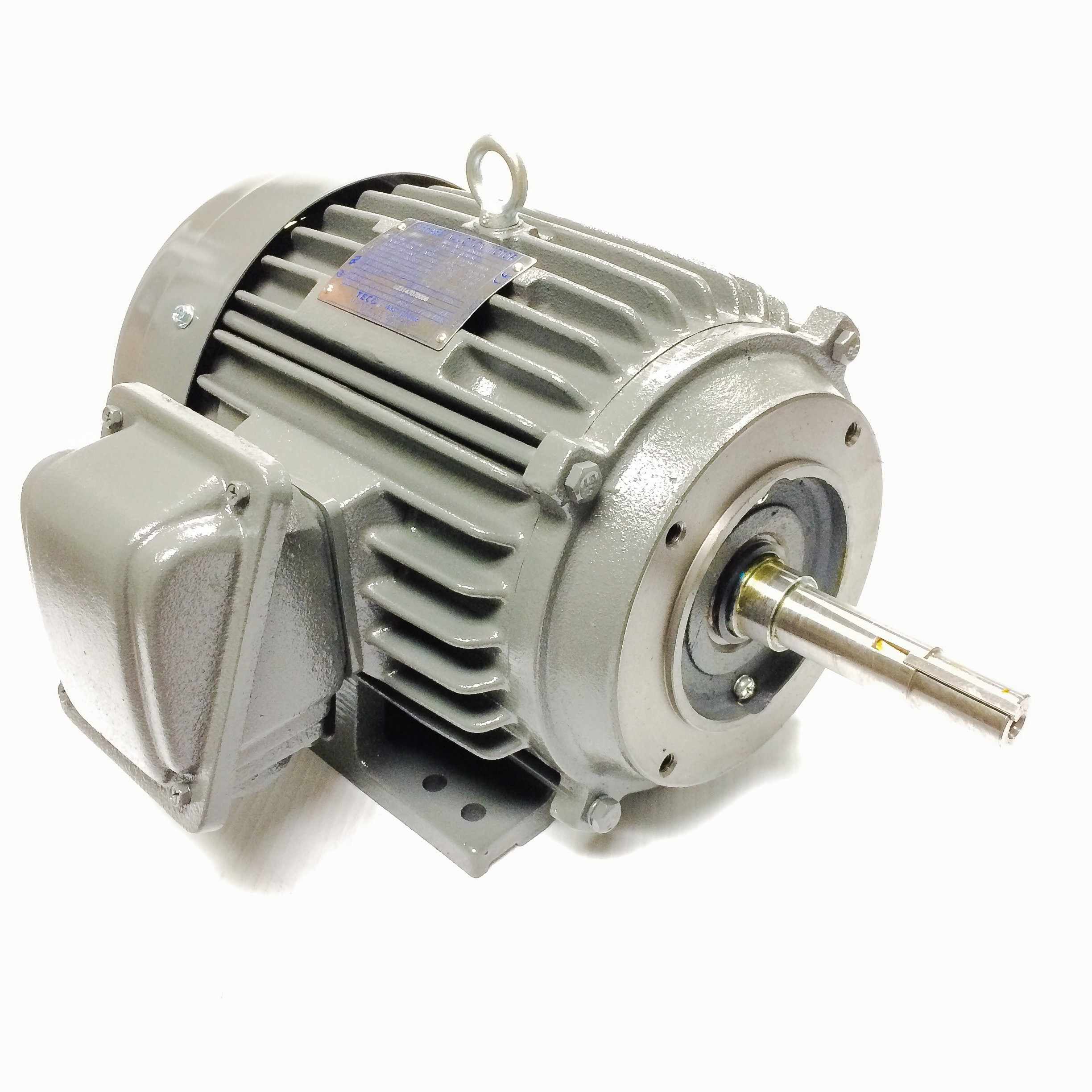

APPLICATIONS:
• Pumps
FEATURES:
• 3/4 - 50 hp
• 3600, 1800, 1200 RPM
• JP and JM Shafts
• Totally Enclosed Fan Cooled (IP54)
• Meets or Exceeds EPAct Efficiency Levels and EISA Legislation
• Department of Energy Efficiency Certificate # CC002A
• 36 Month Warranty from Date of Manufacture
• 60 Hz - 230/ 460V (Usable on 208V)
• 1.15 Service Factor – Continuous
• 50 Hz Data on Nameplate - 190/ 380V at 1.0 S.F.
• Class F Insulation with Phenolic Alkyd Resin Varnish
• Class B Temperature Rise
• NEMA Design B Torques
• Oversized Main Conduit Box Rotatable in 90 Degree Increments - Fully Gasketed with NPT Threaded Entrance - F1 Mounted. F2 Available - See EXTRAS/ OPTIONS Below
• Designed for 40°C Ambient Temperature - Note (1)
• Designed for 3300 ft. Elevation - Note (2)
• Factory Self-Certified for Class 1, Div. 2, Groups B, C, D; Temp Code T3C, 400T and Below - Note (3)
• Bidirectional Rotation
• Cast Iron Frame, End Brackets, Main Conduit Box and Rolled Steel Fan Cover
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
• Paint Color: Blue Gray – Munsell 7.5 BG 4/ 2
• Vacuum De-Gassed Re-Greasable Bearings Frames 324JM/JP-365JM/JP with Polyrex EM Grease
• Double Shielded Bearings on Frames 140JM/JP-280JM/JP Pre-Packed with MULTEMP SRL Grease
• Labyrinth Type Metal Flinger on Both Ends for Frames 324JM/JP-365JM/JP
• Cast Iron Inner and Outer Bearing Caps for Frames 324JM/JP-365JM/JP
• Rubber Flinger on Drive-End for Frames 140JM/JP-280JM/JP
• Grounding Terminal Inside Main Box
• Stainless Steel Nameplate
• VFD Rated per NEMA MG1, Part 30 - Note (4) and (5)
• Speed Ranges: 10:1 VT, 5:1 CT
• 9 Leads - 5 hp and Below, 12 Leads 7.5 hp Larger
• CE Mark on Nameplate, CSA Approved
• Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG1, Part 31.4.4.3.
